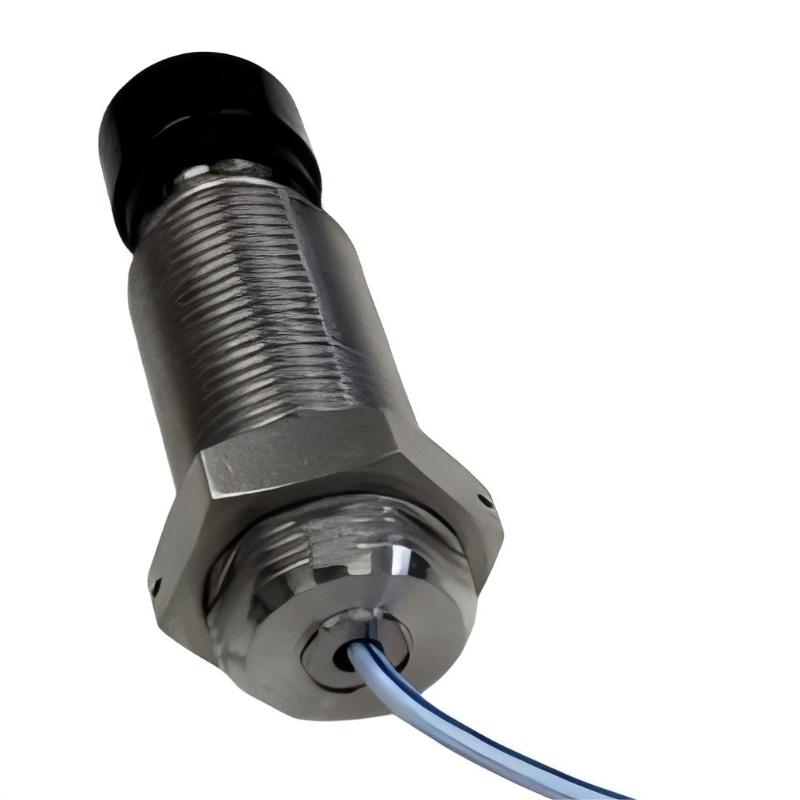

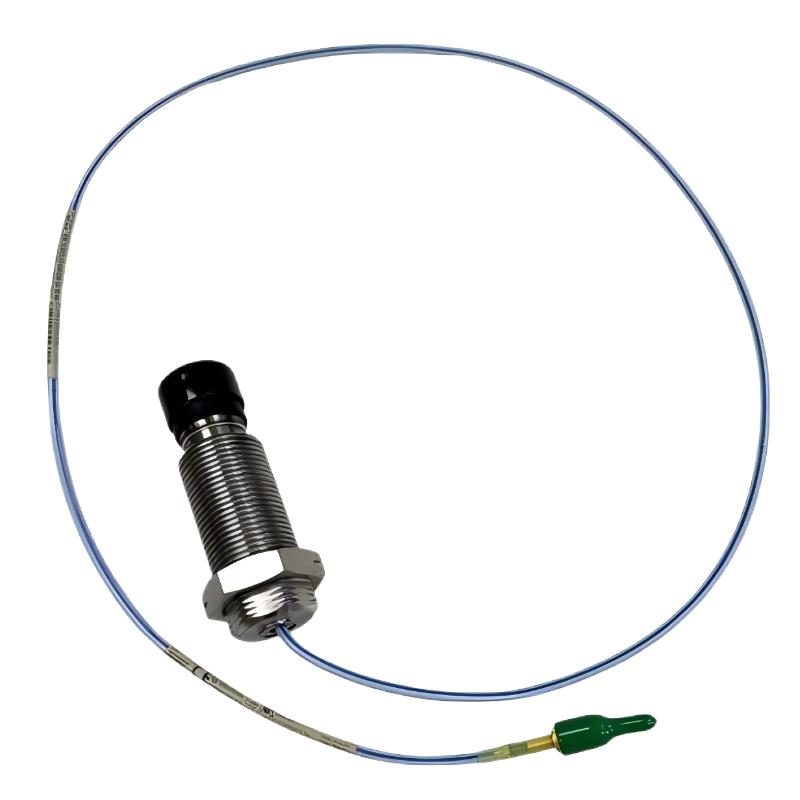

Q1. What is the operating principle of this 3300 XL proximity probe?
The Bently Nevada 330851-02-00-00-60-10-00-05 proximity probe operates using eddy current technology, which is a widely used non-contact measurement method in rotating machinery condition monitoring systems. The probe generates a high-frequency electromagnetic field at its sensing tip. When this field approaches a conductive metal surface such as a rotating shaft, eddy currents are induced within the material. These eddy currents generate an opposing electromagnetic field that changes the impedance of the probe coil. The system continuously measures these impedance variations and converts them into a calibrated, linear voltage output proportional to the distance between the probe tip and the shaft surface. This allows highly accurate detection of micro-level shaft movement without physical contact, ensuring stable operation even in harsh industrial environments.

Q2. What mechanical conditions can this probe detect?
This probe is designed to monitor key dynamic behaviors in rotating machinery, including radial shaft vibration, axial displacement, and rotor position changes. These measurements are essential indicators of machine health because they reflect internal mechanical conditions such as rotor imbalance, misalignment, bearing wear, shaft looseness, and oil film instability. By continuously tracking these parameters, the probe enables early detection of abnormal operating trends. This allows maintenance teams to identify developing faults before they escalate into serious mechanical failures that could cause unplanned downtime.

Q3. Why is a Proximitor driver required in this system?
The raw signal generated by the eddy current probe cannot be used directly because it is weak, nonlinear, and highly sensitive to environmental conditions. The Proximitor driver is required to supply excitation energy to the probe and to perform signal conditioning. It amplifies the signal, linearizes the response curve, compensates for temperature variations, and filters noise. The result is a stable, standardized analog voltage output that accurately represents the probe-to-target gap. Without the Proximitor, measurement accuracy and repeatability would not meet industrial monitoring requirements.

Q4. What are the most important installation requirements for this probe?
Proper installation is critical for achieving reliable measurement performance. The most important requirement is maintaining the correct static gap between the probe tip and the rotating shaft surface, since the output signal is directly proportional to this distance. Even small deviations can introduce measurement errors or nonlinear response. The probe must be securely mounted using its threaded structure to ensure mechanical stability under vibration and thermal cycling. Correct alignment is also necessary depending on whether radial or axial measurement is required. Additionally, cable routing must avoid electromagnetic interference sources such as VFDs and high-voltage equipment.

Q5. Which environmental conditions can affect measurement stability?
Although designed for industrial environments, several external factors can still influence measurement stability. Temperature fluctuations may cause slight signal drift due to electronic component behavior changes. Contamination on the shaft surface, such as oil film, dust, or corrosion, can affect eddy current coupling efficiency. Strong electromagnetic interference from nearby electrical systems may introduce noise into the signal. Mechanical instability, such as loose mounting or structural vibration at the installation point, can also affect signal consistency. Proper grounding and shielding are essential to minimize these effects.

Q6. How can probe signal issues be diagnosed effectively?
Signal issues are typically identified through symptoms such as unstable readings, sudden signal loss, signal drift, or inconsistent vibration trends. The diagnostic process should begin with a physical inspection of the probe, cable, and connectors to check for damage or loose connections. Next, verify that the probe is installed within the correct operating gap range. If installation is correct, system-level testing using a calibration reference can help confirm performance. If problems persist, the fault may lie in either the probe or the Proximitor driver, and component substitution is often used to isolate the issue.

Q7. Why is non-contact measurement essential in rotating machinery applications?
Non-contact measurement is essential because it eliminates physical interaction between the sensor and the rotating shaft, which is critical in high-speed machinery. Any physical contact would introduce friction, wear, heat generation, and mechanical loading effects that can affect both sensor performance and machine operation. Eddy current probes allow continuous real-time monitoring without disturbing rotor dynamics. They also remain reliable in harsh environments such as high temperature, oil mist, and strong vibration, where contact-based sensors would fail quickly. This makes them the standard solution for industrial rotating equipment monitoring.

Q8. What role does this probe play in predictive maintenance systems?
In predictive maintenance systems, this probe serves as a key data source for evaluating the health condition of rotating machinery. By continuously monitoring shaft vibration and displacement trends, it provides early indicators of mechanical degradation such as imbalance, misalignment, bearing wear, and rotor instability. These trends can be analyzed over time to detect gradual changes before they develop into serious failures. Maintenance teams can then plan interventions in advance rather than reacting to breakdowns. This improves equipment reliability, reduces unplanned downtime, and extends the operational life of critical assets.
