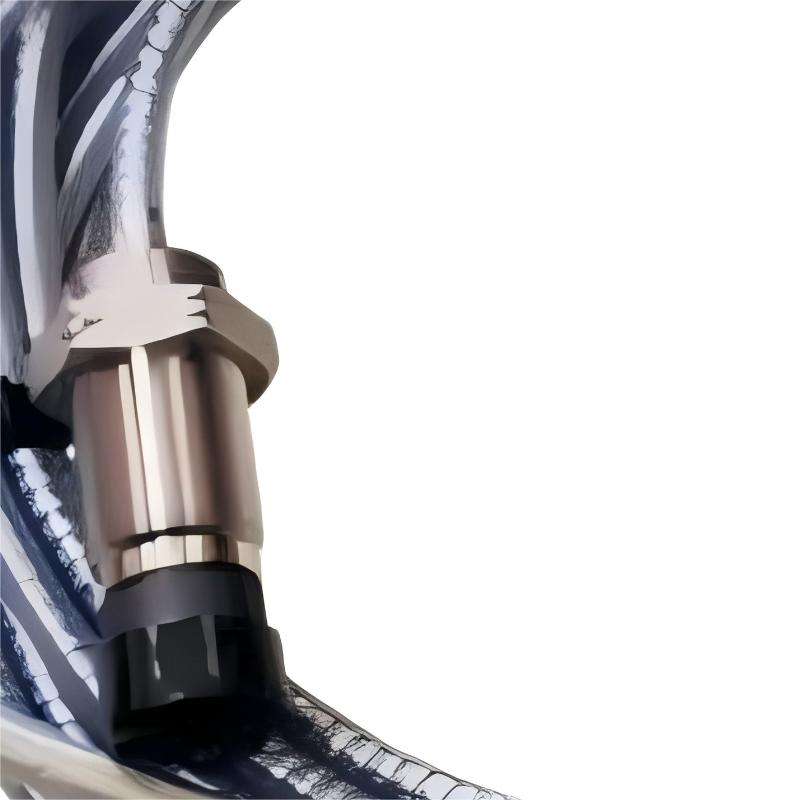

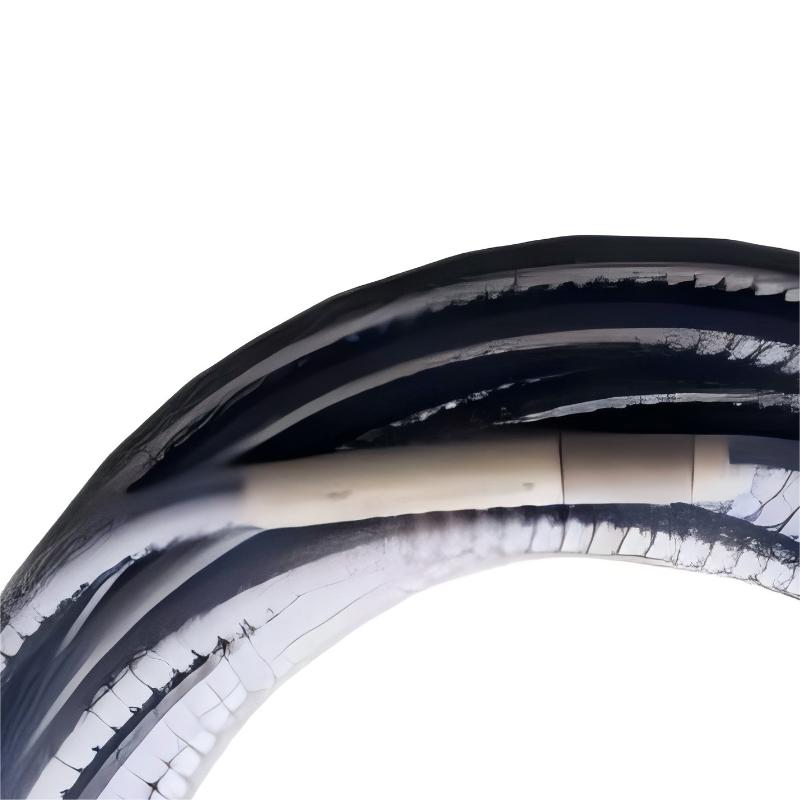

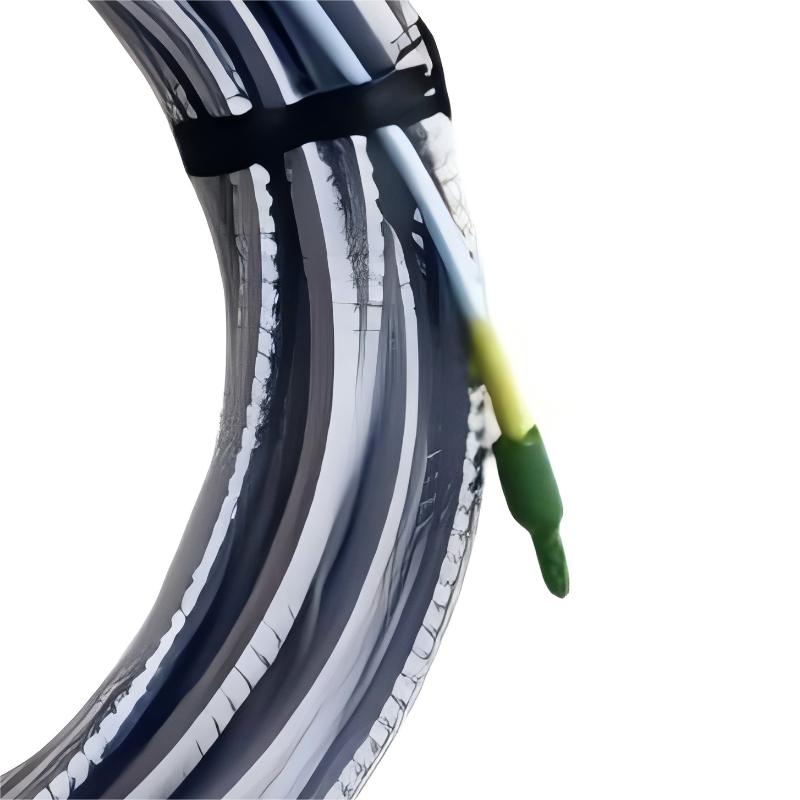

1. What is the primary function of the Bently Nevada 3300 XL 25 mm Proximity Probe?

The Bently Nevada 3300 XL 25 mm Proximity Probe is a high-performance eddy current proximity sensor designed for continuous monitoring of critical rotating machinery. Its primary function is to measure shaft vibration, shaft displacement, and relative position changes without physical contact with the rotating shaft. The probe works together with a compatible Proximitor sensor and monitoring system to provide accurate mechanical condition data for equipment protection and predictive maintenance.

In large industrial rotating machines, shaft movement information is essential for evaluating equipment health. Excessive vibration, abnormal shaft displacement, or changes in mechanical clearance can indicate problems such as rotor imbalance, misalignment, bearing wear, shaft bending, or other mechanical failures. The 3300 XL 25 mm probe detects these changes in real time and converts them into electrical signals that can be analyzed by monitoring systems.

The non-contact measurement design allows the probe to operate reliably in high-speed rotating equipment where traditional contact sensors may experience wear or mechanical limitations. Because there is no direct physical contact between the probe and the shaft, the system provides long-term stability and high measurement reliability.

By delivering continuous and accurate shaft condition information, the 3300 XL 25 mm Proximity Probe helps operators detect potential problems early, reduce unexpected equipment failures, and improve the safety and availability of critical machinery.

2. What types of equipment commonly use the 3300 XL 25 mm Proximity Probe?

The Bently Nevada 3300 XL 25 mm Proximity Probe is widely used in large rotating equipment where accurate shaft vibration and displacement monitoring are required. It is commonly installed in machinery that plays a critical role in industrial production and power generation processes.

Typical applications include steam turbines, gas turbines, centrifugal compressors, generators, pumps, motors, and other high-speed rotating machines. These types of equipment often operate continuously under heavy loads, making reliable condition monitoring essential.

In power plants, the probe is frequently used to monitor turbine shaft vibration and axial position changes. In oil and gas facilities, it is commonly applied to compressors and pumps where unexpected mechanical failures can result in significant production losses. In manufacturing industries, the probe supports predictive maintenance strategies by providing real-time information about machine operating conditions.

The 3300 XL system is especially valuable in applications where equipment downtime is expensive or dangerous. Continuous monitoring allows maintenance teams to identify abnormal trends before they develop into serious failures, helping improve operational efficiency and reduce maintenance costs.

3. How does the Bently Nevada 3300 XL 25 mm Proximity Probe work?

The Bently Nevada 3300 XL 25 mm Proximity Probe operates based on the principle of eddy current measurement technology. The probe contains a sensing coil that generates a high-frequency electromagnetic field. When the probe is positioned near a conductive metal target, such as a rotating shaft, eddy currents are generated on the surface of the target.

Changes in the distance between the probe tip and the shaft surface affect the strength of the electromagnetic field and the characteristics of the eddy currents. The probe system detects these changes and converts them into electrical signals representing the actual shaft position or movement.

The signal is then processed by the compatible Proximitor sensor, which provides a standardized output signal for vibration monitoring systems. This allows operators and control systems to continuously analyze shaft movement and detect abnormal mechanical conditions.

Because the measurement process does not require physical contact, the probe can monitor high-speed rotating components without introducing friction, wear, or mechanical interference. This makes eddy current proximity probes highly suitable for critical machinery protection applications.

4. How can technicians determine whether the 3300 XL 25 mm Proximity Probe is working properly?

To determine whether the 3300 XL 25 mm Proximity Probe is functioning correctly, technicians should perform a combination of physical inspection, electrical testing, and system analysis.

The first step is to inspect the probe installation condition. Technicians should check whether the probe is securely installed, whether the cable connection is reliable, and whether there are any signs of mechanical damage, contamination, or cable deterioration.

The next step is to verify the electrical output signal. Using appropriate diagnostic equipment, technicians can check whether the probe and Proximitor system provide stable output signals corresponding to the actual shaft position. Abnormal conditions such as unstable readings, sudden signal jumps, missing output, or incorrect gap voltage may indicate problems with the probe, cable, or associated electronics.

The monitoring system data should also be reviewed. If vibration readings suddenly change without corresponding mechanical changes, the probe installation, target surface condition, and signal path should be examined.

A complete diagnostic process should include checking the probe, extension cable, Proximitor sensor, and monitoring system together because failures in any part of the measurement chain can affect the final vibration data.

5. What precautions should be taken when replacing a Bently Nevada 3300 XL 25 mm Proximity Probe?

When replacing the 3300 XL 25 mm Proximity Probe, proper maintenance procedures should be followed to ensure measurement accuracy and system reliability.

Before replacement, the rotating equipment should be safely shut down according to site procedures. Since the probe is normally installed near rotating shafts, technicians must confirm that the machinery is completely stopped and safe to access.

The replacement probe should be verified to ensure that the model configuration matches the existing monitoring system requirements. The probe length, electrical characteristics, and compatibility with the Proximitor sensor must be confirmed before installation.

During installation, the probe position and mounting condition are very important. Incorrect installation clearance between the probe tip and shaft surface can cause inaccurate vibration or displacement readings. The cable connection should also be checked carefully to avoid signal loss or electrical interference.

After installation, system calibration and functional testing should be performed. Technicians should verify gap voltage, signal output, and monitoring system response before returning the equipment to normal operation.

Proper installation procedures ensure that the new probe provides reliable measurement performance and maintains the accuracy of the machinery protection system.

6. Why is the 3300 XL 25 mm Proximity Probe suitable for critical machinery condition monitoring?

The 3300 XL 25 mm Proximity Probe is suitable for critical machinery monitoring because it provides accurate, continuous, and reliable measurement of shaft movement without physical contact.

Critical rotating equipment such as turbines and compressors often operates at high speeds and under demanding mechanical conditions. Small changes in shaft vibration or displacement can indicate developing problems that may lead to equipment damage. The probe provides early detection capability by continuously monitoring these mechanical changes.

The non-contact eddy current measurement method provides several advantages, including high response speed, excellent repeatability, and resistance to mechanical wear. Since the probe does not physically touch the rotating shaft, it can operate for long periods with minimal degradation.

The probe is also designed for integration with Bently Nevada monitoring systems, allowing collected data to be used for alarm functions, machine protection, and predictive maintenance analysis.

By providing real-time condition information, the 3300 XL 25 mm Proximity Probe helps industries improve equipment reliability, reduce unplanned shutdowns, and optimize maintenance schedules.

7. What factors can affect the measurement accuracy of the 3300 XL 25 mm Proximity Probe?

Several factors can influence the measurement accuracy of the 3300 XL 25 mm Proximity Probe, including installation conditions, shaft surface characteristics, electrical environment, and system configuration.

One of the most important factors is installation clearance. The distance between the probe tip and the rotating shaft must be properly adjusted according to system requirements. Incorrect positioning may cause inaccurate readings or unstable output signals.

The condition and material of the target shaft surface can also affect measurement performance. Surface damage, contamination, corrosion, or unsuitable target material characteristics may influence the eddy current measurement process.

Electrical interference is another possible factor. Strong electromagnetic noise, poor cable routing, damaged cables, or improper grounding can introduce signal disturbances and affect monitoring accuracy.

Regular inspection and maintenance are recommended to maintain reliable performance. Checking probe installation, cable condition, signal stability, and monitoring system parameters can help prevent inaccurate measurements and ensure long-term operational reliability.

8. What commissioning procedures are required after installing a new 3300 XL 25 mm Proximity Probe?

After installing a new Bently Nevada 3300 XL 25 mm Proximity Probe, a complete commissioning procedure should be performed to confirm that the measurement system operates correctly.

First, technicians should verify that the probe installation is mechanically secure and that all connections between the probe, extension cable, Proximitor sensor, and monitoring system are correct. Any incorrect connection may result in unreliable measurement signals.

Next, the electrical parameters should be checked. Technicians should confirm that the probe output signal, gap voltage, and monitoring values are within the expected operating range. These checks help verify that the probe is correctly positioned and functioning properly.

After the equipment is started, vibration and displacement readings should be monitored during different operating conditions. The measured values should be compared with normal operating parameters to confirm system accuracy.

Alarm settings and protection functions should also be tested to ensure that the monitoring system responds correctly when abnormal conditions occur.

A complete commissioning process ensures that the 3300 XL 25 mm Proximity Probe provides accurate shaft monitoring data and allows critical rotating equipment to operate safely and reliably for long-term industrial service.
