1. What is the main purpose of the Bently Nevada 330851-04-000-020-10-01-00 proximity probe?

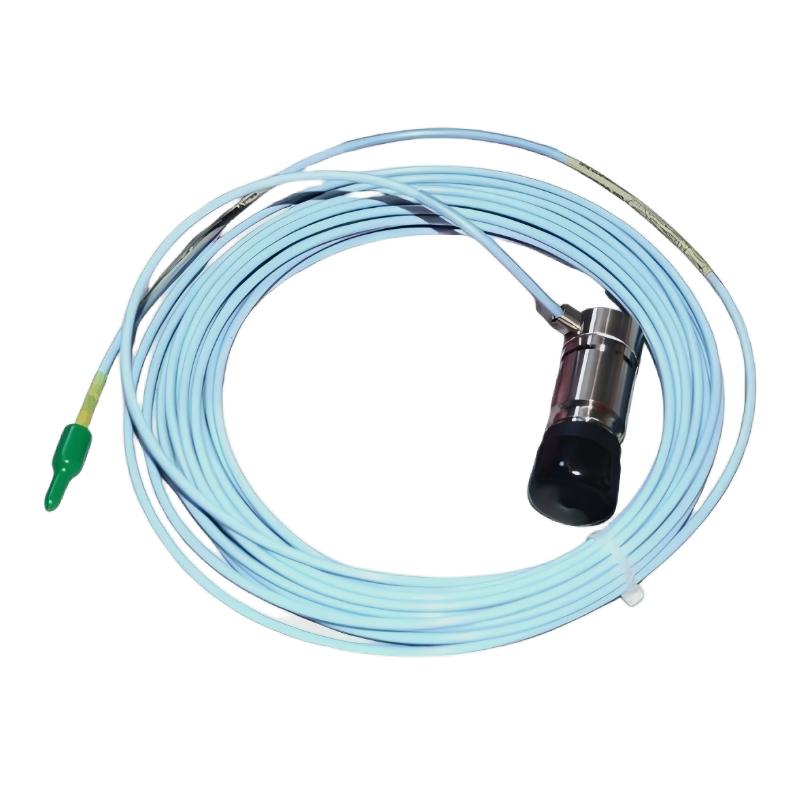

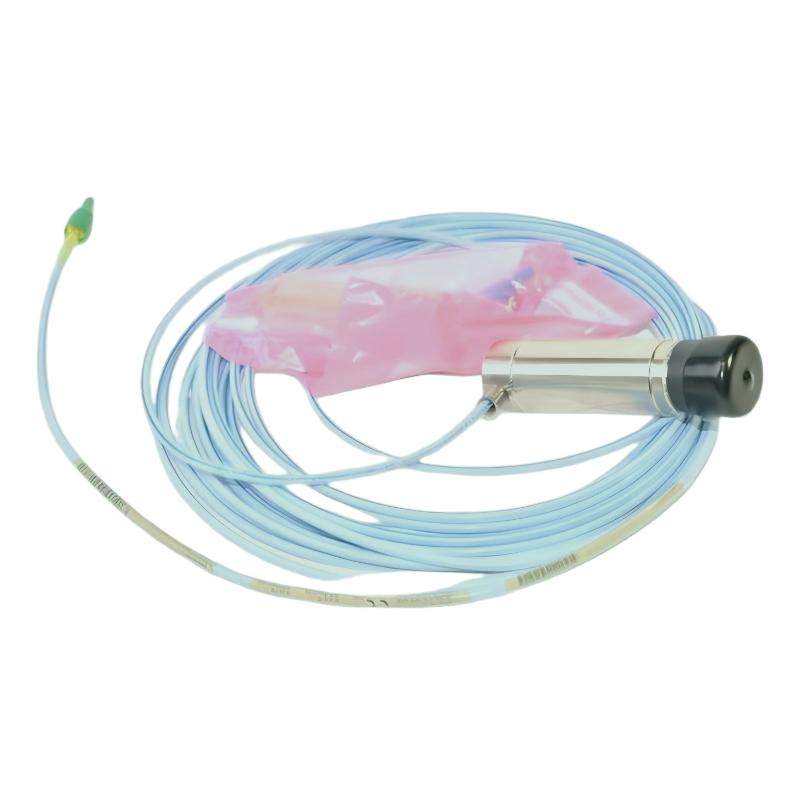

The Bently Nevada 330851-04-000-020-10-01-00 3300 XL 25 mm Proximity Probe is a high-precision non-contact displacement sensor designed for monitoring the operating condition of critical rotating machinery. It is mainly used to measure shaft vibration, shaft displacement, and relative shaft position changes during equipment operation.

The probe uses eddy current sensing technology to detect changes in the distance between the probe tip and the rotating shaft surface. When the shaft experiences abnormal movement caused by imbalance, misalignment, mechanical wear, or other operating issues, the probe detects these changes and converts them into electrical signals transmitted to the monitoring system.

This proximity probe is widely used in power generation, petrochemical, oil and gas, and industrial manufacturing applications. By continuously monitoring shaft conditions, it helps maintenance personnel identify potential equipment problems early, improve operational safety, and reduce unexpected downtime.

2. What should be considered when installing the 330851-04-000-020-10-01-00 probe?

Before installing the Bently Nevada 330851-04-000-020-10-01-00 proximity probe, it is necessary to confirm that the probe model matches the existing monitoring system configuration. Correct compatibility ensures proper signal transmission and reliable measurement performance.

Before installation, the probe body, cable assembly, and connector should be inspected carefully to ensure there is no damage. Contamination on the sensing tip, cable damage, or poor connector contact may affect signal quality and measurement accuracy.

During installation, the clearance between the probe and the rotating shaft must be adjusted according to system requirements. Since eddy current measurement depends on the distance between the probe tip and the target surface, incorrect clearance may cause unstable signals, inaccurate readings, or false alarms.

After installation, the monitoring system should be checked to confirm that the probe output signal is stable and that vibration and displacement values match the actual machine operating condition.

3. Why does the 330851-04-000-020-10-01-00 probe generate abnormal signals?

Abnormal signals from the Bently Nevada 330851-04-000-020-10-01-00 proximity probe may be caused by incorrect installation, cable faults, electrical interference, connection problems, or monitoring system issues.

One of the most common causes is incorrect probe clearance. If the distance between the probe and the rotating shaft is outside the recommended range, the eddy current signal may change, resulting in inaccurate monitoring data.

Other possible causes include aging cables, loose connectors, grounding problems, or strong electromagnetic interference in the operating environment. Troubleshooting should include inspection of the probe installation, cable condition, connection status, and monitoring module operation.

If all external conditions are confirmed to be normal, further testing of the probe itself should be performed to determine whether an internal failure exists.

4. How does the Bently Nevada 330851-04-000-020-10-01-00 measure shaft vibration?

The Bently Nevada 330851-04-000-020-10-01-00 measures shaft vibration using eddy current sensing technology. During operation, the probe generates a high-frequency electromagnetic field at the sensing tip, which interacts with the conductive metal surface of the rotating shaft.

When the shaft vibrates or changes position, the distance between the shaft surface and the probe changes. These variations affect the electromagnetic field and are converted into electrical signals by the probe electronics.

The monitoring system analyzes these signals to determine vibration levels, shaft movement, and equipment operating conditions. Because the measurement process is non-contact, the probe does not create mechanical wear and can provide reliable long-term monitoring for high-speed rotating equipment.

5. Can the 330851-04-000-020-10-01-00 probe directly replace an existing probe?

The Bently Nevada 330851-04-000-020-10-01-00 proximity probe should only be used as a replacement after confirming compatibility with the existing monitoring system, probe configuration, and installation requirements.

Although many probes in the 3300 XL series have similar functions, different models may have different electrical characteristics, cable configurations, or system requirements. Installing an incompatible probe may result in incorrect signals or improper operation.

Before replacement, technicians should verify the model information and system requirements. After installation, the probe connection, output signal, and monitoring data should be tested.

Following the correct replacement procedure ensures that the machinery protection system continues to operate reliably without measurement errors.

6. How should the Bently Nevada 330851-04-000-020-10-01-00 proximity probe be maintained?

Proper maintenance of the Bently Nevada 330851-04-000-020-10-01-00 proximity probe focuses on installation condition, cable integrity, and signal stability.

During routine maintenance, technicians should inspect the probe connection, check the cable for aging or mechanical damage, and monitor signal trends from the protection system.

Industrial environments may expose the probe to vibration, moisture, oil contamination, dust, and electromagnetic interference. These factors can gradually affect measurement reliability if not properly controlled.

Regular preventive maintenance and condition monitoring help reduce unexpected failures, improve equipment reliability, and ensure that the probe continues providing accurate information for machinery protection.

7. Does the system need to be recalibrated after replacing the 330851-04-000-020-10-01-00 probe?

After replacing the Bently Nevada 330851-04-000-020-10-01-00 proximity probe, system verification and signal testing should be performed to confirm proper operation.

Although replacement probes are manufactured according to standard specifications, actual field conditions such as installation position, machine condition, and connection quality may influence measurement performance.

After replacement, technicians should verify the probe signal output, monitoring module response, and vibration or displacement readings. The measured values should correspond with the actual operating condition of the equipment.

Completing these checks helps prevent false alarms and ensures that the machinery protection system continues to provide accurate and reliable monitoring.

8. How can a damaged 330851-04-000-020-10-01-00 proximity probe be identified?

Determining whether the Bently Nevada 330851-04-000-020-10-01-00 proximity probe is damaged requires a complete inspection of the entire monitoring circuit, including the probe, cable, connectors, and monitoring module.

The troubleshooting process should begin by reviewing alarm records, historical vibration trends, and current signal behavior. The probe condition, cable integrity, connection points, and installation status should then be checked carefully.

It is important to understand that abnormal signals do not always indicate probe failure. Cable damage, loose connections, grounding issues, electromagnetic interference, or monitoring module faults can produce similar symptoms.

If external factors are eliminated, the probe can be tested using professional diagnostic equipment or compared with a known working unit. A complete diagnostic process helps avoid unnecessary replacement, improves maintenance efficiency, and ensures stable operation of the Bently Nevada machinery protection system.
