1. What is the main function of the Bently Nevada 330851-04-000-020-50-00-05 proximity probe?

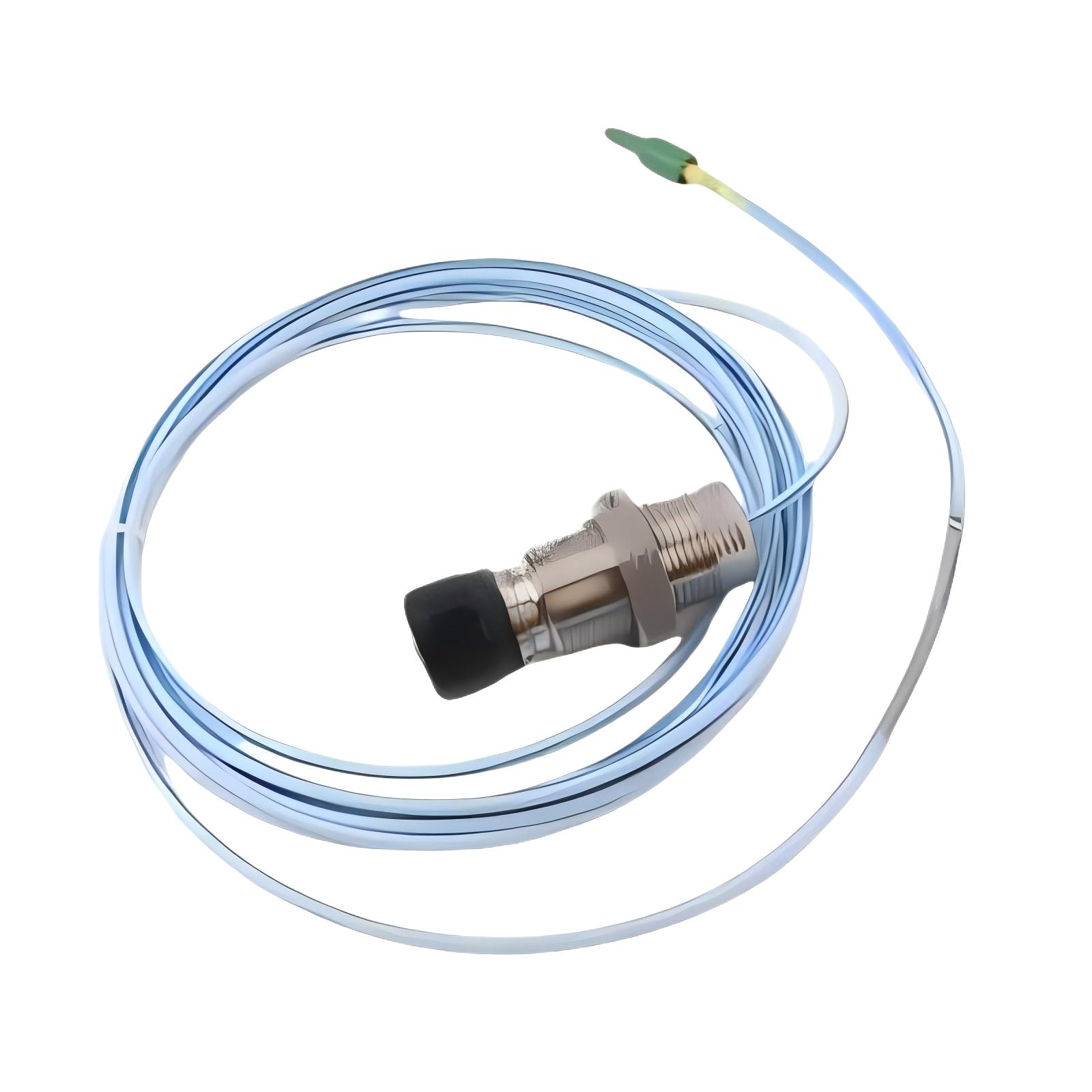

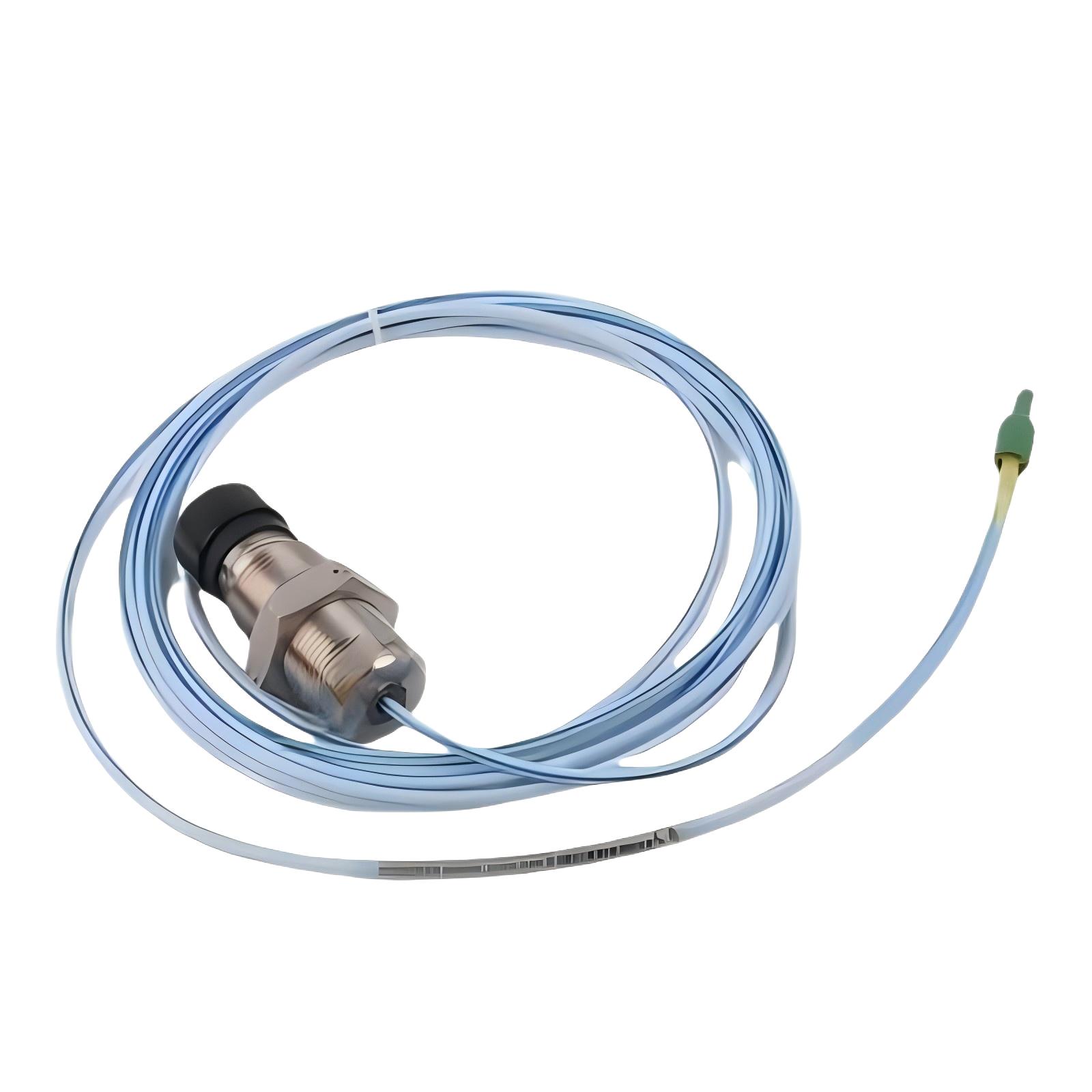

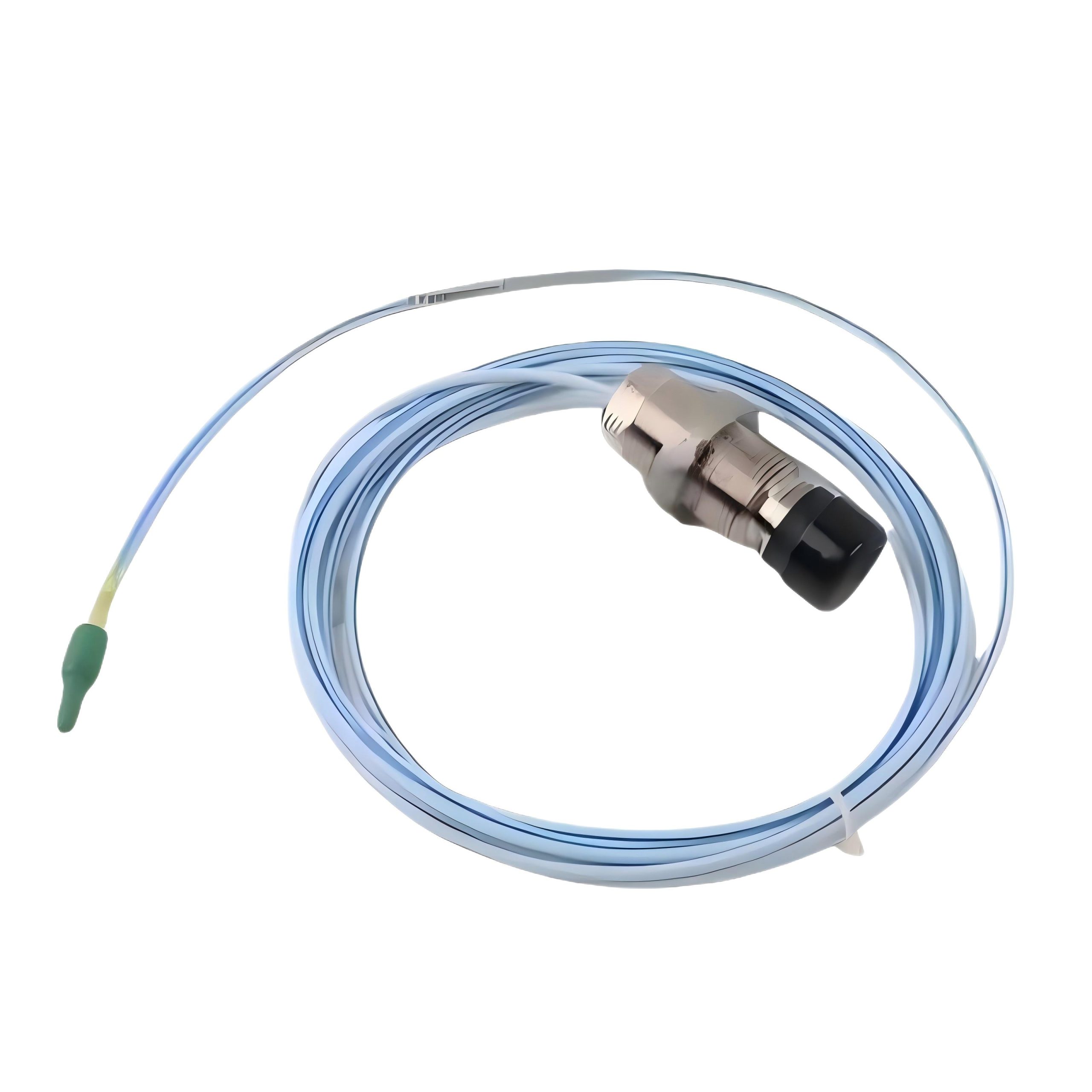

The Bently Nevada 330851-04-000-020-50-00-05 3300 XL 25 mm Proximity Probe is a precision non-contact displacement sensor designed for monitoring the condition of large rotating machinery. Its primary function is to measure shaft vibration, shaft displacement, and shaft position changes during equipment operation.

The probe uses eddy current sensing technology to detect the distance variation between the probe tip and the conductive surface of the rotating shaft. When the shaft moves due to vibration, imbalance, misalignment, or mechanical changes, the probe converts these physical movements into electrical signals that can be analyzed by the machinery protection system.

This proximity probe is commonly installed on critical equipment such as turbines, compressors, pumps, and large motors. By continuously monitoring shaft behavior, it helps operators identify abnormal operating conditions early, improve equipment reliability, and prevent unexpected shutdowns.

2. What should be checked before installing the 330851-04-000-020-50-00-05 proximity probe?

Before installing the Bently Nevada 330851-04-000-020-50-00-05 proximity probe, technicians should verify that the probe model is suitable for the existing Bently Nevada 3300 XL monitoring system. Correct model selection ensures proper signal compatibility and reliable operation.

The probe, cable, and connector should be inspected before installation to confirm that there is no physical damage, cable wear, connector contamination, or sensing tip damage. Any mechanical or electrical problems may affect signal stability.

During installation, the probe position and clearance from the rotating shaft must be adjusted according to system requirements. Proper clearance is essential because the eddy current measurement principle depends directly on the distance between the probe and the target surface.

After installation, the monitoring system should be tested to confirm that the output signal is stable and that vibration and displacement readings accurately represent the machine operating condition.

3. Why does the Bently Nevada 330851-04-000-020-50-00-05 produce unstable measurement signals?

Unstable measurement signals from the Bently Nevada 330851-04-000-020-50-00-05 proximity probe can be caused by several factors, including incorrect installation, cable problems, electrical interference, poor connections, or monitoring system issues.

Incorrect probe clearance is one of the most common causes of signal instability. If the probe is not positioned correctly relative to the rotating shaft, the eddy current signal may change abnormally and result in inaccurate vibration or displacement data.

Other possible causes include damaged extension cables, loose connectors, improper grounding, excessive electromagnetic interference, or surface conditions of the monitored shaft.

A complete troubleshooting process should include checking the probe installation, cable condition, signal connection, and monitoring module status. This helps determine whether the issue comes from the sensor itself or from external factors.

4. How does the Bently Nevada 330851-04-000-020-50-00-05 measure shaft vibration?

The Bently Nevada 330851-04-000-020-50-00-05 proximity probe measures shaft vibration through eddy current sensing technology. The probe generates a high-frequency electromagnetic field at the sensing tip, which interacts with the conductive metal surface of the rotating shaft.

When the shaft moves during operation, the distance between the shaft surface and the probe changes. These changes affect the electromagnetic field, and the probe converts the variations into electrical signals representing shaft movement.

The monitoring system analyzes these signals to determine vibration levels, displacement changes, and equipment operating conditions. Because the measurement method does not require physical contact, the probe avoids mechanical wear and provides reliable performance for high-speed rotating machinery applications.

5. Can the 330851-04-000-020-50-00-05 proximity probe be replaced while the machine is operating?

The Bently Nevada 330851-04-000-020-50-00-05 proximity probe should generally not be replaced while the equipment is running. Since the probe is installed near rotating machinery and is part of the machinery protection system, replacement during operation may create safety risks.

Before replacement, the machine should be shut down according to approved maintenance procedures. The rotating components must be completely stopped before technicians begin removing and installing the probe.

After replacement, the probe installation, cable connection, and signal output should be carefully checked. The monitoring system should confirm that vibration and displacement measurements are stable before the machine is returned to normal operation.

Following correct replacement procedures helps prevent incorrect installation and ensures reliable operation of the protection system.

6. How can the reliability of the Bently Nevada 330851-04-000-020-50-00-05 be improved?

The reliability of the Bently Nevada 330851-04-000-020-50-00-05 proximity probe can be improved through proper installation, environmental protection, and regular maintenance.

The probe should be installed according to technical requirements, including correct positioning, secure mounting, and proper cable routing. Incorrect installation may result in unstable signals and reduced measurement accuracy.

During operation, the probe should be protected from excessive vibration, moisture, oil contamination, dust, and electromagnetic interference. Regular inspections should include checking cable condition, connector reliability, and signal stability.

Implementing preventive maintenance practices allows potential problems to be detected early, extends equipment service life, and ensures continuous monitoring performance for critical rotating machinery.

7. Is system verification required after replacing the 330851-04-000-020-50-00-05 proximity probe?

Yes. After replacing the Bently Nevada 330851-04-000-020-50-00-05 proximity probe, system verification and functional testing should be performed.

Although replacement probes are manufactured according to standard specifications, actual field installation conditions may affect measurement performance. Technicians should verify that the probe is correctly installed and that the monitoring system receives stable signals.

The output data should be reviewed to ensure that vibration and displacement measurements correspond with the actual operating condition of the machine. Proper verification helps prevent false alarms and incorrect monitoring results.

Completing these checks ensures that the new probe provides accurate and reliable information for machinery protection and condition monitoring.

8. How can a faulty Bently Nevada 330851-04-000-020-50-00-05 proximity probe be diagnosed?

Diagnosing a faulty Bently Nevada 330851-04-000-020-50-00-05 proximity probe requires a complete inspection of the entire monitoring system, including the probe, cable, connectors, and monitoring module.

The troubleshooting process should begin by reviewing alarm records, historical vibration trends, and current signal behavior. Technicians should then inspect the probe condition, cable integrity, connection status, and installation environment.

It is important to understand that abnormal signals do not always indicate probe failure. Cable damage, loose connections, grounding issues, electromagnetic interference, or monitoring module faults can produce similar symptoms.

If external causes are eliminated, the probe can be tested using professional diagnostic equipment or compared with a known working unit. A systematic diagnosis helps avoid unnecessary replacement, improves maintenance efficiency, and ensures reliable operation of the Bently Nevada machinery protection system.
