1. What is the main function of the Bently Nevada 330851-04-000-023-10-01-05 proximity probe?

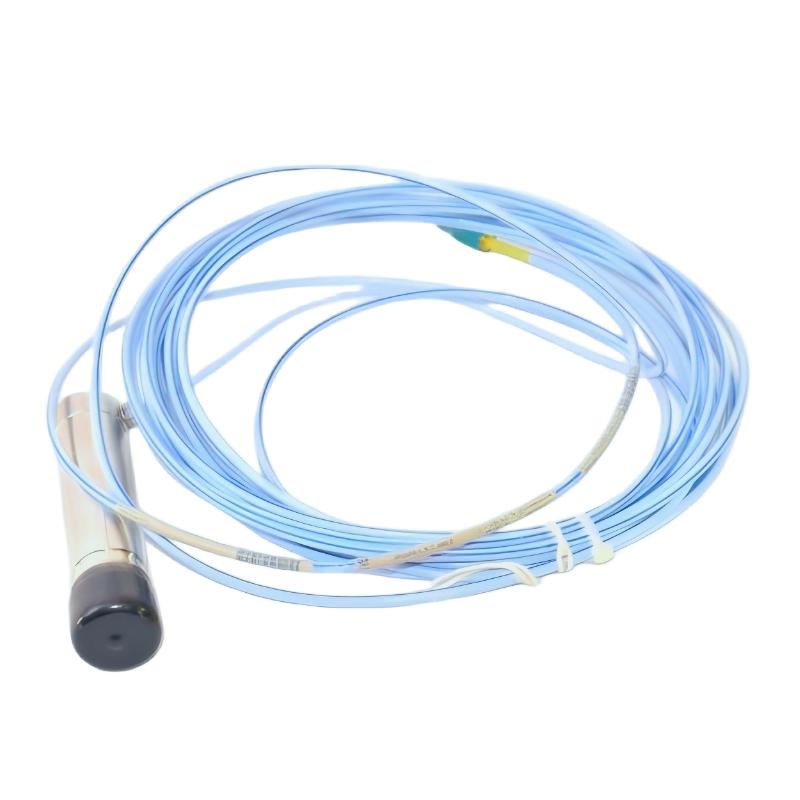

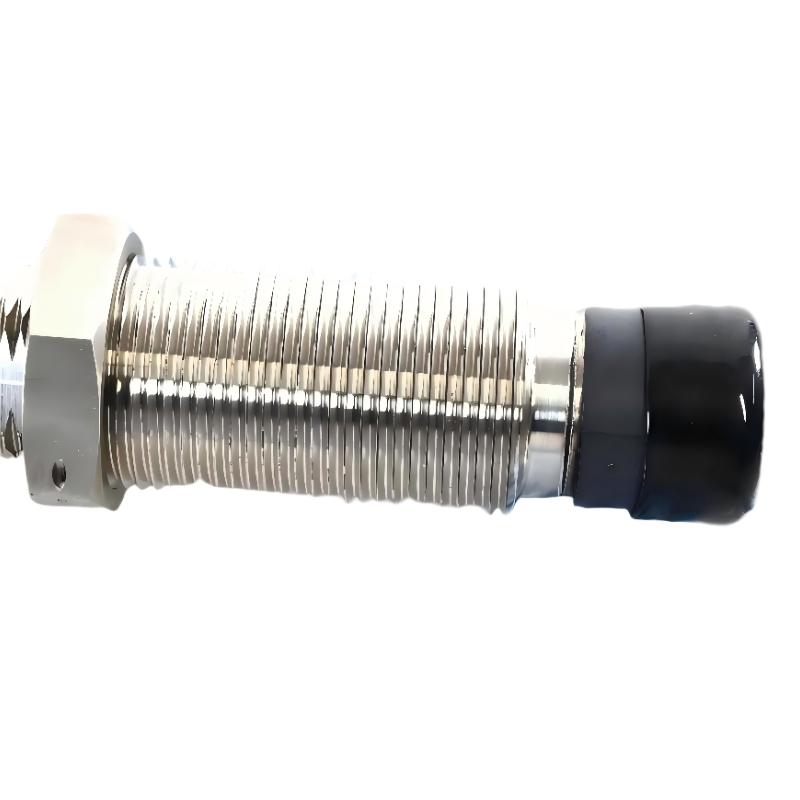

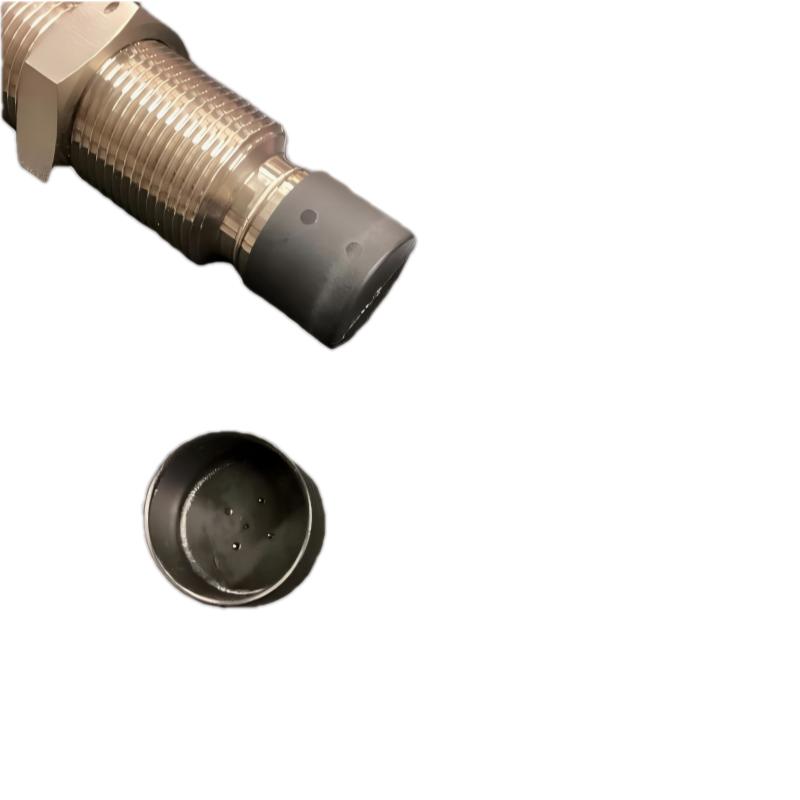

The Bently Nevada 330851-04-000-023-10-01-05 3300 XL 25 mm Proximity Probe is a high-precision non-contact sensor designed for monitoring the operating condition of critical rotating machinery. Its main purpose is to measure shaft vibration, shaft displacement, and relative shaft position changes during machine operation.

The probe uses eddy current sensing technology, which allows it to detect small changes in the distance between the probe tip and the rotating shaft surface without physical contact. When the shaft experiences vibration, axial movement, imbalance, or other mechanical changes, the probe converts these movements into electrical signals.

These signals are transmitted to the machinery monitoring system for analysis and protection functions. The probe is commonly used in turbines, compressors, pumps, and other rotating equipment where continuous condition monitoring is required to improve reliability and prevent unexpected failures.

2. What should be considered when installing the Bently Nevada 330851-04-000-023-10-01-05 probe?

Before installing the Bently Nevada 330851-04-000-023-10-01-05 proximity probe, technicians should verify that the probe model is compatible with the existing Bently Nevada 3300 XL monitoring system and application requirements.

The probe body, cable, and connector should be inspected carefully before installation to ensure there is no damage, contamination, or connection problem. Any physical damage to the sensing tip or cable may affect measurement accuracy and signal stability.

During installation, the probe position relative to the rotating shaft must be adjusted correctly according to the monitoring system requirements. Proper installation is essential because the eddy current measurement principle depends on accurate distance detection between the probe and the target surface.

After installation, the output signal should be checked through the monitoring system to confirm stable operation and accurate vibration and displacement measurements.

3. What causes abnormal readings from the 330851-04-000-023-10-01-05 proximity probe?

Abnormal readings from the Bently Nevada 330851-04-000-023-10-01-05 proximity probe may be caused by several factors, including incorrect installation, cable problems, electrical interference, poor connections, or issues with the monitoring system.

Incorrect probe clearance is one of the most common causes of inaccurate measurements. If the distance between the probe and the rotating shaft is not within the correct range, the output signal may become unstable or incorrect.

Other possible causes include damaged extension cables, loose connectors, improper grounding, excessive electromagnetic interference, or mechanical conditions affecting the monitored shaft.

A complete troubleshooting process should include checking the probe installation condition, cable integrity, connection quality, and monitoring module status before replacing the sensor.

4. How does the Bently Nevada 330851-04-000-023-10-01-05 detect shaft vibration?

The Bently Nevada 330851-04-000-023-10-01-05 proximity probe detects shaft vibration through eddy current sensing technology. The probe generates an electromagnetic field at the sensing tip, which interacts with the conductive surface of the rotating shaft.

When the shaft moves due to vibration or displacement, the distance between the shaft and the probe changes. This distance variation modifies the electromagnetic response, which is converted into an electrical signal representing the actual shaft movement.

The monitoring system analyzes the signal to determine vibration levels, shaft position changes, and possible mechanical abnormalities. Since the probe operates without physical contact, it provides reliable long-term monitoring performance without causing mechanical wear.

5. Can the Bently Nevada 330851-04-000-023-10-01-05 replace another 3300 XL series probe directly?

The Bently Nevada 330851-04-000-023-10-01-05 proximity probe should only replace another probe after confirming compatibility with the existing monitoring configuration.

Although many Bently Nevada 3300 XL probes share similar operating principles, different models may have different electrical characteristics, cable configurations, and application requirements.

Before replacement, technicians should verify the complete model number, system compatibility, and installation conditions. After installation, the monitoring signal should be tested to ensure proper operation.

Correct replacement procedures help maintain accurate measurement performance and prevent incorrect alarms or protection system errors.

6. How can the service reliability of the 330851-04-000-023-10-01-05 proximity probe be improved?

The reliability of the Bently Nevada 330851-04-000-023-10-01-05 proximity probe can be improved through proper installation, regular inspection, and preventive maintenance.

The probe should be installed according to technical requirements, with correct positioning and secure cable connections. Improper installation may cause unstable signals or inaccurate measurement results.

During operation, the probe should be protected from excessive vibration, moisture, oil contamination, dust, and electromagnetic interference. Regular inspection of cable condition, connector status, and signal trends can help identify potential problems early.

A preventive maintenance program can extend the service life of the probe and ensure continuous and reliable monitoring of critical rotating equipment.

7. Is testing required after replacing the Bently Nevada 330851-04-000-023-10-01-05 probe?

Yes. After replacing the Bently Nevada 330851-04-000-023-10-01-05 proximity probe, system testing and signal verification should be performed.

Although replacement probes are manufactured according to standard specifications, actual installation conditions may affect measurement performance. Technicians should confirm that the probe is correctly installed and that the monitoring system receives stable signals.

The vibration and displacement readings should be compared with normal machine operating conditions to ensure that the measurement results are accurate.

Proper testing after replacement helps prevent false alarms, incorrect data interpretation, and potential machinery protection issues.

8. How can a faulty Bently Nevada 330851-04-000-023-10-01-05 proximity probe be diagnosed?

Diagnosing a faulty Bently Nevada 330851-04-000-023-10-01-05 proximity probe requires checking the complete monitoring system, including the probe, cable, connections, and monitoring equipment.

The troubleshooting process should begin by reviewing system alarms, historical vibration data, and current signal behavior. Technicians should then inspect the probe installation condition, cable integrity, and electrical connections.

It is important to understand that abnormal signals do not always indicate a failed probe. Problems such as cable damage, loose connections, grounding issues, electromagnetic interference, or monitoring module faults can create similar symptoms.

If external factors are eliminated, professional testing equipment or a known working replacement probe can be used for confirmation. A complete diagnostic process improves maintenance efficiency and ensures reliable operation of the Bently Nevada machinery monitoring system.
