1. What is the main purpose of the Bently Nevada 330904-00-10-05-02-00 3300 NSv Metric Proximity Probe?

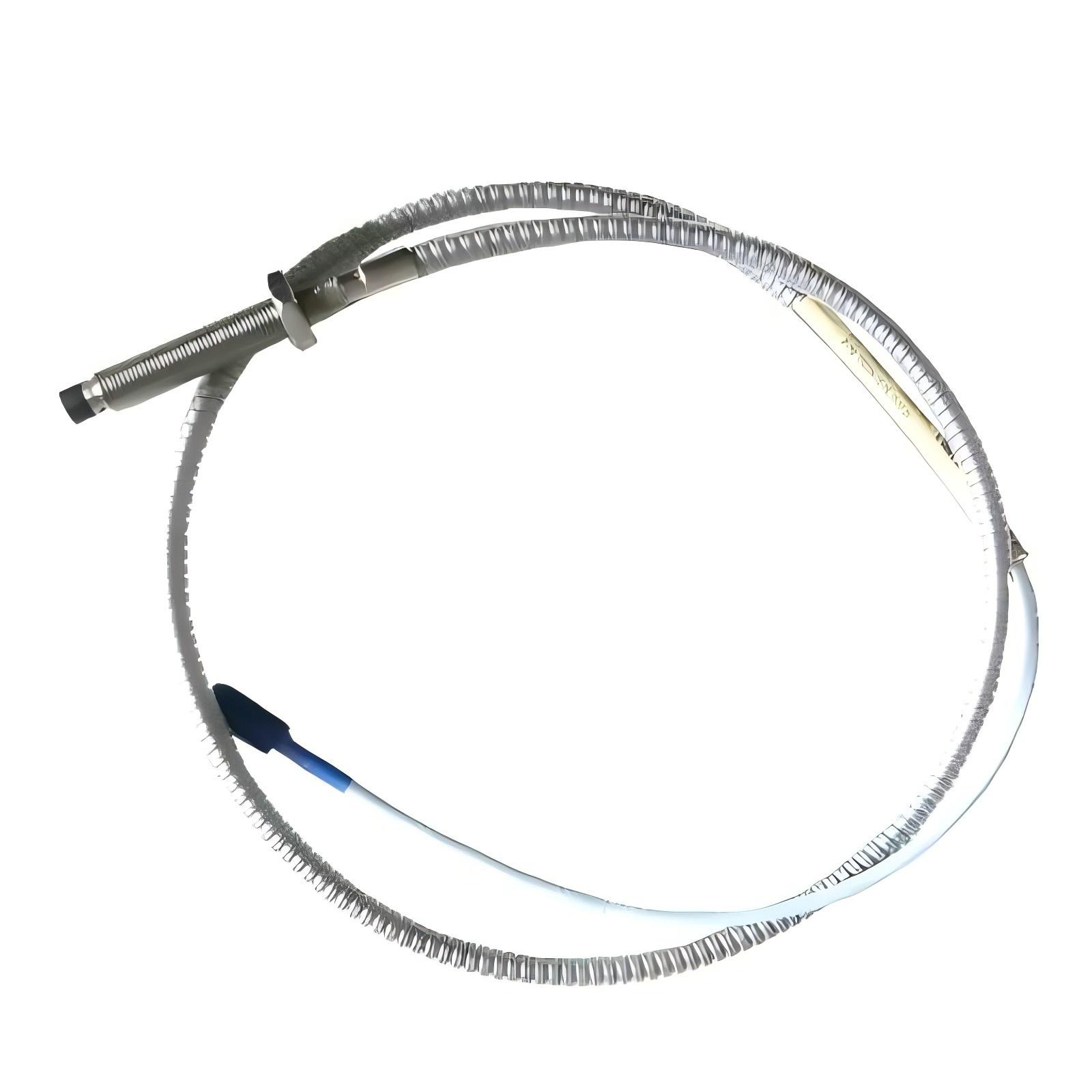

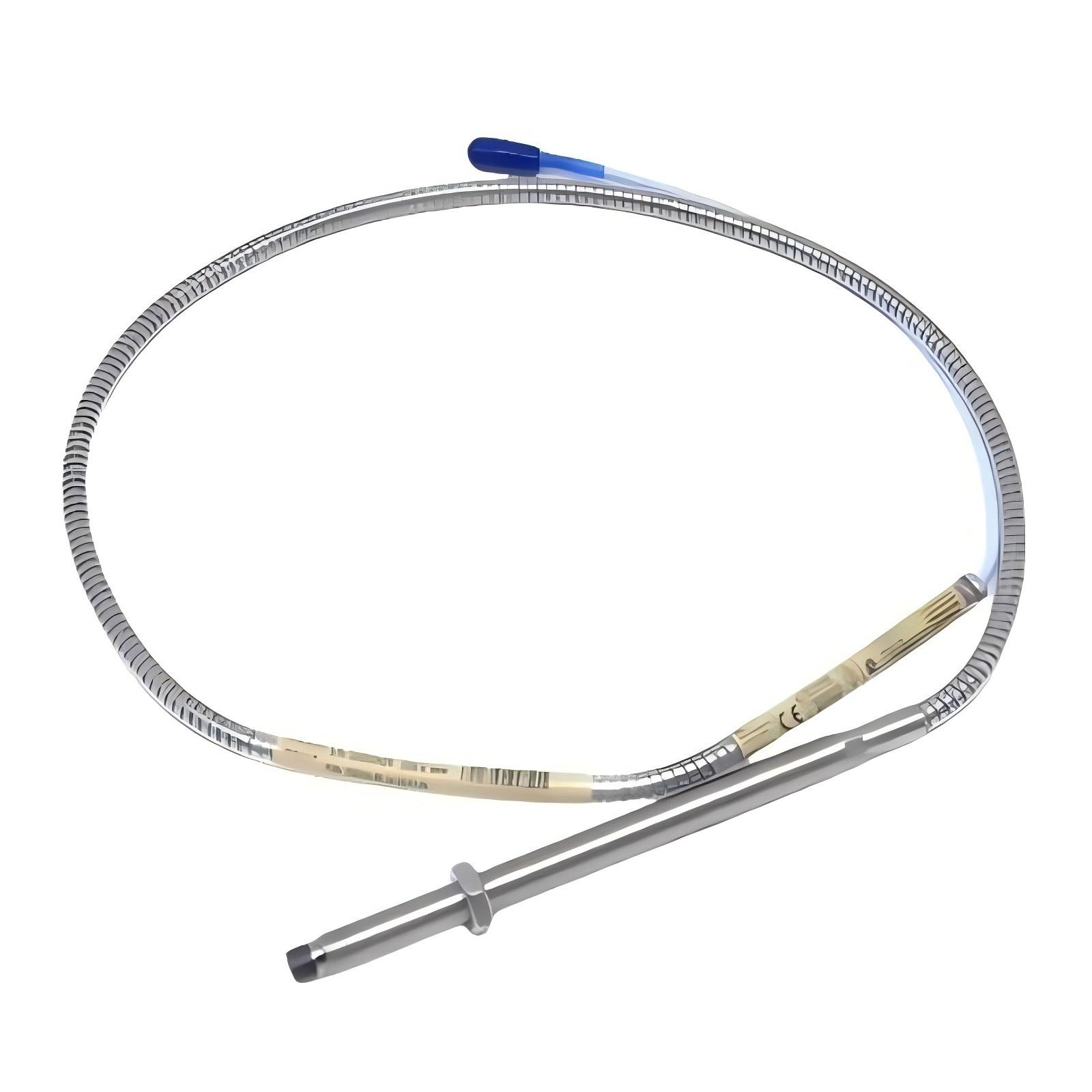

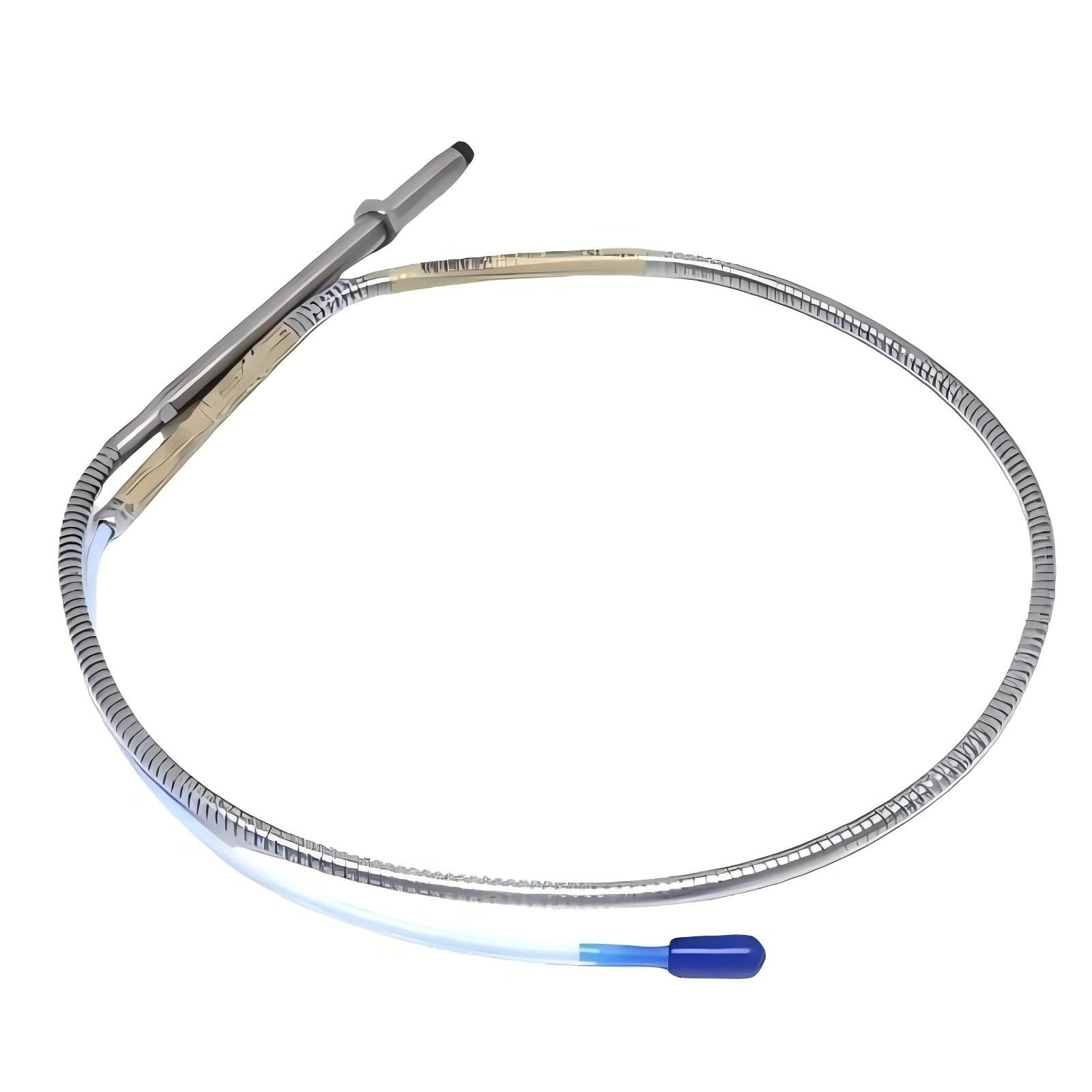

The Bently Nevada 330904-00-10-05-02-00 3300 NSv Metric Proximity Probe is mainly designed for shaft vibration and shaft displacement monitoring in industrial rotating machinery. It is an essential sensing component used in machinery protection and condition monitoring systems. The probe uses advanced eddy current non-contact measurement technology to detect changes in the distance between the probe tip and the rotating shaft surface, converting mechanical movement into a stable electrical signal for monitoring analysis. Since the probe does not physically contact the rotating shaft, it avoids mechanical wear and provides reliable performance during continuous high-speed operation. This model is widely used in critical equipment such as steam turbines, gas turbines, compressors, generators, large motors, and industrial pumps. It helps detect rotor imbalance, shaft misalignment, mechanical looseness, and abnormal vibration conditions, providing reliable data for predictive maintenance and equipment protection.

2. What measurement technology is used by the Bently Nevada 3300 NSv Metric Proximity Probe?

The Bently Nevada 330904-00-10-05-02-00 proximity probe uses eddy current measurement technology to detect shaft movement. When the probe is installed near a conductive metal shaft, the internal sensing coil generates a high-frequency electromagnetic field. Changes in the distance between the probe tip and the shaft surface affect the electromagnetic field strength. The internal electronic circuit converts these changes into a voltage output signal proportional to the shaft displacement. The monitoring system receives this signal and analyzes shaft vibration amplitude, axial movement, and rotor operating conditions. Because the measurement process does not require physical contact, the probe avoids mechanical wear and can provide stable performance for long-term monitoring of high-speed rotating equipment.

3. What should be considered when installing the 330904-00-10-05-02-00 proximity probe?

When installing the Bently Nevada 330904-00-10-05-02-00 proximity probe, attention should be paid to probe positioning, installation gap, cable routing, and mechanical fixation. The probe should be installed in a stable location with the sensing direction correctly aligned toward the rotating shaft surface to ensure accurate signal detection. The probe gap must be adjusted according to system requirements because incorrect spacing can cause unstable signals or inaccurate measurement results. This model uses an M10 × 1 metric thread mounting design, so the mounting interface must be compatible and the probe must be securely fixed to prevent movement caused by machine vibration. The cable should be routed away from strong electromagnetic interference sources and protected from excessive bending, pulling force, or mechanical damage. After installation, the monitoring system should be checked to confirm correct signal output and proper operation.

4. What are the common causes of unstable signals from the 3300 NSv Metric Proximity Probe?

Unstable signals from the 3300 NSv Metric Proximity Probe are usually related to installation conditions, electrical connections, or operating environments. Common causes include incorrect probe gap adjustment, damaged cables, loose connectors, electromagnetic interference, incorrect monitoring parameters, and abnormal shaft surface conditions. If the probe installation distance is not within the required range, the output signal may fluctuate or measurement accuracy may decrease. Contamination, oil deposits, corrosion, or damage on the rotating shaft surface can also affect detection performance. Troubleshooting should begin by checking the probe installation condition, then verifying cable and connector integrity, followed by reviewing monitoring system configuration. A step-by-step inspection of mechanical and electrical factors can help identify the problem quickly and restore stable monitoring performance.

5. What industrial applications are suitable for the Bently Nevada 330904-00-10-05-02-00?

The Bently Nevada 330904-00-10-05-02-00 3300 NSv Metric Proximity Probe is suitable for industrial rotating equipment that requires accurate shaft vibration and displacement monitoring. Typical applications include steam turbines, gas turbines, centrifugal compressors, industrial pumps, generators, large electric motors, and other high-speed rotating machines. These types of equipment usually operate continuously and require reliable monitoring systems to maintain safe and efficient operation. By collecting real-time shaft movement data, the probe allows maintenance personnel to analyze operating trends and identify potential mechanical issues before serious failures occur. It is widely used in industries such as power generation, oil and gas, chemical processing, metallurgy, and large manufacturing facilities, providing important support for predictive maintenance and machinery protection.

6. How can the long-term reliability of the Bently Nevada 330904-00-10-05-02-00 probe be maintained?

To maintain the long-term reliability of the Bently Nevada 330904-00-10-05-02-00 proximity probe, proper installation and regular maintenance procedures are required. The probe should be securely installed to prevent position changes caused by machine vibration during operation. The cable and connectors should be inspected regularly to avoid signal problems caused by aging, damage, or poor electrical contact. During equipment maintenance, the probe installation environment should be checked to ensure that oil, dust, or other contaminants do not affect measurement performance. Monitoring system vibration trends and signal changes should also be reviewed regularly to identify abnormal operating conditions. Maintaining correct installation parameters, stable signal transmission, and proper system configuration can significantly improve probe reliability and extend the service life of the monitoring system.

7. What technical advantages does the 3300 NSv Metric Proximity Probe have compared with conventional vibration sensors?

The 3300 NSv Metric Proximity Probe provides more direct and accurate shaft condition monitoring compared with conventional vibration sensors. Traditional vibration sensors usually measure machine housing vibration, while proximity probes directly detect the position changes between the rotating shaft and the sensor. This allows the system to obtain more accurate rotor operating information. Because the probe uses non-contact measurement technology, it is not affected by mechanical friction and can operate reliably in high-speed rotating equipment for extended periods. The probe continuously provides shaft vibration and displacement data, allowing machinery protection systems to respond quickly to abnormal conditions. In critical equipment applications, it helps maintenance teams identify potential problems earlier, reduce equipment failure risks, and improve overall operational reliability.

8. What troubleshooting steps should be taken if the Bently Nevada 330904-00-10-05-02-00 has no signal output?

If the Bently Nevada 330904-00-10-05-02-00 proximity probe has no signal output, troubleshooting should be performed through a systematic inspection process. First, confirm that the monitoring system power supply, signal processing module, and related equipment are operating normally. Then check the connection between the probe and the monitoring module to ensure all connections are secure. The integrated cable should be inspected for damage, signal interruption, or connection problems. If the wiring condition is normal, verify that the probe installation gap is correctly adjusted because incorrect positioning may prevent the probe from detecting shaft displacement changes properly. The monitoring system configuration should also be reviewed to confirm that the probe model settings are correct. If all external conditions are normal, further testing of the probe and related monitoring components can determine whether the issue is caused by the sensor itself or another part of the monitoring system. A complete troubleshooting process can help locate the fault quickly and restore normal equipment monitoring.
