Technical Specifications

FAQ

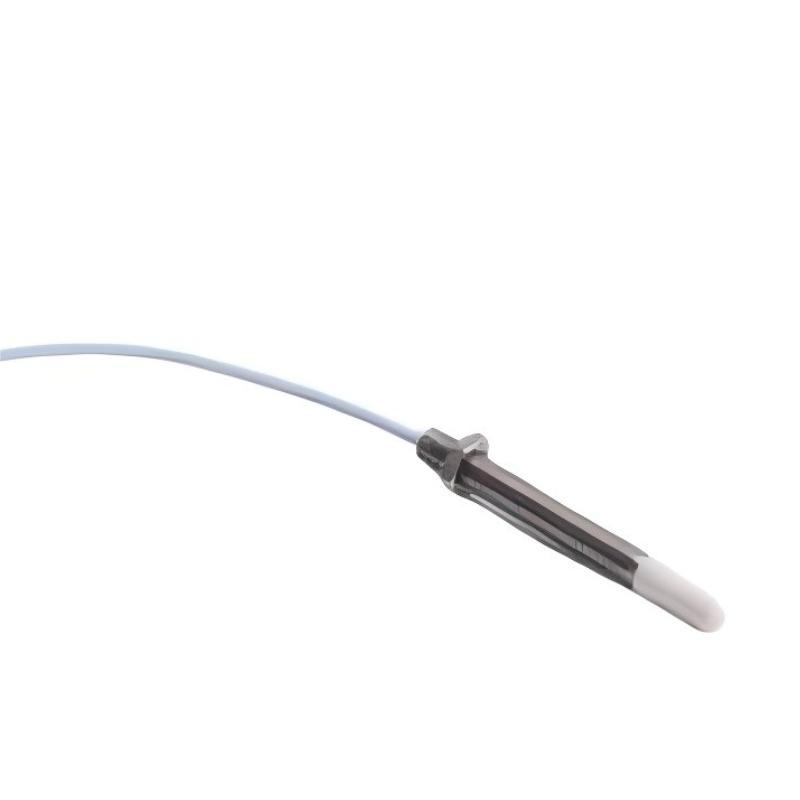

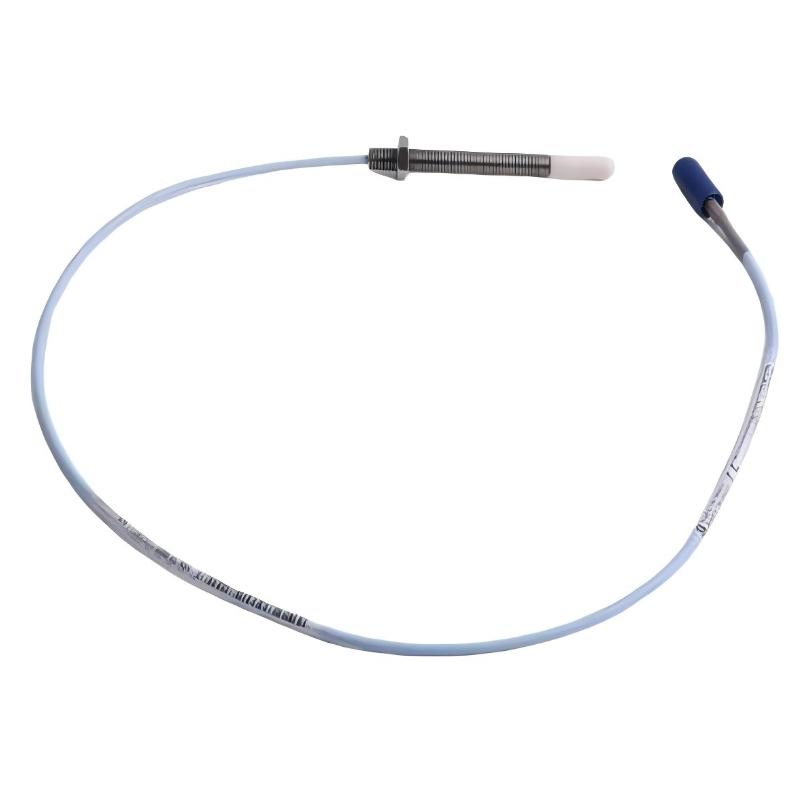

1. What is the main function of the Bently Nevada 330904-00-12-10-01-CN 3300 NSv Metric Proximity Probe?

The Bently Nevada 330904-00-12-10-01-CN 3300 NSv Metric Proximity Probe is designed for accurate shaft vibration and shaft displacement monitoring in industrial rotating equipment. It is commonly used as a key sensor in machinery protection systems and online condition monitoring applications. The probe uses eddy current non-contact measurement technology to detect the relative movement between the probe tip and the rotating shaft surface. The detected mechanical displacement is converted into an electrical signal and transmitted to the monitoring system for analysis. Since there is no direct contact between the probe and the rotating component, the sensor avoids mechanical wear and can provide stable performance during continuous operation. This model is widely applied in steam turbines, gas turbines, compressors, generators, pumps, and other critical rotating machines to detect abnormal operating conditions such as excessive vibration, rotor imbalance, shaft movement, and mechanical instability.

2. How does the Bently Nevada 3300 NSv Metric Proximity Probe measure shaft movement?

The Bently Nevada 330904-00-12-10-01-CN proximity probe works based on the eddy current sensing principle. During operation, the probe generates a high-frequency electromagnetic field through its internal sensing coil. When the distance between the probe tip and the conductive rotating shaft changes, the electromagnetic field characteristics also change. The internal electronic circuit processes these changes and converts them into a proportional voltage output signal. The connected monitoring system analyzes the signal to determine shaft vibration amplitude, radial movement, and displacement conditions. This non-contact measurement method allows the probe to operate reliably in high-speed rotating equipment without being affected by friction or mechanical contact. It provides stable and accurate measurement data required for machinery protection and predictive maintenance programs.

3. What installation factors are important for the 330904-00-12-10-01-CN proximity probe?

Correct installation is essential for ensuring the measurement accuracy and reliability of the Bently Nevada 330904-00-12-10-01-CN proximity probe. The probe should be mounted securely with the sensing surface correctly aligned toward the rotating shaft. The installation gap between the probe tip and shaft surface must be adjusted according to system requirements because an incorrect gap can result in inaccurate readings or unstable output signals. The M10 × 1 metric thread design requires a compatible mounting position and proper mechanical fixing to prevent movement caused by equipment vibration. During installation, the integrated cable should be routed carefully and protected from electromagnetic interference, excessive bending, mechanical stress, or physical damage. After installation, the monitoring system should be checked to confirm correct signal output and stable operation.

4. What are the common causes of unstable signals from the 3300 NSv Metric Proximity Probe?

Signal instability from the 3300 NSv Metric Proximity Probe may result from several mechanical, electrical, or environmental factors. Common causes include incorrect probe gap adjustment, loose connections, damaged cables, electromagnetic interference, incorrect monitoring configuration, and abnormal shaft surface conditions. If the probe is not positioned correctly relative to the rotating shaft, the output signal may fluctuate or become inaccurate. Contamination such as oil, dust, or corrosion on the shaft surface may also affect measurement performance. Troubleshooting should begin by checking the probe installation condition, then inspecting electrical connections and reviewing system settings. A complete inspection process can help identify the actual cause and restore reliable monitoring performance.

5. Which industrial equipment can use the Bently Nevada 330904-00-12-10-01-CN proximity probe?

The Bently Nevada 330904-00-12-10-01-CN 3300 NSv Metric Proximity Probe is suitable for a wide range of rotating machinery applications that require continuous shaft monitoring. Typical equipment includes steam turbines, gas turbines, centrifugal compressors, industrial pumps, generators, large motors, and other high-speed rotating machines. These systems often operate under demanding conditions and require accurate monitoring to prevent unexpected failures. By providing real-time shaft displacement and vibration information, the probe helps operators evaluate equipment health, analyze vibration trends, and identify potential mechanical problems before serious damage occurs. It is widely used in industries such as power generation, oil and gas, chemical processing, metallurgy, and industrial manufacturing.

6. How can the service reliability of the Bently Nevada 330904-00-12-10-01-CN probe be improved?

Maintaining reliable operation of the Bently Nevada 330904-00-12-10-01-CN proximity probe requires proper installation, regular inspection, and correct system configuration. The probe mounting condition should be checked periodically to ensure it remains stable during equipment operation. Cable connections should also be inspected to prevent signal problems caused by aging, damage, or poor contact. During routine equipment maintenance, the probe installation environment should be checked to prevent contamination or external interference from affecting measurement accuracy. Monitoring data should be reviewed regularly to identify abnormal vibration trends or signal changes. Proper installation practices, stable electrical connections, and suitable monitoring parameters can significantly improve sensor reliability and extend the operating life of the monitoring system.

7. What advantages does the 3300 NSv Metric Proximity Probe have compared with traditional vibration sensors?

The 3300 NSv Metric Proximity Probe provides more direct and accurate shaft condition monitoring compared with conventional vibration sensors. Traditional vibration sensors typically measure vibration from the machine housing, while proximity probes directly detect the relative position change between the rotating shaft and the sensor. This allows the monitoring system to obtain more accurate information about rotor behavior and shaft movement. Because the probe uses non-contact measurement technology, it eliminates mechanical wear and is suitable for long-term operation in high-speed rotating equipment. In critical machinery applications, the probe helps maintenance personnel identify abnormal shaft conditions, monitor vibration trends, and perform predictive maintenance before equipment failures occur.

8. What troubleshooting steps should be followed if the Bently Nevada 330904-00-12-10-01-CN has no signal output?

If the Bently Nevada 330904-00-12-10-01-CN proximity probe has no signal output, a systematic troubleshooting process should be performed. First, verify that the monitoring system power supply, signal conditioning module, and related equipment are functioning correctly. Next, inspect the connection between the probe and monitoring system to ensure that all connections are secure. The integrated cable should be checked for physical damage, signal interruption, or connection issues. If the electrical connections are normal, confirm that the probe installation gap is correctly adjusted because improper positioning may prevent accurate shaft movement detection. The monitoring system configuration should also be reviewed to ensure compatibility with the probe model. If the problem continues, further testing of the probe and related components can determine whether the failure originates from the sensor or another part of the monitoring system. A complete diagnostic process can help locate the fault efficiently and restore normal equipment monitoring.
