1. What is the main function of the Bently Nevada 330904-15-15-05-01-00 3300 NSv Proximity Probe?

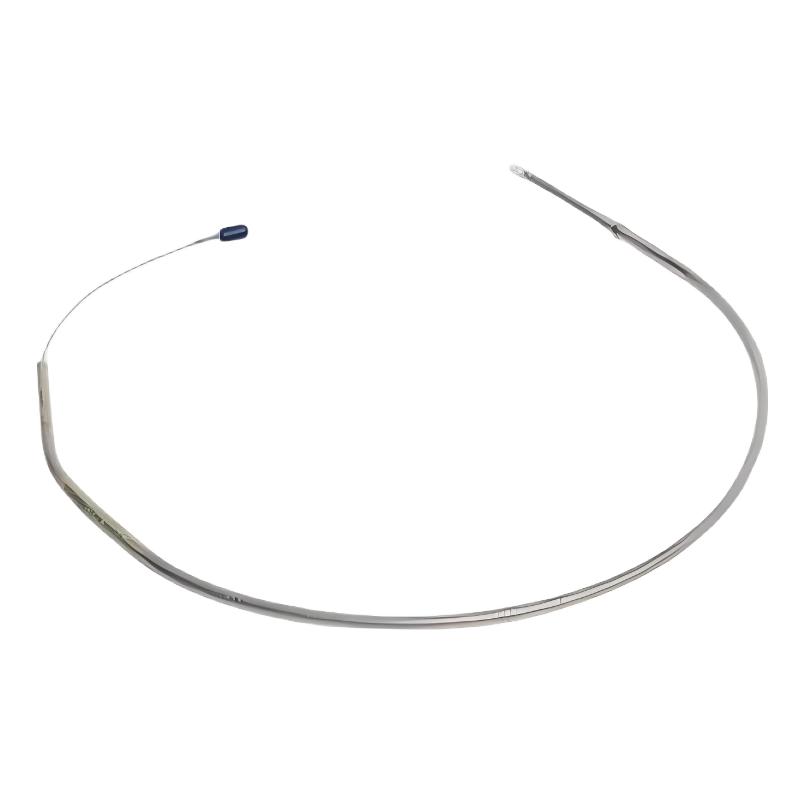

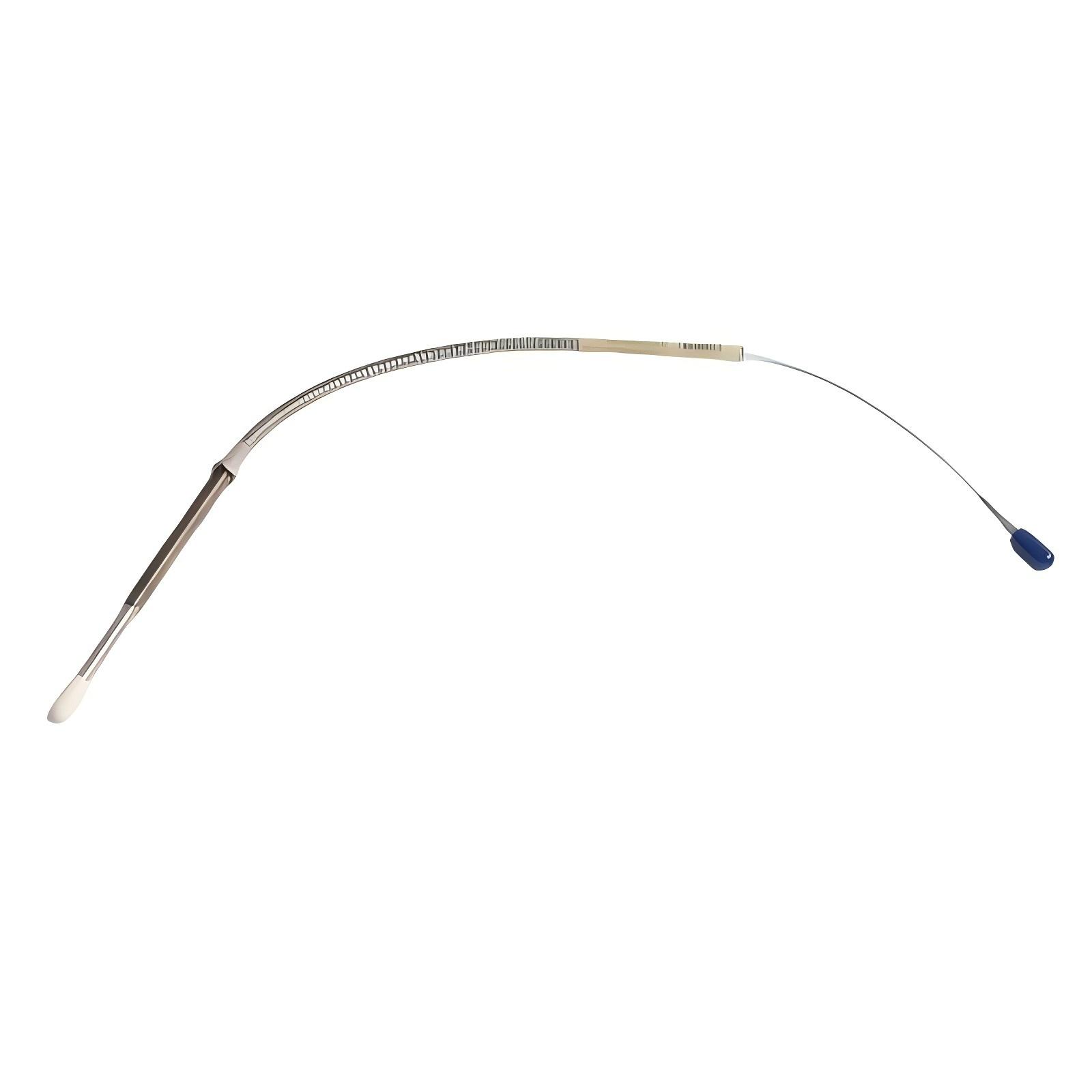

The Bently Nevada 330904-15-15-05-01-00 3300 NSv Proximity Probe is a high-precision non-contact sensor designed for monitoring the operating condition of industrial rotating machinery. Its primary function is to measure shaft vibration, shaft displacement, and rotor position by detecting changes in the distance between the probe tip and the rotating shaft.

The probe uses eddy current measurement technology to generate a stable electromagnetic field near the sensing area. When the shaft moves due to vibration, axial movement, or radial displacement, the electromagnetic field changes accordingly. The sensor detects these variations and converts them into electrical output signals.

The signal is transmitted to a compatible Proximitor system for processing and analysis. This allows engineers to monitor vibration trends, evaluate machine health, and identify abnormal operating conditions.

The 330904-15-15-05-01-00 is widely used in critical equipment such as steam turbines, gas turbines, compressors, pumps, motors, and generators. By continuously monitoring shaft movement, it helps detect potential mechanical problems at an early stage and improves equipment reliability.

2. What industrial equipment is the Bently Nevada 330904-15-15-05-01-00 suitable for?

The Bently Nevada 330904-15-15-05-01-00 is designed for industrial rotating equipment that requires accurate shaft vibration and position monitoring.

Typical applications include steam turbines, gas turbines, centrifugal compressors, industrial pumps, generators, electric motors, and gearbox systems. In power generation facilities, the probe is commonly used to monitor rotor behavior and detect abnormal vibration conditions during operation.

In oil and gas, petrochemical, and manufacturing industries, this proximity probe is often installed on critical rotating machines that require continuous condition monitoring.

The 3300 NSv series provides stable measurement performance and reliable operation in demanding industrial environments. When integrated with Bently Nevada monitoring systems, it provides real-time vibration information for equipment protection, fault diagnosis, and predictive maintenance.

By using this probe, maintenance teams can improve machine reliability, reduce unexpected downtime, and optimize maintenance schedules.

3. How does the Bently Nevada 330904-15-15-05-01-00 detect shaft vibration?

The Bently Nevada 330904-15-15-05-01-00 detects shaft vibration through eddy current sensing technology.

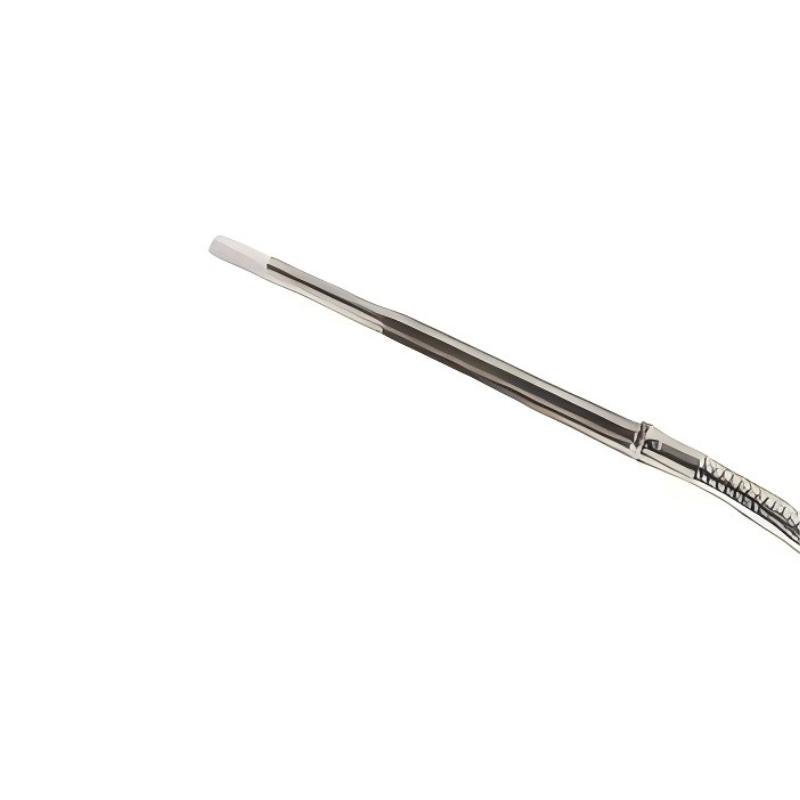

During operation, the probe generates a high-frequency electromagnetic field at the sensing tip. When the rotating shaft moves closer to or farther away from the probe, the electromagnetic field changes.

The internal electronics detect these changes and convert them into an electrical output signal that is proportional to shaft displacement.

The signal is then sent to the Proximitor system, where it is processed into vibration amplitude, shaft position, and machine operating condition data.

Because the probe operates without physical contact with the rotating shaft, it avoids mechanical wear and provides long-term stable measurement performance. This non-contact measurement method makes it especially suitable for high-speed rotating equipment requiring continuous monitoring.

4. What should be checked if the 330904-15-15-05-01-00 produces abnormal signals?

When the 330904-15-15-05-01-00 produces unstable signals, incorrect readings, or abnormal vibration data, troubleshooting should focus on the mechanical installation, electrical connection, and system configuration.

First, check whether the probe installation position is correct and whether the sensing condition meets the application requirements. Incorrect installation can cause inaccurate output signals.

The surface condition of the monitored shaft should also be inspected. Since the probe operates using eddy current technology, oil contamination, corrosion, scratches, or surface damage may affect measurement accuracy.

The probe cable and connector should be checked for damage, loose connections, or electromagnetic interference from nearby equipment.

The Proximitor system settings should also be verified to ensure that probe parameters, calibration values, and monitoring channel configurations are correct.

A systematic inspection of mechanical, electrical, and control factors can help identify the cause of signal problems and restore normal monitoring performance.

5. What installation precautions should be followed for the Bently Nevada 330904-15-15-05-01-00?

Proper installation is essential for achieving accurate and reliable measurement performance from the Bently Nevada 330904-15-15-05-01-00 proximity probe.

Before installation, the mounting area should be cleaned to remove dust, oil, or other contaminants that could affect installation stability. The mounting structure should also be checked to ensure secure installation.

The probe must be installed in the correct position relative to the rotating shaft so that it can accurately detect shaft movement.

During cable routing, avoid excessive bending, mechanical stress, and strong vibration areas. The cable should also be kept away from high-power electrical lines to reduce electromagnetic interference.

After installation, the output signal should be tested through the monitoring system. Engineers should confirm that vibration data, alarm functions, and signal communication are operating correctly before the equipment is placed into service.

Correct installation improves measurement accuracy and ensures reliable long-term operation.

6. What are the common causes of measurement errors in a 3300 NSv Proximity Probe system?

Measurement errors in a 3300 NSv Proximity Probe system are usually related to installation conditions, target material characteristics, system configuration, or environmental factors.

The electrical characteristics of the target shaft material can affect measurement performance. If the actual shaft material differs from the calibration conditions, signal accuracy may be affected.

Incorrect probe installation position or unsuitable operating conditions may also result in inaccurate readings.

Another common cause is incorrect Proximitor system configuration. If probe parameters, calibration data, or monitoring settings do not match the installed sensor, the system may process incorrect information.

Environmental factors such as electromagnetic interference, poor grounding, or damaged cables can also reduce signal stability.

Proper installation, correct configuration, and regular inspection are important to maintain reliable measurement performance.

7. Can the Bently Nevada 330904-15-15-05-01-00 be used for machinery protection systems?

Yes. The Bently Nevada 330904-15-15-05-01-00 is suitable for machinery condition monitoring and protection applications involving critical rotating equipment.

When connected to compatible Bently Nevada monitoring systems, the probe continuously collects shaft vibration and displacement data. These signals can be used for alarms, protective shutdown functions, and predictive maintenance analysis.

For important equipment such as turbines, compressors, and generators, abnormal shaft vibration is often an early indication of mechanical problems.

By providing real-time monitoring data, the probe allows maintenance teams to identify abnormal operating trends and take corrective actions before serious equipment damage occurs.

Its stable performance, fast response, and non-contact measurement technology make it suitable for long-term industrial machinery protection systems.

8. What maintenance practices are recommended for the Bently Nevada 330904-15-15-05-01-00?

To maintain reliable operation of the Bently Nevada 330904-15-15-05-01-00, regular inspection and maintenance should be performed.

Maintenance personnel should periodically check the probe installation condition, cable connections, connectors, and surrounding operating environment. Any loose connection, cable damage, or contamination should be corrected promptly.

The sensing area should be kept clean because oil, dust, and corrosive substances may affect measurement performance.

During scheduled equipment maintenance, vibration trends and historical operating data should be reviewed. If abnormal vibration changes are detected, the probe condition and monitoring system configuration should be checked.

For continuously operating critical machinery, regular maintenance ensures accurate monitoring data, improves equipment protection capability, and reduces unexpected failures.

Proper maintenance not only extends the service life of the proximity probe but also improves the overall reliability of the machinery condition monitoring system.
