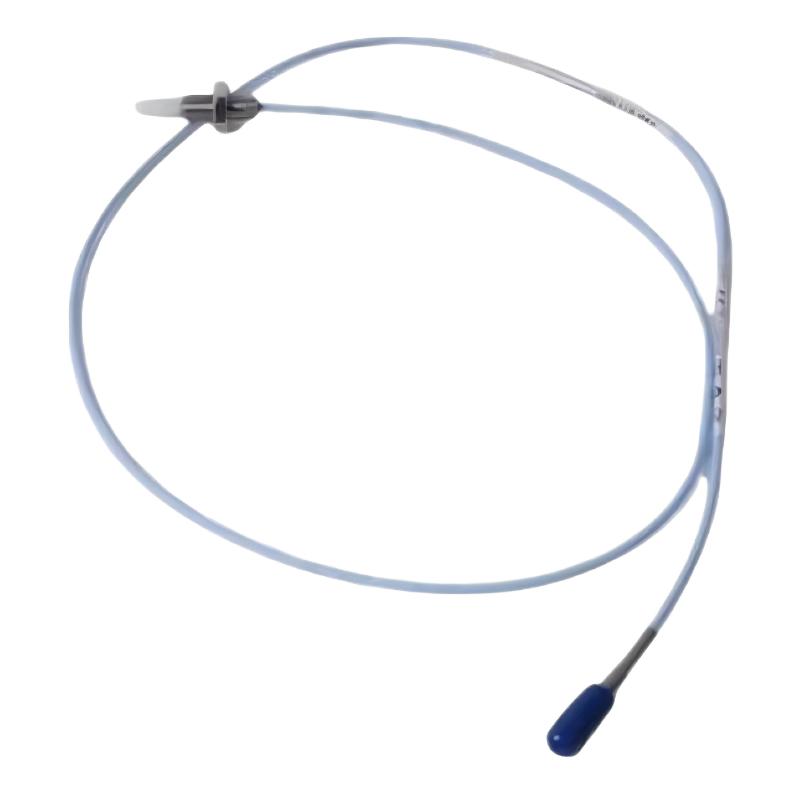

1. What is the main function of the Bently Nevada 330905-00-03-10-02-05 3300 NSv Proximity Probe?

The Bently Nevada 330905-00-03-10-02-05 3300 NSv Proximity Probe is a high-precision non-contact sensor designed for monitoring the operating condition of rotating machinery. It is mainly used to measure shaft vibration, shaft displacement, and rotor position by detecting changes in the distance between the probe tip and the rotating shaft.

The probe uses eddy current measurement technology to create an electromagnetic field near the target surface. When the rotating shaft moves due to vibration or displacement, the electromagnetic field changes. The sensor detects these variations and converts them into electrical signals proportional to shaft movement.

The output signal is transmitted to a compatible Proximitor system for processing and analysis. This allows engineers to monitor machine operating conditions, identify abnormal vibration trends, and perform predictive maintenance.

The 330905-00-03-10-02-05 is commonly used in critical rotating equipment such as turbines, compressors, pumps, generators, and motors. It provides continuous monitoring data that helps prevent unexpected equipment failures and improves machinery reliability.

2. What industrial equipment can use the Bently Nevada 330905-00-03-10-02-05 proximity probe?

The Bently Nevada 330905-00-03-10-02-05 is suitable for various industrial rotating machines that require accurate vibration and position monitoring.

Typical applications include steam turbines, gas turbines, centrifugal compressors, industrial pumps, generators, electric motors, and gearbox systems. In power plants, the probe is commonly installed on turbine systems to monitor rotor behavior and detect abnormal operating conditions.

In oil and gas, petrochemical, and manufacturing industries, this proximity probe is widely used for continuous monitoring of important rotating equipment.

The 3300 NSv series provides stable measurement performance and reliable operation in demanding industrial environments. When integrated with Bently Nevada monitoring systems, it can provide real-time vibration information for equipment protection, fault diagnosis, and maintenance planning.

By using this probe, operators can better understand equipment health conditions and reduce the risk of unexpected shutdowns.

3. How does the Bently Nevada 330905-00-03-10-02-05 measure shaft vibration?

The Bently Nevada 330905-00-03-10-02-05 measures shaft vibration using eddy current sensing technology.

During operation, the probe generates a high-frequency electromagnetic field at the sensing tip. When the rotating shaft moves closer to or farther away from the probe, the electromagnetic field changes accordingly.

The internal electronic circuit detects these changes and converts them into an output voltage signal that represents shaft displacement.

The signal is then transmitted to the Proximitor system, where it is processed into vibration amplitude, shaft position, and machine condition data.

Because the probe operates without direct contact with the rotating shaft, there is no mechanical wear between the sensor and the equipment. This allows stable long-term operation and makes it suitable for high-speed rotating machinery requiring continuous condition monitoring.

4. What should be checked if the 330905-00-03-10-02-05 produces abnormal measurement signals?

When the 330905-00-03-10-02-05 produces unstable signals, incorrect readings, or abnormal vibration data, troubleshooting should focus on installation conditions, electrical connections, and system settings.

First, verify that the probe installation position is correct and that the sensing condition between the probe and shaft meets application requirements. Incorrect installation may cause inaccurate output signals.

The shaft surface should also be inspected for contamination, corrosion, scratches, or other damage. Since the probe works through eddy current technology, the target surface condition can affect measurement accuracy.

The probe cable and connector should be checked for damage, loose connections, or external electromagnetic interference.

The Proximitor system configuration should also be reviewed to ensure that probe parameters, calibration information, and monitoring settings match the installed sensor.

A complete inspection of mechanical and electrical factors can help identify the cause of abnormal signals and restore reliable monitoring performance.

5. What installation precautions should be followed for the Bently Nevada 330905-00-03-10-02-05?

Proper installation is important to ensure accurate measurement and stable operation of the Bently Nevada 330905-00-03-10-02-05 proximity probe.

Before installation, the mounting area should be cleaned and checked to remove oil, dust, or other contaminants that may affect installation stability.

The probe should be installed in the correct position relative to the rotating shaft to ensure accurate detection of shaft movement.

During cable installation, avoid excessive bending, mechanical stress, and strong vibration areas. The cable should also be kept away from high-power electrical equipment to reduce electromagnetic interference.

After installation, the output signal should be tested through the monitoring system. Engineers should confirm that signal values, alarm functions, and communication performance are normal before the equipment is placed into operation.

Correct installation helps improve measurement reliability and ensures long-term stable performance.

6. What are the common causes of measurement errors in the 3300 NSv Proximity Probe system?

Measurement errors in the 3300 NSv Proximity Probe system may be caused by incorrect installation, target material differences, system configuration problems, or environmental interference.

The electrical characteristics of the monitored shaft material affect measurement performance. If the actual target material differs from the calibration conditions, the output signal may have deviations.

Incorrect probe installation position or improper operating conditions can also result in inaccurate measurement values.

Another common cause is incorrect Proximitor system configuration. The probe model, calibration parameters, and monitoring settings must match the installed sensor.

In addition, electromagnetic interference, poor grounding, and damaged cables may reduce signal stability.

To maintain accurate measurement results, engineers should regularly inspect the complete monitoring system, including mechanical installation, electrical connections, and configuration settings.

7. Can the Bently Nevada 330905-00-03-10-02-05 be used for machinery protection systems?

Yes. The Bently Nevada 330905-00-03-10-02-05 is designed for machinery condition monitoring and protection applications involving critical rotating equipment.

When connected with compatible Bently Nevada monitoring systems, the probe continuously provides shaft vibration and position information. These signals can be used for equipment alarms, protection functions, and predictive maintenance analysis.

For important machinery such as turbines, compressors, and generators, abnormal shaft movement is often an early indication of mechanical problems.

By monitoring these changes in real time, maintenance teams can identify potential issues before they develop into serious equipment failures.

The probe provides stable measurement performance and is suitable for long-term operation in industrial environments where reliable machinery protection is required.

8. What maintenance practices are recommended for the Bently Nevada 330905-00-03-10-02-05?

Regular maintenance helps maintain the accuracy and reliability of the Bently Nevada 330905-00-03-10-02-05 proximity probe system.

Maintenance personnel should periodically inspect the probe installation condition, cable connections, connectors, and surrounding operating environment. Any loose connection, cable damage, or contamination should be corrected promptly.

The sensing area should be kept clean because oil, dust, and corrosive substances may affect measurement performance.

During scheduled equipment maintenance, vibration trends and historical operating data should be reviewed. If abnormal changes are detected, the probe condition and monitoring system configuration should be checked.

For critical rotating machinery operating continuously, proper maintenance ensures accurate condition monitoring, improves equipment protection capability, reduces unexpected downtime, and extends the service life of the monitoring system.
