1. What is the main function of the Bently Nevada 330905-00-05-05-02-CN 3300 NSv Proximity Probe?

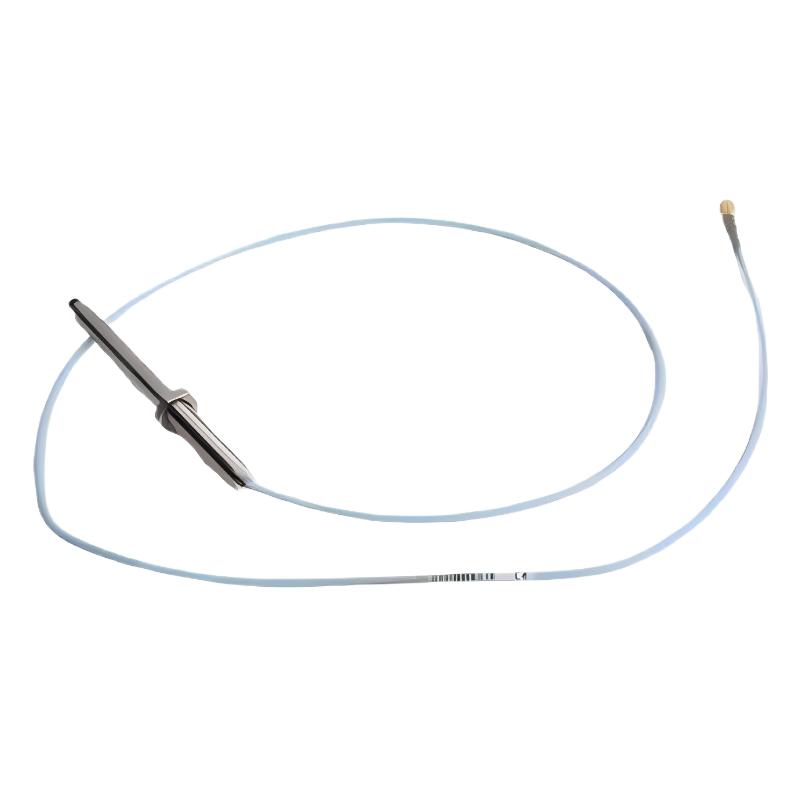

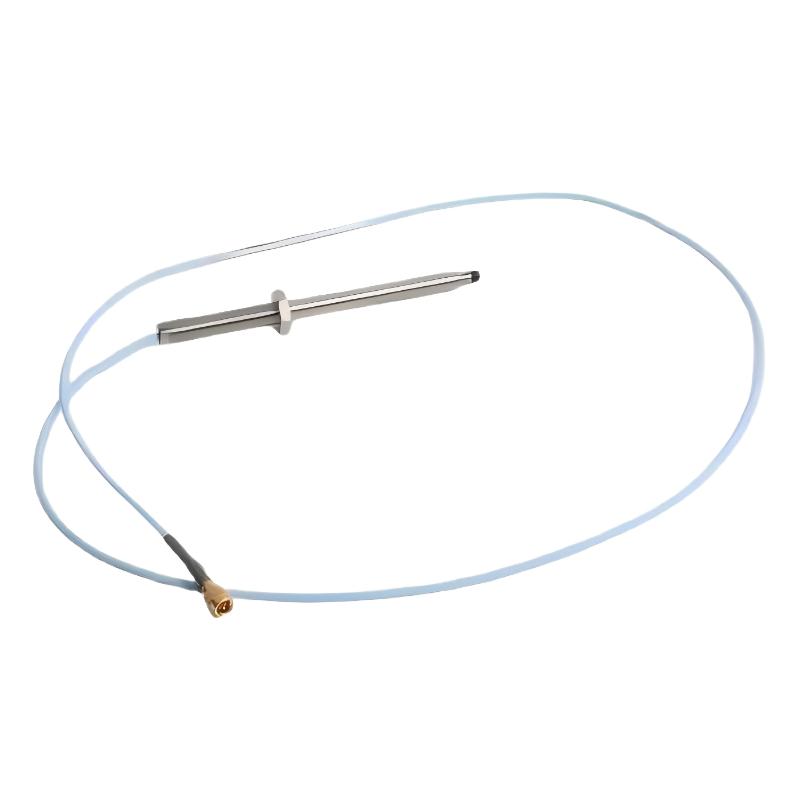

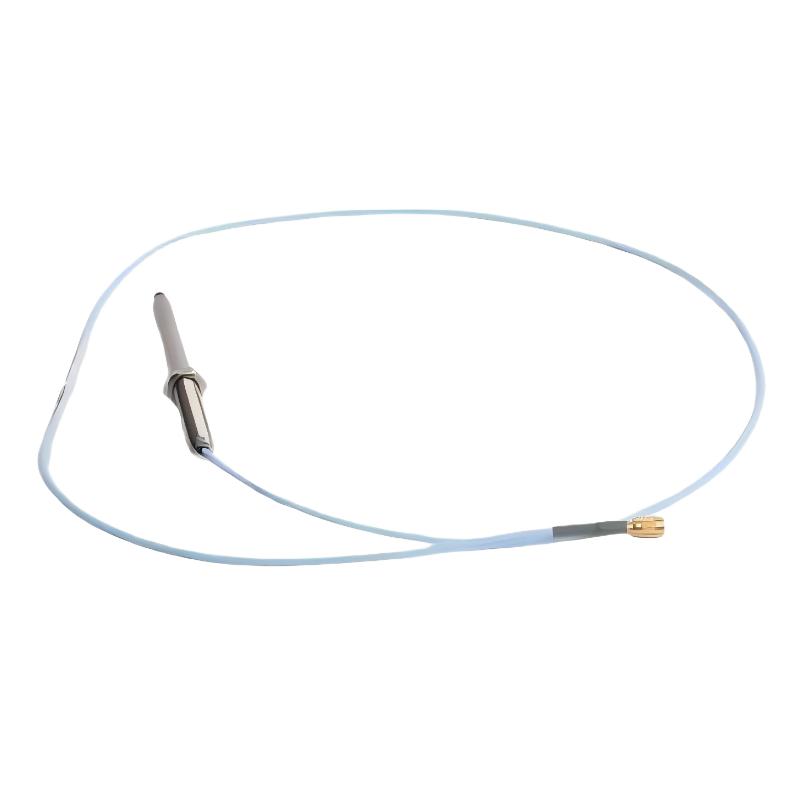

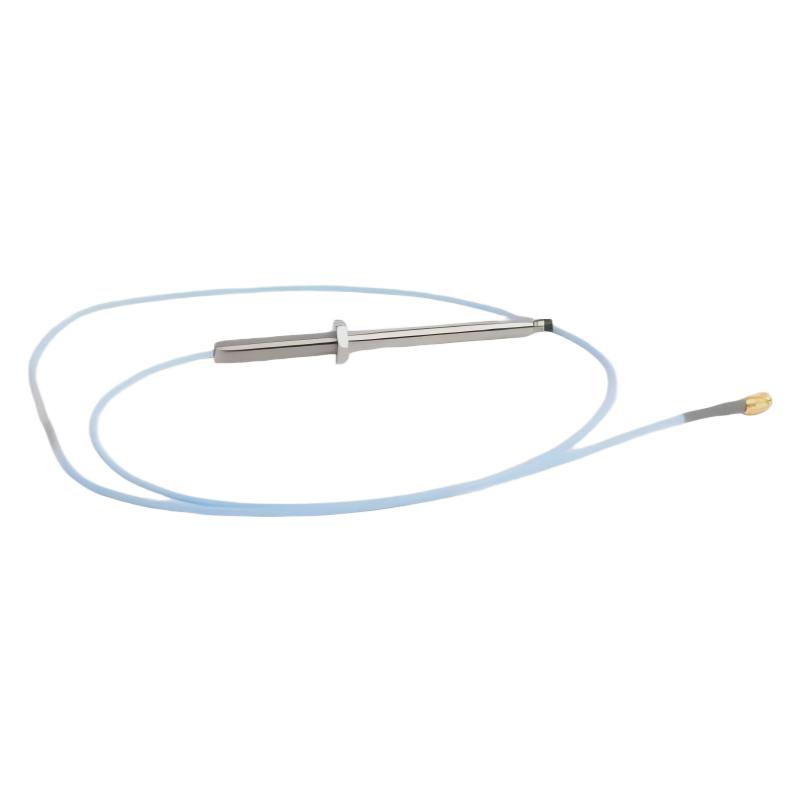

The Bently Nevada 330905-00-05-05-02-CN 3300 NSv Proximity Probe is a precision non-contact sensor designed for monitoring the operating condition of rotating machinery. It is mainly used to measure shaft vibration, shaft displacement, and rotor position by detecting changes in the distance between the probe tip and the rotating shaft.

The probe uses eddy current measurement technology to generate a high-frequency electromagnetic field near the shaft surface. When the rotating shaft moves due to vibration, axial movement, or mechanical displacement, the electromagnetic field changes accordingly. The probe detects these changes and converts them into electrical output signals.

The signal is then transferred to a compatible Proximitor system for processing. Engineers can use the processed data to evaluate machine health, monitor vibration trends, and identify abnormal operating conditions.

The 330905-00-05-05-02-CN is widely used in turbines, compressors, pumps, generators, motors, and other critical rotating equipment. It provides reliable monitoring data that helps reduce unexpected failures and improves equipment protection.

2. What applications are suitable for the Bently Nevada 330905-00-05-05-02-CN proximity probe?

The Bently Nevada 330905-00-05-05-02-CN is suitable for industrial applications where accurate shaft vibration and position monitoring are required.

Typical applications include steam turbines, gas turbines, centrifugal compressors, industrial pumps, generators, electric motors, and gearbox systems. In power generation systems, the probe is commonly used to monitor rotor movement and detect abnormal vibration conditions.

In oil and gas, petrochemical, and manufacturing industries, this proximity probe is installed on critical rotating machines that require continuous condition monitoring.

The 3300 NSv series provides stable measurement performance and is suitable for environments where reliability and accuracy are important. When combined with Bently Nevada monitoring equipment, it provides real-time condition information for equipment protection and predictive maintenance.

By continuously collecting shaft movement data, operators can identify early warning signs of mechanical problems and optimize maintenance schedules.

3. How does the Bently Nevada 330905-00-05-05-02-CN measure shaft displacement and vibration?

The Bently Nevada 330905-00-05-05-02-CN uses eddy current sensing technology to measure shaft displacement and vibration.

During operation, the probe generates a high-frequency electromagnetic field at the sensing tip. When the distance between the probe and the rotating shaft changes, the electromagnetic field strength also changes.

The internal electronics detect these variations and convert them into a proportional electrical signal representing shaft movement.

The output signal is transmitted to the Proximitor system, where it is processed into vibration amplitude, shaft position, and machine condition data.

Because the probe operates without physical contact with the rotating shaft, there is no mechanical wear caused by friction. This allows stable operation over long periods and makes the probe suitable for high-speed rotating machinery monitoring.

4. What should be checked when the 330905-00-05-05-02-CN gives incorrect vibration readings?

When the 330905-00-05-05-02-CN provides abnormal readings, unstable signals, or incorrect vibration values, troubleshooting should start with checking the installation, electrical connections, and monitoring system configuration.

First, confirm that the probe installation position is correct and that the sensing condition between the probe and shaft meets operating requirements. Incorrect installation can directly affect measurement accuracy.

The shaft surface condition should also be inspected. Oil contamination, corrosion, scratches, or surface damage may influence eddy current measurement performance.

The probe cable and connector should be checked for physical damage, loose connections, or electromagnetic interference from nearby equipment.

The Proximitor system configuration should also be verified to ensure that the probe parameters, calibration information, and monitoring channel settings are correct.

A complete inspection of mechanical and electrical factors can help identify the cause of abnormal signals and restore accurate monitoring performance.

5. What installation requirements should be followed for the Bently Nevada 330905-00-05-05-02-CN?

Correct installation is important to ensure reliable performance of the Bently Nevada 330905-00-05-05-02-CN proximity probe.

Before installation, the mounting area should be cleaned and inspected to remove oil, dust, and other contaminants that could affect sensor installation.

The probe should be positioned correctly relative to the rotating shaft so that it can accurately detect shaft movement changes.

During cable installation, avoid excessive bending, mechanical stress, and areas with strong vibration. The cable should also be separated from high-power electrical equipment to reduce electromagnetic interference.

After installation, the probe output signal should be tested through the monitoring system. Engineers should confirm that signal transmission, vibration measurement, and alarm functions operate correctly before starting normal equipment operation.

Proper installation improves measurement accuracy and ensures long-term stable operation.

6. What factors can cause measurement errors in the 3300 NSv Proximity Probe system?

Measurement errors in the 3300 NSv Proximity Probe system can be caused by several factors, including incorrect installation, target material differences, configuration problems, and environmental interference.

The electrical characteristics of the monitored shaft material affect the probe output signal. If the actual target material differs from the calibration conditions, measurement accuracy may be affected.

Incorrect probe positioning or improper installation conditions can also result in unstable readings.

Another common cause is incorrect Proximitor configuration. The probe model, calibration parameters, and monitoring settings must match the installed sensor specifications.

Electrical interference, poor grounding, damaged cables, or unstable connections may also reduce signal quality.

Regular inspection and correct system configuration are necessary to maintain accurate and reliable measurement performance.

7. Can the Bently Nevada 330905-00-05-05-02-CN be integrated into machinery protection systems?

Yes. The Bently Nevada 330905-00-05-05-02-CN can be integrated into machinery condition monitoring and protection systems for critical rotating equipment.

When connected with compatible Bently Nevada monitoring systems, the probe continuously provides shaft vibration and position data. These signals can be used for equipment alarms, protection functions, and predictive maintenance analysis.

For large rotating machines such as turbines, compressors, and generators, abnormal shaft movement is an important indicator of potential mechanical problems.

By monitoring vibration changes in real time, maintenance teams can detect abnormal operating conditions early and take corrective actions before equipment damage occurs.

The probe provides reliable measurement performance and is suitable for applications requiring continuous machine protection and monitoring.

8. What maintenance practices are recommended for the Bently Nevada 330905-00-05-05-02-CN?

Regular maintenance is recommended to ensure the long-term reliability and accuracy of the Bently Nevada 330905-00-05-05-02-CN proximity probe.

Maintenance personnel should periodically inspect the probe installation condition, cable connections, connectors, and operating environment. Any loose connection, cable damage, or contamination should be corrected immediately.

The sensing area should be kept clean because oil, dust, and corrosive substances may affect measurement stability.

During scheduled equipment maintenance, vibration trends and historical monitoring data should be reviewed. If abnormal vibration changes are detected, the probe condition and monitoring system configuration should be checked.

For critical rotating machinery operating continuously, proper maintenance helps ensure accurate condition monitoring, improves equipment protection capability, and reduces unexpected downtime.

Effective maintenance also extends the service life of the sensor and improves the overall reliability of the machinery monitoring system.
