1. What is the Bently Nevada 330905-14-19-10-02-05 mainly used for?

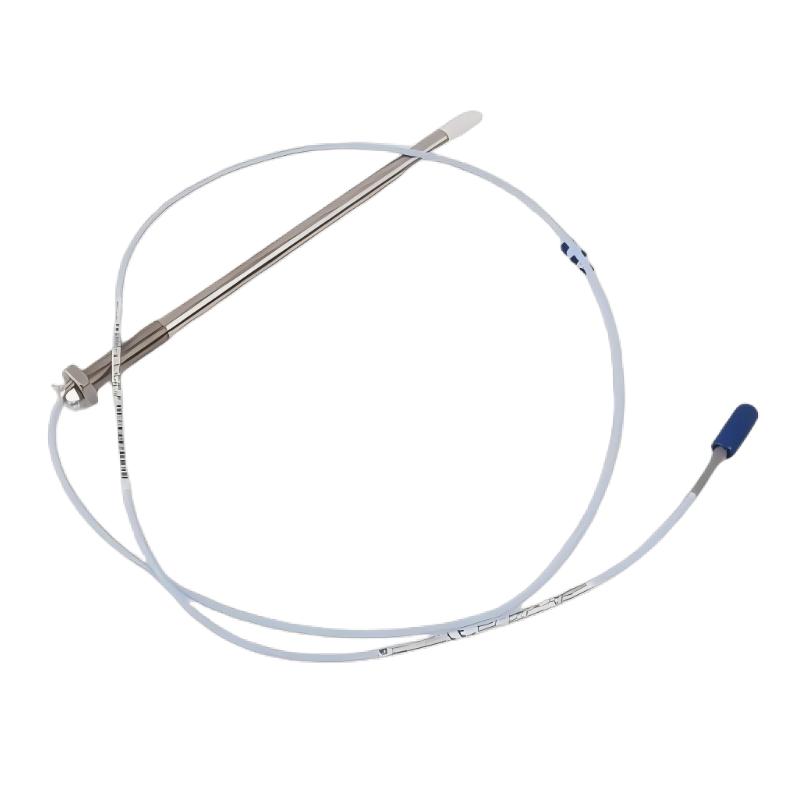

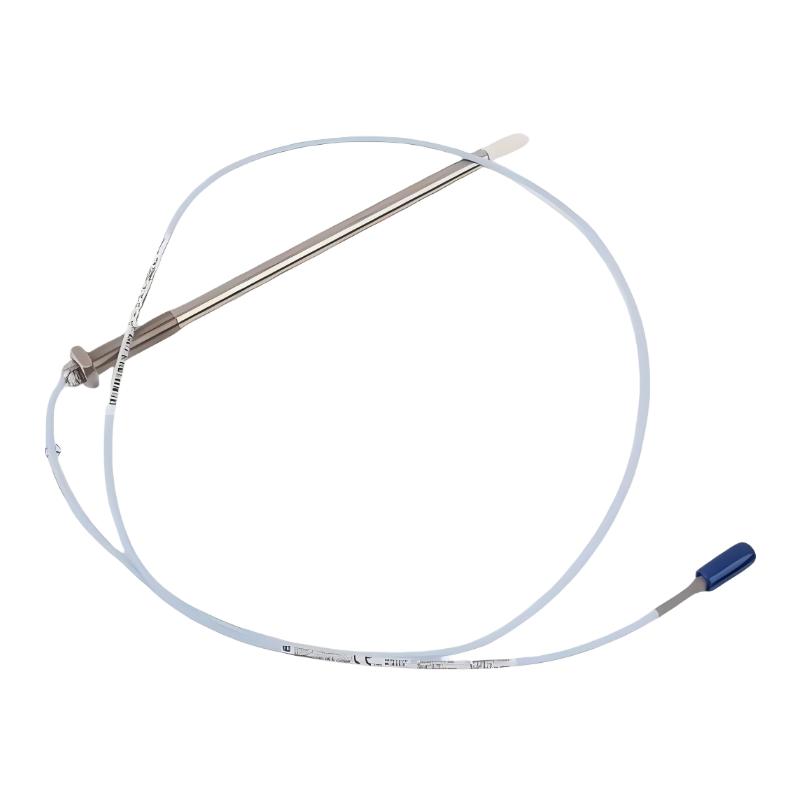

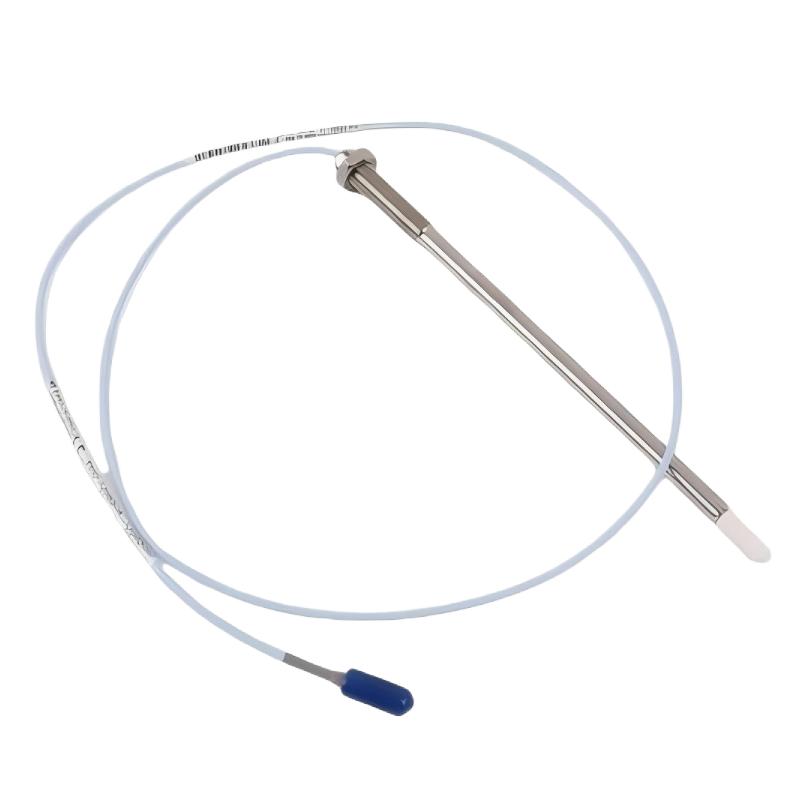

The Bently Nevada 330905-14-19-10-02-05 is a 3300 NSv metric proximity probe designed for non-contact monitoring of rotating machinery. It detects changes in the position and movement of conductive metallic targets, particularly rotating shafts. Depending on the installation arrangement, it can be used for shaft vibration, shaft displacement and shaft position monitoring. Typical applications include turbines, compressors, pumps and other critical rotating equipment. Because the probe operates without direct physical contact with the rotating shaft, it is suitable for continuous monitoring of high-speed machinery and can provide useful shaft condition information to a compatible monitoring system.

2. How does the 3300 NSv proximity probe detect shaft displacement?

The probe uses an eddy-current measurement principle to detect changes in the distance between the probe tip and a conductive metallic target. When the probe is energized, an electromagnetic field is generated at the sensing tip. A conductive shaft entering this field produces eddy currents that change the electrical characteristics of the sensing system. Compatible interface electronics process this change and convert it into a measurement related to the distance between the probe and the shaft surface. When the shaft moves, the measurement gap changes accordingly, allowing the system to monitor displacement and vibration. Since the probe does not physically contact the rotating shaft, the measurement process does not introduce mechanical friction or contact wear.

3. What components are needed for the 330905-14-19-10-02-05 to operate correctly?

The 330905-14-19-10-02-05 is normally used as part of a complete 3300 NSv proximity measurement system. A typical measurement chain includes the proximity probe, a compatible extension cable and suitable interface electronics. Proper matching of these components is important because the probe characteristics, cable configuration and interface electronics determine the overall measurement performance. During installation, the probe should be firmly secured and the cable should be routed carefully to prevent excessive bending, pulling, vibration and mechanical damage. Strong electromagnetic interference should also be avoided where practical. Before commissioning the equipment, technicians should verify the complete signal path, electrical connections and measurement output.

4. What types of rotating equipment are suitable for this proximity probe?

The 330905-14-19-10-02-05 can be used on rotating machinery where non-contact measurement of shaft vibration, displacement or position is required. Common applications include steam turbines, gas turbines, compressors, pumps and other critical industrial rotating equipment. Depending on the mounting position and measurement direction, the probe can monitor radial shaft vibration, shaft position and displacement-related conditions. The non-contact principle makes it particularly useful for high-speed machinery because there is no physical contact between the sensing element and the rotating shaft. Before installation, the application should be evaluated according to the shaft material, target surface, mounting location, measurement direction and compatibility of the complete monitoring system.

5. What should be checked during installation of the 330905-14-19-10-02-05?

The installation position should be selected according to the mechanical arrangement of the monitored machine and the requirements of the 3300 NSv system. The probe sensing tip should face the appropriate conductive metallic target and maintain the required operating gap. The mounting structure needs to be rigid and stable because any movement of the probe itself can appear as shaft displacement in the monitoring signal. Cable routing should avoid excessive bending, pulling, vibration and mechanical damage. The cable should also be kept away from strong electromagnetic interference sources whenever possible. After installation, the probe mounting, cable connections and measurement signal should be checked before the machine is gradually brought to normal operating conditions.

6. What can cause an unstable signal from the 330905-14-19-10-02-05?

An unstable signal can be caused by installation problems, incorrect measurement conditions, cable faults, electrical interference or actual mechanical movement. The first step is to verify that the probe is firmly mounted and that the measurement gap is appropriate. The probe cable, extension cable and connectors should then be inspected for damage, loose connections or mechanical stress. Grounding problems and electromagnetic interference may also affect the signal. Mechanical conditions such as shaft runout, misalignment, excessive vibration and movement of the probe mounting structure should be investigated as well. The target material and shaft surface condition can also influence eddy-current measurements. Comparing the probe signal with machine speed, load and other vibration channels can help distinguish a genuine machine condition from a measurement-system problem.

7. How should an abnormal vibration signal from the probe be diagnosed?

When an abnormal vibration signal appears, first confirm that the probe is securely mounted and has not moved relative to the machine housing. Check the installation direction and measurement gap, followed by inspection of the probe cable, extension cable and connectors. Technicians should then compare the proximity signal with machine speed, operating load and other available vibration measurements. If the signal changes consistently with rotational speed or load and other channels show similar behavior, the machine may have a mechanical problem such as shaft imbalance, misalignment or abnormal shaft movement. If only the probe channel is abnormal while other measurements remain normal, the probe, cable, interface electronics, grounding and mounting arrangement should be examined in greater detail before concluding that the machinery itself is faulty.

8. What are the advantages of using the 330905-14-19-10-02-05 for continuous machinery monitoring?

The probe provides non-contact eddy-current measurement, allowing shaft movement to be monitored continuously without physical contact with the rotating component. This eliminates mechanical friction and contact wear at the sensing point and makes the technology suitable for high-speed rotating machinery. Changes in the measurement gap can provide valuable information about shaft position, displacement and vibration behavior. When combined with compatible 3300 NSv interface electronics and other monitoring channels, the probe can support machinery protection, condition monitoring and predictive maintenance programs. Continuous monitoring also allows maintenance personnel to observe changes in machine behavior over time, helping identify abnormal trends and investigate potential mechanical problems before they develop into more serious equipment failures.
