1. What is the Bently Nevada 330906-02-12-05-05-02-05 mainly used for?

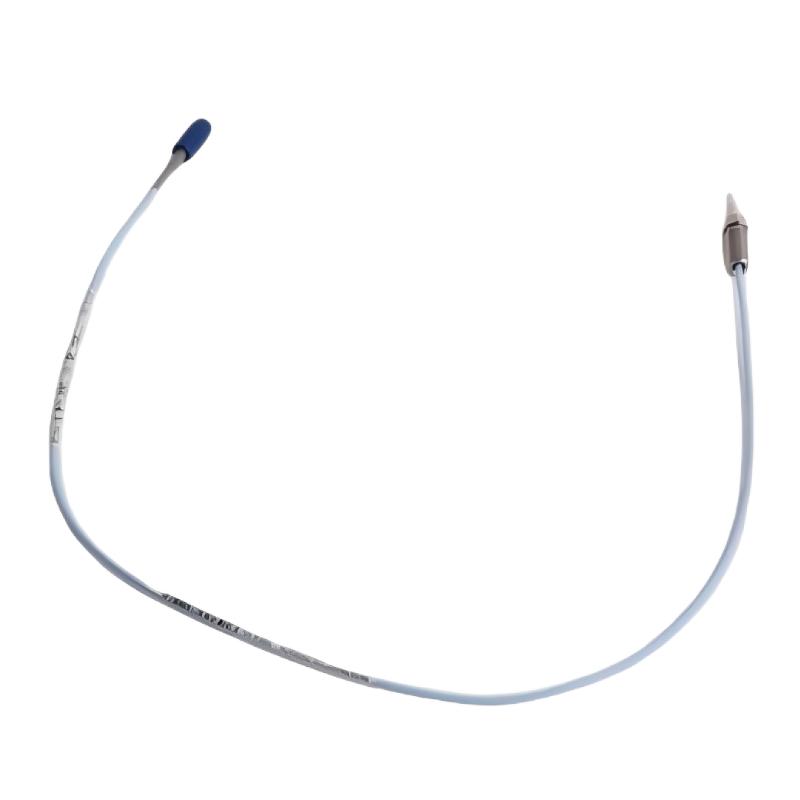

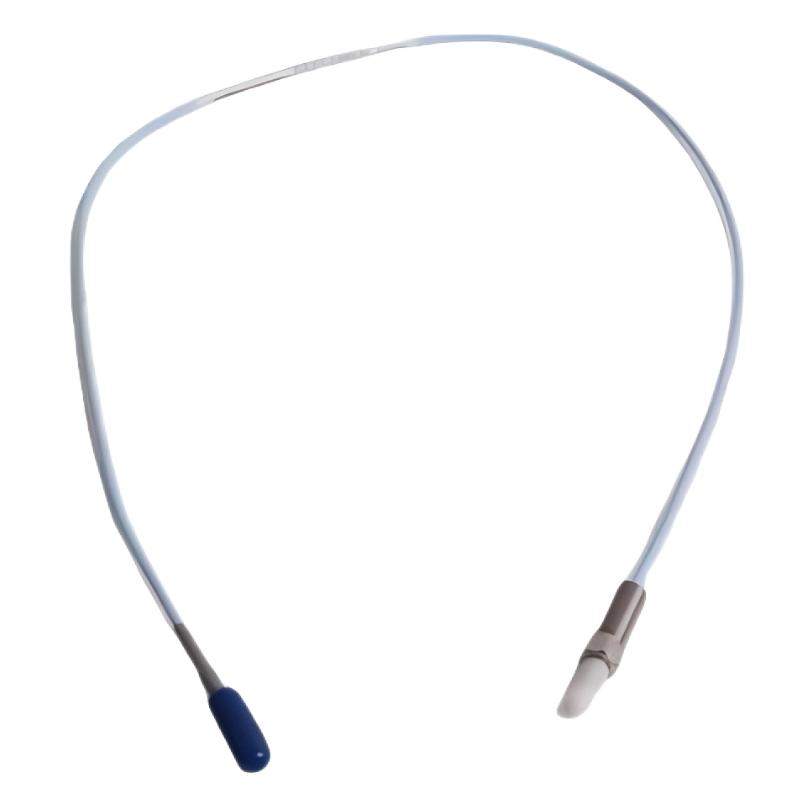

The Bently Nevada 330906-02-12-05-05-02-05 is a 3300 NSv Reverse-Mount Probe designed for non-contact monitoring of rotating machinery. It is primarily used to detect changes in the position and movement of conductive metallic targets, particularly rotating shafts. Depending on the installation arrangement, the probe can be used to monitor shaft vibration, shaft displacement and shaft position. It is suitable for critical equipment such as turbines, compressors, pumps and other rotating machinery where continuous shaft condition monitoring is required. Its reverse-mount configuration provides an installation option for applications where a conventional probe mounting arrangement may not be practical.

2. How does the 3300 NSv Reverse-Mount Probe measure shaft movement?

The probe uses an eddy-current measurement principle. When energized, the sensing tip generates an electromagnetic field. A conductive metallic shaft entering this field produces eddy currents within the target material, which changes the electrical characteristics of the probe system. Compatible interface electronics process this change and determine the distance between the probe and the shaft surface. As the shaft moves, the measurement gap changes, allowing the monitoring system to detect shaft displacement and vibration. Because the probe operates without physical contact with the rotating shaft, it can provide continuous measurements without introducing mechanical friction or contact wear at the sensing point.

3. What is the purpose of the reverse-mount design of the 330906-02-12-05-05-02-05?

The reverse-mount configuration provides an alternative method for positioning the proximity probe relative to the monitored shaft or target. This design can be useful when the mechanical arrangement of a machine does not allow convenient access for a conventional forward-mounted probe. The reverse-mount installation allows engineers to adapt the probe position to the available mounting structure while maintaining the required sensing relationship with the conductive target. Proper installation remains important because the probe must be securely supported and correctly positioned relative to the target. The mounting arrangement should also minimize unwanted mechanical movement, vibration and structural deformation that could affect the measurement signal.

4. What components are required to build a complete measurement system?

The 330906-02-12-05-05-02-05 is normally used as part of a complete 3300 NSv proximity monitoring system. A typical measurement chain includes the proximity probe, a compatible extension cable and appropriate interface electronics. The components must be properly matched because the probe, cable and interface electronics operate together as a measurement system. During installation, the probe should be securely mounted and the cable should be routed to avoid excessive bending, pulling, vibration and mechanical damage. Strong electromagnetic interference should also be avoided where possible. Before commissioning, technicians should verify all electrical connections and confirm that the complete signal chain produces a stable and appropriate measurement signal.

5. What should be considered when installing the 330906-02-12-05-05-02-05?

The reverse-mount probe should be installed according to the mechanical structure of the monitored equipment and the requirements of the 3300 NSv system. The sensing tip must face the appropriate conductive metallic target and maintain the required measurement gap. The mounting structure should be sufficiently rigid to prevent the probe from moving independently of the machine housing. Cable routing should be planned carefully to prevent excessive bending, mechanical tension, vibration and physical damage. It is also important to minimize exposure to strong electromagnetic interference. After installation, the probe position, mounting stability, cable connections and signal output should be checked before the equipment is returned to normal operating conditions.

6. What can cause an unstable output signal from the reverse-mount probe?

An unstable output signal may be caused by incorrect installation, an unsuitable measurement gap, cable faults, electrical interference or actual mechanical movement. The probe mounting should be checked first to make sure it has not loosened or shifted. The probe cable, extension cable and connectors should then be inspected for damage, poor contact or mechanical stress. Grounding and electromagnetic interference should also be investigated. Mechanical factors such as shaft runout, misalignment, excessive vibration or movement of the reverse-mount structure can create abnormal measurements. The condition and material of the target surface should also be considered. Comparing the probe signal with machine speed and other vibration measurements can help determine whether the abnormality is related to the machine or the measurement chain.

7. How can an abnormal vibration reading from the 330906-02-12-05-05-02-05 be diagnosed?

Start by confirming that the reverse-mount probe is firmly secured and has not shifted relative to the machine structure. Verify the measurement gap and probe orientation, then inspect the probe cable, extension cable and connectors for loose or damaged connections. The measured vibration signal should be compared with machine rotational speed, operating load and other available monitoring channels. If the abnormal signal follows changes in rotational speed and similar behavior appears in other measurement channels, an actual mechanical problem may exist, such as imbalance, misalignment or abnormal shaft movement. If only the reverse-mount probe channel shows abnormal behavior, troubleshooting should focus on the probe, cable, interface electronics, grounding and mechanical mounting before concluding that the machine itself is defective.

8. What are the advantages of using the 330906-02-12-05-05-02-05 in rotating machinery monitoring?

The probe provides non-contact eddy-current measurement, allowing shaft movement and vibration to be monitored without physical contact between the sensing tip and rotating shaft. This eliminates mechanical contact wear and makes the technology suitable for continuous monitoring of high-speed rotating equipment. The reverse-mount design provides additional installation flexibility when machine geometry or access limitations make conventional mounting difficult. When integrated with compatible 3300 NSv interface electronics and other monitoring channels, the probe can provide useful data for machinery protection, condition monitoring and predictive maintenance. Continuous measurement also helps maintenance teams identify changes in shaft behavior, investigate abnormal trends and take corrective action before developing mechanical problems lead to more serious equipment failures.
