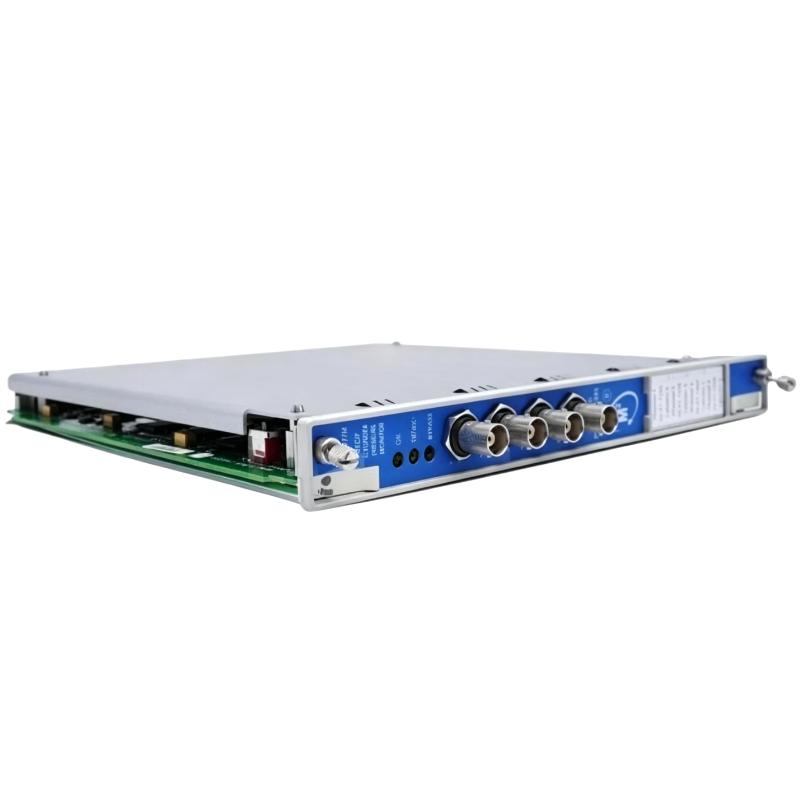

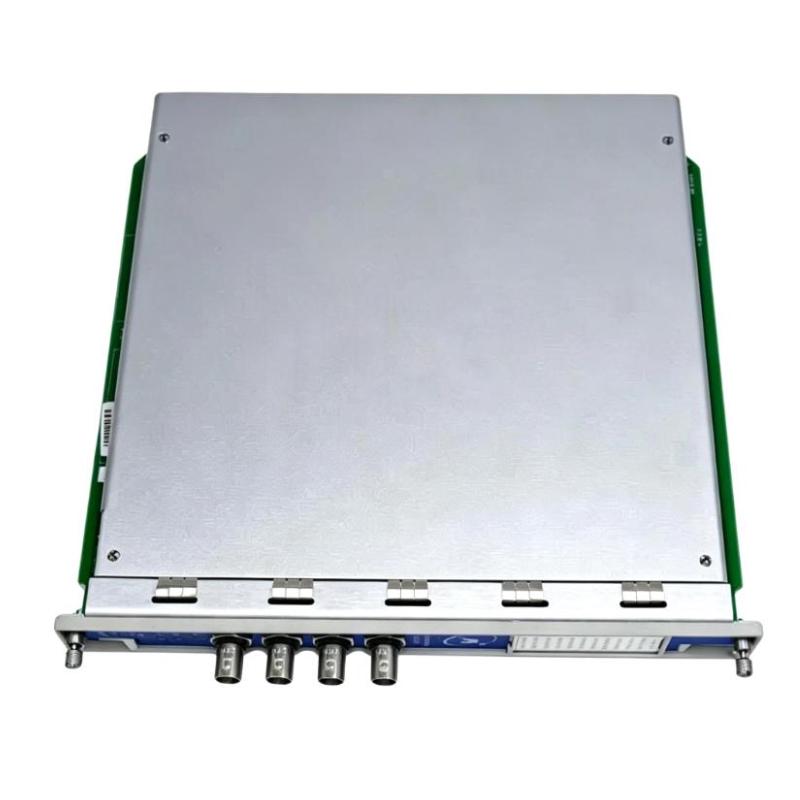

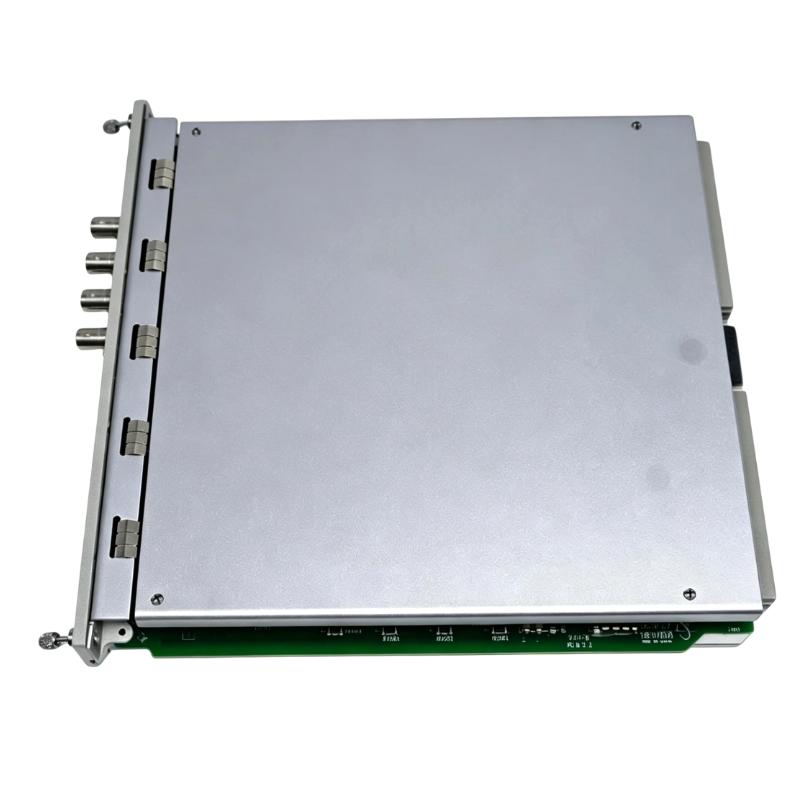

1. What is the main function of the Bently Nevada 3500/22-01-03-00?

The 3500/22-01-03-00 is a Bently Nevada 3500/22M Transient Data Interface Module designed to provide data communication between the 3500 monitoring rack and compatible monitoring and diagnostic software. It connects the monitoring modules installed in the 3500 rack with external software systems, allowing steady-state operating data to be continuously collected and dynamic or transient waveform data to be acquired when the appropriate configuration is enabled. The collected information can be transferred through the Ethernet interface for machinery condition monitoring, trend analysis, and investigation of startup, shutdown, and abnormal operating events. The TDI also provides rack interface functions for system configuration and status monitoring. Actual vibration, speed, position, and other measurement signals are generated by the appropriate monitoring modules, while the TDI primarily handles data collection and communication.

2. What do the “-01-03-00” suffixes in 3500/22-01-03-00 indicate?

The complete 3500/22-01-03-00 designation identifies a specific configuration of the Transient Data Interface. The 3500/22 identifies the Transient Data Interface function, while the first “-01” represents the standard transient data interface configuration. The “-03” identifies the associated I/O configuration, and the final “-00” represents the applicable standard configuration without an additional approval option. These configuration details are important when selecting replacement equipment because different 3500/22 versions may use different I/O or certification configurations. For replacement applications, the complete part number should be checked instead of selecting a module based only on the 3500/22 designation. This helps ensure that the replacement module matches the communication architecture and configuration of the existing 3500 system.

3. Where should the 3500/22-01-03-00 be installed?

The 3500/22-01-03-00 is installed in Slot 1 of the 3500 rack, adjacent to the power supply. This position allows the TDI to communicate with the rack backplane and the compatible monitoring modules installed in the system. During installation, the module should be fully seated in the rack connector and securely fastened. The corresponding rear I/O module should also be checked to ensure that it is properly installed and connected. An incorrectly seated module can cause communication failures, missing monitoring data, or problems with host software recognition. When replacing an existing module, it is recommended to record the original system configuration and communication parameters before removing the old TDI so that the replacement can be commissioned with minimal downtime.

4. What data acquisition functions are supported by the 3500/22-01-03-00?

The 3500/22-01-03-00 supports steady-state data acquisition and can provide dynamic and high-resolution transient waveform data when the appropriate system configuration is installed. Steady-state data is primarily used to monitor normal operating conditions and long-term machinery trends. Dynamic data provides additional waveform information, while transient data is useful for analyzing machinery behavior during startup, shutdown, speed changes, load changes, and other rapidly changing operating conditions. The availability of dynamic and transient information depends on the monitoring modules, configured channels, and system settings. The TDI collects and communicates the data generated by compatible monitoring modules rather than directly measuring physical parameters itself.

5. What communication interface does the 3500/22-01-03-00 use?

The module uses 10Base-T/100Base-TX Ethernet communication and provides an RJ-45 connection for communication with external host systems. The Ethernet connection is used to transfer monitoring data, rack status information, and configuration-related information between the 3500 system and compatible software. A USB configuration interface is also available for supported configuration and maintenance operations. During commissioning, the Ethernet cable, RJ-45 connector, network equipment, communication parameters, and host software settings should be checked. If communication cannot be established, network and configuration problems should be eliminated before the TDI or rear I/O module is considered defective. Damaged cables, loose connectors, incorrect network settings, and external network equipment problems can all cause symptoms similar to a TDI hardware fault.

6. How should transient data acquisition problems be diagnosed on the 3500/22-01-03-00?

The first step is to confirm that the system has been configured for the required dynamic or transient data acquisition function and that the relevant monitoring channels are enabled. The monitoring modules installed in the 3500 rack should then be checked to ensure that they are operating normally and receiving valid sensor and Keyphasor signals. Because transient acquisition is often associated with changes in machine speed and specific operating events, trigger conditions and acquisition parameters should also be reviewed. If the monitoring module provides normal real-time measurements but transient waveforms are unavailable, the TDI configuration, dynamic data settings, and host software should be examined. The Ethernet communication path should also be checked to confirm that acquired data can reach the host system. Checking the monitoring module, channel configuration, TDI settings, and communication path in sequence makes it easier to identify the actual source of the problem.

7. Is the 3500/22-01-03-00 part of the critical machinery protection path?

The 3500/22-01-03-00 primarily performs rack interface, data acquisition, and communication functions and is not the main protection measurement channel within the 3500 automatic machinery protection system. Dedicated monitoring and protection modules are responsible for the applicable measurements, alarms, and protection functions, while the TDI provides access to rack data for external monitoring and diagnostic software. A communication problem involving the TDI should therefore not automatically be interpreted as a failure of the entire machinery protection system. During maintenance, the TDI communication status, monitoring modules, sensor inputs, and protection logic should be evaluated separately. Any shutdown or maintenance decision should be based on the actual protection system status and the site’s established safety procedures rather than solely on the communication status of the TDI.

8. How should the 3500/22-01-03-00 be maintained for reliable long-term operation?

Regular maintenance should include inspection of the TDI front-panel LEDs, rack connection, rear I/O module, Ethernet cable, and RJ-45 connector. The 3500 rack should operate within its specified temperature and humidity conditions, while dust, moisture, continuous vibration, and other industrial environmental factors should be minimized. Communication connections should also be inspected periodically for loose connections, physical damage, or abnormal contact. If communication interruptions, missing data, or transient waveform acquisition problems occur, the external network, monitoring modules, and system configuration should be checked before concluding that the TDI has a hardware failure. For critical rotating machinery monitoring systems, it is recommended to maintain backups of the 3500 system configuration, communication parameters, and dynamic data channel settings. When replacing a 3500/22-01-03-00, the complete model number and I/O configuration should be verified to ensure that the replacement module matches the communication and functional requirements of the existing 3500 system.
