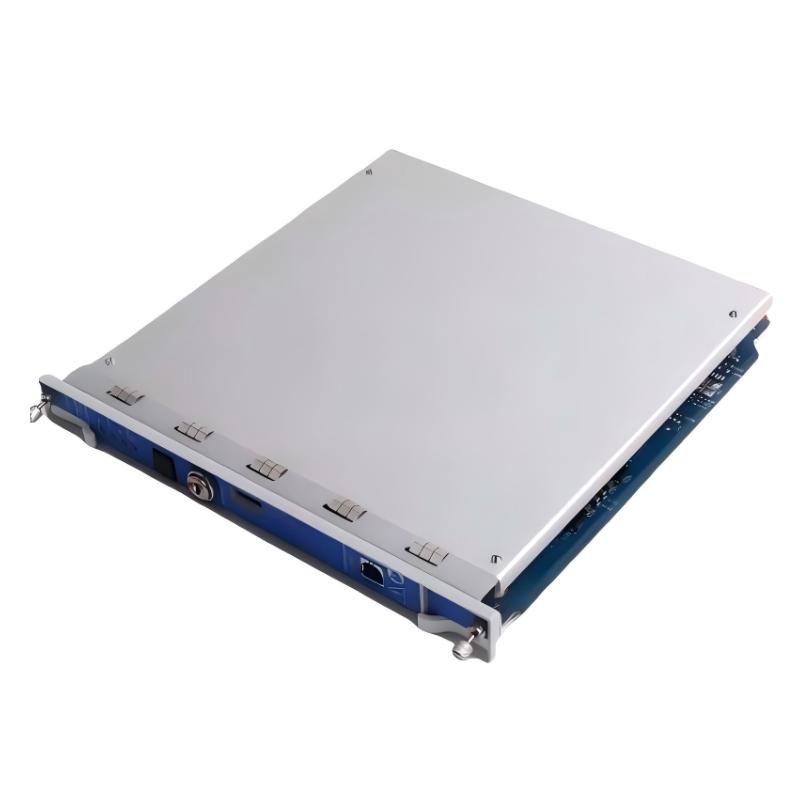

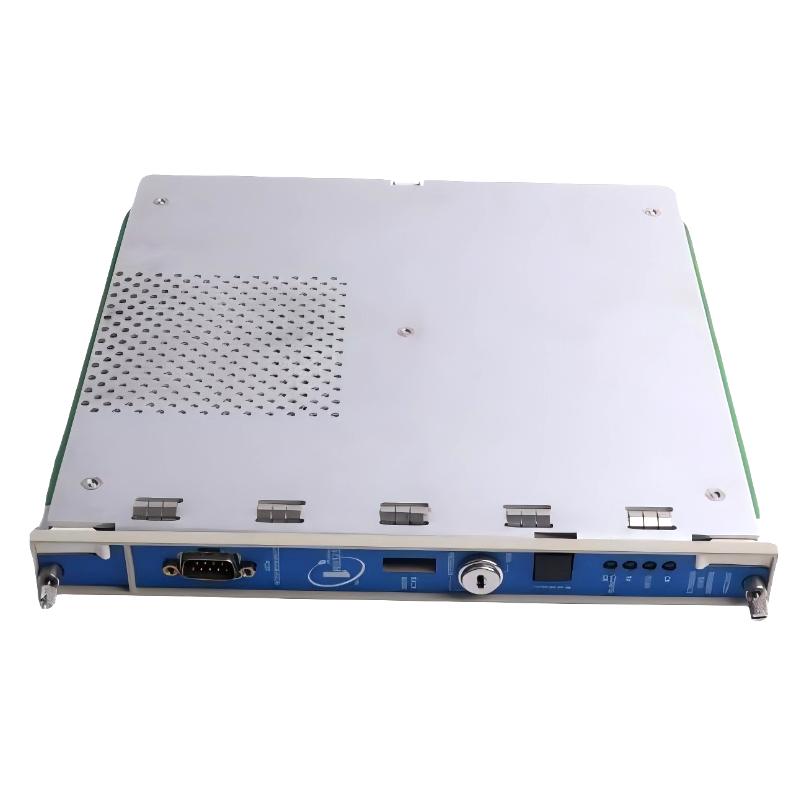

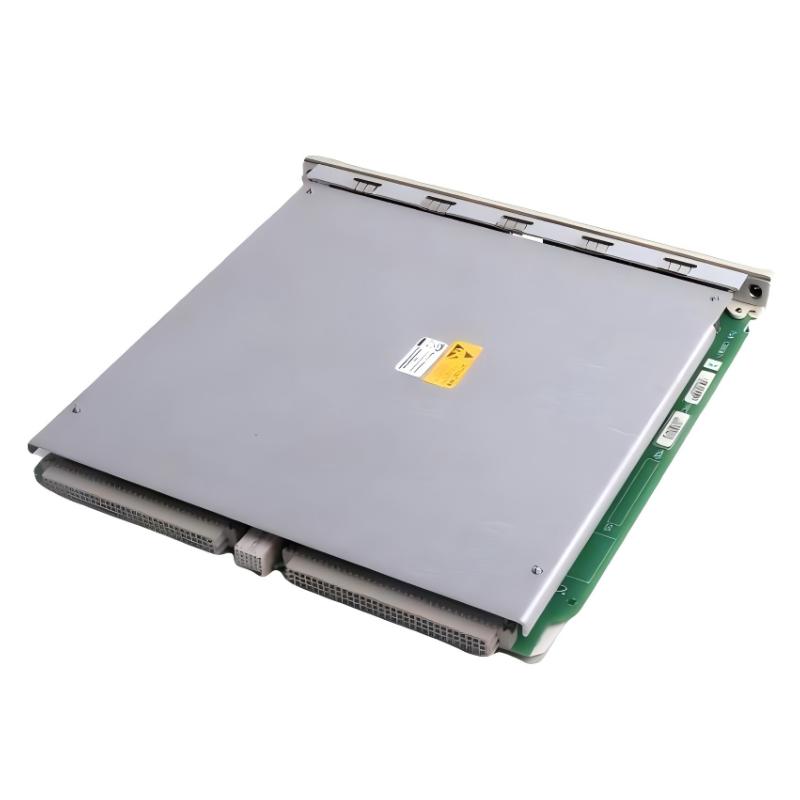

1. What is the main function of the Bently Nevada 3500/22-02-00?

The Bently Nevada 3500/22-02-00 is a Transient Data Interface Module used as the communication interface between a 3500 machinery monitoring rack and compatible monitoring, configuration, and diagnostic software. It provides access to operating information collected by compatible monitoring modules installed in the rack. Depending on the system configuration, the module can handle steady-state information as well as dynamic and transient data. This allows engineers to monitor machinery operating conditions and analyze events such as startup, shutdown, speed changes, load changes, and abnormal machine behavior. The TDI itself does not replace the measurement modules. Instead, it works with the installed monitoring modules to collect and communicate their data to external software.

2. What type of data can the 3500/22-02-00 handle?

The 3500/22-02-00 can handle steady-state, dynamic, and transient data when the corresponding monitoring modules and system configuration are available. Steady-state information is normally used for continuous machinery monitoring and long-term trending. Dynamic information provides additional waveform and operating-condition details, while transient data is useful for examining short-duration events such as machine startup, shutdown, speed transitions, process disturbances, and sudden changes in vibration behavior. The actual data available depends on the monitoring modules installed in the 3500 rack and the configured monitoring channels. The TDI serves as the interface that collects and communicates the information; the physical measurements themselves are generated by the appropriate monitoring modules and sensors.

3. How is the 3500/22-02-00 connected to an external monitoring system?

The 3500/22-02-00 communicates with external monitoring systems through an Ethernet interface. The communication configuration uses 10Base-T/100Base-TX Ethernet with an RJ-45 connection. This interface provides a path for transferring monitoring information and system-related data between the 3500 rack and compatible host software. A USB configuration interface is also available for supported configuration and maintenance functions. During commissioning, the Ethernet cable, RJ-45 connector, network equipment, communication parameters, and host software should all be checked. If the host system cannot communicate with the rack, engineers should first verify the physical network connection and configuration before determining whether the TDI hardware itself has a fault.

4. What should be checked if the 3500/22-02-00 cannot communicate with the host computer?

Communication troubleshooting should begin by checking the TDI status indicators and confirming that the module is correctly seated in the 3500 rack. The Ethernet cable and RJ-45 connectors should then be inspected for loose connections or physical damage. Network switches and other communication equipment should also be checked to ensure that they are operating correctly. The IP configuration and other applicable network parameters should be compared with the settings used by the host monitoring software. If communication is intermittent, possible causes such as electromagnetic interference, damaged cables, grounding problems, or unstable network equipment should also be considered. If the external network path and software configuration are confirmed to be correct, the associated I/O hardware and TDI module can then be examined for possible hardware faults.

5. Can the 3500/22-02-00 be used to analyze transient machinery events?

Yes. When paired with compatible 3500 monitoring modules and configured correctly, the 3500/22-02-00 can provide transient data for analysis of rapidly changing machinery conditions. This can be useful during startup and shutdown sequences, speed changes, load changes, process disturbances, or unexpected machine events. Transient information can help engineers identify changes that may not be visible through steady-state measurements alone. For effective transient analysis, the monitoring channels, acquisition parameters, Keyphasor signals, and host software configuration must be properly established. If transient information is unavailable, the monitoring module configuration and data path should be checked together with the TDI rather than assuming that the interface module is defective.

6. Does the 3500/22-02-00 directly measure vibration or other machine parameters?

No. The 3500/22-02-00 is primarily a data interface and communication module rather than a direct measurement module. Physical parameters such as vibration, shaft position, speed, or other machinery conditions are measured by the appropriate sensors and compatible 3500 monitoring modules. The TDI receives the resulting monitoring information through the 3500 system and communicates that information to external monitoring or diagnostic software. This separation of measurement and communication functions allows different monitoring modules to perform their dedicated tasks while the TDI provides a common interface to the host system. When troubleshooting incorrect measurement values, engineers should therefore check the relevant sensor, wiring, monitoring module, channel configuration, and signal path instead of focusing only on the TDI.

7. What is the role of the 3500/22-02-00 in machinery protection applications?

The 3500/22-02-00 primarily provides data communication, rack interfacing, configuration access, and monitoring data transmission. It is not the main module responsible for performing the critical measurement and protection functions of the 3500 machinery protection system. Dedicated 3500 monitoring and protection modules perform the configured measurement, alarm, and protection functions. The TDI allows external software to access the information generated by those modules and supports monitoring and diagnostic activities. Therefore, a TDI communication fault should be distinguished from an actual protection-channel fault. During maintenance, engineers should separately evaluate the communication interface, monitoring modules, sensor inputs, alarm settings, and protection logic to determine the true source of a system problem.

8. How should the 3500/22-02-00 be maintained for reliable long-term operation?

Reliable operation requires regular inspection of the module status indicators, rack connection, Ethernet interface, communication cable, RJ-45 connectors, and associated I/O hardware. The 3500 system should be operated within its specified environmental conditions, with excessive heat, moisture, dust, contamination, and continuous vibration minimized. Communication parameters and system configuration should also be backed up so that they can be restored efficiently if the interface module needs to be replaced. If communication interruptions or missing data occur, the external network and monitoring modules should be checked before replacing the TDI. For critical machinery monitoring installations, maintaining accurate records of the installed module configuration, communication settings, monitoring channels, and software configuration can significantly reduce troubleshooting time and help ensure that a replacement 3500/22-02-00 can be commissioned correctly.
