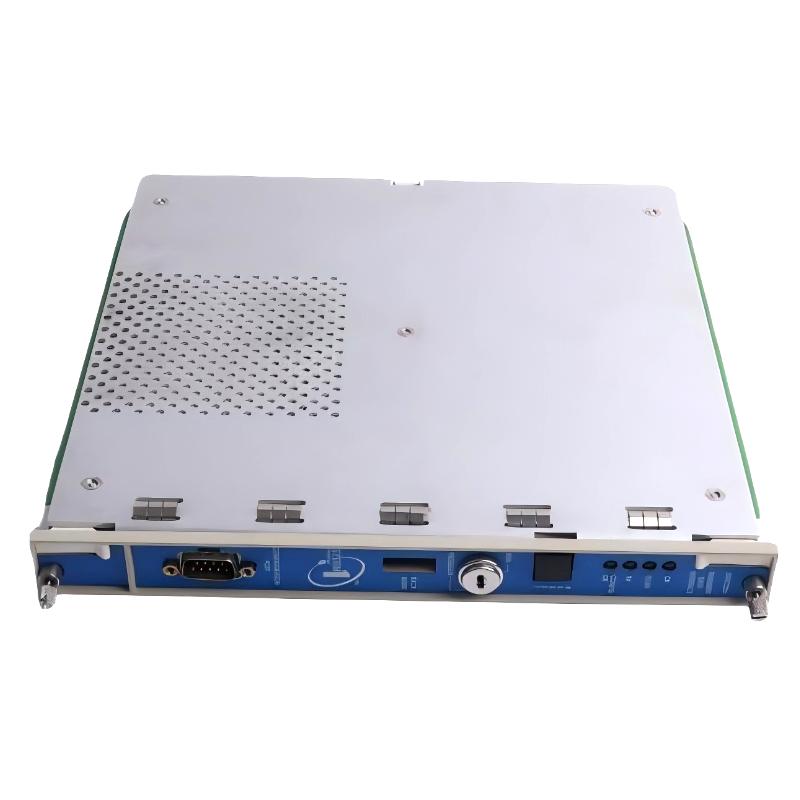

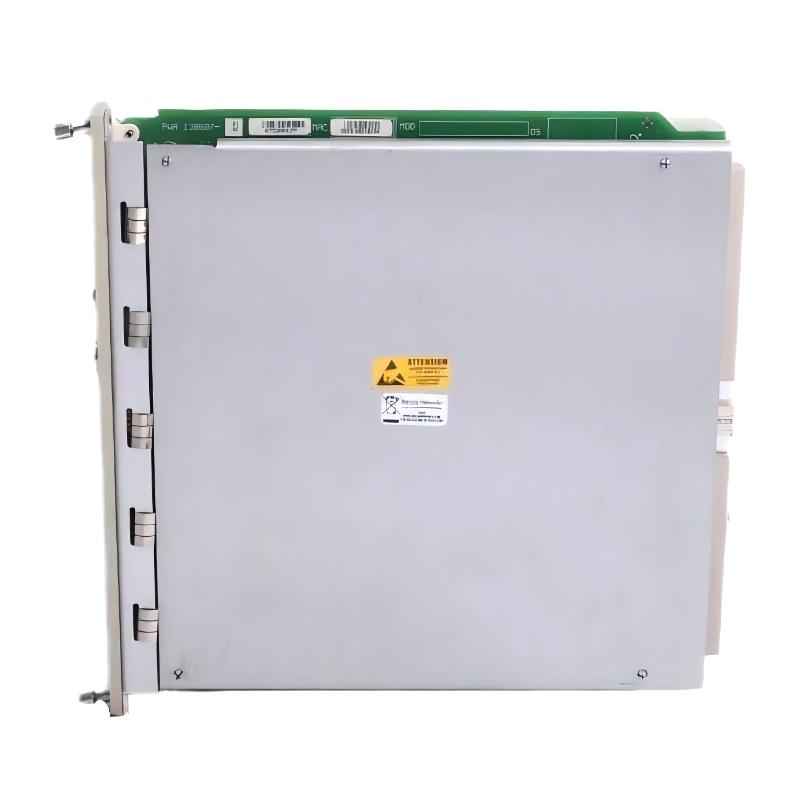

1. What is the main function of the Bently Nevada 3500/22M-01-01?

The Bently Nevada 3500/22M-01-01 is a Transient Data Interface Module designed for the 3500 machinery monitoring system. Its primary function is to provide data communication between the 3500 monitoring rack and compatible monitoring, configuration, and diagnostic software. The module can continuously handle steady-state operating information and, when the required system configuration is available, collect and transmit dynamic and transient waveform data. Through Ethernet communication, monitoring information can be transferred to host software for machinery condition monitoring, trend analysis, and abnormal operating event investigation. The TDI acts as an important interface between the 3500 rack and external software, while the actual physical measurements are performed by the appropriate sensors and monitoring modules.

2. What types of data can the 3500/22M-01-01 collect?

The 3500/22M-01-01 can handle steady-state data and, with the appropriate configuration, support dynamic and high-resolution transient data. Steady-state data is mainly used for continuous machinery monitoring and long-term trend analysis. Dynamic data provides additional waveform information, while transient data is particularly useful for analyzing startup, shutdown, speed changes, load changes, and other short-duration changes in machinery operating conditions. The actual data available depends on the compatible monitoring modules, sensors, configured monitoring channels, and system settings. The TDI is responsible for data acquisition and communication, while physical parameters such as vibration, position, and speed are measured by the corresponding sensors and monitoring modules.

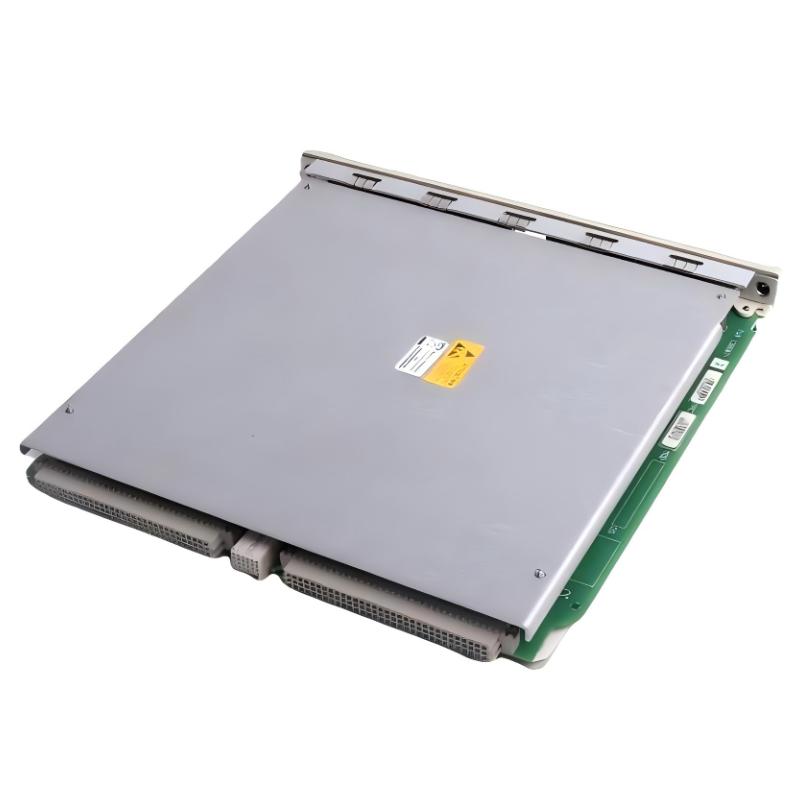

3. Where is the 3500/22M-01-01 installed in the 3500 rack?

The 3500/22M-01-01 is installed in Slot 1 of the 3500 rack, adjacent to the power supply. This position allows the TDI to communicate with the rack backplane and compatible monitoring modules installed in the system. During installation, the module should be fully seated in the appropriate connector and securely fastened. The associated rear I/O module and communication connections should also be checked to ensure proper installation. If the module is not correctly seated, communication problems, missing monitoring data, or host software recognition issues may occur. Before replacing an existing TDI, it is recommended to record the original configuration and communication parameters so that the replacement can be commissioned using the correct settings.

4. What communication method does the 3500/22M-01-01 use?

The 3500/22M-01-01 uses a 10Base-T/100Base-TX Ethernet I/O interface and communicates through an RJ-45 connector. The Ethernet connection is primarily used to transfer monitoring data from the 3500 rack to compatible host software and to support system status and configuration communication. A USB configuration interface is also available for supported configuration and maintenance operations. During commissioning, the Ethernet cable, RJ-45 connector, network equipment, communication parameters, and host software settings should all be checked. If communication cannot be established, external network and configuration issues should be eliminated before the TDI or I/O module is considered defective.

5. Can the 3500/22M-01-01 be used for transient waveform analysis?

Yes. When the 3500 system is properly configured and compatible M-Series monitoring modules are installed, the 3500/22M-01-01 can support the acquisition and transmission of dynamic and transient waveform data. Transient waveforms are particularly useful for analyzing rotating machinery during startup, shutdown, speed changes, load changes, and abnormal operating events. Compared with steady-state information alone, transient data provides additional details about how the machine responds during short-duration changes in operating conditions. The availability of dynamic and high-resolution transient functions depends on the system configuration. If transient data cannot be obtained, the monitoring modules, channel configuration, Keyphasor signals, acquisition settings, and communication path should all be checked.

6. How should communication problems between the 3500/22M-01-01 and host software be diagnosed?

The troubleshooting process should begin by checking the TDI front-panel status indicators and confirming that the module is correctly installed in the 3500 rack. The Ethernet cable and RJ-45 connector should then be inspected to make sure the connection is secure and the cable is not damaged. Network switches and other communication equipment should also be checked for normal operation, while the network parameters used by the host software should be compared with the system configuration. If communication failures occur intermittently, additional factors such as cable deterioration, electromagnetic interference, grounding issues, or unstable network equipment should be considered. Only after the external network and software configuration have been verified should the TDI and associated I/O hardware be investigated. This approach helps distinguish between network problems, configuration errors, I/O faults, and actual TDI hardware failures.

7. Does the 3500/22M-01-01 directly perform machinery protection functions?

The 3500/22M-01-01 primarily performs rack interface, data acquisition, and communication functions and is not the main measurement or protection module in the machinery protection system. Dedicated monitoring modules in the 3500 system process sensor signals and perform the applicable measurement, alarm, and protection functions. The TDI provides access to the resulting information for external monitoring and diagnostic software. Therefore, a TDI communication problem does not automatically mean that the entire machinery protection system has failed. During maintenance, the TDI communication status, monitoring modules, sensor inputs, alarm configuration, and protection logic should be evaluated separately. For critical machinery, protection-related decisions should always be based on the actual protection system condition and established maintenance procedures rather than only on the TDI communication status.

8. How should the 3500/22M-01-01 be maintained for reliable long-term operation?

Routine maintenance should include inspection of the module status indicators, rack connections, Ethernet cable, RJ-45 interface, I/O connections, and external communication network. The 3500 system should operate within its specified environmental conditions, with excessive heat, moisture, dust, contamination, and continuous vibration minimized. System configuration, communication parameters, and monitoring channel settings should also be backed up so that the original configuration can be restored efficiently if the module needs to be replaced. If communication interruptions, missing data, or transient data problems occur, the external network, monitoring modules, and system configuration should be checked before replacing the TDI hardware. For critical rotating machinery monitoring applications, maintaining complete configuration and maintenance records can significantly reduce troubleshooting time and simplify recommissioning after a 3500/22M-01-01 replacement.
