1. What is the main function of the GE DS200IMCPG1CCA?

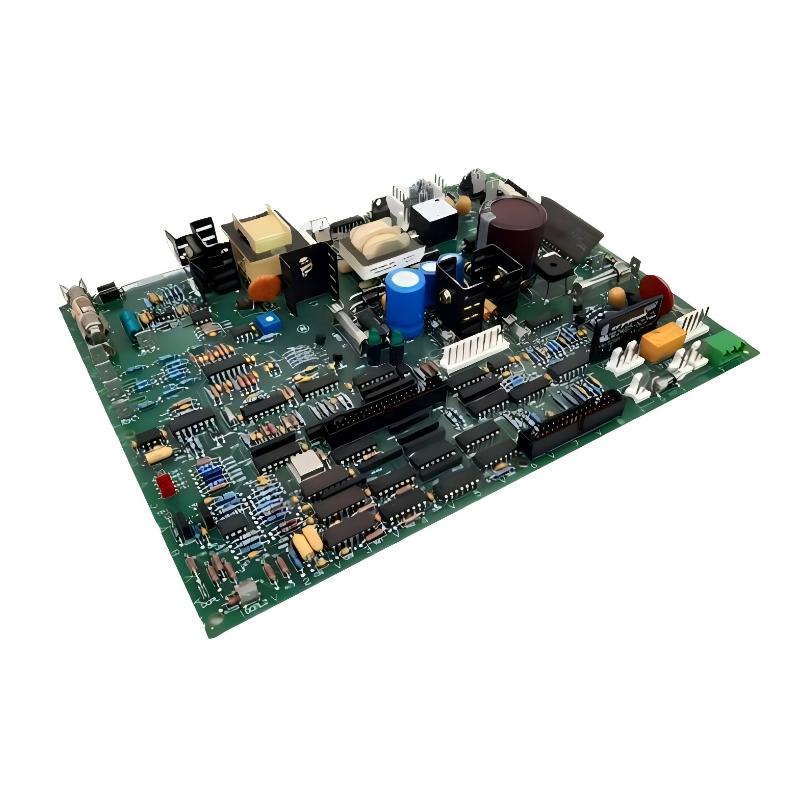

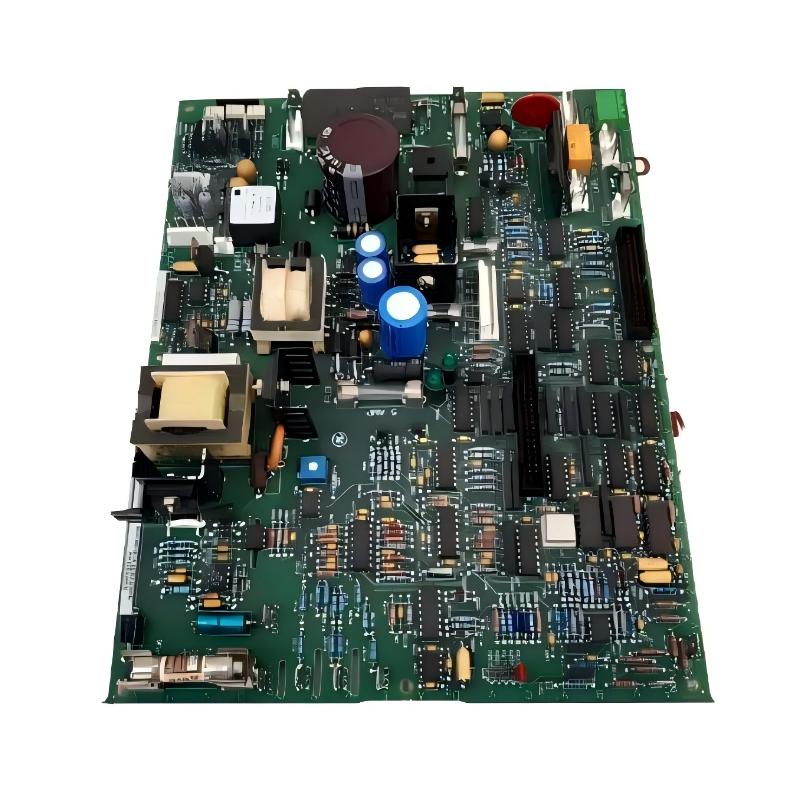

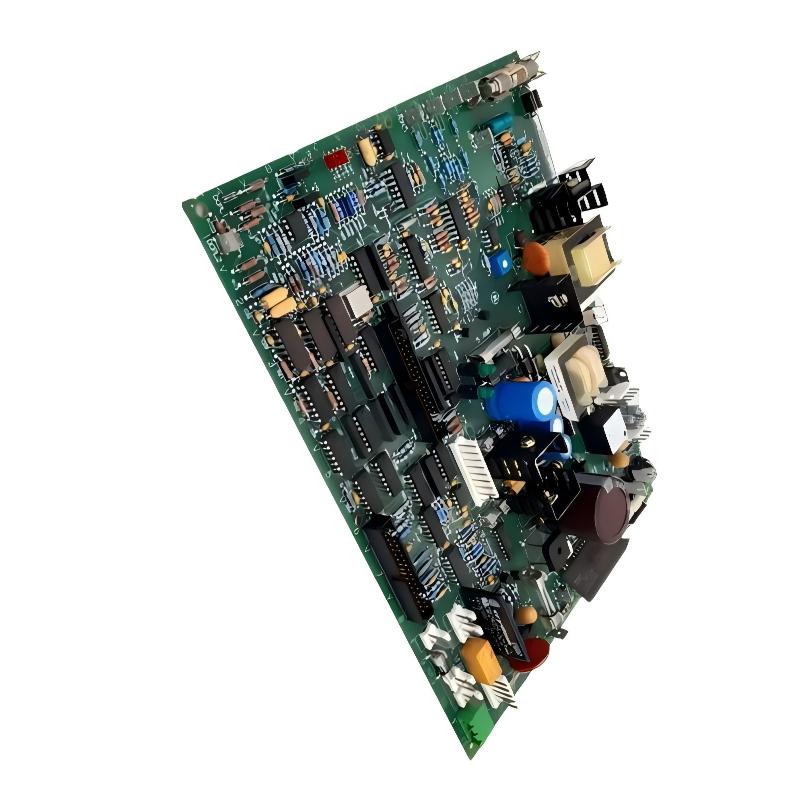

The GE DS200IMCPG1CCA is a Power Interface Board designed for the GE Mark V turbine control system. Its primary role is to provide a controlled interface for power distribution within the turbine control architecture. The board works with the associated power supply and I/O circuitry to help deliver the required electrical power to connected control hardware. It also incorporates protection elements that help isolate power-related problems and reduce the risk of damage to downstream circuits. In a Mark V installation, stable power distribution is important because processors, I/O boards, communication circuits, and other control components depend on properly conditioned and distributed power. The DS200IMCPG1CCA therefore serves as an important interface component within the overall turbine control cabinet.

2. What type of turbine control system uses the DS200IMCPG1CCA?

The DS200IMCPG1CCA is associated with the GE Speedtronic Mark V turbine control platform, which was developed for industrial gas and steam turbine control applications. The Mark V architecture uses multiple control, I/O, power, and communication assemblies working together to perform turbine monitoring and control functions. The power interface board is used within this architecture to support the electrical interface between power distribution circuitry and other control components. Because Mark V systems can have different cabinet and core configurations, the exact installation position and connected circuitry should always be checked against the specific turbine control cabinet documentation before replacement or modification.

3. How does the DS200IMCPG1CCA help protect the Mark V control system?

The DS200IMCPG1CCA incorporates fuse protection within its power interface circuitry. These protective elements are intended to help isolate abnormal current conditions and prevent a fault in one power distribution path from unnecessarily affecting other parts of the control system. When a fuse opens, it can provide an important diagnostic indication that an associated circuit may have experienced excessive current or another electrical problem. However, replacing a fuse without identifying the reason it failed can result in repeated fuse operation or further equipment damage. Maintenance personnel should therefore inspect the associated wiring, connected boards, power supply conditions, and downstream loads before returning the board to normal operation.

4. What should be checked before installing a DS200IMCPG1CCA?

Before installation, the complete part number and board revision should be compared with the existing board and the Mark V system configuration. The technician should also identify all connected cables, terminals, plugs, and wiring before removing the original board. Power isolation and the applicable site safety procedure must be followed because the board forms part of a turbine control system power interface. The replacement board should be inspected for damaged components, loose connectors, contamination, or visible signs of overheating. Fuse ratings and installed protective components should also be verified against the required configuration. Correct identification of the board and its connections is particularly important on older Mark V systems where several boards may have similar physical appearances but different electrical functions.

5. What are common symptoms of a DS200IMCPG1CCA-related problem?

Possible symptoms can include loss of power to associated control or I/O circuits, unexpected control-system alarms, repeated fuse operation, intermittent operation of connected electronics, or failure of a related board to operate normally. However, these symptoms do not automatically indicate that the DS200IMCPG1CCA itself is defective. A power supply problem, short circuit, damaged wiring, failed downstream component, loose connector, or excessive electrical load can produce similar symptoms. A proper diagnosis should therefore begin with the system power source and protective devices before moving through the power distribution path to the connected equipment. Checking voltage conditions, fuse status, connector integrity, and downstream loads can help identify the actual source of the problem.

6. How should a blown fuse on the DS200IMCPG1CCA be diagnosed?

A blown fuse should be treated as an indication of a possible underlying electrical fault rather than simply a component that needs replacement. First, the relevant power circuit should be safely isolated according to the site’s maintenance procedure. The associated wiring and downstream equipment should then be inspected for short circuits, damaged insulation, incorrect connections, or failed components. The power supply should also be checked for abnormal output conditions. After the cause has been identified and corrected, the fuse should be replaced only with the correct type and rating specified for the system configuration. Installing a higher-rated fuse to prevent repeated failures is not an appropriate solution because it can remove the intended protection from the circuit and potentially cause more serious damage.

7. Can the DS200IMCPG1CCA be replaced while the turbine is operating?

Replacement should not be treated as a routine live-maintenance operation unless the specific Mark V installation, board architecture, maintenance procedure, and site safety assessment explicitly permit it. The DS200IMCPG1CCA is associated with power interface circuitry, so incorrect handling can affect connected control or I/O equipment. Before replacement, the technician should determine whether the board is part of an energized circuit and understand what equipment may be affected by its removal. The existing board configuration, connectors, fuse positions, and wiring should be documented before removal. Following the approved turbine maintenance procedure is essential, particularly because an unexpected interruption to a control-system power path can affect turbine operation.

8. How can the DS200IMCPG1CCA be maintained for reliable operation?

Reliable operation depends on maintaining clean electrical connections, correct power conditions, effective fuse protection, and a suitable control-cabinet environment. During scheduled maintenance, technicians should inspect the board for signs of overheating, discoloration, damaged components, loose connectors, contamination, and abnormal fuse conditions. The associated power supply and downstream circuits should also be checked rather than evaluating the board in isolation. Any recurring fuse failure should be investigated before the system is returned to normal service. It is also useful to maintain accurate records of the board part number, revision, installed configuration, wiring connections, and previous maintenance work. These records make future troubleshooting and replacement more efficient and help reduce the risk of installing an incompatible board in an existing Mark V turbine control system.
