FAQ

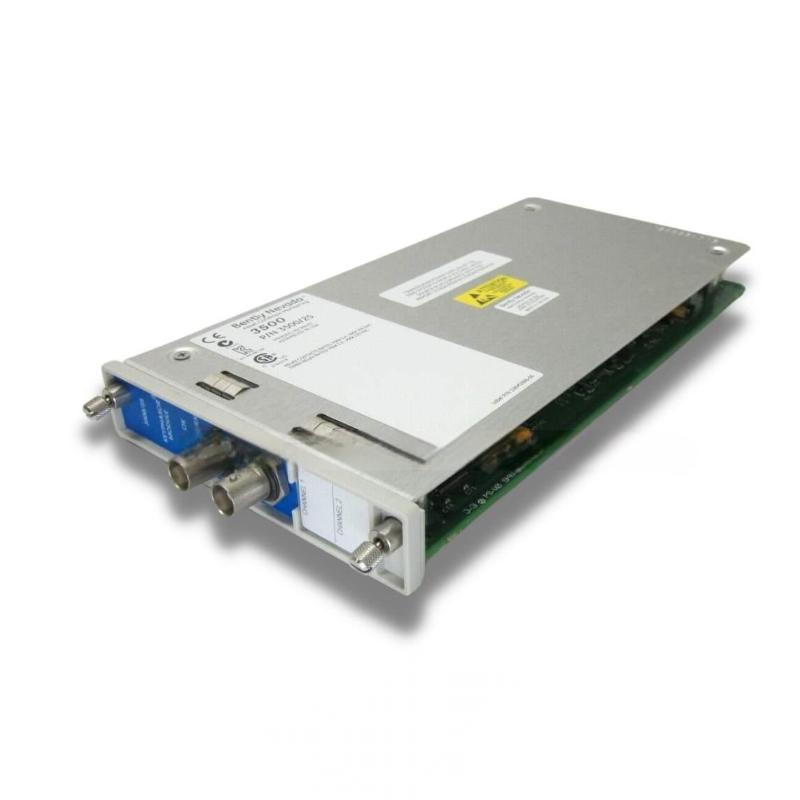

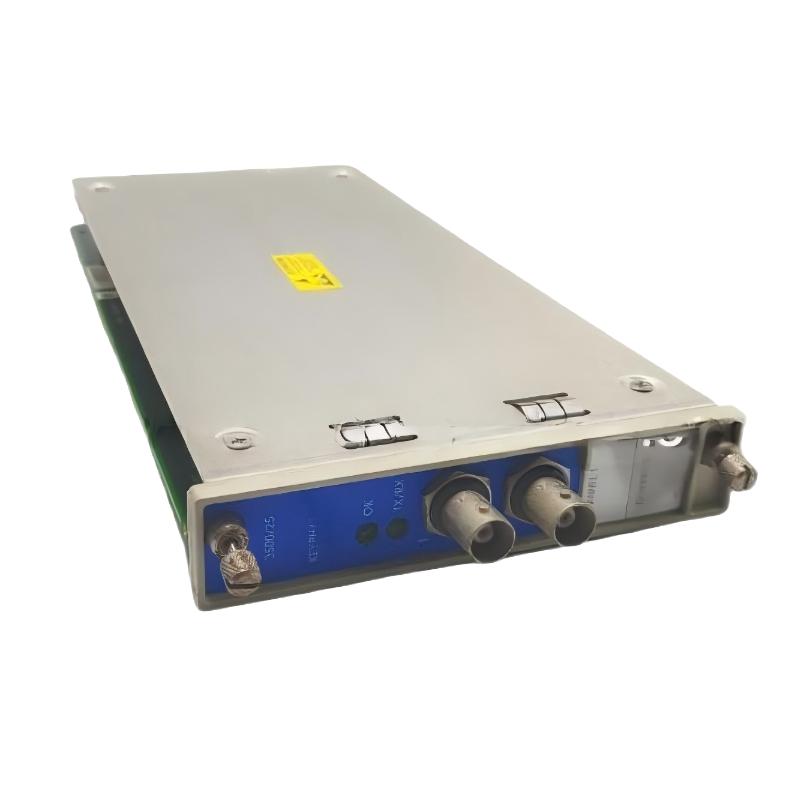

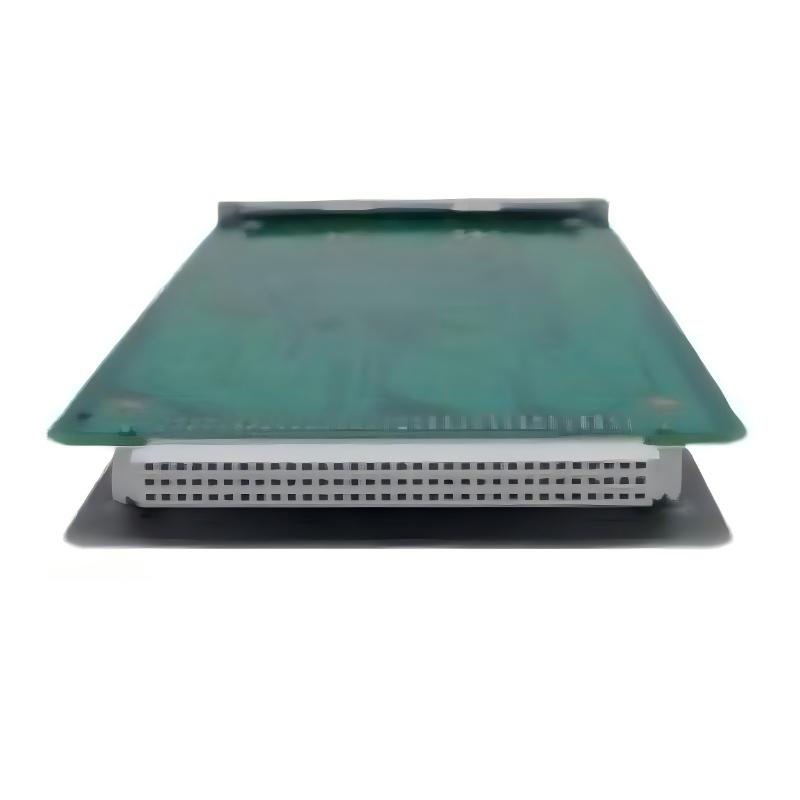

1. What is the main function of the Bently Nevada 3500/25-02-01-01 Enhanced Key-Phasor Module?
The 3500/25-02-01-01 Enhanced Key-Phasor Module is designed to acquire and process Key-Phasor signals within a Bently Nevada 3500 machinery monitoring system. The Key-Phasor signal provides a stable rotational reference from the machine shaft, allowing the monitoring system to determine rotational speed and establish a reference point for phase-related measurements. The module processes the incoming pulse signal and provides the resulting rotational reference information to the 3500 system. This information can be combined with vibration and other machinery measurements for continuous monitoring, diagnostic analysis, and protection of rotating equipment such as turbines, compressors, pumps, and generators.

2. Why is a Key-Phasor signal important in rotating machinery monitoring?
A Key-Phasor signal provides a repeatable reference point during each rotation of a machine shaft. In rotating machinery monitoring, vibration amplitude alone may not provide enough information to identify the cause of a mechanical condition. Engineers may also need to know the relationship between vibration and the actual rotational position of the shaft. The Key-Phasor signal establishes this reference, allowing the monitoring system to associate vibration measurements with the shaft’s rotational cycle. This information supports speed measurement, phase analysis, and other synchronized diagnostic functions. For critical equipment such as turbines and compressors, a reliable Key-Phasor signal can therefore be an important part of the overall machinery protection and condition monitoring system.

3. Can the 3500/25-02-01-01 be used for rotational speed measurement?
Yes. The Key-Phasor signal is directly related to shaft rotation and can be used by the 3500 system as a reference for calculating rotational speed. When the designated reference target on the rotating shaft passes the Key-Phasor probe, the probe generates an electrical pulse. The system evaluates the timing between successive pulses to determine the rotational speed. Accurate speed monitoring depends on consistent pulse detection. Incorrect probe clearance, insufficient signal strength, damaged field wiring, electrical interference, or mechanical problems with the reference target may result in unstable speed readings. For this reason, both the Key-Phasor sensing circuit and the 3500/25 module input should be considered when troubleshooting speed-related problems.

4. What can cause the Key-Phasor signal to become unstable or disappear?
An unstable or missing Key-Phasor signal can originate from the probe, rotating target, field wiring, shielding, grounding, or module input. The probe clearance should be checked first because an incorrect gap can cause insufficient or inconsistent signal amplitude. The rotating reference target should also be inspected for damage, contamination, excessive runout, or other mechanical abnormalities. Field wiring problems such as loose terminals, damaged conductors, poor shielding, or improper grounding can also interfere with signal detection. Electromagnetic interference from nearby power equipment may further affect the signal. A complete inspection of the sensing circuit is recommended before concluding that the 3500/25 module itself is defective.

5. What should be checked when installing the 3500/25-02-01-01 module?
The module should be installed in the appropriate position within the Bently Nevada 3500 rack according to the system configuration. Before installation or removal, the applicable site safety procedures should be followed and the equipment should be placed in a safe condition. During installation, the module connector should be correctly aligned with the rack connector, and excessive insertion force should be avoided. After installation, verify that the module is fully seated and securely installed. The associated Key-Phasor field wiring should also be checked to ensure that the correct signal is connected to the intended input channel. After powering the system, review the module status and Key-Phasor input condition through the 3500 system before using the signal for speed, phase, or vibration-related monitoring.

6. How should the module be troubleshot if no Key-Phasor signal is detected?
Troubleshooting should begin at the field sensor and proceed through the complete signal path. First, inspect the Key-Phasor probe and confirm that its mounting position and clearance from the rotating target are appropriate. Next, inspect the field cable and terminals for open circuits, short circuits, loose connections, damaged insulation, shielding problems, and grounding issues. If necessary, suitable test equipment can be used to verify the actual signal reaching the module input. The correct input channel should also be confirmed, particularly when multiple Key-Phasor signals are used in the same machinery monitoring system. Finally, check the 3500 system diagnostic information and module status. This systematic approach helps determine whether the problem is related to the probe, field wiring, signal quality, module input, or system configuration.

7. How does the Enhanced Key-Phasor Module support vibration analysis?
The Enhanced Key-Phasor Module provides the rotational reference required for vibration analysis involving shaft position and phase. Other 3500 monitoring modules can acquire vibration and displacement signals, but certain diagnostic functions require information about the rotor’s position within its rotation cycle. The Key-Phasor pulse provides this reference and allows vibration measurements to be correlated with shaft rotation. This is particularly useful for phase-related analysis and speed-synchronized diagnostic functions. If the Key-Phasor signal becomes unreliable, vibration channels may still provide amplitude measurements, but analysis functions that depend on an accurate rotational reference can be affected. Maintaining a stable Key-Phasor signal is therefore important for complete rotating machinery diagnostics.

8. Why might the Key-Phasor signal be stable at low speed but unstable at high speed?
When a Key-Phasor signal is stable at low speed but becomes intermittent or unreliable as speed increases, the probe installation, rotating reference target, signal wiring, and electrical environment should be examined. First, verify the probe clearance and inspect the reference target for mechanical runout, damage, contamination, or irregularities. Cable routing, shielding, and grounding should also be checked because electrical interference may become more noticeable under certain operating conditions. The Key-Phasor signal should be evaluated throughout the machine’s operating speed range rather than only at low speed. If the field signal remains healthy while the 3500 system continues to show unstable detection at higher speed, the module input, system configuration, and related monitoring settings should be investigated further.
