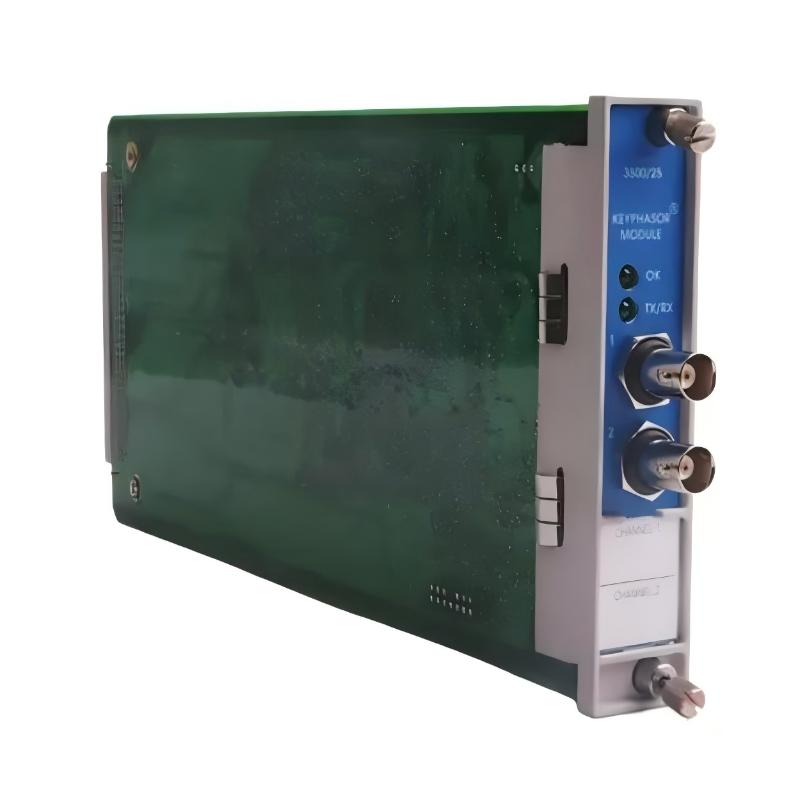

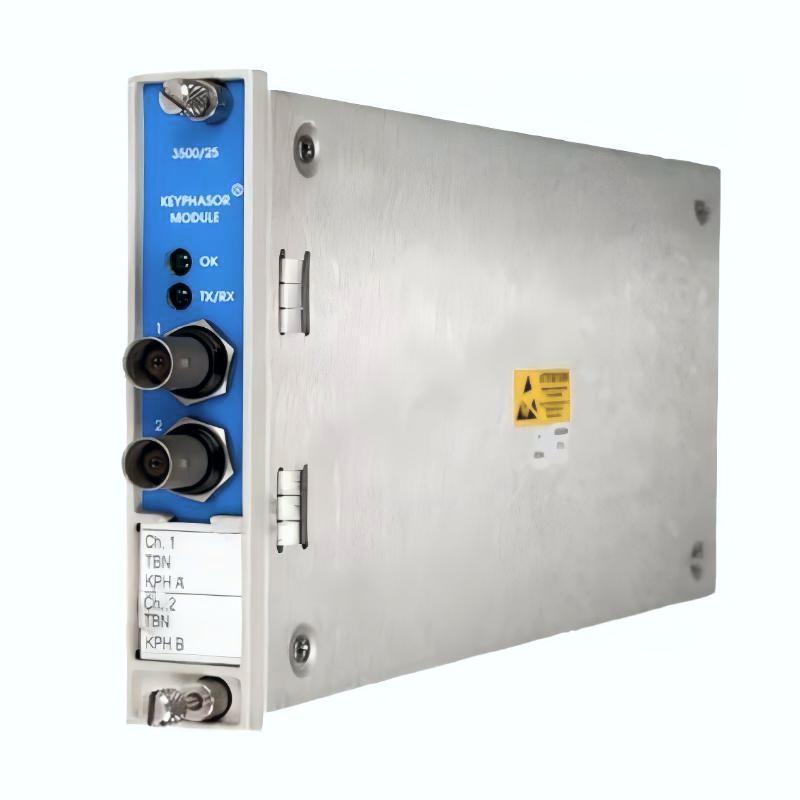

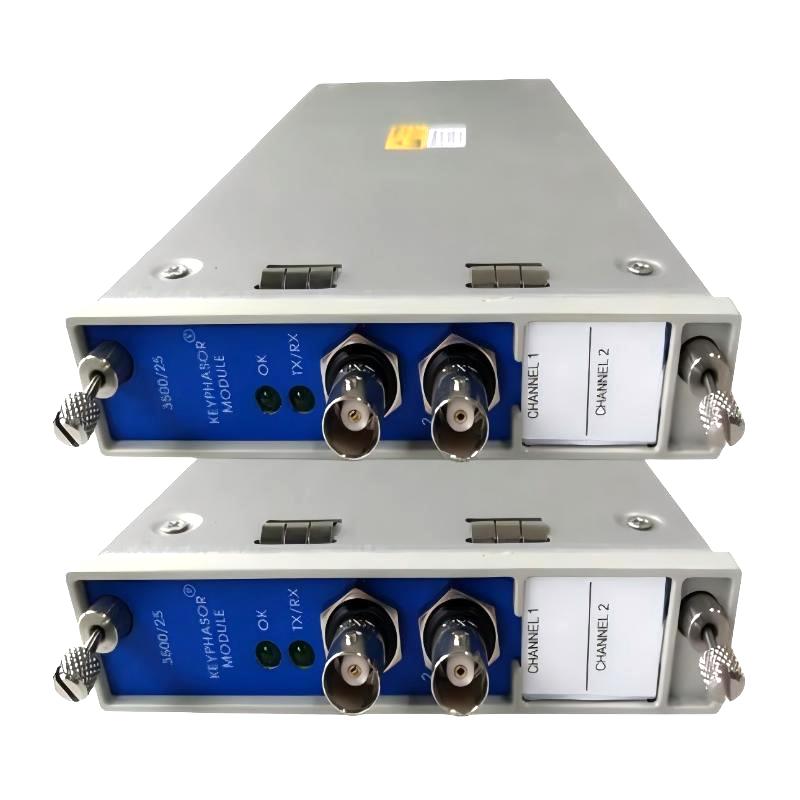

1. What is the main function of the Bently Nevada 3500/25-02-01-02 Enhanced Key-Phasor Module?
The 3500/25-02-01-02 Enhanced Key-Phasor Module is designed to acquire and process Key-Phasor signals within the 3500 Machinery Monitoring System. It receives pulse signals from a Key-Phasor probe installed on rotating machinery and processes them into reliable rotational reference information for the monitoring system. This information can be used to determine shaft speed and establish a reference related to rotor position. The module also supports phase-related analysis, vibration monitoring, and machinery protection functions. It is suitable for rotating equipment such as turbines, compressors, generators, pumps, and other machinery where continuous monitoring of shaft rotation is required.

2. Why is a Key-Phasor signal important in rotating machinery monitoring?
A Key-Phasor signal provides an accurate and repeatable reference point during shaft rotation. Rotating machinery monitoring often requires more information than vibration amplitude alone. Engineers may need to determine the relationship between vibration behavior and the actual rotational position of the rotor. The Key-Phasor signal provides this reference, allowing the 3500 system to synchronize vibration data with the shaft rotation cycle. This supports rotational speed measurement, phase analysis, and other speed-related diagnostic functions. When equipment experiences changes in rotor behavior, a reliable Key-Phasor reference provides essential information for evaluating the relationship between vibration and shaft rotation.

3. Can the 3500/25-02-01-02 be used for rotational speed measurement?
Yes. The Key-Phasor signal is directly associated with shaft rotation, so the 3500 system can use the timing between successive Key-Phasor pulses to calculate rotational speed. When the reference target on the rotating shaft passes the Key-Phasor probe, the probe generates a pulse. The system analyzes the interval between pulses to determine shaft speed. Accurate speed measurement requires consistent and reliable pulse detection. Incorrect probe clearance, insufficient signal amplitude, damaged field wiring, electrical interference, or mechanical problems with the reference target can result in unstable speed readings. Therefore, when troubleshooting speed-related problems, the probe, signal circuit, and 3500/25 module input should all be inspected.

4. What should be checked if the Key-Phasor signal has missing pulses?
When missing Key-Phasor pulses occur, the complete signal path should be checked systematically. Start by inspecting the Key-Phasor probe installation, including the probe mounting condition and the clearance between the probe and the rotating reference target. The target itself should then be inspected for damage, contamination, excessive runout, or other mechanical abnormalities. Field cables and terminals should also be checked for loose connections, broken conductors, short circuits, insulation damage, and shielding problems. Grounding and possible electromagnetic interference from nearby equipment should also be considered. If the field signal is confirmed to be stable, the next steps should include checking the 3500/25 module input and system configuration. This approach helps identify the actual source of intermittent pulse detection.

5. What should be considered when installing the 3500/25-02-01-02 module?
Before installation, the equipment should be placed in a safe condition according to applicable site procedures, and the 3500 rack configuration should be checked to ensure that the module is being installed in the correct position. During installation, the module connector must be properly aligned with the rack interface. Excessive force should not be used because it can damage the connector or module. After installation, confirm that the module is fully seated and securely installed. The associated Key-Phasor field wiring should also be inspected to verify that the signal is connected to the correct input channel. After the system is powered, check the module status and Key-Phasor input condition to confirm stable signal detection before using the signal for speed, phase, or vibration-related monitoring.

6. How should the 3500/25-02-01-02 be troubleshot if no Key-Phasor signal is detected?
Begin by checking the Key-Phasor probe and confirming that it is operating correctly and positioned at an appropriate clearance from the rotating reference target. Next, inspect the complete signal path between the probe and the 3500/25 module, including field cables, terminals, shielding, and grounding. Check for open circuits, short circuits, loose connections, damaged wiring, or significant electrical interference. The correct module input channel should also be verified. The 3500 system diagnostic information and module status should then be reviewed for abnormal conditions. When necessary, suitable test equipment can be used to verify the actual pulse signal at the module input. Checking each section of the signal path helps prevent unnecessary module replacement before the actual fault location has been identified.

7. How does the Enhanced Key-Phasor Module work with vibration monitoring modules?
The Enhanced Key-Phasor Module provides the rotational reference signal, while other modules in the 3500 system acquire and process vibration, displacement, and other machinery condition signals. These functions can work together to relate vibration measurements to the actual rotation of the shaft. For example, phase analysis and other speed-synchronized vibration analysis require an accurate Key-Phasor reference. The Key-Phasor module provides this reference so that other monitoring data can be evaluated in relation to the shaft rotation cycle. If the Key-Phasor signal becomes unreliable, vibration modules may continue to measure vibration normally, but diagnostic functions that depend on accurate speed and phase information may be affected.

8. Why can the Key-Phasor signal be normal at low speed but unstable at high speed?
If the Key-Phasor signal is stable at low speed but becomes unreliable at higher speed, the probe installation, rotating reference target, signal quality, and electrical environment should be investigated. First, verify the probe clearance and inspect the rotating target for mechanical runout, eccentricity, damage, or other abnormalities that may become more significant as speed increases. The Key-Phasor cable routing, shielding, and grounding should also be checked because certain types of electrical interference may become more noticeable during operation. The pulse signal should ideally be observed across the machine’s operating speed range to determine exactly when the instability begins. If the probe and field wiring are confirmed to provide a stable signal but the 3500 system still fails to detect the pulses consistently at higher speed, the 3500/25 module input and system configuration should be investigated further.
