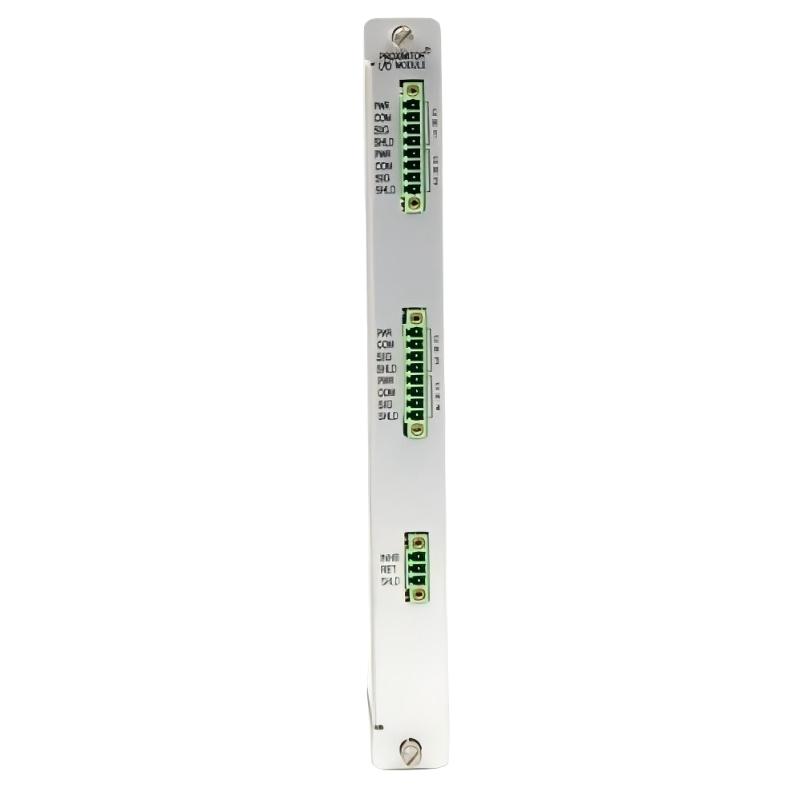

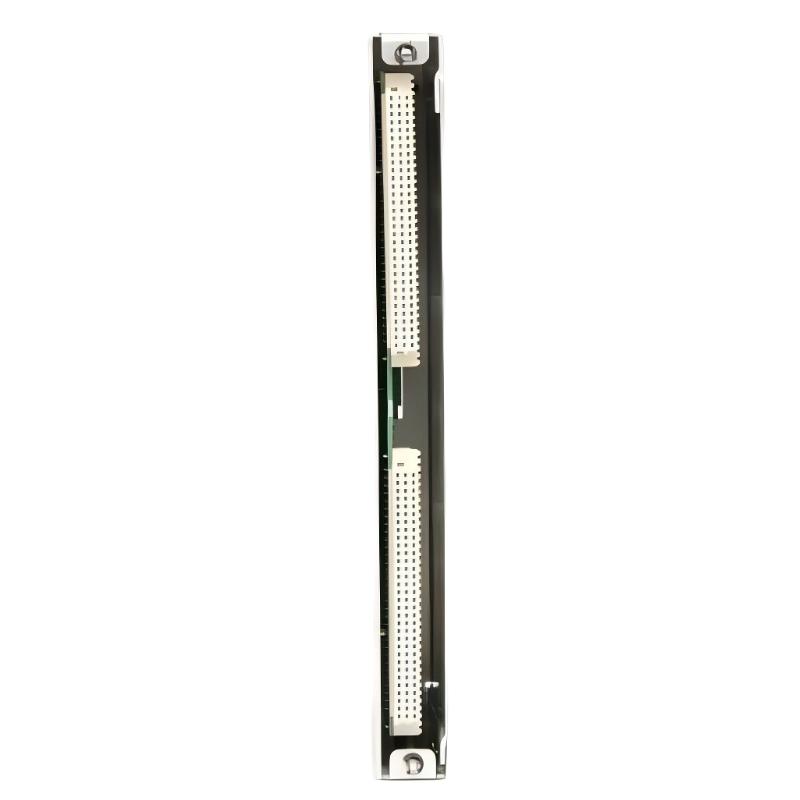

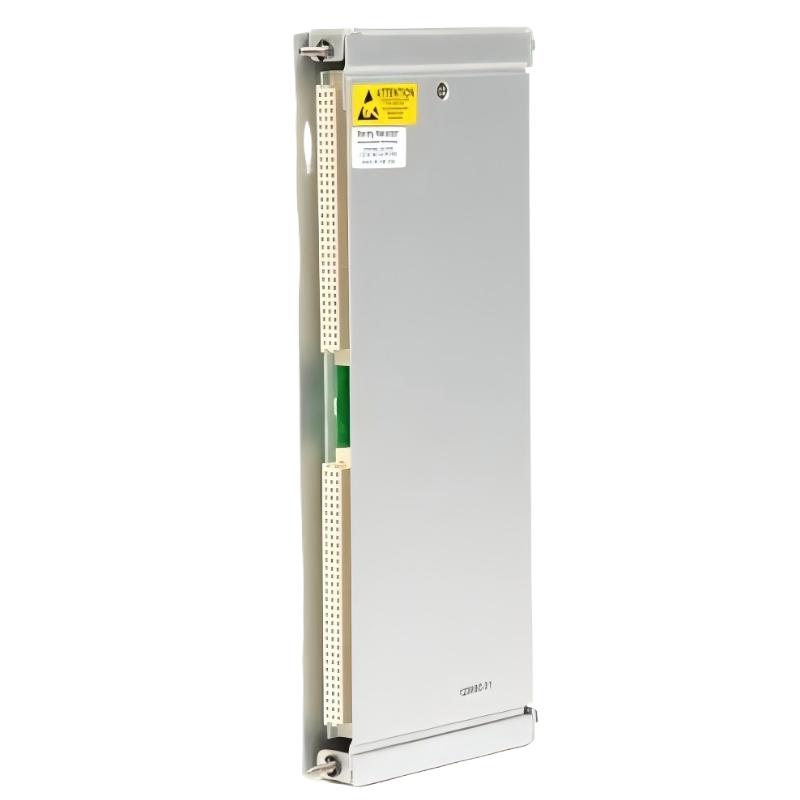

1. What is the main function of the Bently Nevada 3500/40-01 3500/40M Preamplifier Monitor?
The 3500/40-01 is a monitoring module designed for use within the Bently Nevada 3500 machinery protection and condition monitoring platform. It processes and monitors signals associated with compatible machinery monitoring applications and provides the monitoring system with information required for evaluating equipment operating conditions. In rotating machinery applications, reliable signal acquisition and processing are essential for identifying abnormal operating conditions at an early stage. The module works as part of the overall 3500 system rather than as an independent standalone monitoring device.

2. What type of machinery monitoring applications can use the 3500/40-01?
The 3500/40-01 is intended for industrial machinery monitoring applications where continuous measurement and protection are required. Typical applications within the Bently Nevada monitoring architecture include rotating equipment such as turbines, compressors, pumps, motors, and other critical machinery. The actual application depends on the installed sensor type, system configuration, channel setup, and monitoring requirements. Before commissioning, the module configuration should be matched with the connected monitoring system and the specific machinery protection strategy.

3. How does the 3500/40-01 contribute to machinery protection?
The module contributes to machinery protection by receiving and processing compatible monitoring information within the 3500 system. The resulting measurement data can be evaluated against configured operating limits and protection logic. When monitored conditions exceed established thresholds, the overall protection system can generate alarms or initiate the appropriate protective response, depending on the system configuration. This provides operators and maintenance personnel with important information about developing machinery conditions and helps reduce the risk of damage caused by abnormal vibration, mechanical movement, or other monitored conditions.

4. How should the Bently Nevada 3500/40-01 be installed in a 3500 system?
The module should be installed in the appropriate position within a compatible 3500 rack and connected according to the system installation and wiring requirements. Before installation, power should be removed from the relevant equipment and appropriate electrical safety procedures should be followed. The module should be inserted carefully into the rack without forcing the connector or mounting mechanism. After installation, verify that the module is properly seated and that all associated wiring and system connections are secure. Configuration and commissioning should then be performed according to the requirements of the installed monitoring application.

5. What should be checked if the 3500/40-01 does not provide the expected monitoring signal?
Troubleshooting should begin by checking whether the module is correctly installed and recognized by the 3500 system. The associated sensor wiring, terminal connections, signal paths, and system configuration should then be inspected. Check for loose connections, damaged wiring, incorrect channel configuration, or incompatible sensor inputs. The rack power supply and system status should also be verified. If the module generates a diagnostic or configuration-related fault, the system information should be reviewed before replacing hardware. A structured troubleshooting process can help determine whether the problem originates from the sensor, wiring, module, rack, or configuration.

6. What are common causes of abnormal readings from the 3500/40-01?
Abnormal readings can result from several different conditions, including sensor problems, damaged signal wiring, poor electrical connections, incorrect configuration, electrical interference, or an issue with the monitoring module itself. Mechanical conditions in the monitored machine can also produce readings that appear abnormal even when the monitoring hardware is functioning correctly. For this reason, troubleshooting should not immediately assume that the monitor is defective. Compare the affected channel with other available measurements, inspect the sensor and wiring, review system diagnostics, and verify the configured measurement parameters before determining whether hardware replacement is necessary.

7. Can the 3500/40-01 be replaced while the machinery is operating?
Whether the module can be replaced during operation depends on the specific 3500 system configuration, rack arrangement, protection requirements, and site procedures. Because the 3500 system may perform critical machinery protection functions, removing a monitoring module can affect the availability of the associated protection channel. Replacement should therefore be performed only under an approved maintenance procedure that considers the operational and safety consequences. Before removing the module, technicians should verify the system condition, required bypass or protection measures, and applicable site safety procedures. The replacement module should then be installed and verified before the monitoring channel is returned to normal service.

8. What should be checked after replacing a Bently Nevada 3500/40-01 module?
After replacement, confirm that the module is correctly seated in the 3500 rack and that all associated connections are secure. The system should recognize the installed module and display the expected module status without configuration or hardware errors. Verify the channel configuration, sensor input status, measurement values, alarm thresholds, and system diagnostic information. Where applicable, compare the new module’s readings with expected operating values and other independent machinery measurements. The protection and alarm functions should also be verified according to the approved commissioning procedure before the equipment is considered fully operational.
