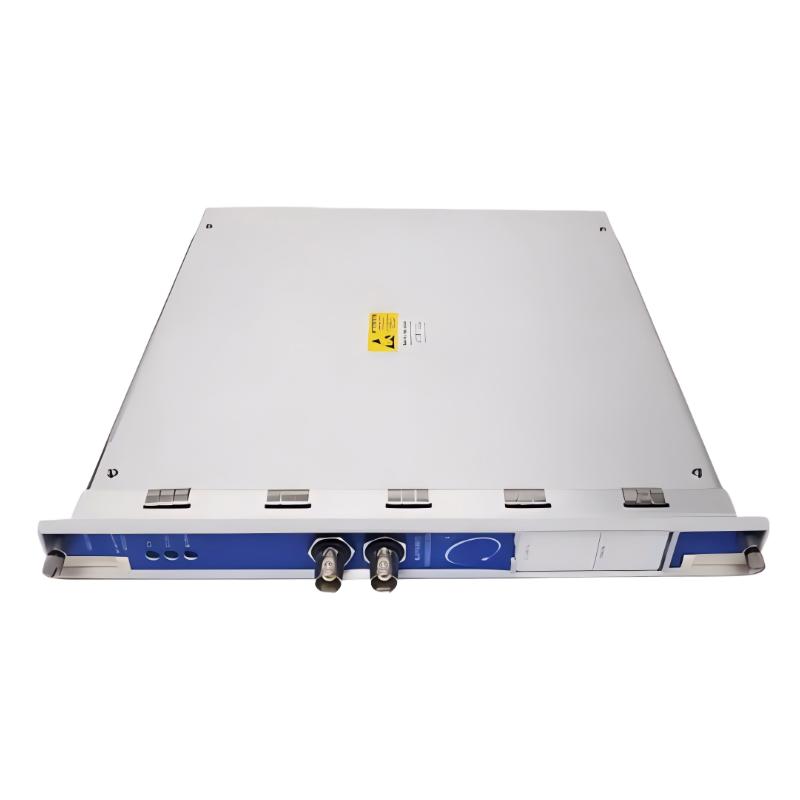

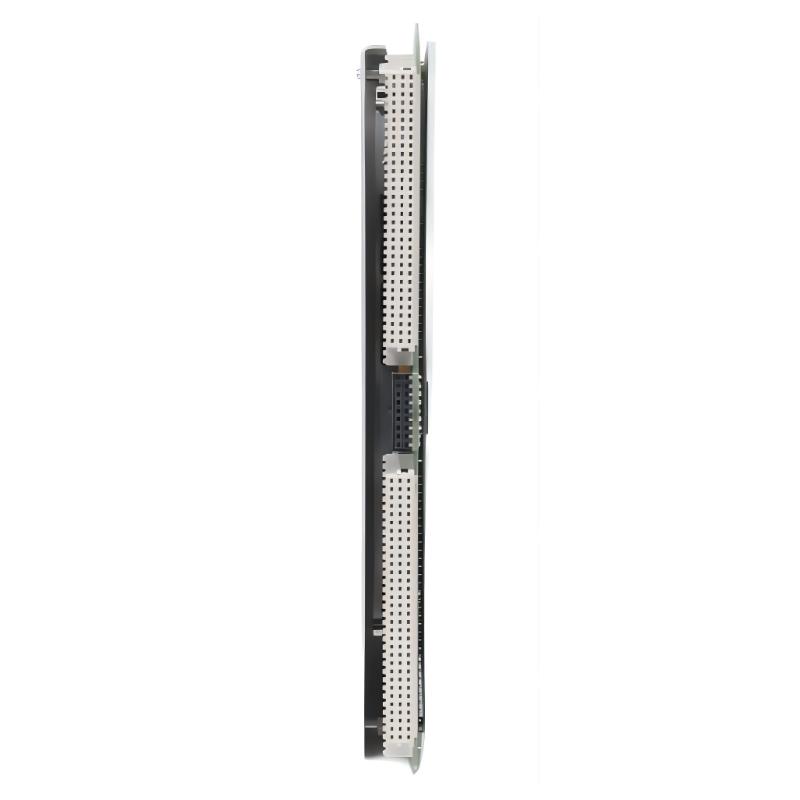

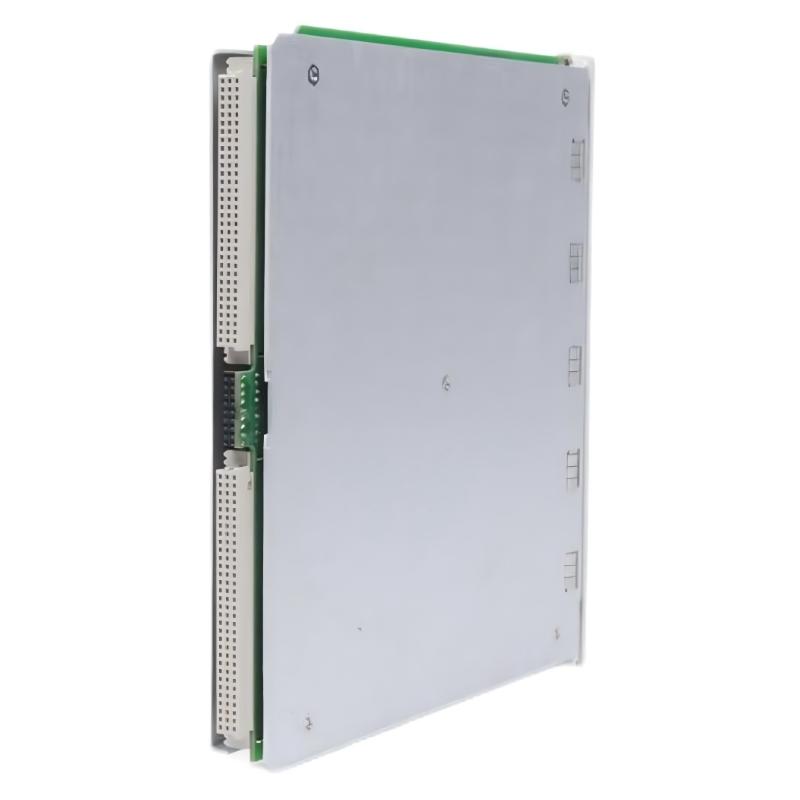

1. What is the main function of the Bently Nevada 3500/40-01-00 3500/40M Preamplifier Monitor?
The 3500/40-01-00 is a monitoring module designed for use within the Bently Nevada 3500 machinery protection and condition monitoring platform. It is used to process and monitor compatible machinery-related signals and provide the monitoring system with information required to evaluate equipment operating conditions. In rotating machinery applications, reliable signal monitoring allows abnormal operating conditions to be identified and evaluated at an early stage. The module operates as part of the complete 3500 monitoring architecture and should be configured according to the connected sensors and the protection requirements of the monitored machine.

2. What types of machinery can be monitored using the 3500/40-01-00?
The 3500/40-01-00 can be used as part of machinery monitoring systems for critical rotating equipment where continuous condition monitoring and protection are required. Typical industrial applications can include turbines, compressors, pumps, motors, generators, and other rotating machinery. The actual application depends on the sensor arrangement, channel configuration, monitoring parameters, and protection strategy used by the individual installation. Before commissioning, the module configuration and connected instrumentation should be verified to ensure that the monitoring system is suitable for the specific machine.

3. How does the 3500/40-01-00 contribute to machinery protection?
The module contributes to machinery protection by acquiring and processing compatible monitoring information within the 3500 system. The processed information can be evaluated against configured alarm or protection limits, allowing the monitoring system to identify abnormal conditions. Depending on the complete system configuration, detected conditions can result in warning or danger indications and may be incorporated into the overall machinery protection logic. This provides operators and maintenance personnel with useful information for identifying developing equipment problems and taking appropriate action before abnormal operating conditions lead to more serious machinery damage.

4. How should the 3500/40-01-00 be installed in a Bently Nevada 3500 system?
The module should be installed in the appropriate slot of a compatible 3500 rack and connected according to the system’s installation and wiring requirements. Before installation, the relevant equipment should be placed in a safe condition and appropriate electrical safety procedures should be followed. The module should be inserted carefully and fully seated in the rack without applying excessive force to the connector or circuit board. After installation, verify that the module is securely installed and that the associated wiring and system connections are correct. Configuration and commissioning should then be completed according to the requirements of the monitoring application.

5. What should be checked if the 3500/40-01-00 does not provide the expected monitoring signal?
Begin by checking whether the module is correctly installed and recognized by the 3500 system. The associated sensor, signal wiring, terminal connections, and channel configuration should then be inspected carefully. Check for loose connections, damaged cables, incorrect channel assignments, incompatible inputs, or abnormal sensor conditions. The rack power supply and system status should also be verified. If the system reports a hardware, configuration, or diagnostic fault, review the available status information before replacing the module. A systematic inspection can help determine whether the problem originates from the sensor, wiring, module, rack, or system configuration.

6. What are common causes of abnormal readings from the 3500/40-01-00?
Abnormal readings can be caused by sensor problems, damaged or poorly connected signal wiring, incorrect channel configuration, electrical interference, or problems elsewhere in the monitoring system. Actual changes in machine operating conditions can also produce abnormal measurements even when the monitoring hardware is functioning correctly. For this reason, the module should not be assumed to be defective simply because a measurement appears unusual. Compare the affected channel with other relevant measurements, inspect the sensor and wiring, review system diagnostics, and verify the configured monitoring parameters before deciding whether hardware replacement is required.

7. Can the 3500/40-01-00 be replaced while the monitored machinery is operating?
Whether the module can be replaced during operation depends on the specific 3500 system configuration, machinery protection requirements, site procedures, and the role of the affected monitoring channel. Because a 3500 monitoring system may provide an important protection function, removing a module can affect the availability of the associated measurement or protection channel. Replacement should therefore only be performed under an approved maintenance procedure that considers the operational and safety consequences. Before removal, technicians should confirm the system condition and any required protection measures. After installation, the replacement module should be checked and commissioned before the monitoring channel is returned to normal service.

8. What should be checked after replacing the Bently Nevada 3500/40-01-00?
After replacement, confirm that the module is correctly seated in the 3500 rack and that all associated connections are secure. Verify that the system recognizes the module and does not report hardware, configuration, or communication errors. The applicable channel configuration, sensor input status, measurement values, alarm settings, and diagnostic information should then be checked. Where possible, compare the new measurements with expected operating conditions and other relevant machinery instrumentation. Alarm and protection functions should also be verified according to the approved commissioning procedure before the equipment is returned to normal operation.
