1. What is the function of the Bently Nevada 3500/40-01-00 125680-01?

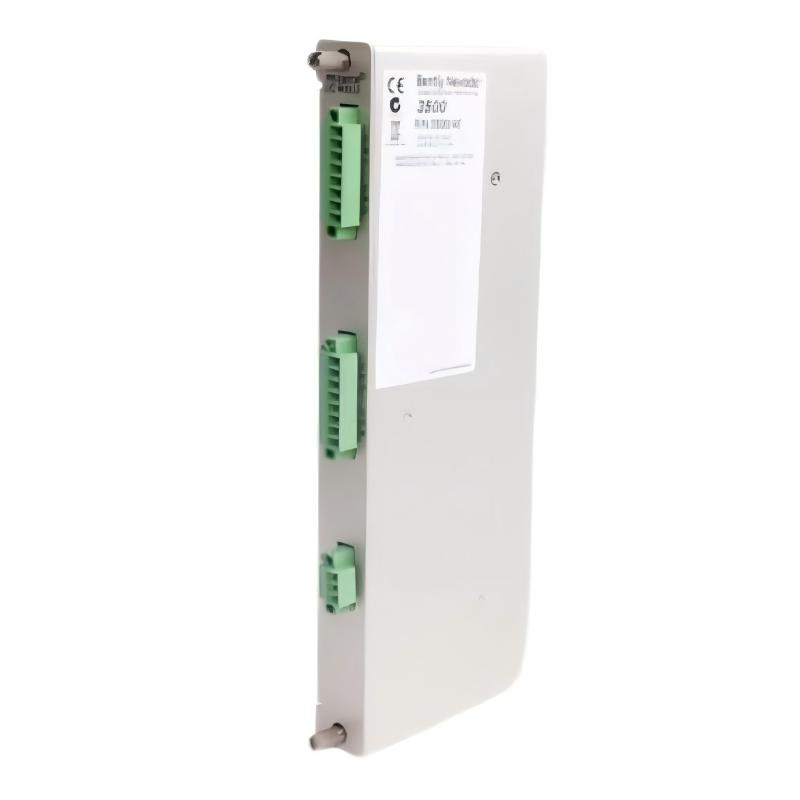

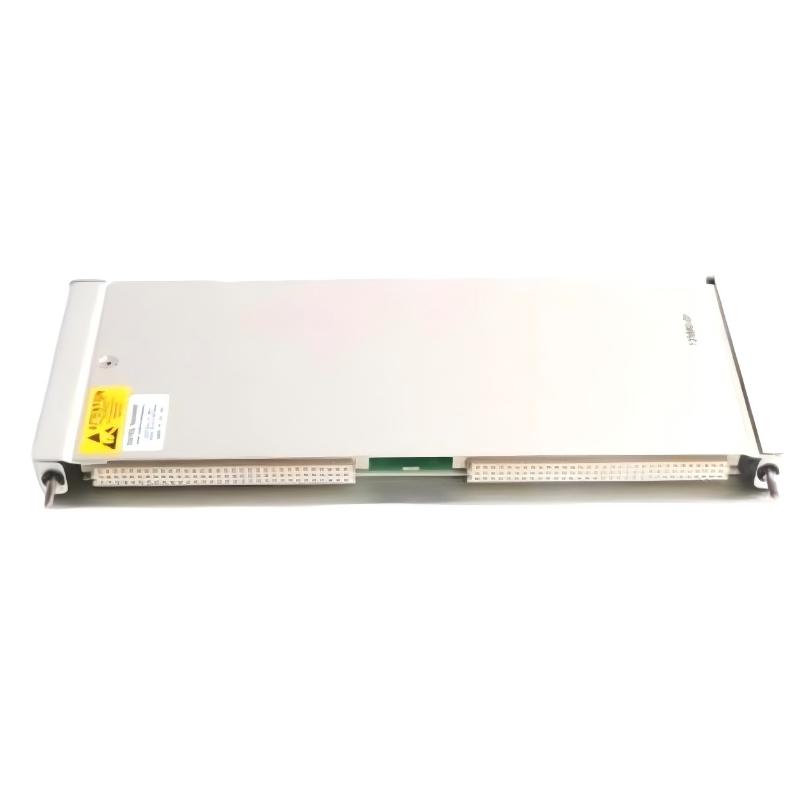

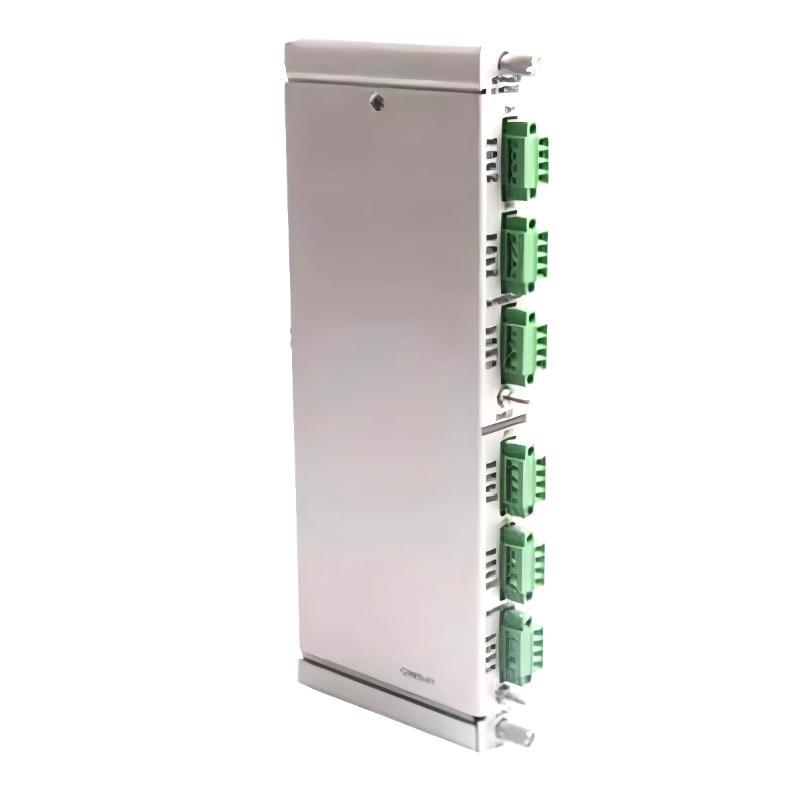

The 3500/40-01-00 with 125680-01 is part of the Bently Nevada 3500/40M Proximitor monitoring system. The 125680-01 is the Proximitor I/O module with internal terminations, providing the interface between compatible proximity transducers and the 3500/40M monitor. The complete monitoring arrangement conditions incoming proximity signals so that the system can evaluate vibration and position-related parameters. The 3500/40M is a four-channel monitor and can be configured for functions such as radial vibration, thrust position, differential expansion, eccentricity, and REBAM.

2. What is the relationship between 3500/40-01-00 and 125680-01?
The 3500/40-01-00 identifies a specific 3500/40M Proximitor Monitor configuration, while 125680-01 identifies the associated Proximitor I/O module with internal terminations. These numbers therefore represent the monitor configuration and its corresponding I/O hardware rather than two completely independent monitor models. When replacing the I/O module, both the monitor configuration and the existing field wiring arrangement should be checked to ensure that the replacement module is fully compatible with the installed system.

3. What monitoring functions are supported by the 3500/40M system?
The 3500/40M can be configured for several machinery monitoring functions, including radial vibration, thrust position, differential expansion, eccentricity, and REBAM applications. The four monitoring channels can be configured in channel pairs, providing flexibility for machinery that requires more than one type of measurement. The actual monitoring function depends on the system configuration, connected proximity transducers, and the requirements of the monitored machine. Proper configuration is important because the selected function determines how the incoming signal is processed and evaluated.

4. How does the 125680-01 internal termination I/O module work with the 3500/40M monitor?
The 125680-01 provides the interface between compatible proximity transducer wiring and the 3500/40M monitor while incorporating the required internal termination arrangement. This configuration allows the field sensor wiring to be connected through the appropriate I/O module without requiring the same external termination arrangement used by other I/O configurations. During installation, each transducer connection should be matched carefully to the correct channel and terminal assignment. Incorrect wiring can result in unstable measurements, channel faults, or incorrect machinery monitoring information.

5. What should be checked if a 3500/40M channel displays an incorrect or unstable measurement?
Troubleshooting should begin with the associated proximity transducer, signal cable, and termination connections. Check for loose terminals, damaged wiring, poor contact, incorrect sensor installation, or other physical problems. The channel configuration should also be reviewed to confirm that the selected monitoring function and input settings correspond to the installed transducer. If the sensor and wiring appear normal, inspect the monitor’s status and diagnostic information. Comparing the affected channel with other relevant measurements can help determine whether the abnormal reading is caused by the sensor, wiring, I/O module, monitor configuration, or an actual machinery condition.

6. Can the 125680-01 be replaced with another 3500/40M I/O module?
The 125680-01 should not be replaced with another I/O module solely because it can physically fit the 3500 rack. Different I/O modules can use different termination arrangements and may require different field wiring configurations. The 125680-01 is designed for an internal termination configuration, so the replacement should match the existing monitor configuration and wiring arrangement. Before replacement, verify the complete part number, I/O configuration, transducer connections, and system requirements. Using an incompatible I/O module may result in incorrect signal connections or prevent the monitoring system from operating as intended.

7. What are common causes of faults associated with the 3500/40-01-00 system?
Common causes include faulty proximity transducers, damaged signal cables, loose or incorrect connections, improper termination, incorrect channel configuration, and problems with the monitoring electronics. Abnormal machinery conditions can also produce unusual measurements even when the monitoring hardware is functioning correctly. Troubleshooting should therefore distinguish between an actual machine condition and an instrumentation problem. Checking sensor wiring, reviewing channel configuration, examining system diagnostics, and comparing measurements with other available machine data can help identify the actual source of the problem before replacing the monitor or I/O module.

8. What should be verified after replacing the 125680-01 I/O module?
After installing a replacement 125680-01, verify that the module is correctly installed and that all associated internal termination connections are properly secured. Check that the 3500/40M monitor recognizes the expected hardware configuration without generating module or configuration alarms. Each connected proximity transducer channel should then be checked to confirm that valid measurement signals are being received. The channel functions, alarm settings, protection parameters, and diagnostic status should also be reviewed. Before returning the machinery protection system to normal service, perform the required functional checks to confirm that the complete signal path from the transducer through the I/O module and monitor is operating correctly.
