1. What is the main function of the 3500/32M-01 relay module?
The 3500/32M-01 is a four-channel relay module designed for the Bently Nevada 3500 Machinery Protection System. It receives alarm and status information from monitor modules in the 3500 rack and converts configured conditions into physical relay outputs. These outputs can be connected to external alarm systems, shutdown circuits, control systems, annunciators, or other protection equipment. Each of the four relay channels can be independently programmed, allowing the module to implement different protection strategies within the same rack. The relay logic can use Alert, Danger, Not-OK, and individual PPL signals from monitor channels, providing flexible integration with machinery protection logic.

2. How many relay outputs does the 3500/32M-01 provide?
The 3500/32M-01 provides four independent relay output channels. Each channel can be configured separately to respond to selected machinery monitoring conditions. The module supports configurable alarm voting logic, allowing signals from individual monitor channels or combinations of multiple channels to be used to control a relay output. This makes it possible to create application-specific alarm or trip logic without requiring separate external logic for every condition. The four outputs can therefore serve different functions, such as individual alarm indication, equipment shutdown, external interlocking, or transmission of machinery status to another control system.

3. What types of signals can be used to drive the relay logic?
The 3500/32M relay logic can use several types of information generated within the 3500 Machinery Protection System. These include Alert and Danger alarm statuses, Not-OK conditions, and individual PPL signals from monitor channels. The available signals can be combined using configurable AND and OR logic to create the required relay response. For example, a relay can be programmed to respond when several conditions occur together, or it can be configured to respond when any one of several selected conditions becomes active. This flexibility allows the relay module to be adapted to different machinery protection philosophies and shutdown requirements.

4. Can each relay channel be configured independently?
Yes. Each of the four relay channels can be independently programmed according to the requirements of the machinery protection application. The alarm drive logic for each channel can be configured using the 3500 Rack Configuration Software. AND and OR logic can be used to combine alarm conditions from different monitor channels, while the relay operating mode can also be selected according to the required protection strategy. The 3500/32M also provides channel-level latching options, allowing the relay behavior to be adapted to applications where an alarm or trip condition must remain active until it is manually reset or otherwise cleared through the configured system logic.

5. What is the difference between Normally Energized and Normally De-energized operation?
Each relay channel can be configured for Normally Energized or Normally De-energized operation. In Normally Energized operation, the relay remains energized during its normal condition and changes state when the configured alarm logic requires an output or when the relevant operating condition changes. This arrangement can be useful when a fail-safe response to loss of power or module operation is required. In Normally De-energized operation, the relay remains de-energized during the normal state and energizes when the configured condition becomes active. The correct choice depends on the external shutdown philosophy, alarm circuit design, fail-safe requirements, and the behavior expected by the connected equipment.

6. What should be checked if a 3500/32M-01 relay output does not operate correctly?

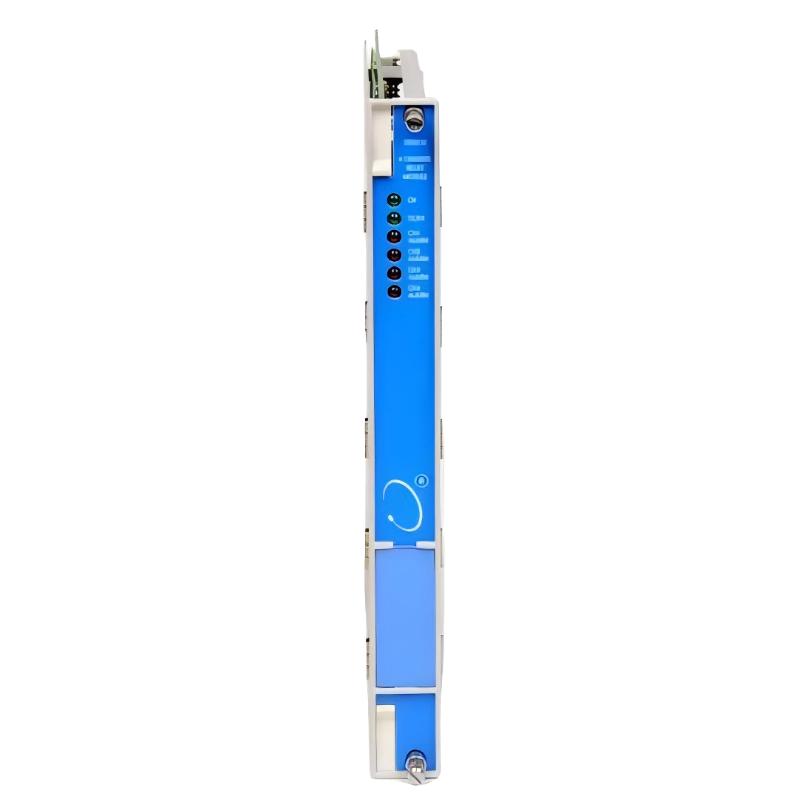

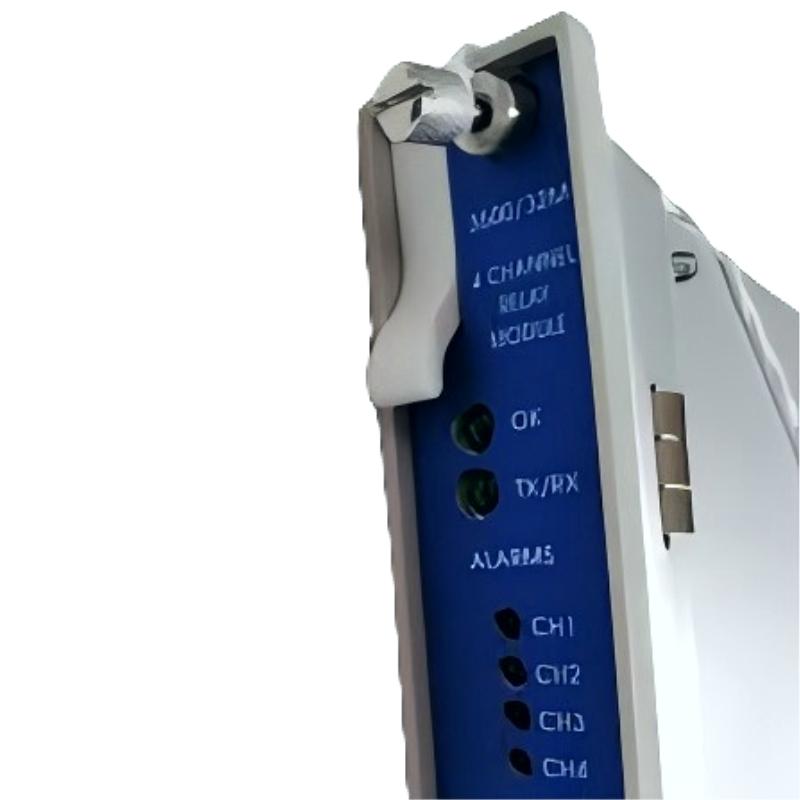

Troubleshooting should begin by checking the module status indicators. The OK LED helps verify module health, while the TX/RX LED indicates communication activity with other modules in the rack. The CH ALARM indicator can help identify whether the relevant relay channel is responding to an alarm condition. Next, check the configuration in the 3500 Rack Configuration Software and verify that the correct monitor channels, alarm conditions, voting logic, and relay operating mode have been assigned. The external relay wiring should then be inspected for loose connections, incorrect terminal assignments, or problems in the connected control circuit. If the software configuration and external wiring are correct, the individual relay channel and associated rack hardware should be tested to determine whether the fault is internal or external to the module.

7. Can the 3500/32M-01 be used for Triple Modular Redundant applications?
The standard 3500/32M four-channel relay module is intended for conventional machinery protection relay applications. For systems that specifically require Triple Modular Redundant relay architecture, the dedicated 3500/34 TMR Relay Module should be considered instead. The 3500/32M-01 should therefore not be treated as a direct replacement for a dedicated TMR relay module in a redundant protection design. When designing or modifying a machinery protection system, the required redundancy architecture should be established first, and the appropriate relay module should then be selected according to the system’s availability, safety, and shutdown requirements.

8. How is the 3500/32M-01 installed and integrated into a 3500 rack?

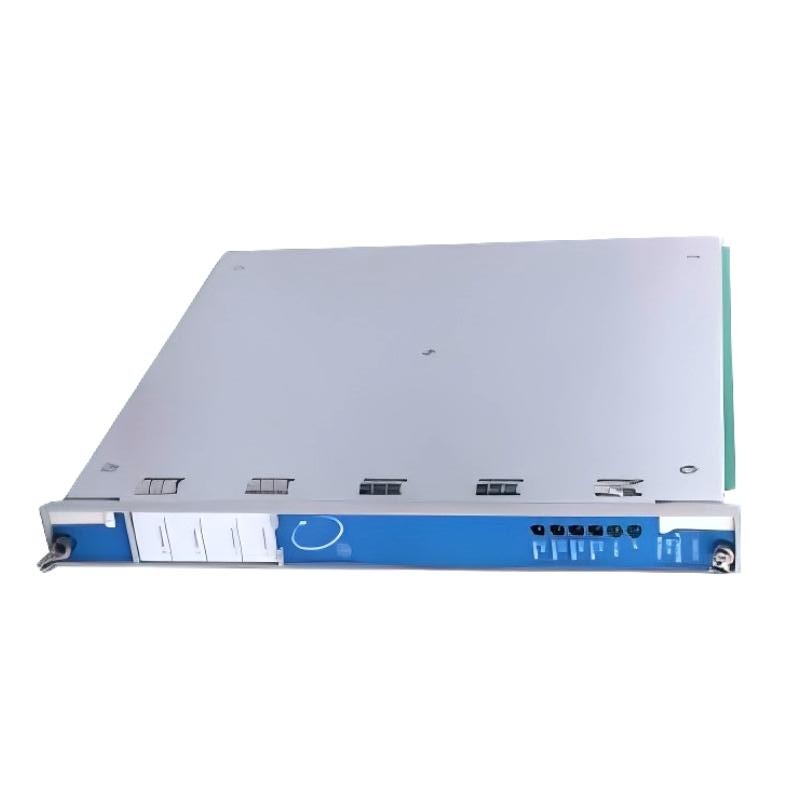

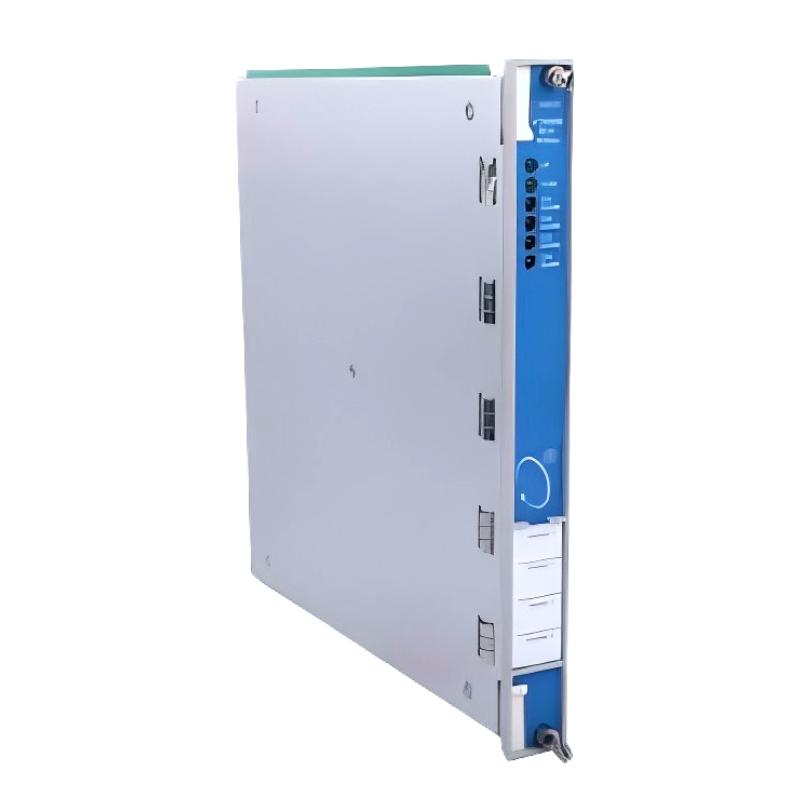

The 3500/32M is a full-height module installed in a compatible 3500 rack and uses one full-height front slot. It communicates with other 3500 modules through the rack architecture and receives the monitoring information required by its configured relay logic. During commissioning, the module should be installed in the appropriate rack position, the required relay logic should be configured through the 3500 Rack Configuration Software, and the external relay circuits should be connected according to the machinery protection design. Each relay output should then be tested against its intended Alert, Danger, Not-OK, or other configured conditions. This verification is important because the relay outputs may be connected directly to external alarm or shutdown circuits, and incorrect configuration or wiring could cause an unwanted trip or prevent the intended protection response.
