1. What is the main function of the Bently Nevada 3500/33-01-01?

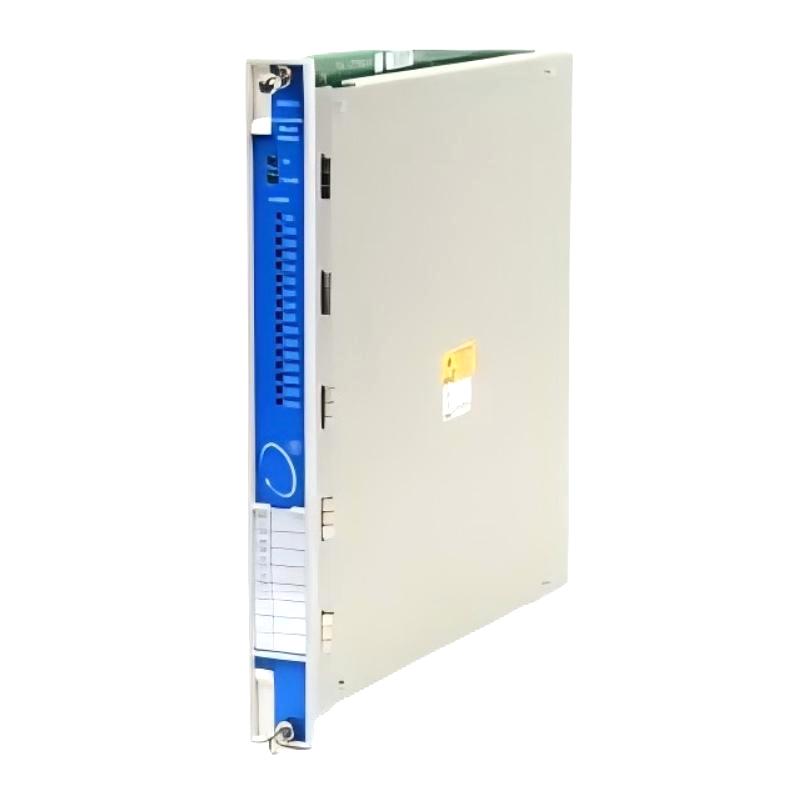

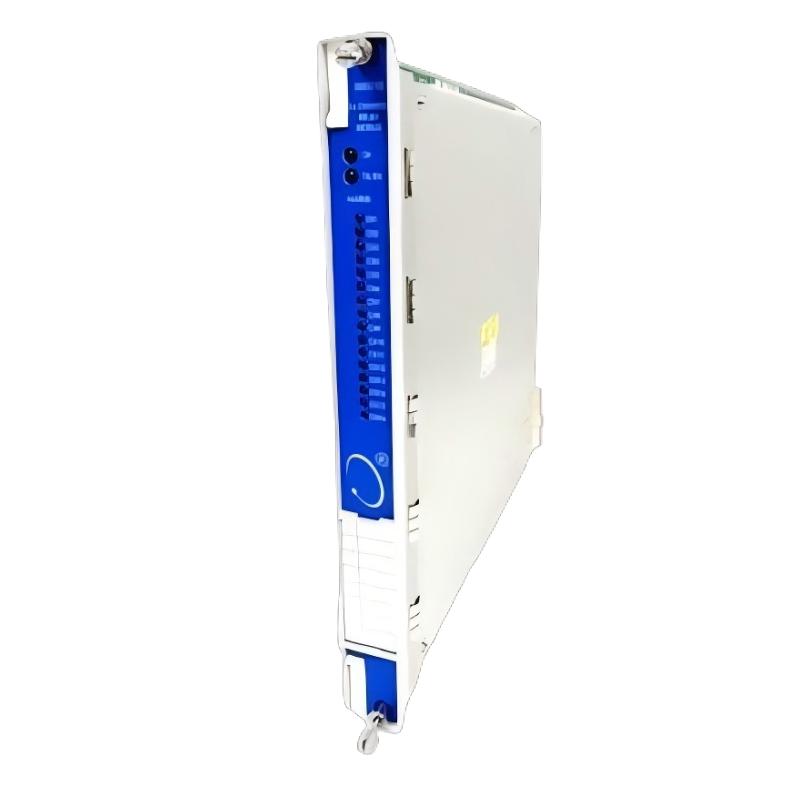

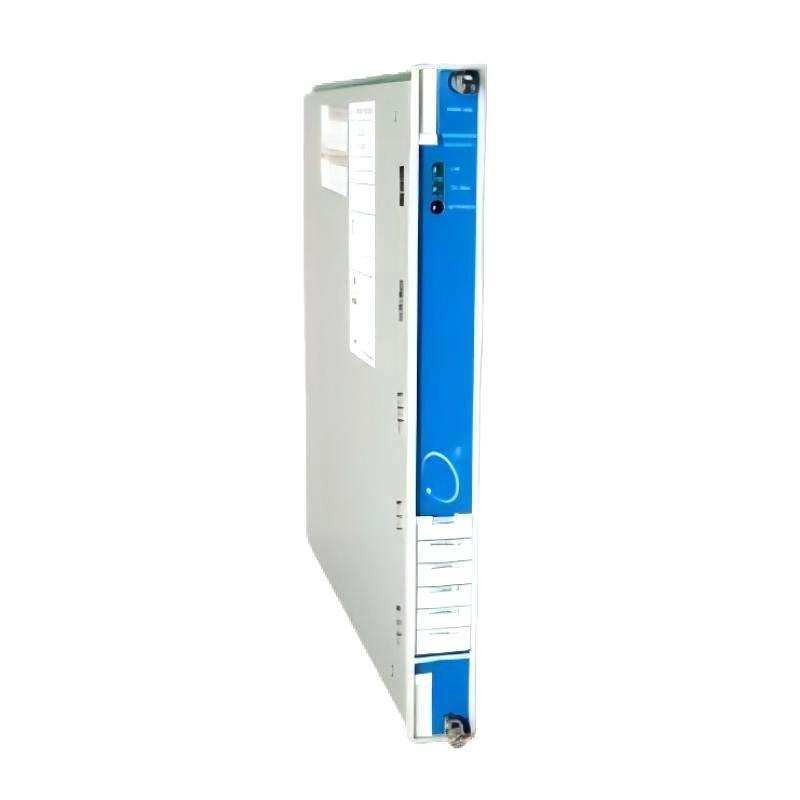

The Bently Nevada 3500/33-01-01 is a 16-channel relay module designed for the 3500 Machinery Protection System. Its primary purpose is to convert alarm and status information generated by monitoring modules within the 3500 rack into physical relay outputs that can be used by external equipment. These outputs can be connected to alarm annunciators, control systems, interlocking circuits, shutdown systems, or other machinery protection equipment. Because the module provides 16 relay channels, it is particularly useful in installations where multiple machine conditions need to be transmitted to external circuits. Each channel can be configured according to the required protection strategy, allowing the module to handle different alarm and control functions within the same machinery monitoring system.

2. How many relay channels are available on the 3500/33-01-01?
The 3500/33-01-01 provides 16 independent relay channels. Each channel can be assigned to a specific alarm condition, machine status, or control requirement depending on the configuration of the 3500 Machinery Protection System. For example, different relay outputs can be used for individual monitor alarms, equipment interlocks, external annunciation, or shutdown-related signals. Having 16 relay outputs in a single module allows a large number of discrete conditions to be transferred to external systems without requiring a separate relay interface for every signal. The channels can be configured individually, which provides considerable flexibility when designing machinery protection and alarm systems with multiple monitored parameters.

3. Can the relay channels of the 3500/33-01-01 be configured independently?
Yes. The relay channels can be configured independently so that each output can perform a specific function within the machinery protection system. The configuration can determine which monitor conditions drive a particular relay and how multiple alarm conditions are combined. AND and OR logic can be used to create more advanced relay control schemes. For example, an output can be configured to operate only when several specified conditions occur simultaneously, while another output can operate when any one of several selected alarm conditions becomes active. This independent configuration capability allows the 3500/33-01-01 to be adapted to different machinery protection philosophies rather than requiring all relay channels to operate according to one common logic.

4. Does the 3500/33-01-01 support Normally Energized and Normally De-energized operation?
The relay module supports Normally Energized (NE) and Normally De-energized (ND) operating configurations. With Normally Energized operation, the relay is energized during its normal operating condition and changes state when the configured alarm or control condition requires a relay response. This type of arrangement can be useful in applications where loss of relay energy needs to be interpreted as a fault or protective condition. With Normally De-energized operation, the relay remains de-energized during normal operation and energizes when the programmed condition becomes active. The correct configuration depends on the external shutdown philosophy, control circuit design, fail-safe requirements, and the expected behavior of the connected equipment. The relay mode should therefore be verified carefully during system commissioning.

5. What should be checked if one relay channel on the 3500/33-01-01 does not operate?

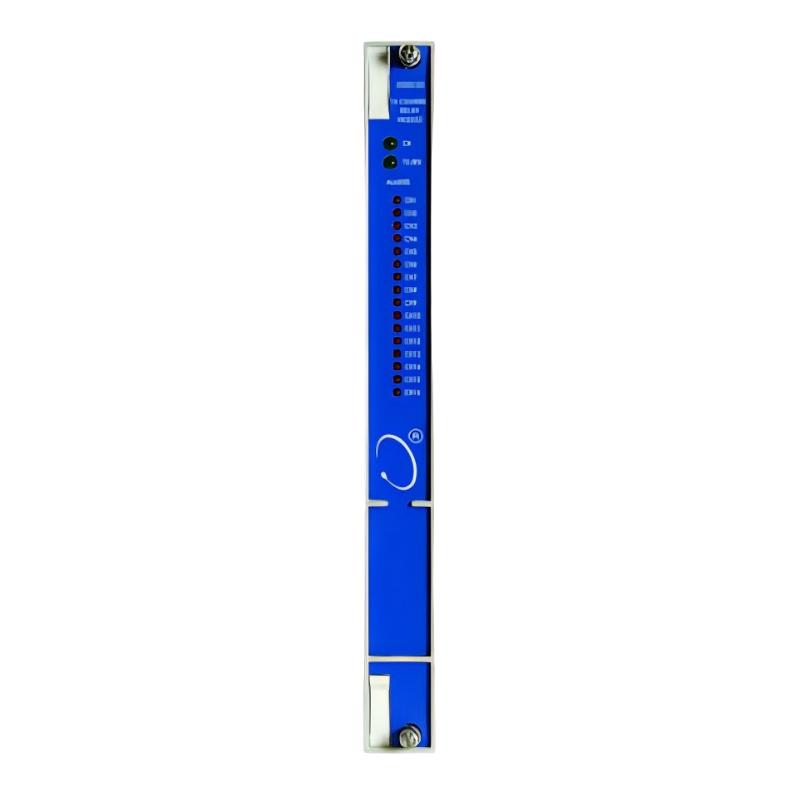

Troubleshooting should begin by checking the module’s OK status indicator to confirm that the relay module is operating normally. The TX/RX indication should also be checked to verify communication activity between the relay module and the 3500 rack. The next step is to use the 3500 Rack Configuration Software to review the configuration of the affected relay channel. The technician should verify the selected alarm source, alarm condition, AND/OR logic, relay operating mode, and any configured latching function. If the software configuration is correct, the external wiring and relay contacts should be inspected for loose connections, incorrect wiring, damaged conductors, or problems in the connected control circuit. It is also important to confirm that the actual alarm condition required to activate the relay has occurred. If the configured trigger condition is not present, the absence of relay action may be normal system behavior rather than a module failure.

6. Can the 3500/33-01-01 be used for equipment shutdown control?
Yes. The relay outputs of the 3500/33-01-01 can be incorporated into external alarm, interlock, and shutdown control circuits when the overall machinery protection design requires relay-based outputs. The relay logic can be configured so that an output changes state when a specified Alert, Danger, Not-OK, or other configured condition occurs. This allows the relay module to transfer a protection condition from the 3500 monitoring system to an external control or shutdown circuit. When a relay output is used for a critical shutdown function, the complete circuit should be designed according to the required safety and fail-safe philosophy. The relay configuration, external wiring, operating mode, alarm logic, and actual shutdown response should all be tested during commissioning to confirm that the machine responds correctly under the intended protection conditions.

7. How does the 3500/33-01-01 work with other monitoring modules in a 3500 rack?
The 3500/33-01-01 works as part of the overall 3500 Machinery Protection System and receives relevant alarm and status information from monitoring modules installed in the rack. The monitoring modules perform the measurement and alarm processing for parameters such as vibration, position, speed, or other machinery conditions. When a configured alarm or status condition occurs, the relay module can use that information as an input to its programmed relay logic. The 3500/33 then determines whether the corresponding relay channel should change state. Multiple monitor conditions can be combined using the configured logic, allowing the relay module to implement more complex alarm, interlock, or shutdown strategies. This arrangement provides a centralized method for transferring machinery protection information to external systems.

8. How should the 3500/33-01-01 be commissioned and tested?
Commissioning should begin by confirming that the relay module is correctly installed in a compatible 3500 rack and that the module status indicators show normal operation. The 3500 Rack Configuration Software should then be used to verify all 16 relay channel configurations, including the selected alarm sources, alarm conditions, logic functions, relay operating modes, and latching settings where applicable. After configuration, each relay output should be tested individually by applying or simulating the corresponding alarm condition and confirming that the physical relay changes state as expected. If the outputs are connected to external annunciation, interlocking, control, or shutdown circuits, the complete signal path should also be tested to verify the response of the connected equipment. Any relay used for a critical protection function should receive particular attention during testing. After successful commissioning, the final configuration should be documented so that maintenance personnel can quickly understand the purpose and operating logic of each relay channel during future troubleshooting or system maintenance.
