1. What is the Bently Nevada 3500/40M-01-02 used for?

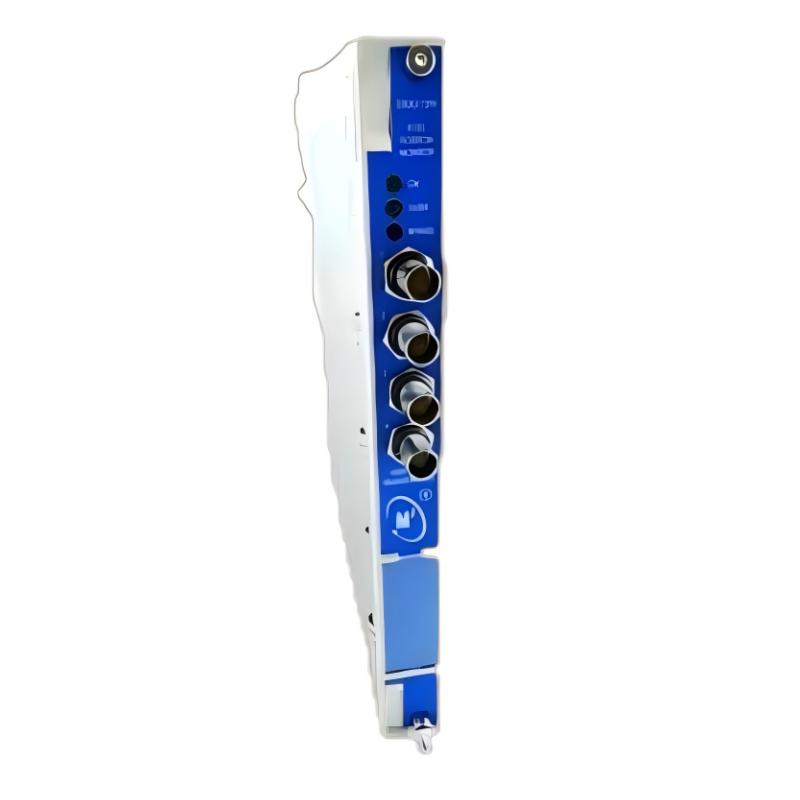

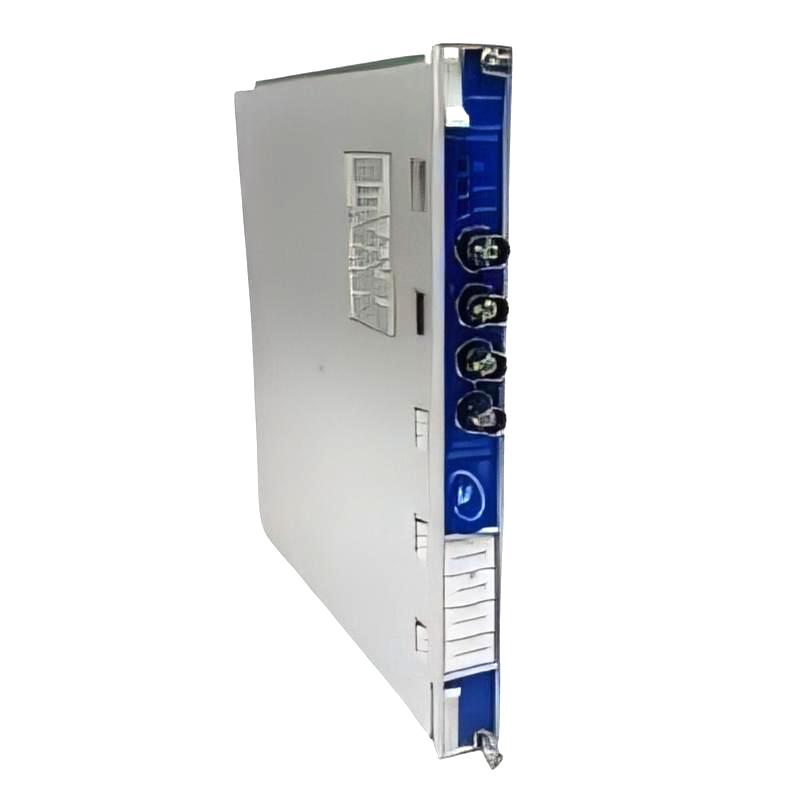

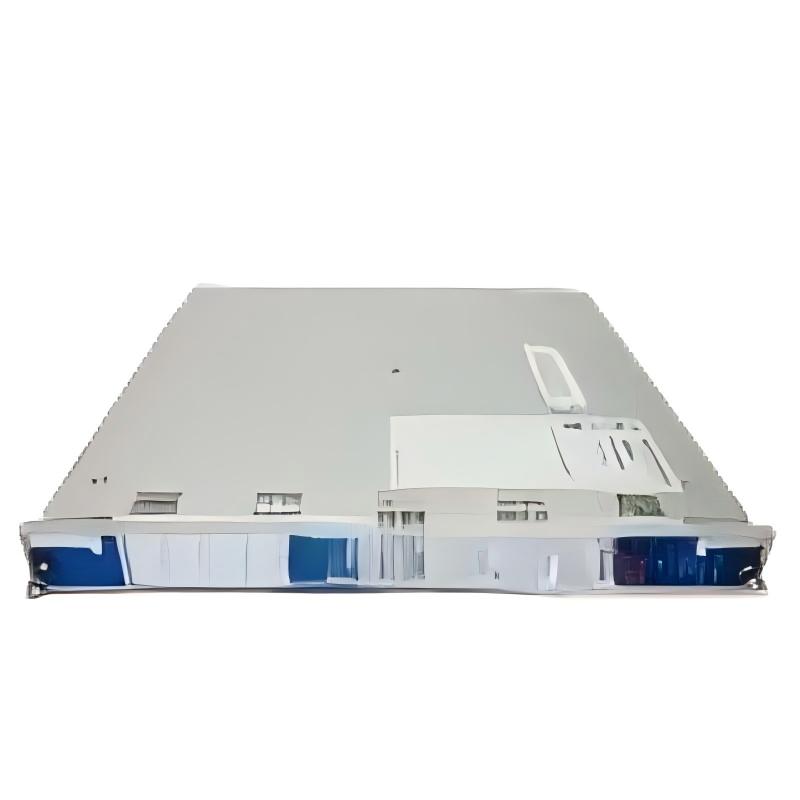

The 3500/40M-01-02 is a four-channel machinery protection monitor designed to receive signals from compatible Bently Nevada proximity transducers and process those signals for vibration and position monitoring. Depending on the channel configuration, it can be used for radial vibration, thrust position, eccentricity, differential expansion, and REBAM measurements. The monitor continuously compares measured values with user-defined alarm limits and provides machinery protection functions when abnormal operating conditions are detected. It is commonly used as part of a Bently Nevada 3500 monitoring rack where continuous condition monitoring and reliable alarm processing are required for critical rotating machinery.

2. How many channels does the 3500/40M-01-02 provide?
The 3500/40M provides four independent monitoring channels and can accept from one to four proximity transducer signals. The channels are programmed in pairs, allowing Channels 1 and 2 to perform one monitoring function while Channels 3 and 4 can perform another function or the same function. This configuration provides flexibility for machinery applications requiring multiple vibration or position measurements. Before commissioning, each channel should be configured according to the installed transducer type, machine measurement requirement, and desired alarm parameters to ensure that the monitor interprets the incoming signals correctly.

3. What measurements can the 3500/40M monitor perform?
The 3500/40M can be configured for several important machinery condition measurements, including radial vibration, thrust position, eccentricity, differential expansion, and REBAM. The available measurement function depends on the channel configuration and the associated transducer arrangement. This flexibility allows one monitor module to support different machinery protection requirements within a 3500 rack. During configuration, the monitoring channels should be assigned according to the machine’s mechanical design and the actual location and type of installed proximity transducers. Correct configuration is essential because the same physical input arrangement can be interpreted differently depending on the selected monitoring function.

4. How are alarm setpoints configured on the 3500/40M-01-02?
Alarm setpoints for the 3500/40M are configured using the 3500 Rack Configuration Software. Alert levels can be configured for each measured value, while Danger setpoints can be assigned to any two of the active measured values. The alarm range can be adjusted from 0 to 100% of full scale, although the effective setting may be limited by the operating range of the connected transducer. The monitor also supports programmable alarm time delays, which can help prevent short-duration signal disturbances from immediately triggering a machinery protection response. Alarm settings should be established according to the machine manufacturer’s operating limits and the actual protection requirements of the monitored equipment.

5. What should be checked if the 3500/40M reports an abnormal vibration or position value?
When an abnormal value is reported, troubleshooting should begin by determining whether the condition is genuine mechanical behavior or an instrumentation-related problem. Check the relevant transducer, field wiring, connector condition, and monitor channel configuration first. Verify that the transducer is appropriate for the selected measurement function and that the channel has been configured with the correct measurement parameters and scaling. It is also useful to compare the affected channel with other machine measurements and review the alarm history to determine whether the condition is continuous or intermittent. If the electrical signal is stable but the machine value remains abnormal, the underlying mechanical condition should be investigated rather than immediately replacing the monitor module.

6. How can a communication or configuration problem with the 3500/40M be diagnosed?
If the 3500/40M does not communicate correctly with the 3500 rack or configuration software, first check whether the module is properly seated in the rack and whether the associated rack power and communication functions are operating normally. The front-panel status indicators can provide useful information about the module’s operating and communication condition. The configuration should then be reviewed to confirm that the correct channel functions, transducer settings, measurement parameters, and alarm values have been assigned. If configuration data cannot be read or written correctly, the rack configuration software and communication path should also be checked. A systematic approach helps distinguish between a module seating problem, configuration error, rack communication issue, or an actual hardware fault.

7. Can the 3500/40M-01-02 be used for different types of rotating machinery?
Yes, the 3500/40M is designed as a flexible machinery protection monitor and can be configured for different types of rotating equipment when the appropriate Bently Nevada proximity transducers and measurement arrangements are used. Typical applications include turbines, compressors, pumps, motors, generators, and other critical rotating machinery. The exact configuration depends on the mechanical characteristics of the machine, the measurement points, the required protection parameters, and the installed transducers. Before commissioning the module on a different machine type, the channel configuration, transducer characteristics, measurement ranges, alarm thresholds, and protection logic should be reviewed to ensure that they match the specific application.

8. What should be considered when replacing a 3500/40M-01-02 module?
When replacing a 3500/40M-01-02, the replacement module should be verified against the existing 3500 rack configuration and the required monitoring functions. The channel assignments, transducer types, alarm settings, measurement ranges, and other configuration parameters should be documented before removing the original module whenever possible. After installation, confirm that the replacement module is correctly seated and that the rack recognizes it properly. The configuration should then be checked using the 3500 Rack Configuration Software, followed by verification of input signals and alarm behavior. A controlled functional test should be performed before the protected machine is returned to normal operation, ensuring that all configured vibration and position measurements are being processed correctly and that the required machinery protection functions are available.
