1. What is the Bently Nevada 3500/40M-02-00 used for?

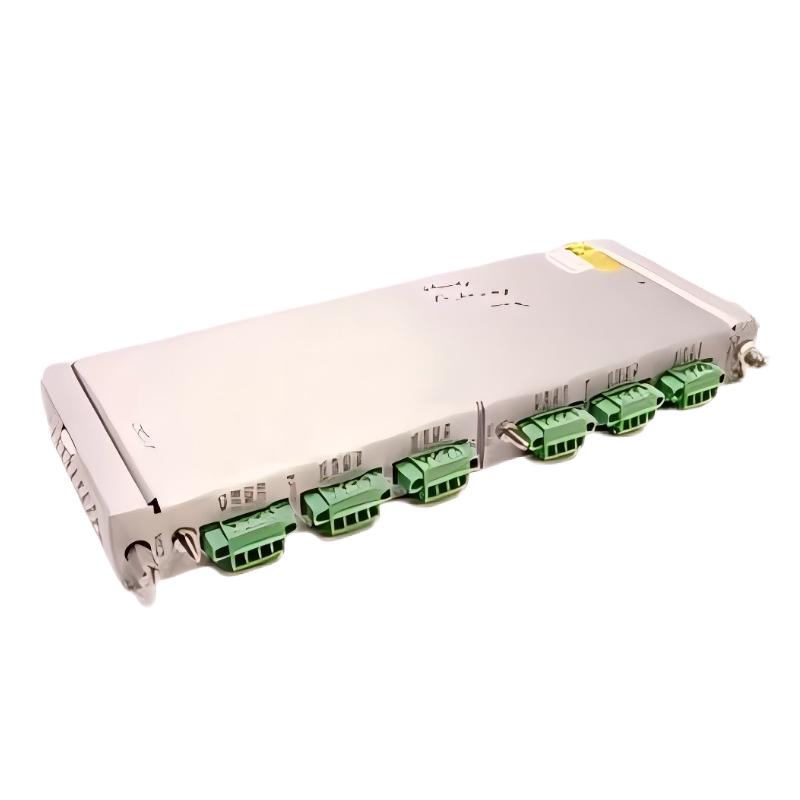

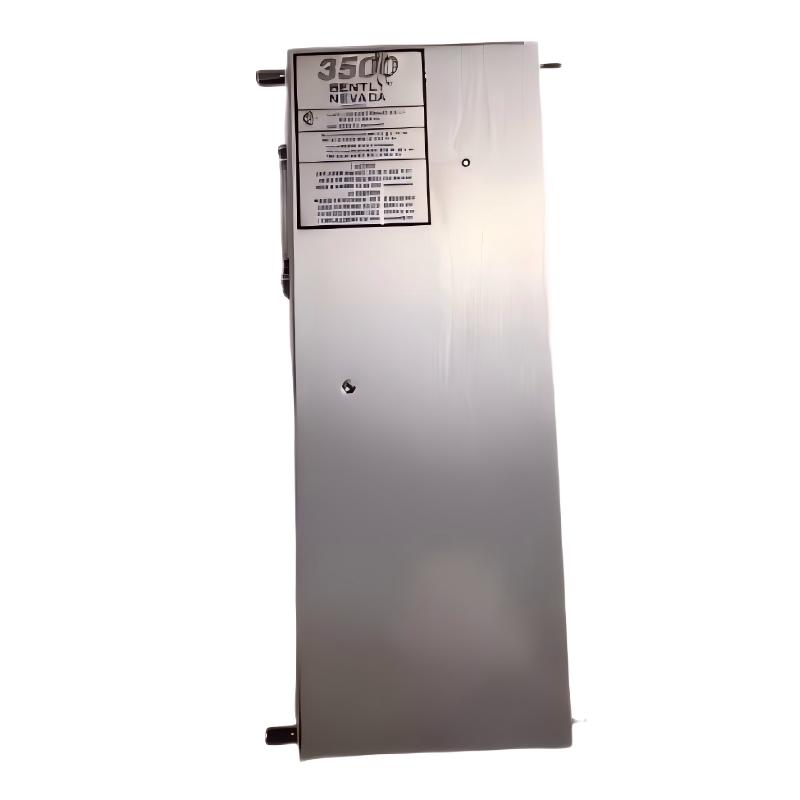

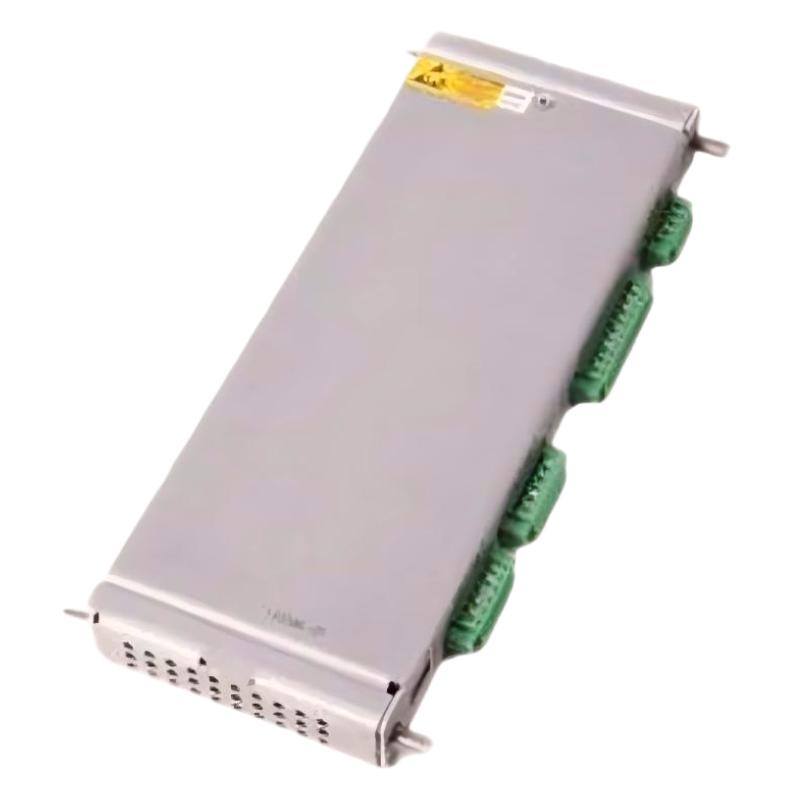

The 3500/40M-02-00 is a four-channel Proximitor Monitor used in the Bently Nevada 3500 machinery protection system. It accepts signals from compatible proximity transducers, conditions the incoming signals, and converts them into useful vibration and position measurements. Depending on the selected configuration, the monitor can be used for radial vibration, thrust position, differential expansion, eccentricity, and REBAM measurements. The processed values are continuously compared with configured alarm limits so that abnormal machinery conditions can be detected quickly. This makes the module suitable for continuous monitoring and protection of critical rotating equipment where reliable vibration and position information is required.

2. How many channels does the 3500/40M-02-00 provide?
The 3500/40M provides four monitoring channels and can accept from one to four proximity transducer signals. The channels are configured in pairs, meaning Channels 1 and 2 can be assigned to one monitoring function while Channels 3 and 4 can be assigned to another function or the same function. This arrangement allows the module to support different monitoring requirements within one machinery protection rack. During commissioning, each channel should be configured according to the actual transducer arrangement, measurement requirements, machine operating conditions, and required alarm strategy to ensure that the incoming signals are interpreted correctly.

3. What types of measurements can the 3500/40M monitor?
The 3500/40M can be configured for radial vibration, thrust position, differential expansion, eccentricity, and REBAM measurements. These functions cover several important mechanical conditions associated with rotating machinery. Radial vibration monitoring can be used to identify abnormal shaft or bearing-related vibration, while thrust position monitoring provides information about axial shaft movement. Differential expansion and eccentricity measurements can be used for specific turbine and rotating equipment applications where thermal or mechanical displacement must be monitored. REBAM provides an additional option for rolling-element bearing vibration monitoring. The correct function depends on the machine design, transducer arrangement, and protection requirements.

4. How are alarm setpoints configured on the 3500/40M-02-00?
The 3500/40M alarm setpoints are configured through the 3500 Rack Configuration Software. Alert setpoints can be configured for each active static measurement, while Danger setpoints can be configured for selected active measurements. The adjustable alarm range is generally from 0 to 100% of the full-scale value, although the actual transducer range can limit the usable setting range. Alarm levels should be established according to the normal operating range of the machine and the protection limits recommended for the specific application. Proper alarm configuration is important because thresholds that are too low can generate unnecessary alarms, while thresholds that are too high may delay detection of a developing mechanical problem.

5. What should be checked if the 3500/40M-02-00 shows an abnormal vibration value?
When an abnormal vibration value appears, the first step should be to determine whether the reading represents a genuine machine condition or an instrumentation problem. Check the associated proximity transducer, field wiring, connectors, and monitor channel configuration. Verify that the selected measurement function matches the installed transducer arrangement and that the channel parameters have been configured correctly. It is also useful to compare the affected channel with related measurements from the same machine and review the alarm history to identify whether the abnormal value is continuous or intermittent. If the electrical feedback remains stable while the measured vibration continues to increase, the mechanical condition of the shaft, bearings, coupling, or other rotating components should be investigated rather than immediately assuming that the monitor is defective.

6. How can a 3500/40M-02-00 configuration or communication problem be diagnosed?
If the monitor cannot communicate correctly with the 3500 system or configuration software, begin by checking whether the module is properly seated in the rack and whether the rack power supply is operating normally. The front-panel OK and TX/RX indicators can provide useful information about the module’s operating and communication status. Next, review the configuration to confirm that the channel functions, transducer parameters, measurement ranges, and alarm settings are correct. If the configuration software cannot read or write parameters properly, the communication path and software configuration should also be checked. This step-by-step process helps distinguish between a module installation issue, configuration error, rack communication problem, or hardware-related fault.

7. Can the 3500/40M-02-00 be used on different types of rotating machinery?
Yes. The 3500/40M is designed as a flexible machinery protection monitor and can be configured for different rotating equipment applications when suitable proximity transducers and measurement arrangements are used. Typical applications include steam turbines, compressors, pumps, motors, generators, and other critical rotating machines. However, the module configuration should be adapted to each machine. The measurement points, transducer characteristics, selected channel functions, measurement ranges, and alarm thresholds should all be reviewed before commissioning. A configuration that is suitable for one machine should not automatically be copied to another machine without checking its mechanical design and operating characteristics.

8. What should be considered when replacing a 3500/40M-02-00?
Before replacing a 3500/40M-02-00, record the existing channel configuration, transducer settings, measurement functions, alarm values, and other important parameters whenever possible. The replacement module should be installed in the correct 3500 rack position and checked for proper seating and system recognition. After installation, use the 3500 Rack Configuration Software to verify that the required configuration has been correctly applied. The input signals from each connected proximity transducer should then be checked, followed by verification of the configured Alert and Danger alarm functions. For critical machinery protection applications, a controlled functional test should be completed before returning the equipment to normal operation to ensure that vibration and position measurements, alarms, and protection functions are all working correctly.
