1. What is the Bently Nevada 3500/40M-03-00 used for?

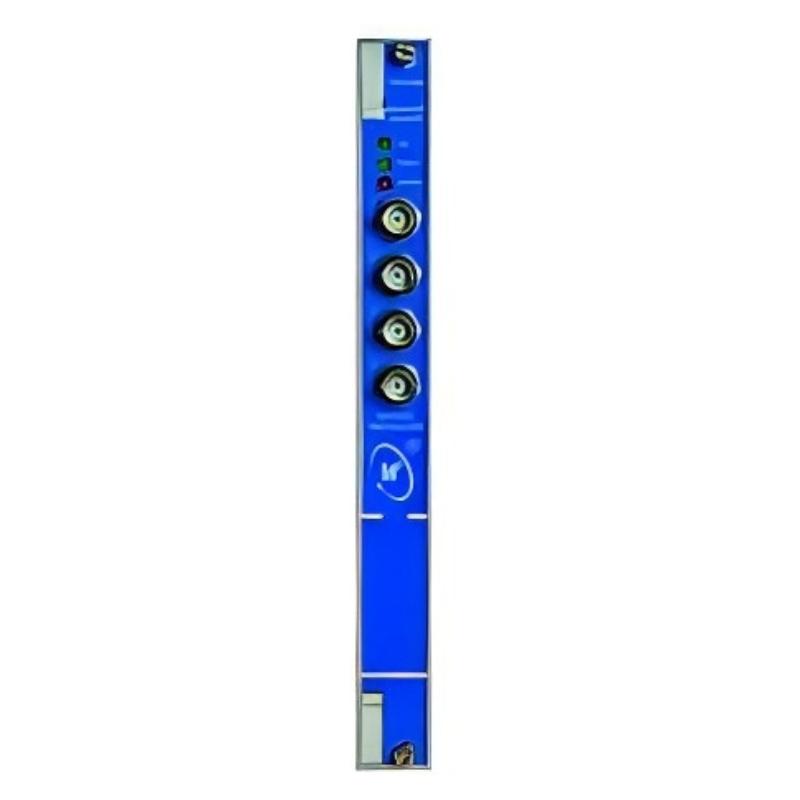

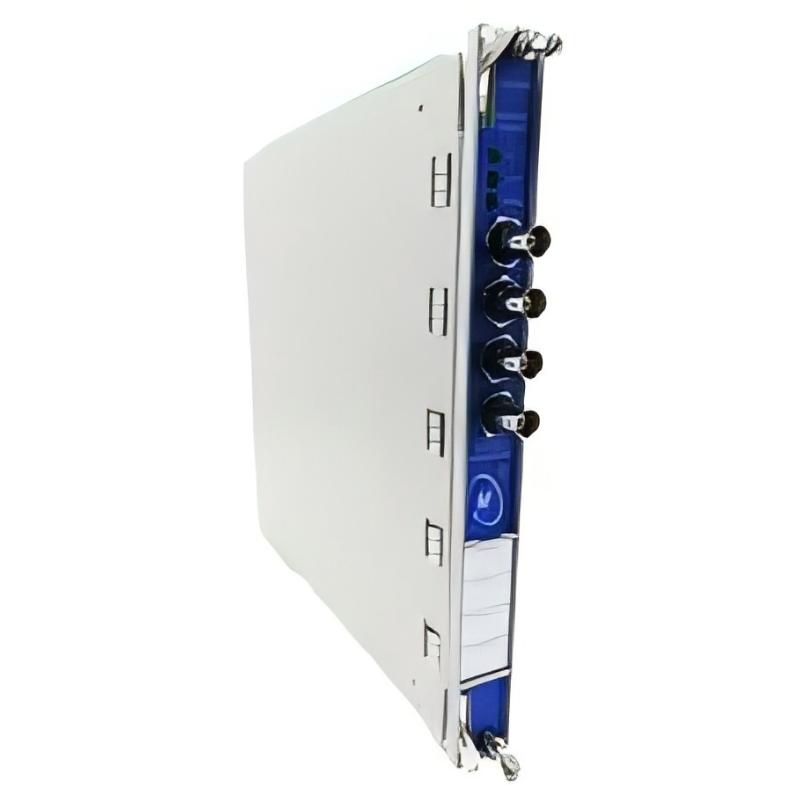

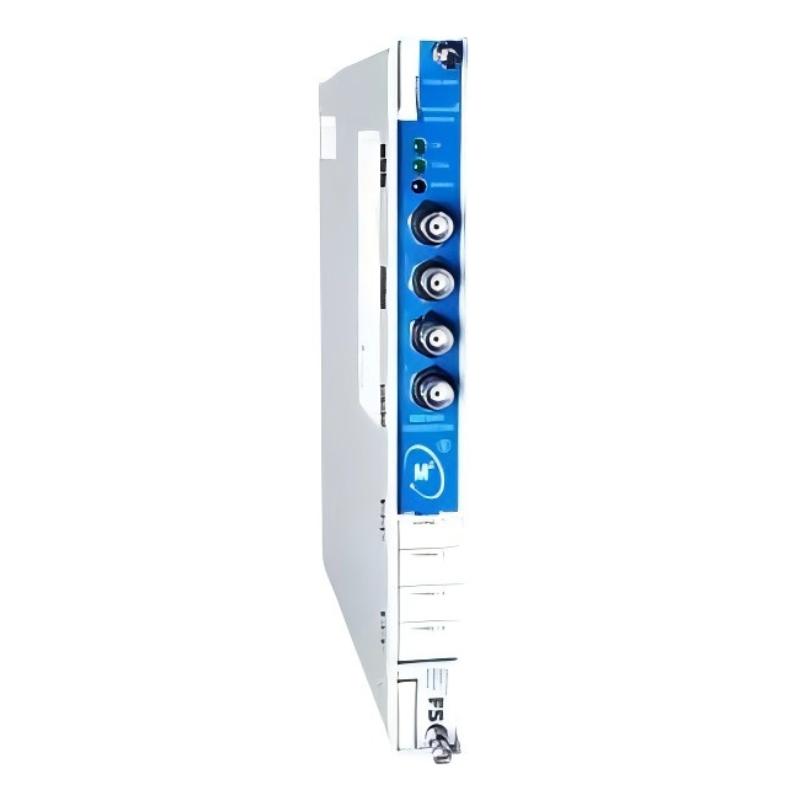

The 3500/40M-03-00 is a four-channel Proximitor Monitor designed for use within the Bently Nevada 3500 machinery protection system. It receives signals from compatible proximity transducers, conditions the incoming signals, and provides vibration and position measurements for continuous machinery monitoring. Depending on the selected channel configuration, it can monitor radial vibration, thrust position, differential expansion, eccentricity, and REBAM measurements. The processed measurements can be compared against programmable alarm limits so that abnormal machinery conditions can be identified and appropriate protection actions initiated. The -03-00 configuration uses a Proximitor I/O module with internal barriers and internal terminations.

2. What does the “03-00” configuration of the 3500/40M represent?
The “03” identifies the I/O module configuration as a Proximitor I/O Module with Internal Barriers and Internal Terminations. The “00” represents the hazardous-area approval option as none. This configuration is different from versions using standard internal or external termination arrangements and should therefore be matched with the appropriate field wiring and installation requirements. When replacing a 3500/40M module, the complete part number should be checked rather than selecting a replacement based only on the basic 3500/40M model designation. The I/O configuration can affect installation, field connections, and the applicable environmental and hazardous-area requirements.

3. How many channels does the 3500/40M-03-00 provide?
The 3500/40M provides four monitoring channels and accepts from one to four proximity transducer signals. The channels are programmed in pairs, with Channels 1 and 2 configured as one pair and Channels 3 and 4 configured as another pair. Each pair can perform one monitoring function, allowing two different functions to be used simultaneously or allowing both pairs to perform the same function. This arrangement provides flexibility for monitoring different mechanical parameters on the same machine. During commissioning, each channel should be configured according to the installed transducer arrangement, machine measurement requirements, and required protection strategy.

4. What measurements can the 3500/40M-03-00 perform?
The 3500/40M can be configured for radial vibration, thrust position, differential expansion, eccentricity, and REBAM measurements. Radial vibration is commonly used to monitor changes in shaft or rotating component vibration, while thrust position provides information about axial movement of the shaft. Differential expansion can be used on machinery where relative thermal expansion is an important operating parameter, and eccentricity can provide information about shaft bow or displacement conditions. REBAM provides a measurement function for rolling-element bearing applications. The actual function available in a particular installation depends on the channel configuration, transducers, machine design, and selected system parameters.

5. What should be checked if the 3500/40M-03-00 shows an abnormal vibration signal?
When an abnormal vibration signal appears, the first step is to determine whether the measurement represents a real mechanical condition or an instrumentation problem. Check the associated proximity transducer, field wiring, connector condition, and channel configuration. The transducer type and installation should correspond to the selected measurement function, and the channel parameters should be reviewed for incorrect scaling or configuration. It is also useful to compare the affected measurement with other vibration or position measurements from the same machine. If the signal is intermittent, inspect the field wiring for loose connections, mechanical damage, or vibration-related movement. If the input signal is stable but the measured vibration remains abnormal, the machine’s shaft, bearings, coupling, and other rotating components should be investigated.

6. How should the 3500/40M-03-00 be configured and commissioned?
The 3500/40M is configured using the 3500 Rack Configuration Software. During commissioning, the engineer should first confirm the correct I/O configuration and verify that the module is properly installed in the 3500 rack. The channel functions, transducer characteristics, measurement parameters, alarm setpoints, and required protection logic should then be reviewed and configured. Because the -03-00 version includes internal barriers and internal terminations, the field wiring should be checked carefully against the applicable installation arrangement. After configuration, each connected transducer input should be verified, followed by functional checks of the displayed measurements and alarm conditions. Controlled testing should be completed before the monitored machinery is returned to normal operation.

7. What are the operating temperature requirements for the 3500/40M-03-00?
For the 3500/40M configuration using an Internal Barrier I/O Module with internal termination, the specified operating temperature range is 0°C to +65°C. The storage temperature range is -40°C to +85°C, and the specified humidity limit is 95% non-condensing. These environmental conditions should be considered when installing the monitor in a machinery protection cabinet or control room. Excessive heat, condensation, contamination, or poor cabinet ventilation can affect the long-term reliability of electronic monitoring equipment. If the installation environment is close to the specified limits, cabinet temperature and environmental conditions should be checked as part of the commissioning and maintenance process.

8. What should be considered when replacing a 3500/40M-03-00 module?
When replacing a 3500/40M-03-00, the complete part number should be verified to ensure that the replacement has the same I/O configuration and required system characteristics. The existing channel configuration, transducer settings, measurement functions, alarm values, and protection parameters should be recorded before removing the original module whenever possible. After installation, verify that the module is correctly seated in the 3500 rack and that the internal-barrier I/O arrangement is correctly connected. Use the 3500 Rack Configuration Software to check the configuration and confirm that all required parameters have been restored. Finally, verify each transducer input, measurement value, alarm function, and protection response under controlled operating conditions before returning critical machinery to normal service.
