1. What is the Bently Nevada 3500/42-01-00 used for?

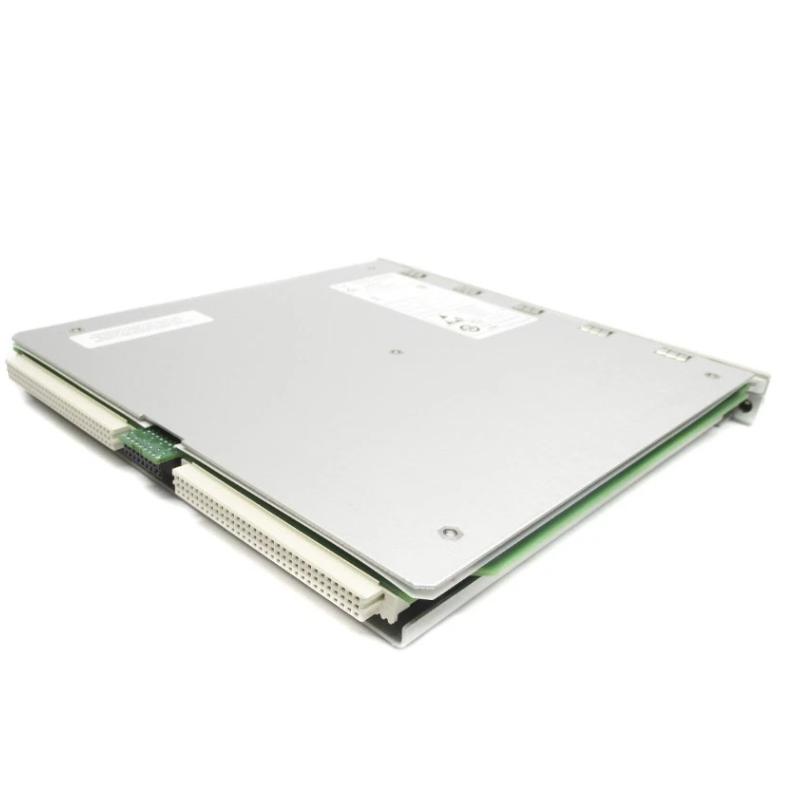

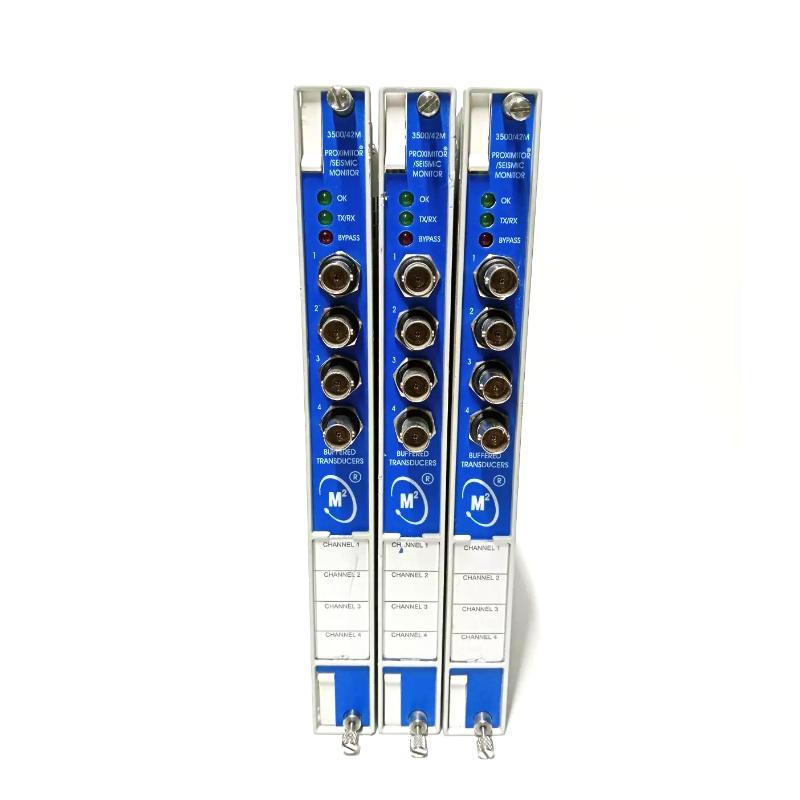

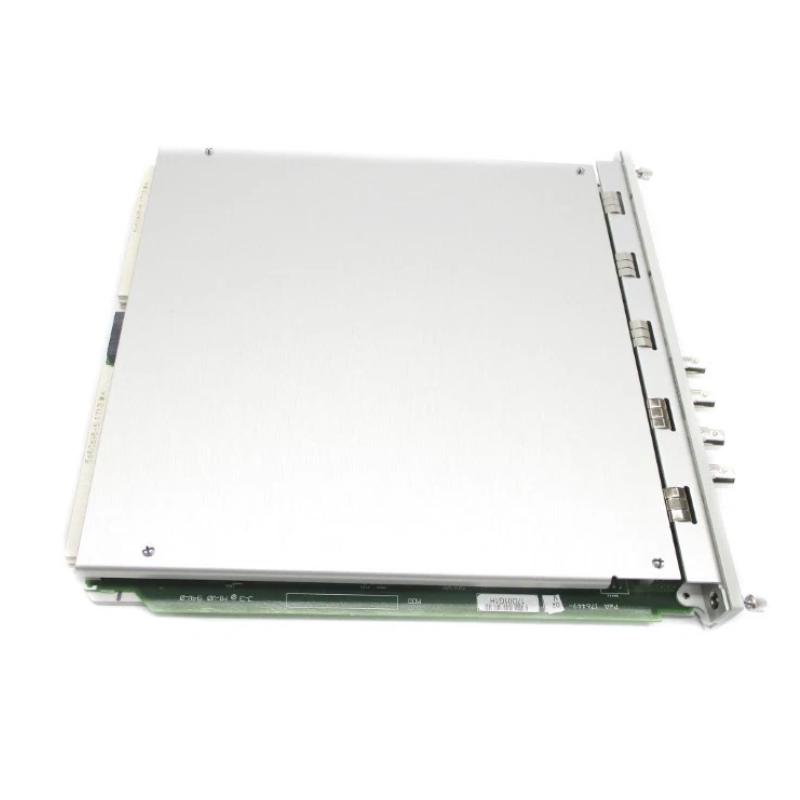

The 3500/42-01-00 is a Proximitor/Seismic Monitor used as part of the Bently Nevada 3500 machinery protection system. It accepts signals from compatible proximity and seismic transducers, conditions the incoming signals, and processes them into vibration or position measurements for continuous machinery monitoring. Depending on the configuration, the monitor can be used for radial vibration, thrust position, differential expansion, eccentricity, acceleration, velocity, and other supported monitoring functions. The processed measurements can be compared with user-configured alarm limits, allowing abnormal machinery conditions to be identified and reported before they develop into more serious equipment problems.

2. How many channels are available on the 3500/42-01-00?
The 3500/42 provides four monitoring channels and can accept between one and four compatible transducer signals. The channels are configured in pairs, with Channels 1 and 2 operating as one pair and Channels 3 and 4 operating as another pair. Each pair can be assigned a particular monitoring function, allowing the system to monitor two different types of machine parameters simultaneously or use the same function on both channel pairs. Correct channel configuration is important because the monitor processes the incoming signal according to the selected measurement function and associated transducer characteristics.

3. What types of transducers can be connected to the 3500/42-01-00?
The 3500/42 is designed to accept compatible proximity and seismic transducer signals, including applicable vibration, velocity, and acceleration measurement devices. The exact transducer selection depends on the monitoring function, machine type, installation location, and required measurement range. Bently Nevada transducer systems should be selected according to the corresponding 3500 configuration and I/O requirements. When replacing a transducer or changing the measurement arrangement, the electrical characteristics and signal type should be checked carefully. Using a physically compatible sensor does not necessarily mean that it is electrically or functionally compatible with the selected monitoring channel.

4. What measurements can the 3500/42-01-00 perform?
The 3500/42 can be configured for several machinery monitoring functions, including radial vibration, thrust position, differential expansion, eccentricity, acceleration, and velocity. Depending on the configuration, additional supported vibration measurement functions may also be available. Radial vibration monitoring is commonly used to evaluate rotating shaft behavior, while thrust position provides information about axial movement. Acceleration and velocity measurements are useful for seismic and general machinery vibration monitoring. The appropriate measurement function should be selected based on the machine’s mechanical design, the installed transducer, the required frequency response, and the specific machinery protection strategy.

5. How are alarm setpoints configured on the 3500/42-01-00?
Alarm setpoints are configured through the 3500 Rack Configuration Software. The monitoring channels can be programmed according to the required measurement function, and the corresponding Alert and Danger limits can be established for the active measurements. Alarm values should not simply be copied from another machine because normal operating vibration and acceptable limits can vary significantly between different equipment types. The recommended approach is to establish alarm levels based on the machine’s normal operating condition, manufacturer requirements, commissioning data, and applicable machinery protection criteria. After configuration, alarm operation should be verified under controlled conditions to ensure that the monitoring system responds correctly.

6. What should be checked if the 3500/42-01-00 reports an abnormal vibration value?
When an abnormal vibration value is detected, first determine whether the measurement represents a genuine change in machine condition or an instrumentation problem. Check the corresponding transducer, field wiring, connectors, shielding, and channel configuration. Verify that the selected transducer type and monitoring function are correct and that the measurement parameters have not been incorrectly configured. Comparing the affected channel with other vibration measurements from the same machine can also help determine whether the condition is localized or part of a broader mechanical change. If the signal is intermittent, inspect the field wiring for loose connections, mechanical damage, or vibration-related movement. If the electrical input is stable but the vibration level remains abnormal, the mechanical condition of the rotating equipment should be investigated.

7. What is the purpose of the buffered outputs on the 3500/42-01-00?
The 3500/42 provides a buffered output associated with each monitoring channel, allowing the transducer signal to be made available for external monitoring or diagnostic equipment without directly disturbing the primary monitoring circuit. These outputs can be useful during commissioning, troubleshooting, vibration analysis, or maintenance activities where an additional measurement point is required. The buffered outputs are designed with short-circuit protection, helping provide additional protection during external connections. When using these outputs, the connected test or monitoring equipment should still be selected and connected according to the applicable electrical requirements to avoid introducing unwanted signal loading or interference into the monitoring system.

8. What should be considered when replacing a 3500/42-01-00?
Before replacing a 3500/42-01-00, the complete part number and I/O configuration should be verified because the I/O module arrangement directly affects field wiring and system compatibility. Whenever possible, record the existing channel functions, transducer types, measurement ranges, alarm setpoints, and other configuration parameters before removing the original module. After installing the replacement, confirm that the module is correctly seated in the 3500 rack and that the associated I/O connections are secure. The configuration should then be reviewed using the 3500 Rack Configuration Software, followed by verification of each transducer input and measurement value. For critical rotating machinery, Alert and Danger alarm functions should also be tested in a controlled manner before the equipment is returned to normal operation.
