1. What is the Bently Nevada 3500/42-01-01 used for?

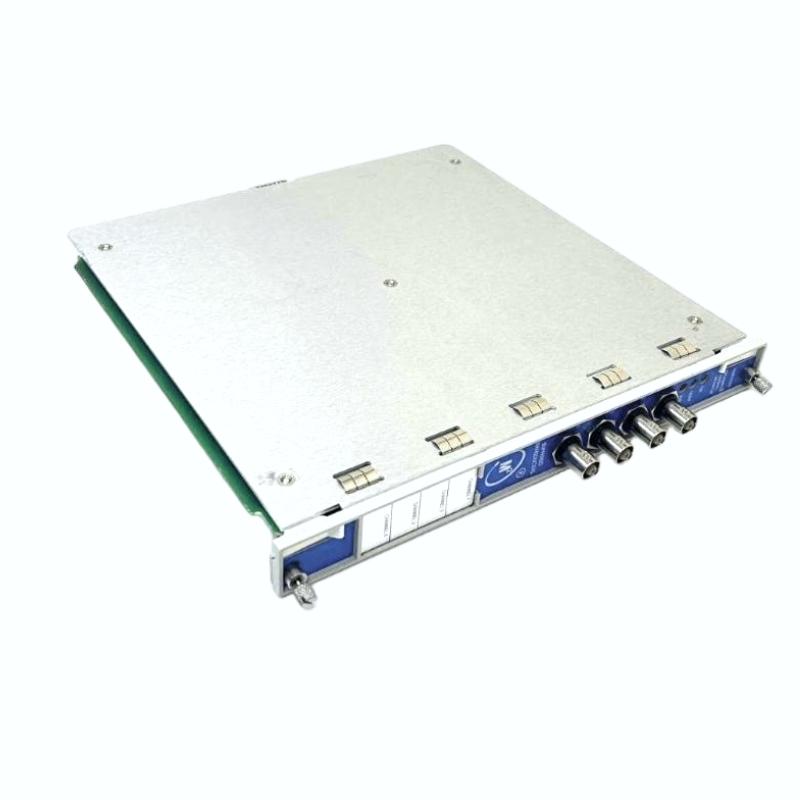

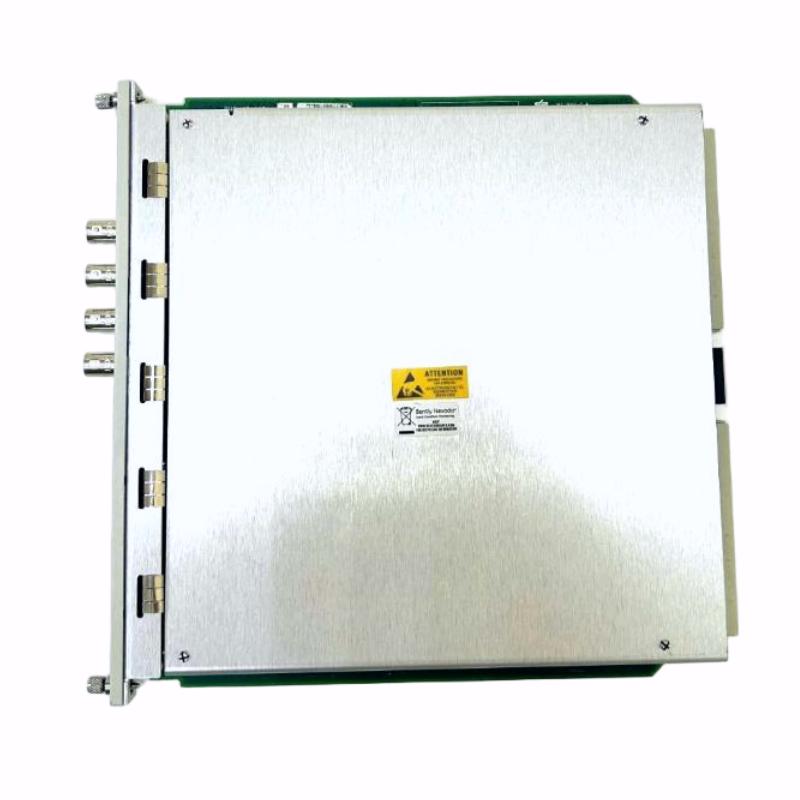

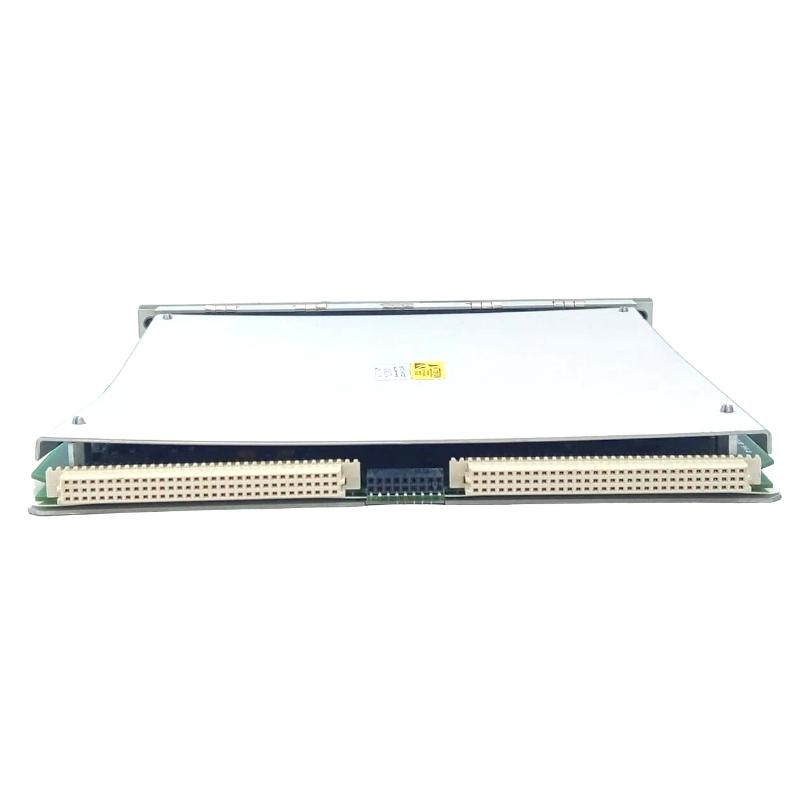

The 3500/42-01-01 is a four-channel Proximitor/Seismic Monitor designed for machinery condition monitoring and protection within the Bently Nevada 3500 system. It receives signals from compatible proximity, velocity, or acceleration transducers and processes these signals into useful vibration or position measurements. Depending on the selected configuration, the monitor can be used for radial vibration, thrust position, differential expansion, eccentricity, acceleration, velocity, and REBAM-related measurements. It continuously evaluates the incoming signals against configured operating and alarm limits, making it suitable for critical rotating machinery where early detection of abnormal mechanical conditions is important.

2. What is the difference between the 3500/42-01-01 and other 3500/42 configurations?
The 3500/42-01-01 configuration is associated with a Prox/Seismic I/O arrangement using external terminations. The I/O configuration is an important part of the complete module specification because it determines how field wiring is connected to the monitoring system. Other 3500/42 variants can use different termination or barrier arrangements. Therefore, when selecting a replacement module, the complete part number should be checked rather than relying only on the basic 3500/42 model number. Matching the I/O configuration helps ensure that existing field wiring, installation arrangements, and system connections remain compatible with the replacement monitor.

3. How many channels are available on the 3500/42-01-01?
The 3500/42-01-01 provides four monitoring channels and can accept from one to four compatible transducer signals. The channels are configured in two pairs, with Channels 1 and 2 forming one pair and Channels 3 and 4 forming another. Each pair can be assigned an appropriate monitoring function according to the machine and transducer arrangement. This allows the monitor to support multiple measurement requirements within the same 3500 rack. During commissioning, each channel should be checked individually to ensure that the selected function, transducer signal, measurement range, and alarm configuration correspond to the actual machinery monitoring requirements.

4. Which types of transducers can be used with the 3500/42-01-01?
The 3500/42-01-01 can work with compatible proximity, velocity, and acceleration transducer signals. The appropriate transducer depends on the measurement function and the physical characteristics of the monitored machine. For example, proximity transducers are commonly associated with shaft displacement and position measurements, while velocity or acceleration transducers can be used for other vibration monitoring applications. Before installing or replacing a transducer, its electrical characteristics, signal output, sensitivity, installation arrangement, and compatibility with the selected 3500/42 channel configuration should be verified. A sensor should not be considered compatible solely because its connector or physical appearance matches the existing device.

5. What should be checked when the 3500/42-01-01 shows an abnormal vibration reading?
An abnormal vibration reading should first be investigated from both the instrumentation and mechanical perspectives. Check the corresponding transducer, field cable, connectors, shielding, and termination points for loose connections, damage, or other abnormalities. The channel configuration should also be reviewed to make sure the selected measurement function and transducer parameters are correct. Comparing the affected channel with other vibration or position measurements can help determine whether the abnormality is localized or associated with a wider machine condition. If the electrical signal is stable but the measured vibration continues to increase, inspect the rotating shaft, bearings, coupling, and other mechanical components. This approach helps avoid replacing a healthy monitor when the actual problem is caused by the machine or field instrumentation.

6. How are the alarm settings configured on the 3500/42-01-01?
The 3500/42 alarm parameters are configured using the 3500 Rack Configuration Software. Alert and Danger setpoints can be established according to the selected measurement function and the protection requirements of the monitored machine. Alarm values should be based on the machine’s normal operating range, expected startup and shutdown behavior, manufacturer recommendations, and applicable protection criteria. Setting the values too low may result in repeated alarms during normal operation, while excessively high limits can reduce the effectiveness of machinery protection. After configuration, the alarm functions should be checked under controlled conditions to confirm that the system responds correctly when the measured value reaches the configured thresholds.

7. What is the purpose of the external termination arrangement on the 3500/42-01-01?
The external termination arrangement provides a defined connection point for field wiring associated with the Prox/Seismic I/O system. This arrangement separates the field termination location from the monitor itself and can make installation, inspection, and maintenance more convenient in applications where external wiring access is required. During installation, each field connection should be verified against the applicable wiring documentation and the actual channel configuration. Incorrect termination can result in missing signals, unstable measurements, incorrect channel readings, or loss of monitoring functionality. When replacing a module, the existing termination arrangement should therefore be carefully checked to ensure that the replacement configuration matches the installed system.

8. What should be considered when replacing a 3500/42-01-01?
Before replacing the module, verify the complete 3500/42-01-01 part number and confirm that the replacement has the same I/O and termination configuration. Record the existing channel assignments, transducer settings, measurement functions, alarm limits, and other important parameters whenever possible. After installation, confirm that the module is properly seated in the 3500 rack and that all external termination connections are secure. The configuration should then be reviewed using the 3500 Rack Configuration Software. Each connected transducer should be checked individually, followed by verification of measurement values, Alert and Danger alarm functions, and the overall machinery protection response. For critical equipment, the system should not be returned to normal service until the monitoring and protection functions have been fully verified.
