1. What is the Bently Nevada 3500/42-02-00 used for?

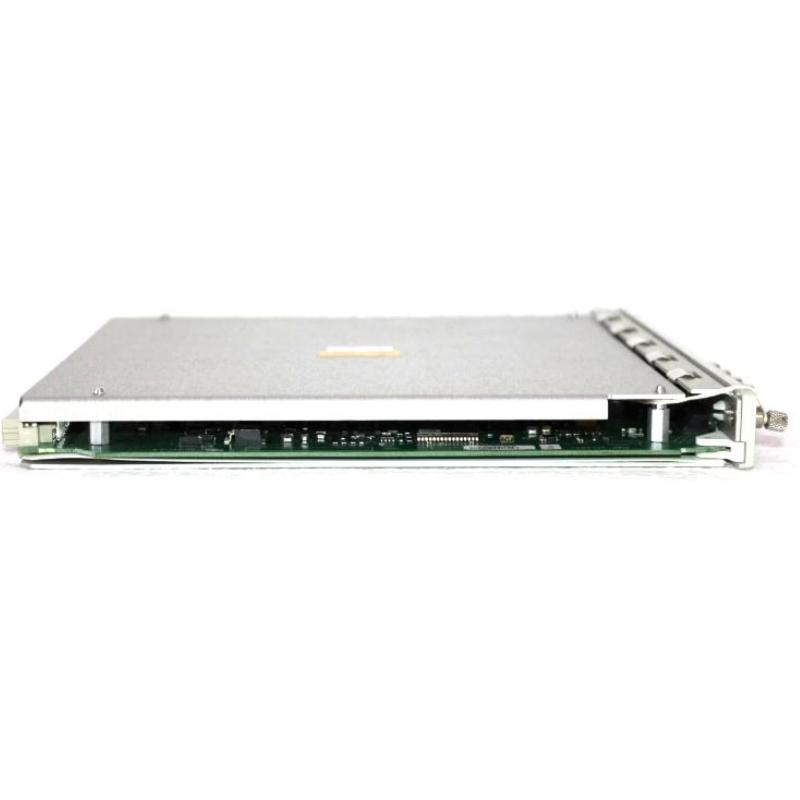

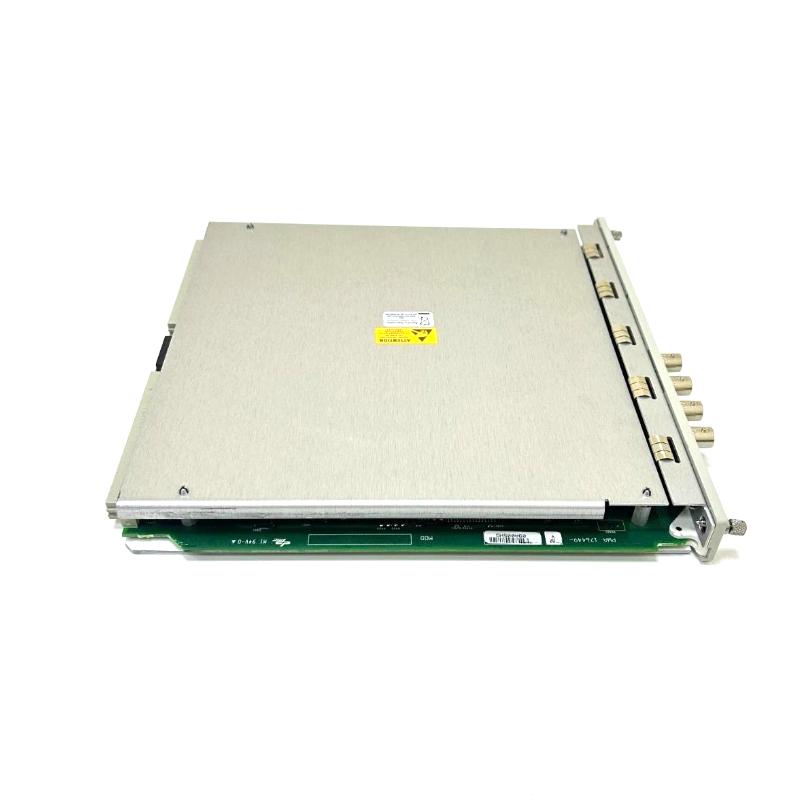

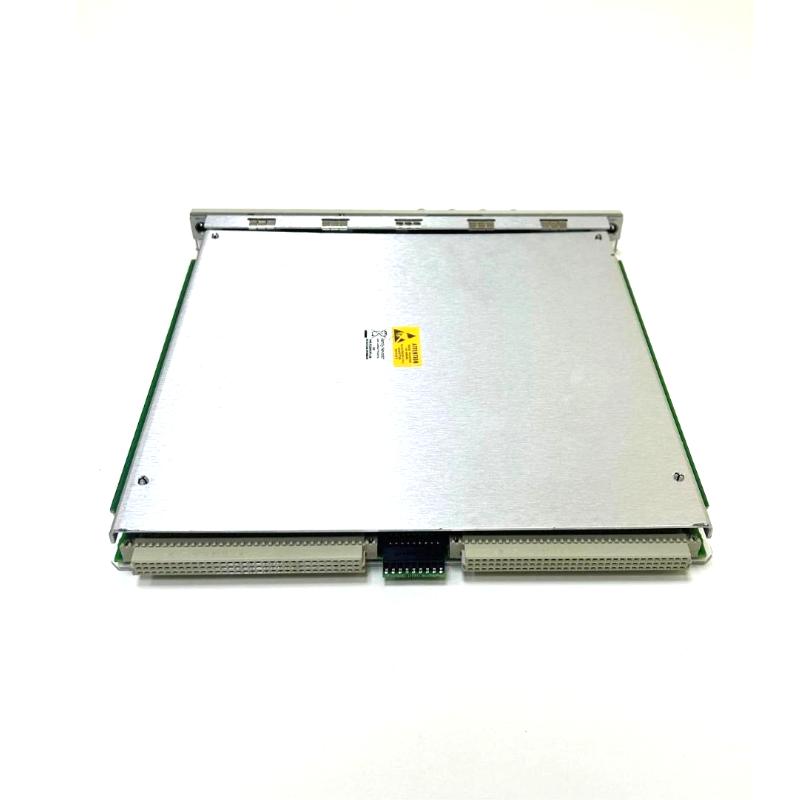

The Bently Nevada 3500/42-02-00 is a four-channel Proximitor/Seismic Monitor designed for continuous machinery vibration and position monitoring within the 3500 Machinery Protection System. It receives signals from compatible proximity and seismic transducers and processes these signals into measurements that can be used to evaluate the operating condition of rotating machinery. Depending on the configured channels and connected transducers, the monitor can support radial vibration, thrust position, differential expansion, eccentricity, acceleration, velocity and REBAM-related measurements. The processed values can be compared with programmed Alert and Danger limits, allowing abnormal machine behavior to be detected before it develops into a more serious mechanical problem.

2. What type of I/O module does the 3500/42-02-00 use?
The 3500/42-02-00 uses the 128240-01 Prox/Seismic I/O Module with external terminations. The external termination arrangement provides the interface between the field transducer wiring and the monitor I/O system. This configuration is particularly important when replacing an existing module because the I/O arrangement must match the installed field wiring and system architecture. Before ordering a replacement, the complete model number should be checked rather than selecting a module based only on the basic 3500/42 designation. A different I/O configuration can require different termination arrangements and may not be a direct replacement for the existing installation.

3. How many channels are available on the 3500/42-02-00?
The 3500/42-02-00 provides four monitoring channels and can accept from one to four compatible transducer signals. The channels are organized into two pairs: Channels 1 and 2 form one pair, while Channels 3 and 4 form the second pair. This configuration allows the monitor to handle different measurement requirements within a single module. Depending on the application, the channel pairs can be configured for the same type of measurement or for different monitoring functions. During commissioning, each active channel should be checked individually to confirm the correct transducer type, measurement function, scaling, signal response and alarm configuration.

4. Which transducers are suitable for the 3500/42-02-00?
The 3500/42-02-00 is primarily associated with Seismoprobe transducers, while compatible proximity, acceleration and velocity transducer signals can also be supported depending on the selected application and configuration. The correct sensor should be selected according to the required measurement function, machine characteristics and signal requirements. For example, proximity-based measurements are commonly used for shaft displacement or position, while seismic sensors can provide vibration measurements from the machine structure. Before replacing or changing a transducer, its sensitivity, output characteristics, power requirements and compatibility with the selected channel configuration should be verified. A sensor should not be considered compatible solely because its physical connector is similar.

5. What should be checked if the 3500/42-02-00 reports an abnormal vibration value?
When an abnormal vibration value is detected, the first step is to determine whether the problem originates from the machinery or the measurement circuit. Inspect the associated transducer, external termination points, field cables and connectors for loose connections, damage, contamination or other wiring problems. The channel configuration should then be reviewed to ensure that the selected measurement function and sensor parameters match the actual installation. Comparing the affected channel with other vibration measurements from the same machine can help determine whether the abnormality is isolated or part of a broader mechanical condition. If the electrical signal is stable but the vibration measurement remains high, the rotating equipment itself should be inspected, including bearings, shafts, couplings and other mechanical components.

6. How are alarm settings configured on the 3500/42-02-00?
The 3500/42-02-00 alarm parameters are configured through the 3500 Rack Configuration Software. Alert and Danger setpoints can be established for the active measurements according to the requirements of the monitored machine. Proper alarm configuration should consider normal operating vibration, startup and shutdown conditions, machine load, historical operating data and applicable machinery protection requirements. Alarm values that are too low can result in unnecessary alarms, while values that are too high can delay detection of a developing mechanical problem. After configuration, the alarm functions should be tested under controlled conditions to verify that the monitor responds correctly when the measured parameter reaches the configured threshold.

7. What is the purpose of the 4–20 mA recorder output?
The recorder output provides a proportional analog representation of the configured measurement and can be used to transmit monitoring information to external recording, control or data acquisition equipment. A 4–20 mA signal is commonly used in industrial control environments because it can be transmitted over relatively long cable distances and is less susceptible to voltage-drop problems than a simple voltage signal. When connecting the recorder output to an external system, the receiving device should be configured for the correct measurement range and signal scaling. The total output load should also remain within the specified limit so that the monitor can maintain the required signal accuracy.

8. What should be considered when replacing a 3500/42-02-00?
Before replacing a 3500/42-02-00, verify the complete part number and confirm that the replacement uses the same 128240-01 Prox/Seismic I/O configuration with external terminations. Record the existing channel assignments, connected transducer types, measurement functions, scaling parameters, alarm thresholds and other important configuration values whenever possible. After installing the replacement module, check that it is properly seated in the 3500 rack and that all external termination connections are secure. The configuration should then be reviewed using the 3500 Rack Configuration Software, followed by individual verification of each active transducer channel. Alert and Danger alarm functions should also be tested under controlled conditions before the protected machinery is returned to normal operation.
