1. What is the Bently Nevada 3500/42-04-00 used for?

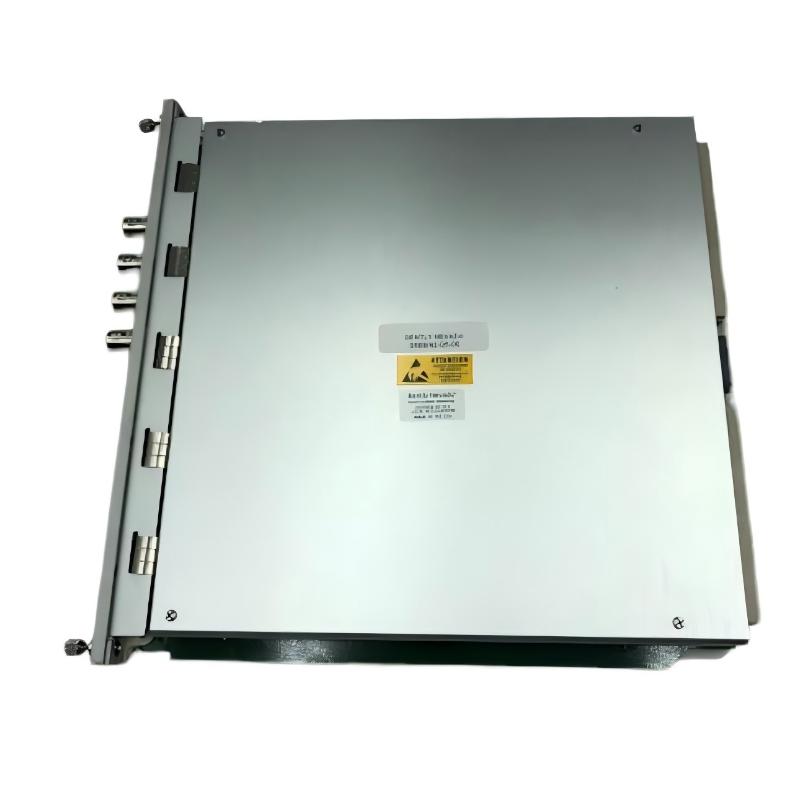

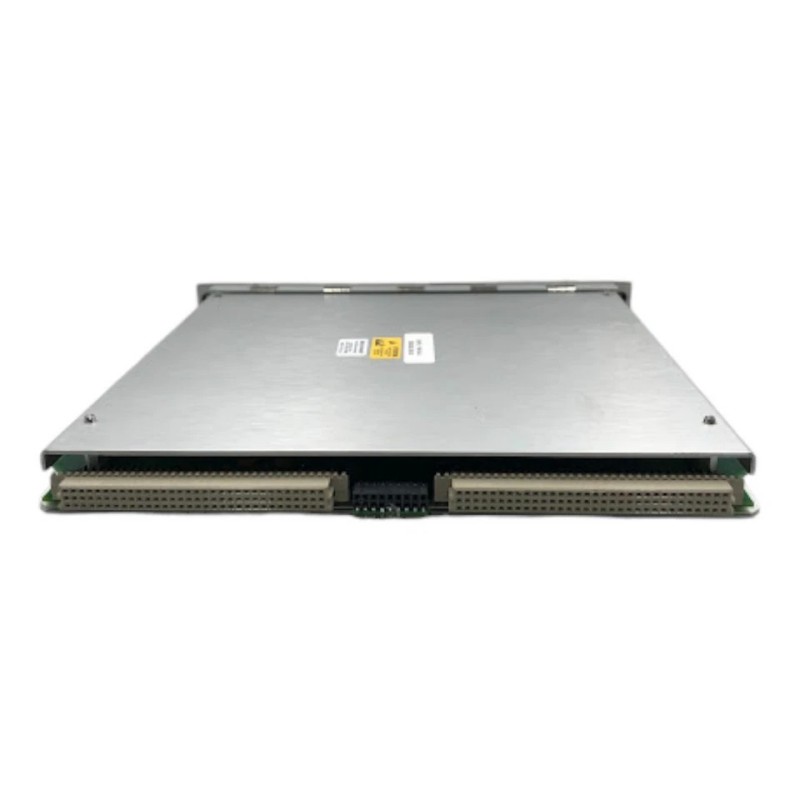

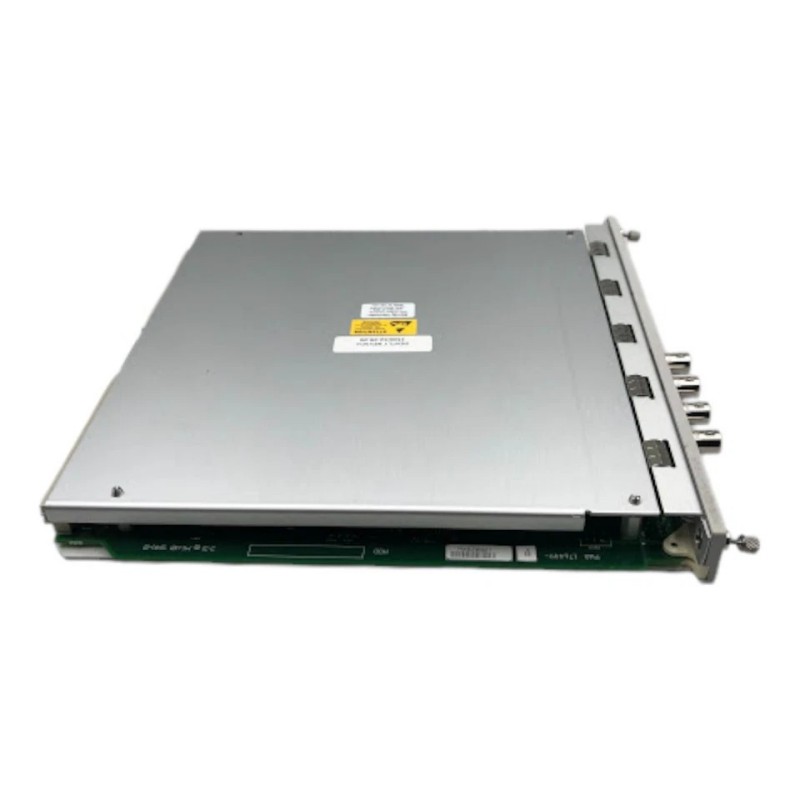

The Bently Nevada 3500/42-04-00 is a four-channel Proximitor/Seismic Monitor designed for continuous vibration and machinery condition monitoring within the 3500 Machinery Protection System. It receives signals from compatible proximity and acceleration transducers and processes these signals into measurements used to evaluate the operating condition of rotating machinery. Depending on the selected configuration, it can support radial vibration, thrust position, differential expansion, eccentricity, shaft absolute vibration and REBAM-related measurements. The processed measurements can be compared with configured Alert and Danger limits, helping detect abnormal vibration or mechanical movement at an early stage.

2. What type of I/O module does the 3500/42-04-00 use?
The 3500/42-04-00 uses the 135489-01 I/O Module with internal barriers and internal terminations. The four channels are configured for Proximity/Acceleration applications. The integrated barrier arrangement provides the interface between the field transducer circuits and the monitoring electronics, while the internal termination arrangement provides the corresponding signal connections within the I/O assembly. This configuration is important when selecting a replacement because other 3500/42 versions can use different I/O arrangements. The complete model number should therefore be checked before replacement to ensure that the I/O configuration and termination method match the existing system.

3. How many channels are available on the 3500/42-04-00?
The 3500/42-04-00 provides four monitoring channels and supports up to four compatible transducer signals. The channels are arranged as two pairs, with Channels 1 and 2 forming one pair and Channels 3 and 4 forming the second pair. The -04 configuration is designed for four Proximity/Acceleration channels. This arrangement allows several vibration or mechanical position measurements to be collected through one monitor. During commissioning, each active channel should be checked separately to verify the correct sensor type, measurement function, scaling parameters and alarm settings.

4. What types of sensors can be used with the 3500/42-04-00?
The -04 configuration is designed for Proximity/Acceleration channels. Compatible proximity and acceleration transducers can therefore be used according to the selected monitoring application. Proximity sensors are commonly used for shaft displacement and related rotating-shaft measurements, while acceleration sensors can be used for casing and structural vibration monitoring. When selecting or replacing a sensor, its electrical characteristics, sensitivity, signal type, power requirements and compatibility with the 135489-01 I/O configuration should be verified. A sensor should not be considered interchangeable simply because its connector or physical appearance is similar to the existing sensor.

5. What should be checked if the 3500/42-04-00 reports an abnormal vibration value?
When an abnormal vibration value appears, first determine whether the change represents an actual mechanical condition or a problem with the measurement circuit. Inspect the corresponding transducer, field wiring, connectors and internal termination connections for loose connections, damaged cables, poor contact or other electrical problems. The channel configuration should also be reviewed to confirm that the selected measurement function and sensor type correspond to the actual installation. Comparing the affected channel with other vibration measurements can help determine whether the abnormality is isolated. If the sensor signal and wiring are stable but the measured vibration remains high, the rotating equipment should be investigated for conditions such as imbalance, misalignment, bearing problems, shaft movement or coupling issues.

6. How are alarm settings configured on the 3500/42-04-00?
The 3500/42-04-00 is configured through the 3500 Rack Configuration Software. Alert and Danger alarm levels can be established according to the selected measurement function and the protection requirements of the monitored machinery. Alarm limits should be determined from the machine’s normal operating range, startup and shutdown behavior, operating load, historical vibration data and applicable equipment protection requirements. Limits that are too low may cause unnecessary alarms, while excessively high limits may delay the detection of developing mechanical problems. After configuration, the alarm functions should be verified under controlled conditions to confirm that the monitor responds correctly when the measured parameter reaches the configured threshold.

7. What is the purpose of the internal barriers and internal terminations?
The 135489-01 I/O module integrates barrier and termination functions into the I/O assembly. The internal barriers provide the required interface between the field transducer circuits and the 3500 monitoring electronics, while the internal terminations provide the corresponding signal connection points. This configuration can simplify the installation by eliminating the need for separate external barrier and termination components. However, field wiring must still follow the correct installation requirements for the selected transducers and monitoring channels. Incorrect wiring can cause unstable signals, missing measurements, incorrect channel readings or alarm problems, so all connections should be checked carefully during installation, commissioning and maintenance.

8. What should be considered when replacing a 3500/42-04-00?
Before replacing a 3500/42-04-00, verify the complete model number and confirm that the replacement uses the same 135489-01 I/O configuration with four Proximity/Acceleration channels, internal barriers and internal terminations. Existing channel assignments, sensor types, measurement functions, scaling values and alarm settings should be recorded before removing the original monitor whenever possible. After installation, confirm that the module is correctly seated in the 3500 rack and that all field connections are secure. The configuration should then be reviewed using the 3500 Rack Configuration Software, followed by individual verification of each active sensor channel. Alert and Danger alarm functions should also be checked under controlled conditions before the protected machinery is returned to normal operation.
