1. What is the Bently Nevada 3500/42-09-01 used for?

The 3500/42-09-01 is a four-channel Proximitor/Seismic Monitor designed for continuous vibration monitoring and machinery protection. It receives signals from compatible Prox/Accel, Velomitor, and High Temperature Velomitor transducers and processes the incoming signals for machinery condition monitoring. Depending on the application, the module can be configured for radial vibration, thrust position, eccentricity, differential expansion, acceleration, and velocity measurements. It is suitable for integration into a Bently Nevada 3500 machinery protection system and can be applied to turbines, compressors, pumps, and other critical rotating equipment where continuous vibration information is required for protection and maintenance.

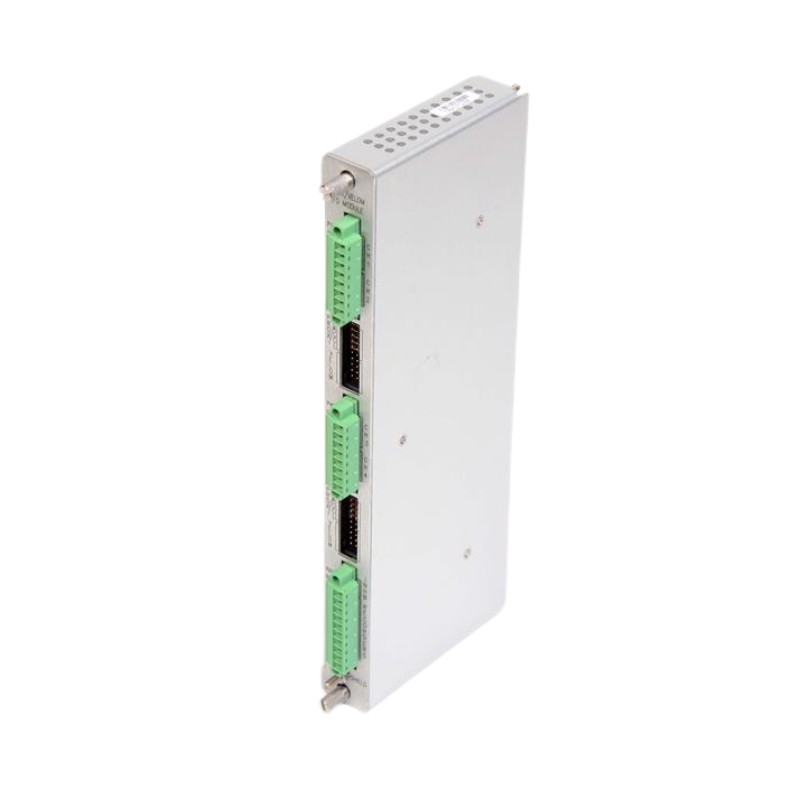

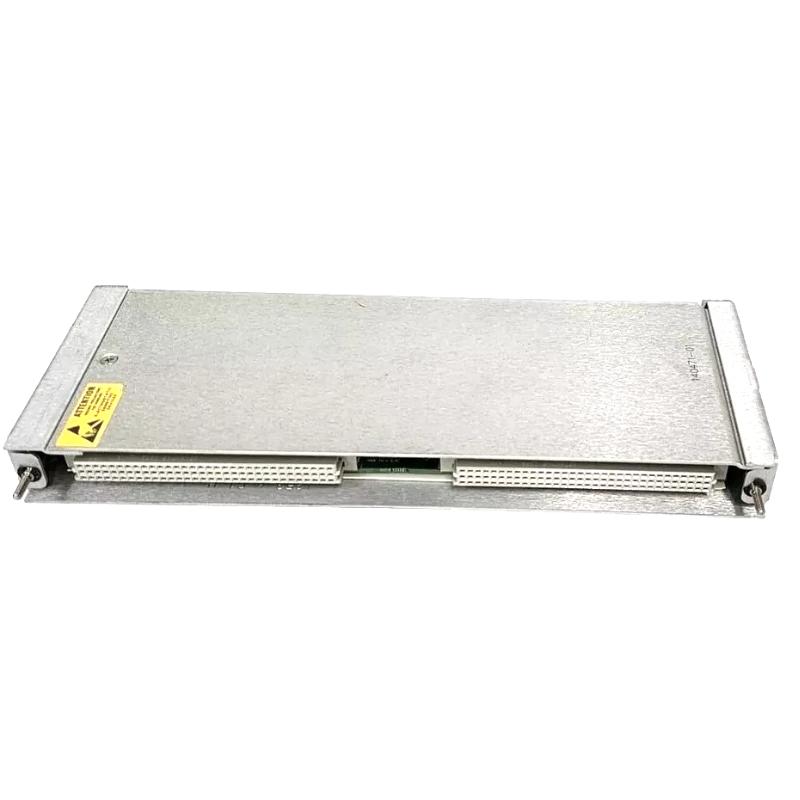

2. What type of I/O module does the 3500/42-09-01 use?

The 3500/42-09-01 uses a Prox/Velom I/O Module with internal terminations. This I/O arrangement provides the signal interface between compatible field transducers and the monitoring electronics. It supports compatible Prox/Accel, Velomitor, and High Temperature Velomitor transducers while incorporating the required termination functions within the I/O module. The internal termination arrangement helps simplify the signal connection structure within the 3500 rack. When replacing an I/O module, the module configuration, connected transducer type, and existing system settings should be checked carefully to ensure that the replacement is compatible with the installed monitoring system.

3. How many monitoring channels does the 3500/42-09-01 provide?

The 3500/42-09-01 provides four independent monitoring channels. Each channel can receive a compatible transducer signal and can be configured according to the measurement requirements of the monitored machinery. Multiple channels allow vibration or mechanical parameters from different measurement points to be monitored simultaneously within the same 3500 system. During commissioning, each channel should be matched with the correct physical sensor and measurement location. Sensor sensitivity, input configuration, measurement function, and alarm settings should also be verified so that the displayed measurements accurately correspond to the actual mechanical condition of the equipment.

4. Which sensors can be used with the 3500/42-09-01?

The module is designed to work with compatible Prox/Accel, Velomitor, and High Temperature Velomitor transducers. The appropriate sensor depends on the mechanical parameter being monitored, the sensor location, and the operating environment. Prox/Accel transducers can be used for applicable vibration or mechanical measurements, while Velomitor and High Temperature Velomitor transducers are commonly used for vibration velocity measurements. When selecting or replacing a sensor, its output characteristics, sensitivity, measurement range, and environmental specifications should be checked against the requirements of the corresponding monitoring channel. Incorrect sensor selection can result in inaccurate measurements, unstable signals, or inappropriate alarm conditions.

5. What should be checked if the 3500/42-09-01 shows an abnormal vibration value?

First determine whether the abnormal reading is limited to one monitoring channel or occurs across several channels. If only one channel is affected, inspect the corresponding transducer, field cable, connectors, termination points, and channel configuration. Check for damaged cables, loose connections, improper sensor mounting, or incorrect configuration parameters. If several channels become abnormal at the same time, inspect the 3500 rack, power supply, module installation, and overall system configuration. Diagnostic information and historical trends can also be reviewed to determine whether the condition is intermittent or continuous. The actual operating condition of the rotating machinery should always be considered because an increased vibration reading may represent a genuine mechanical problem rather than an instrumentation fault.

6. How is the 3500/42-09-01 configured?

The monitoring channels of the 3500/42-09-01 can be configured through the 3500 Rack Configuration Software. Depending on the connected transducer and machinery protection requirements, the channels can be assigned functions such as radial vibration, thrust position, eccentricity, differential expansion, acceleration, or velocity. During commissioning, the actual sensor type should first be verified, followed by the appropriate measurement function and signal parameters. Alarm thresholds should then be established according to the normal operating characteristics and protection requirements of the machine. Each monitoring channel should be functionally tested after configuration to confirm correct signal acquisition, measurement values, alarm operation, and output behavior.

7. What are common causes of monitoring faults with the 3500/42-09-01?

Common causes include incorrect sensor wiring, damaged field cables, loose terminal connections, incompatible sensor parameters, incorrect channel configuration, and problems with the 3500 rack or power supply. Electromagnetic interference, inadequate shielding, and grounding problems can also affect vibration signal quality. If the measured value is unstable, troubleshooting should follow the signal path from the sensor through the field wiring and termination points to the I/O module and monitoring channel. The actual hardware installation should then be compared with the configured system parameters. For intermittent faults, historical trends and operating conditions should also be reviewed to determine whether the abnormal behavior is related to machine load, startup, shutdown, or a specific operating condition.

8. What are the main advantages of using the 3500/42-09-01 for rotating machinery monitoring?

The 3500/42-09-01 combines four-channel vibration monitoring with a Prox/Velom I/O interface and internal terminations within the Bently Nevada 3500 machinery protection platform. It supports multiple compatible transducer types and configurable monitoring functions, allowing the same monitoring platform to be adapted to different rotating machinery applications. Continuous vibration measurement helps identify changes in machine operating condition and provides useful information for alarm management, condition monitoring, and fault diagnosis. When properly installed and configured, the module can provide reliable vibration data for critical equipment such as turbines, compressors, and pumps, helping maintenance personnel detect developing mechanical problems earlier and reduce the likelihood of unexpected failures and unplanned downtime.
