1. What is the Bently Nevada 3500/42-09-02 used for?

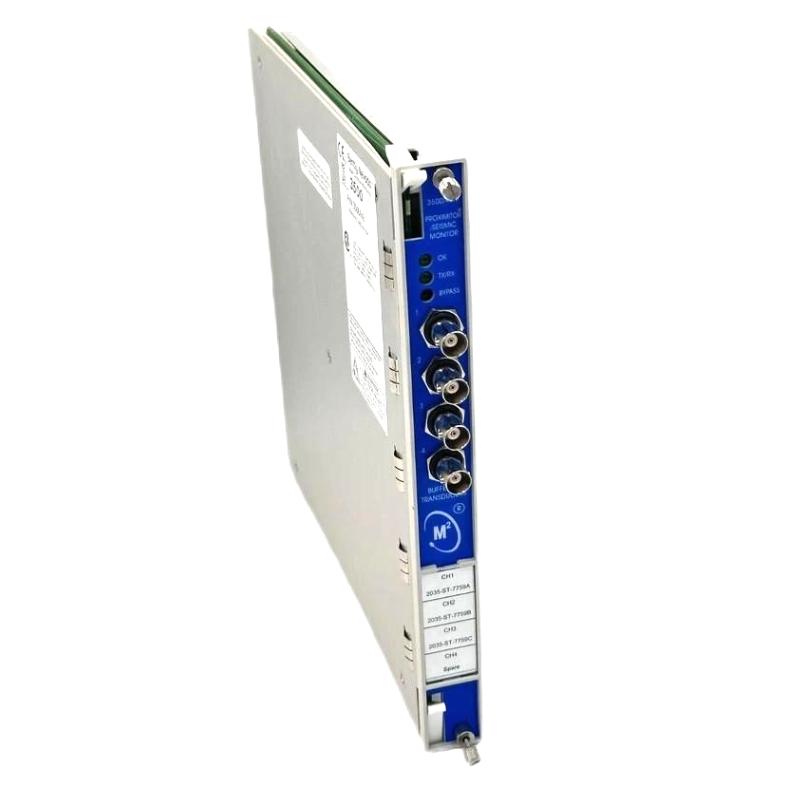

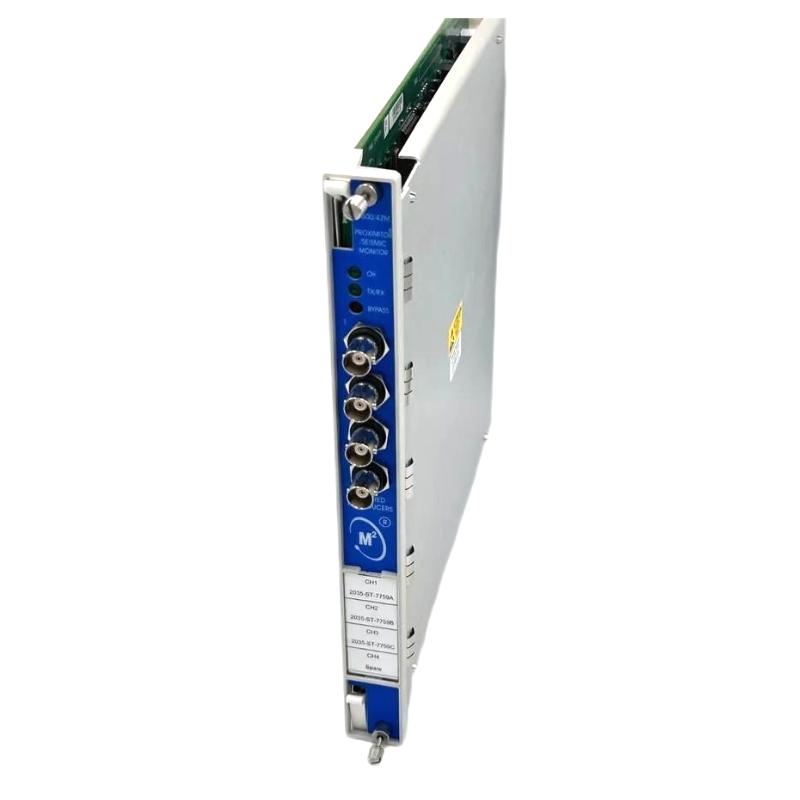

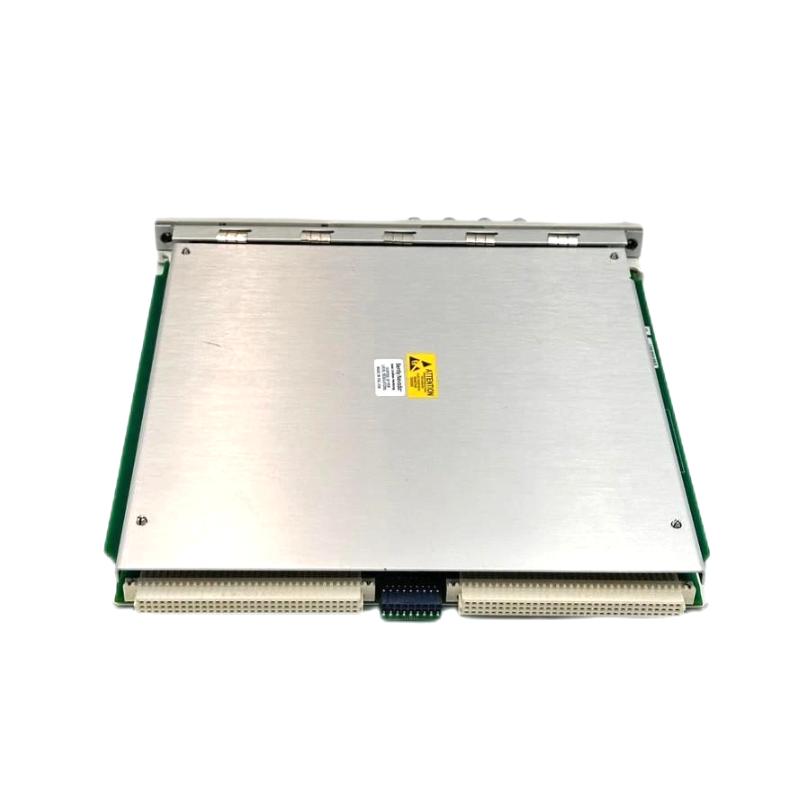

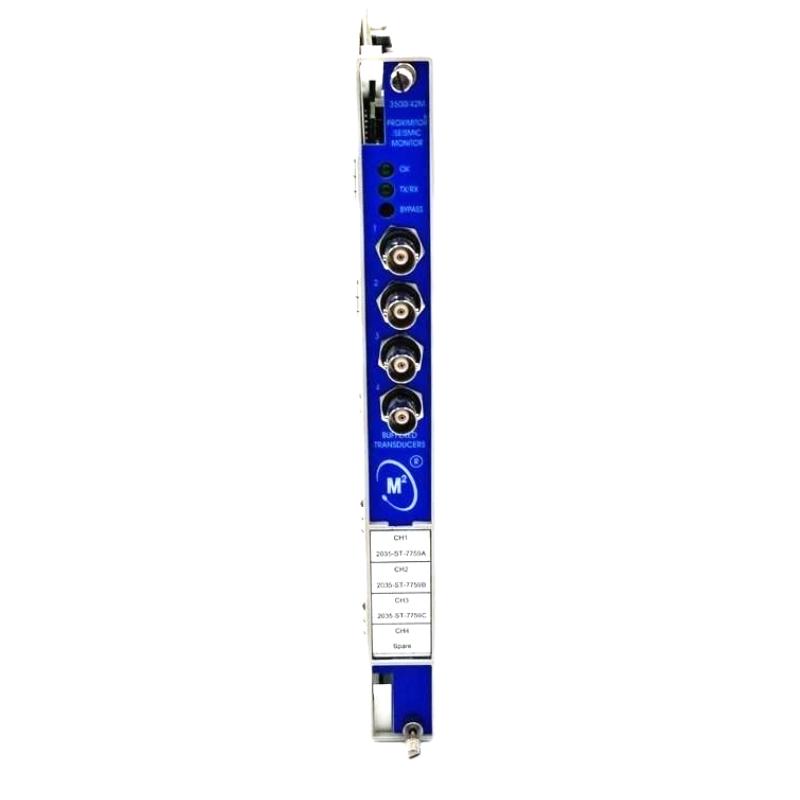

The 3500/42-09-02 is a four-channel Proximitor/Seismic Monitor designed for continuous monitoring and protection of rotating machinery. It accepts signals from compatible proximity and seismic transducers, conditions the incoming signals, and converts them into useful vibration and position measurements. Each channel can be configured according to the requirements of the monitored equipment. The module can be used for applications such as radial vibration, thrust position, differential expansion, eccentricity, acceleration, velocity, shaft absolute vibration, and other machinery condition measurements. It is suitable for integration into a Bently Nevada 3500 machinery protection system used on turbines, compressors, pumps, and other critical rotating equipment.

2. How many channels does the 3500/42-09-02 provide?

The 3500/42-09-02 provides four independent monitoring channels. Each channel can receive a compatible transducer signal and be configured for a specific machinery measurement. This allows multiple vibration or mechanical parameters to be monitored simultaneously within one 3500 rack. During commissioning, each channel should be correctly associated with its physical sensor and measurement location. The channel configuration, sensor characteristics, measurement function, and alarm settings should be checked together to ensure that the monitor accurately reflects the operating condition of the machine.

3. What monitoring functions can be configured on the 3500/42-09-02?

The 3500/42-09-02 supports multiple configurable monitoring functions, including radial vibration, thrust position, differential expansion, eccentricity, acceleration, velocity, shaft absolute vibration, and circular acceptance region measurements. The actual function assigned to each channel depends on the connected transducer and the protection requirements of the machinery. This flexibility allows one monitoring platform to be adapted to different machine designs and measurement requirements. Proper configuration is important because the selected measurement function must correspond to the physical sensor, its installation position, and the mechanical parameter that needs to be monitored.

4. What types of transducers can be connected to the 3500/42-09-02?

The 3500/42-09-02 is designed to receive signals from compatible proximity and seismic transducers. The appropriate transducer depends on the parameter being measured and the mechanical characteristics of the monitored machine. Proximity transducers are commonly used for shaft vibration and position measurements, while seismic transducers can be used for machine casing vibration, acceleration, or velocity measurements. When replacing or selecting a transducer, its output characteristics, sensitivity, measurement range, and electrical compatibility should be checked against the requirements of the corresponding monitoring channel. Incorrect transducer selection can result in inaccurate measurements or inappropriate alarm conditions.

5. What should be checked if the 3500/42-09-02 shows an abnormal vibration reading?

First determine whether the abnormal reading is isolated to one channel or appears across multiple channels. If only one channel is affected, inspect the associated transducer, field cable, connections, termination points, and channel configuration. Check for loose wiring, damaged cables, incorrect sensor installation, or unsuitable configuration parameters. If several channels become abnormal simultaneously, the 3500 rack, module installation, power supply, and system configuration should also be inspected. Diagnostic information and historical trends can help determine whether the condition is intermittent or continuous. The actual operating state of the rotating machine should also be considered, since an increased vibration reading may indicate a genuine mechanical problem rather than an instrumentation fault.

6. How is the 3500/42-09-02 configured?

The 3500/42-09-02 channels are configured through the 3500 Rack Configuration Software. During setup, each channel should be assigned to the correct sensor and measurement point, followed by selection of the appropriate monitoring function. Sensor-related parameters and alarm setpoints should then be configured according to the characteristics and protection requirements of the monitored machine. After configuration, each channel should be tested under known operating conditions to confirm correct signal acquisition and measurement behavior. Alarm operation should also be verified so that the configured Alert and Danger responses correspond correctly to the intended machinery protection strategy.

7. What are common causes of monitoring problems with the 3500/42-09-02?

Common causes include incorrect sensor wiring, damaged field cables, loose connections, incorrect channel configuration, incompatible sensor parameters, and problems with the 3500 rack or power supply. Electromagnetic interference, poor cable shielding, and grounding problems can also affect measurement stability. When troubleshooting, it is useful to follow the signal path from the transducer through the field wiring and I/O connections to the monitor channel. The physical installation should then be compared with the software configuration. For intermittent problems, historical trends and machine operating conditions should also be examined to determine whether the abnormal signal occurs during startup, shutdown, load changes, or other specific operating conditions.

8. What are the main advantages of using the 3500/42-09-02 for machinery protection?

The 3500/42-09-02 combines four-channel vibration and position monitoring with programmable measurement functions within the Bently Nevada 3500 machinery protection platform. Its ability to accept compatible proximity and seismic transducer signals allows it to support different machinery monitoring requirements without requiring a separate monitoring platform for each parameter. Continuous comparison of measured values with configured alarm setpoints helps identify abnormal machine conditions while equipment is operating. When properly configured and integrated with the rest of the 3500 system, the module can provide useful information for machinery protection, condition monitoring, fault diagnosis, and maintenance planning. This is particularly valuable for critical equipment where early detection of abnormal vibration or mechanical movement can help reduce the risk of unexpected failures and unplanned downtime.
