1. What is the main function of the Bently Nevada 3500/60-03-00 133835-01?

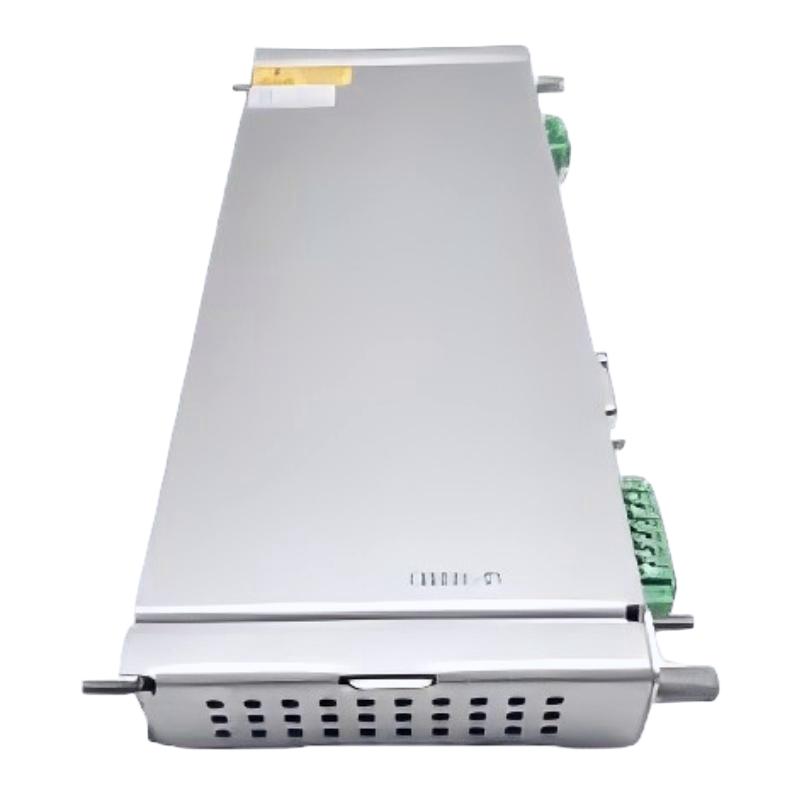

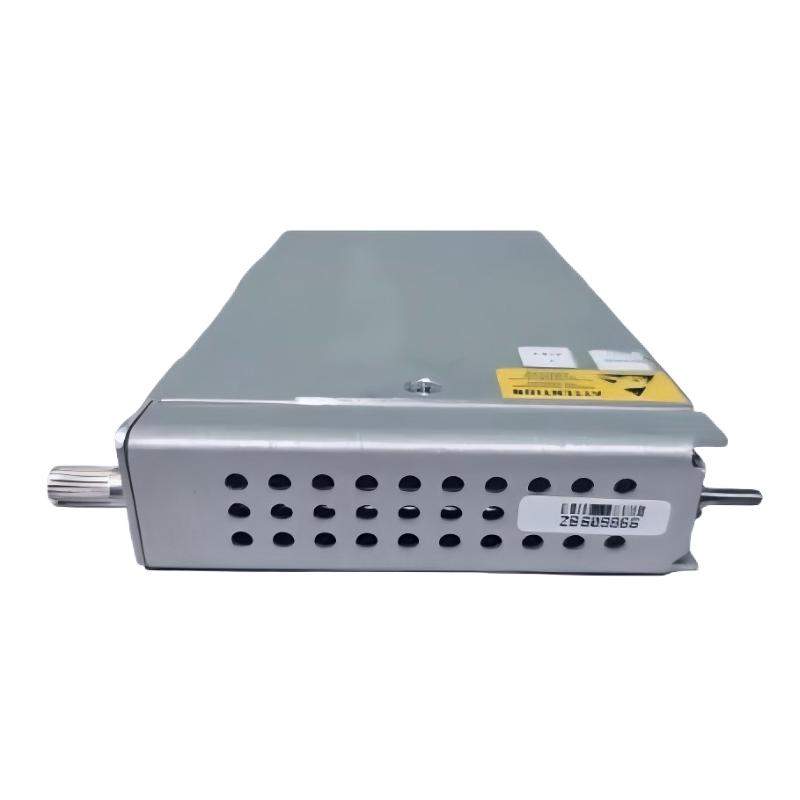

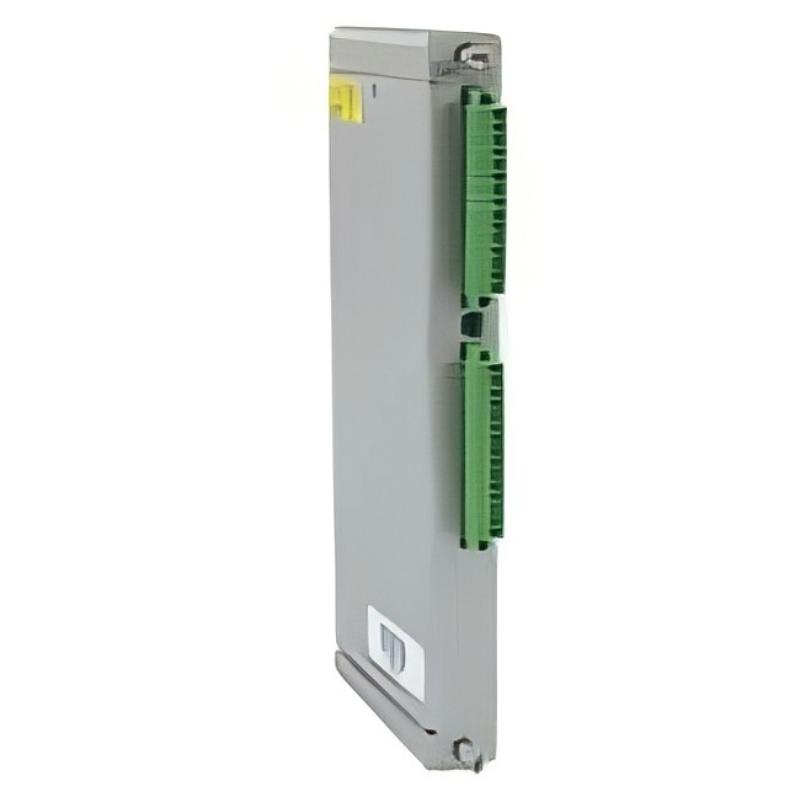

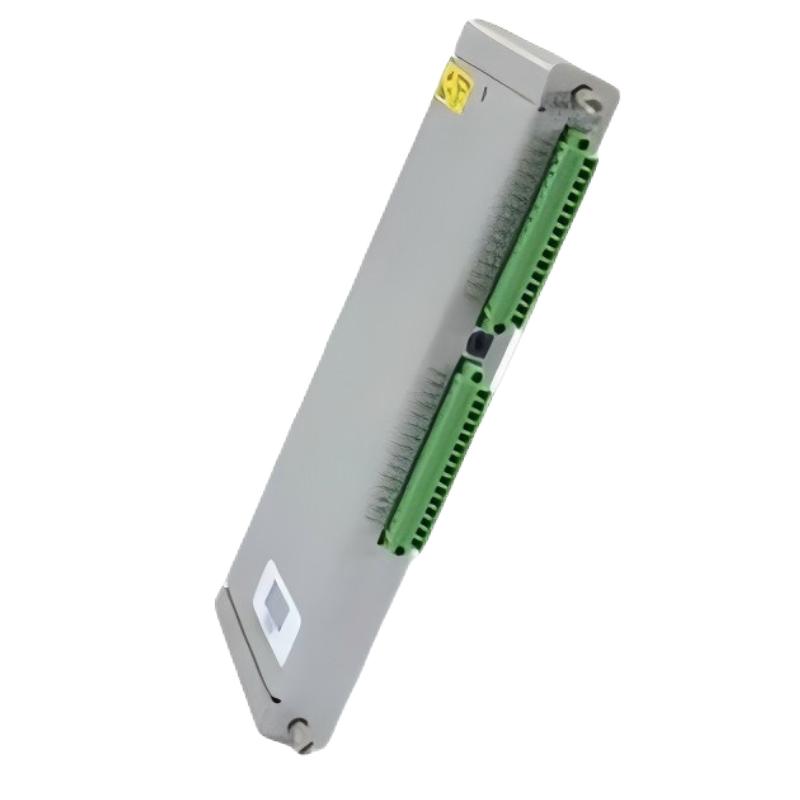

The Bently Nevada 3500/60-03-00 133835-01 is an isolated thermocouple I/O module designed for the 3500/60 Temperature Monitor. It receives temperature signals from thermocouples and provides the necessary signal conditioning before the measurements are processed by the temperature monitoring system. The module provides six thermocouple input channels and uses isolated inputs to reduce the influence of electrical interference and potential differences between channels. It is mainly used for temperature monitoring on rotating machinery and industrial equipment, including turbines, compressors, generators, pumps and other process equipment. The internal termination configuration allows field wiring to be connected directly to the I/O module without requiring a separate external termination block.

2. How many thermocouple channels does the 133835-01 support?

The 133835-01 provides six independent thermocouple input channels for the 3500/60 Temperature Monitor. Each channel can be connected to a compatible thermocouple and used to monitor an individual temperature measurement point. This allows several critical temperature locations to be monitored through one temperature monitoring system. During installation, each thermocouple should be connected to the correct channel and the channel configuration in the 3500 system should correspond to the actual field wiring. Incorrect channel assignment can result in the temperature from one physical measurement point being displayed under another channel. For commissioning, it is therefore important to verify both the physical terminal connections and the software configuration before relying on the measured temperature values.

3. What is the advantage of the isolated thermocouple input design?

The isolated thermocouple input design helps electrically separate the individual temperature measurement circuits and reduce the influence of unwanted voltage differences or electrical interference. This is particularly useful in industrial environments where thermocouple cables may run near motors, generators, variable-frequency drives, high-current conductors or other sources of electrical noise. The 133835-01 provides channel-to-channel isolation, helping maintain more reliable temperature measurements when different field sensors operate under different electrical conditions. Isolation can also reduce the possibility that a problem on one temperature input will directly affect other measurement channels. However, proper cable routing, grounding, shielding and thermocouple installation remain important because electrical isolation does not eliminate every possible source of measurement interference.

4. What type of sensors can be connected to the 133835-01?

The 133835-01 is specifically designed for thermocouple temperature inputs. The connected thermocouple must be compatible with the temperature range and configuration supported by the 3500/60 Temperature Monitor. During installation, technicians should verify the thermocouple type, polarity, extension cable type and terminal connections. Using the wrong thermocouple type or incorrect extension wire can introduce significant measurement errors because different thermocouple materials generate different voltage-versus-temperature characteristics. Polarity should also be checked carefully because reversed thermocouple wiring can cause abnormal temperature readings. When replacing a thermocouple, it is recommended to verify the sensor specification and channel configuration together rather than assuming that any thermocouple can be connected to the same input.

5. What should be checked if one temperature channel shows an abnormal reading?

If a single channel displays an abnormal temperature, troubleshooting should start with the field thermocouple and wiring. First inspect the thermocouple for physical damage, loose connections, corrosion or an open circuit. Check the polarity and terminal connections at the 133835-01, then inspect the extension cable for broken conductors or incorrect wiring. If the wiring appears correct, compare the affected channel with another known-good channel using an appropriate test method. The 3500/60 configuration should also be checked to ensure that the correct thermocouple type and measurement parameters are assigned to the channel. If the thermocouple and wiring are confirmed to be good but the channel continues to provide an abnormal value, the I/O module and associated 3500/60 Temperature Monitor should then be investigated.

6. Does the 133835-01 provide recorder outputs?

No. The 133835-01 is the internal-termination isolated thermocouple I/O module used with the 3500/60 Temperature Monitor, which is the version without individual recorder outputs. Its primary purpose is to receive and condition the six thermocouple input signals and pass the temperature information to the monitoring module. If an application requires individual analog recorder outputs for the temperature channels, the appropriate 3500/61 Temperature Monitor and corresponding I/O configuration should be considered instead. When replacing an existing module, technicians should therefore confirm whether the installed system requires recorder outputs before selecting the replacement I/O module.

7. How should the 133835-01 be wired and configured?

Because the 133835-01 uses internal terminations, the thermocouple field wiring is connected directly to the terminal connections associated with the six input channels. Each thermocouple should be connected to the correct positive and negative terminals according to its polarity and the applicable wiring arrangement. After the physical connections are completed, the 3500 Rack Configuration Software should be used to verify the temperature channel configuration. The selected thermocouple type, channel assignment, alarm settings and applicable line-noise rejection configuration should correspond to the actual field installation. Before putting the system into service, each channel should be checked against a known temperature reference or another suitable verification method. This helps identify reversed polarity, incorrect sensor type, wiring mistakes and configuration errors before the monitored equipment reaches normal operating conditions.

8. What should be checked after replacing a 3500/60 133835-01?

After replacing the 133835-01, the complete temperature measurement circuit should be inspected before returning the monitoring system to normal operation. First confirm that the replacement module is the correct isolated thermocouple I/O configuration with internal terminations. Then verify that all six field thermocouple connections are installed on the correct channels and that no wires are loose or incorrectly polarized. The 3500/60 Temperature Monitor configuration should also be checked to ensure that the thermocouple type and channel assignments match the actual field installation. Each active channel should be monitored to confirm that the measured temperature is stable and reasonable. If alarm setpoints are configured, they should also be reviewed to ensure that they have not been changed unintentionally during maintenance. Finally, compare the displayed values with an appropriate reference where possible and confirm that the complete temperature monitoring system is operating normally before the equipment is placed back into full service.
