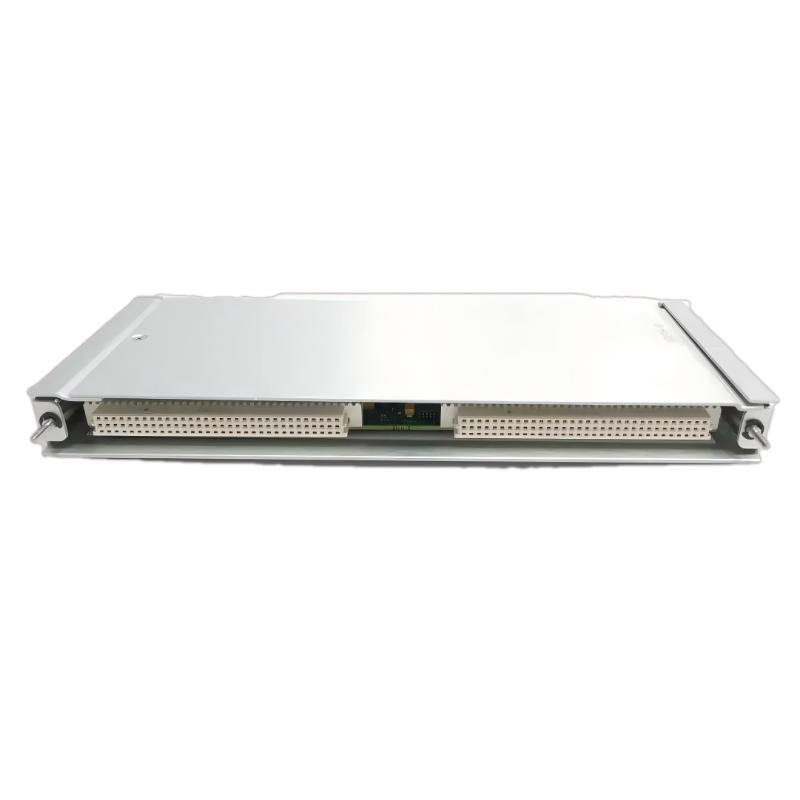

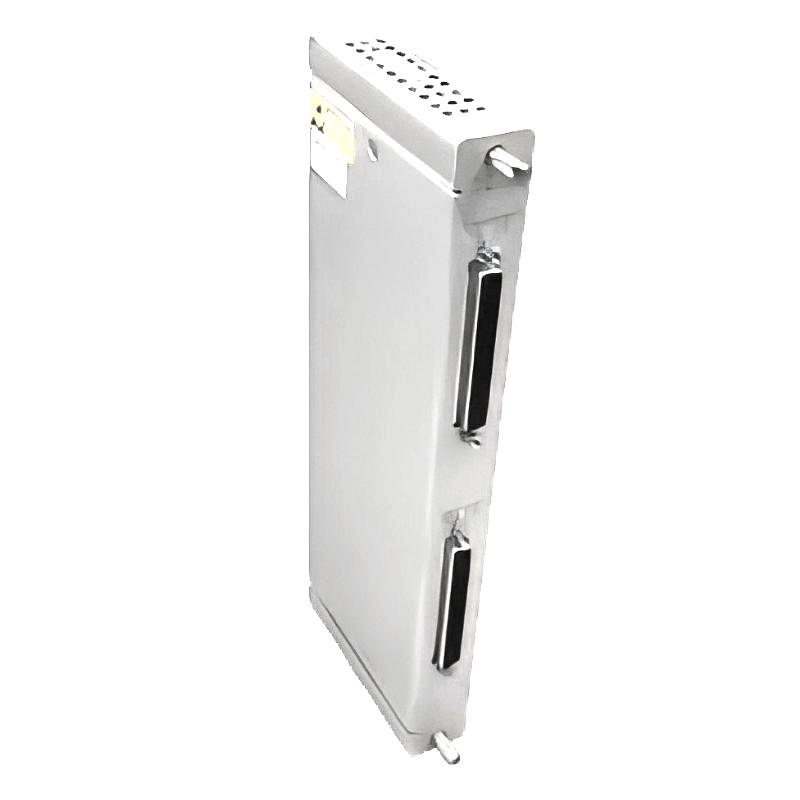

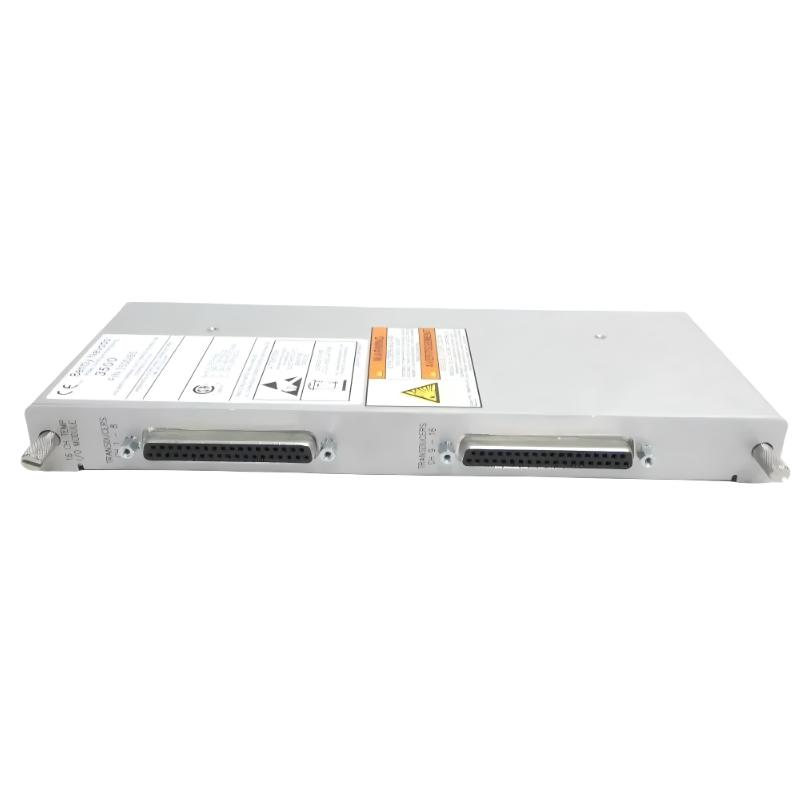

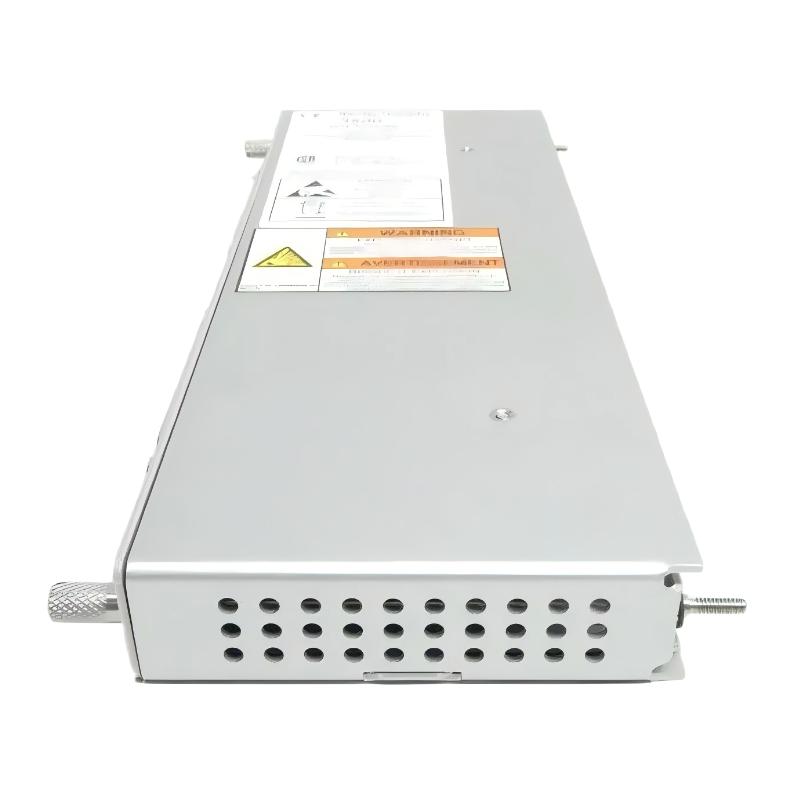

1. What is the main function of the Bently Nevada 3500/65-02-00?

The 3500/65-02-00 is a 16-channel Temperature Monitor designed for continuous temperature measurement within the Bently Nevada 3500 machinery protection system. It receives temperature signals from RTD sensors and isolated thermocouples and processes these signals for monitoring and alarm functions. Typical applications include monitoring bearing temperatures, motor temperatures, compressor temperatures, steam temperatures, and other critical temperature points on industrial machinery. The monitor can evaluate measured temperatures against configured Alert and Danger thresholds, allowing the 3500 system to identify abnormal thermal conditions and provide the appropriate alarm or protection response.

2. How many temperature channels are available on the 3500/65-02-00?

The 3500/65-02-00 provides 16 temperature monitoring channels. Each channel can be configured according to the type of temperature sensor used in the application, allowing the monitor to handle multiple temperature measurement points within the same machinery protection system. The channels can be used for different locations such as radial bearings, thrust bearings, motor windings, compressor sections, or process temperature points. During commissioning, each physical sensor should be clearly matched to its corresponding channel number. Correct channel identification is particularly important in machinery protection applications because operators and maintenance personnel need to know exactly which machine location corresponds to an alarm or abnormal temperature reading.

3. Which temperature sensors are compatible with the 3500/65-02-00?

The 3500/65-02-00 supports RTD and isolated thermocouple temperature inputs. RTD installations can use 3-wire or 4-wire configurations, while supported thermocouple types include E, J, K, and T. The sensor type must be correctly configured in the 3500 Rack Configuration Software to match the sensor installed in the field. Incorrect sensor selection can result in inaccurate temperature measurements even when the field wiring is physically correct. Installation personnel should therefore verify the sensor type, wiring arrangement, polarity, channel assignment, and configuration before placing the temperature monitoring system into service.

4. How are temperature alarms configured on the 3500/65-02-00?

The 3500/65-02-00 provides Alert and Danger alarm functions for temperature monitoring. Alarm thresholds can be configured through the 3500 Rack Configuration Software according to the requirements of the monitored equipment. High-temperature and low-temperature alarm conditions can be configured depending on the application. Alarm delays can also be adjusted to prevent short-duration temperature fluctuations from generating unnecessary alarms. The correct alarm values should be determined from the equipment manufacturer’s temperature limits, normal operating temperature, process conditions, and machinery protection requirements. Critical equipment should not use arbitrary alarm values because an incorrectly configured threshold may either create nuisance alarms or delay the response to a genuine overheating condition.

5. Does the 3500/65-02-00 support redundant TMR operation?

Yes. The 3500/65 temperature monitoring system can be used in a Triple Modular Redundant configuration when the application requires higher availability and fault tolerance. A TMR arrangement uses three temperature monitors installed in the appropriate 3500 rack configuration. Redundant monitoring allows the protection system to continue performing its intended function when one monitoring channel or module experiences a fault, depending on the overall system architecture and voting logic. TMR is particularly useful for critical turbines, compressors, generators, and other machinery where an unnecessary protection-system failure could have significant operational consequences. The complete TMR arrangement must be configured consistently, including the monitoring modules, rack configuration, I/O arrangement, and system software.

6. What should be checked if one temperature channel shows an incorrect value?

When one channel displays an abnormal temperature, troubleshooting should start with the field sensor and wiring. First, confirm that the configured sensor type matches the actual RTD or thermocouple. For an RTD, check whether the sensor is correctly wired as a 3-wire or 4-wire device. For a thermocouple, verify polarity and ensure that the correct thermocouple type has been selected. Next, inspect terminals and cables for loose connections, broken conductors, short circuits, or insulation damage. If the sensor and wiring are correct, compare the affected channel with other functioning channels and review the software configuration. A problem isolated to one channel may indicate a sensor, wiring, or individual input issue, while simultaneous problems across several channels may point toward a configuration, power, rack, or module-level problem.

7. Can the 3500/65-02-00 be integrated into a PLC or DCS control system?

Yes. The 3500/65-02-00 operates as part of the 3500 machinery monitoring and protection platform, and its temperature measurement and alarm information can be incorporated into a larger PLC, DCS, HMI, or plant monitoring architecture through the appropriate 3500 system interfaces. In many industrial installations, the 3500 system is responsible for dedicated machinery monitoring and protection, while the PLC or DCS handles process control and higher-level supervision. During integration, engineers should clearly define how temperature values, Alert conditions, Danger conditions, and module or channel faults are transferred to the control system. This helps ensure that the PLC or DCS responds correctly without interfering with the independent machinery protection functions provided by the 3500 system.

8. What should be verified before replacing a 3500/65-02-00 module?

Before replacing the 3500/65-02-00, the source of the problem should be confirmed to ensure that the temperature monitor itself is actually defective. The relevant sensor, field wiring, channel configuration, power condition, rack connections, and system status should be checked first. If the module is confirmed to require replacement, the existing configuration should be recorded so that the replacement unit can be configured consistently with the original installation. After installing the replacement module, verify that it is correctly seated in the 3500 rack and check the front-panel status indicators. The temperature channels should then be tested individually, including sensor readings, alarm states, communication status, and any associated protection logic. The equipment should only be returned to normal operation after the temperature monitoring functions have been verified as stable and correct.
