1. What is the primary function of the 3500/93-07-01-02-00?

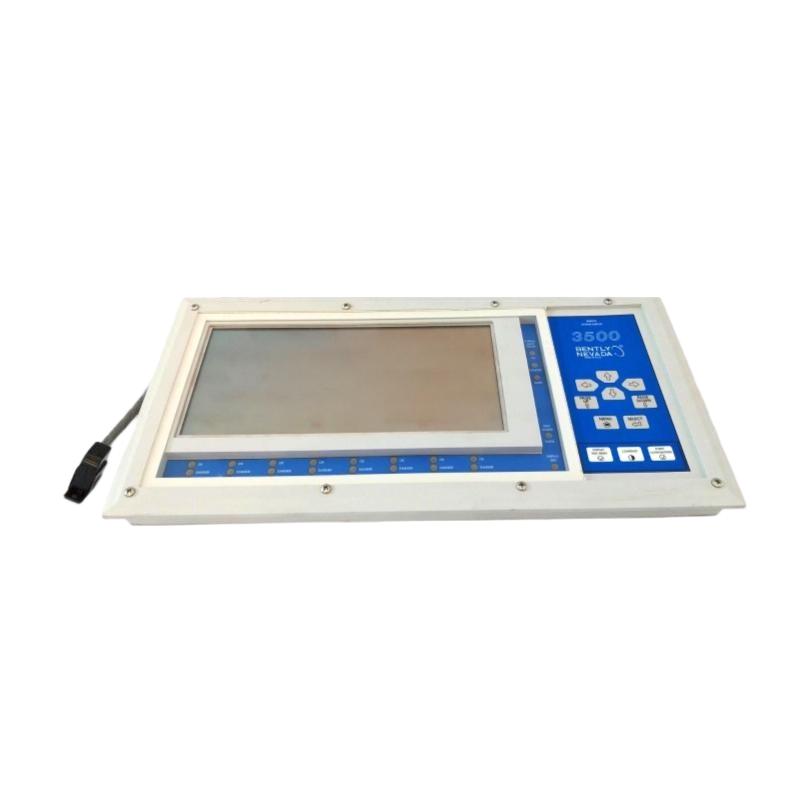

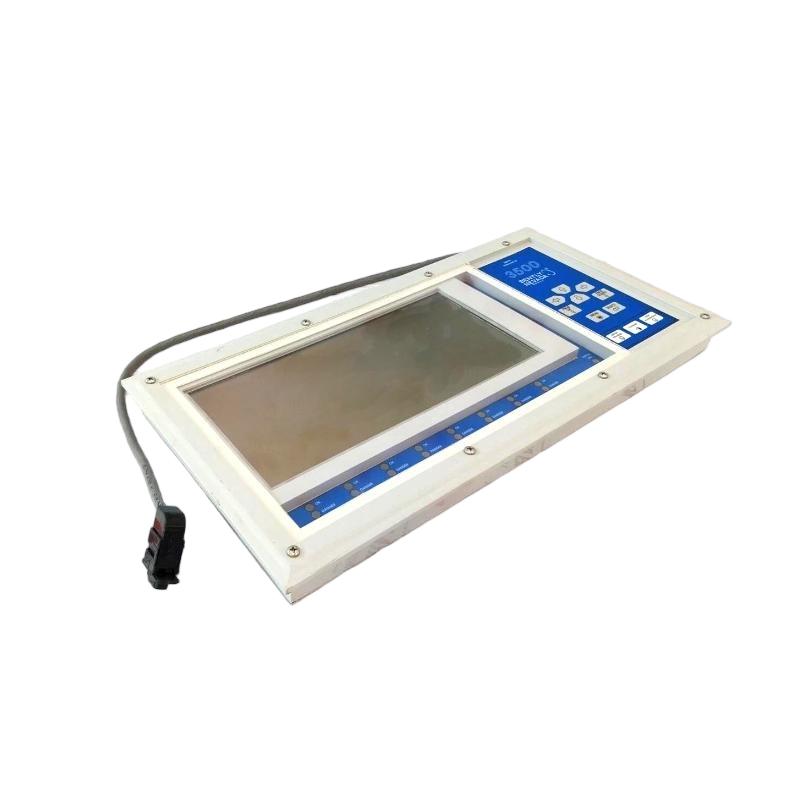

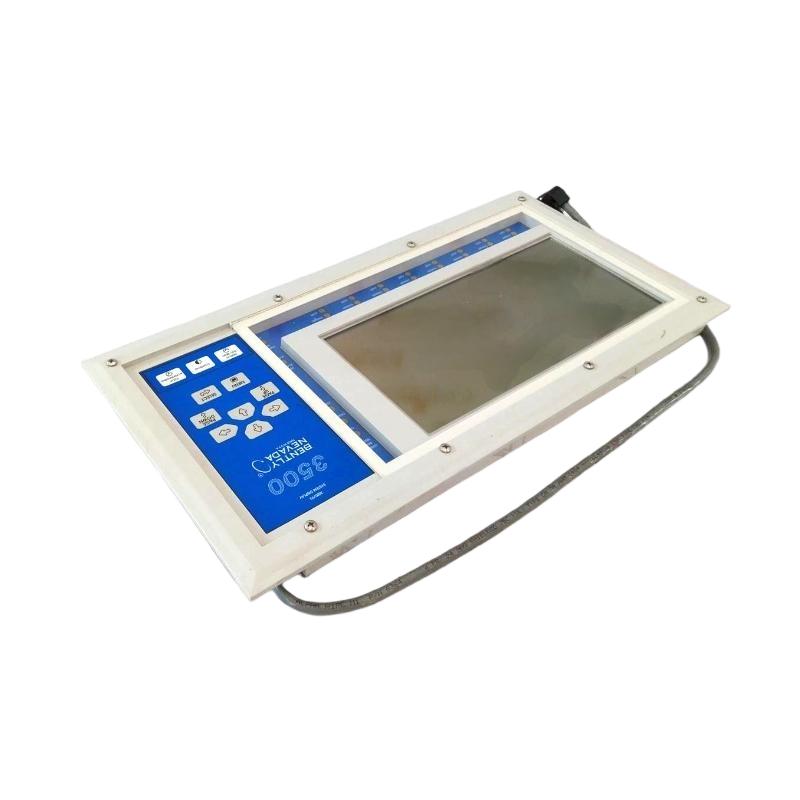

The 3500/93-07-01-02-00 is a system display component designed for the Bently Nevada 3500 Machinery Protection System. Its primary purpose is to provide centralized access to machinery monitoring and protection information from the 3500 rack. Operators and maintenance personnel can use the display to review current measurements, alarm conditions, system events, and information associated with individual channels and modules. It can be installed close to the 3500 rack or positioned remotely, depending on the installation arrangement and site requirements.

2. What type of data can the 3500/93 display?

The 3500/93 can display current measurement values, current alarm conditions, system event lists, and alarm event lists. It can also provide information associated with monitor channels, relay modules, Keyphasor modules, and tachometer-related data. The information is presented using both graphical and text formats, allowing operators to quickly identify whether the machinery protection system is operating normally or whether an alert or danger condition is present. Event information can also assist maintenance personnel when determining when an abnormal condition occurred and which monitoring channel was involved.

3. What communication interface does the 3500/93-07-01-02-00 use?

The system display communicates with the Display Interface Module through an RS422 interface and supports the Bently Nevada proprietary communication protocol as well as Modbus. During installation, the communication cable, connectors, and terminals should be securely connected. The communication wiring should also be routed away from high-power motor and electrical cables where possible to reduce electromagnetic interference. If the display cannot obtain information from the 3500 rack, the RS422 connection, interface module status, cabling, and system configuration should be checked before replacing the display unit.

4. What is the typical update rate of the 3500/93?

The typical channel update rate of the 3500/93 is approximately one second. This allows the display to regularly refresh measurement and status information received from the 3500 Machinery Protection System. The update rate is suitable for operational monitoring, alarm confirmation, and routine equipment inspection. However, the system display should not be considered a replacement for the dedicated monitor modules that perform the actual high-speed protection functions. When machinery parameters change rapidly, the protection logic and alarm processing of the corresponding monitor module should be considered together with the information shown on the display.

5. Can the 3500/93-07-01-02-00 be installed remotely from the 3500 rack?

Yes. The 3500/93 supports remote installation. A standard installation can place the display approximately 100 ft from the 3500 system, while an external power supply arrangement can allow installation distances of approximately 4000 ft. The actual installation distance depends on the selected configuration, communication wiring, power arrangement, and site conditions. For long-distance installations, proper cable selection and grounding are important. Communication cables should also be kept away from high-power electrical wiring as much as practical to reduce interference and maintain reliable data transmission.

6. How should the 3500/93 be troubleshot if it does not display data correctly?

First, verify that the Display Interface Module and Display Interface I/O Module are operating correctly and that the 3500 rack itself has no system fault. Next, inspect the RS422 communication connection, including the cable, connectors, and terminals, for loose connections, damage, or poor contact. The status of the corresponding monitor modules should also be checked. If the display powers up but certain channels do not show data, inspect the related monitor modules and channel configuration. The 3500 Rack Configuration Software can also be used to verify system configuration and confirm that the display is correctly configured to receive the required information from the rack.

7. What do the status indicators on the 3500/93 indicate?

The 3500/93 provides several status indicators that allow operators to quickly identify the condition of the display and machinery protection system. Unit OK indicates the operating condition of the display unit, while Rack OK indicates that the 3500 rack is operating normally. Rack Alert indicates that at least one monitored channel is in an Alert condition, while Rack Danger indicates that at least one channel has reached a Danger condition. The New Alarm indicator alerts operators that a new alarm has occurred since the previous alarm acknowledgement. These indicators provide a quick overview before detailed channel information is reviewed.

8. What should be checked during installation and commissioning of the 3500/93-07-01-02-00?

Before installation, verify that the display unit, Display Interface Module, and Display Interface I/O Module are compatible with the selected system configuration. The mounting arrangement should be suitable for the control cabinet or panel, and the communication connections should be installed securely. Proper grounding and electromagnetic interference protection should also be provided. During commissioning, confirm that the display starts correctly and can obtain information from the 3500 rack. Current values, system status, alarm information, and event data should then be checked individually. For remote installations, communication distance and external power requirements should also be verified. Finally, normal, Alert, and Danger conditions should be tested to ensure that operators can correctly identify the actual machinery protection status.
