1. What is the primary function of the 3500/93-06-01-02-00?

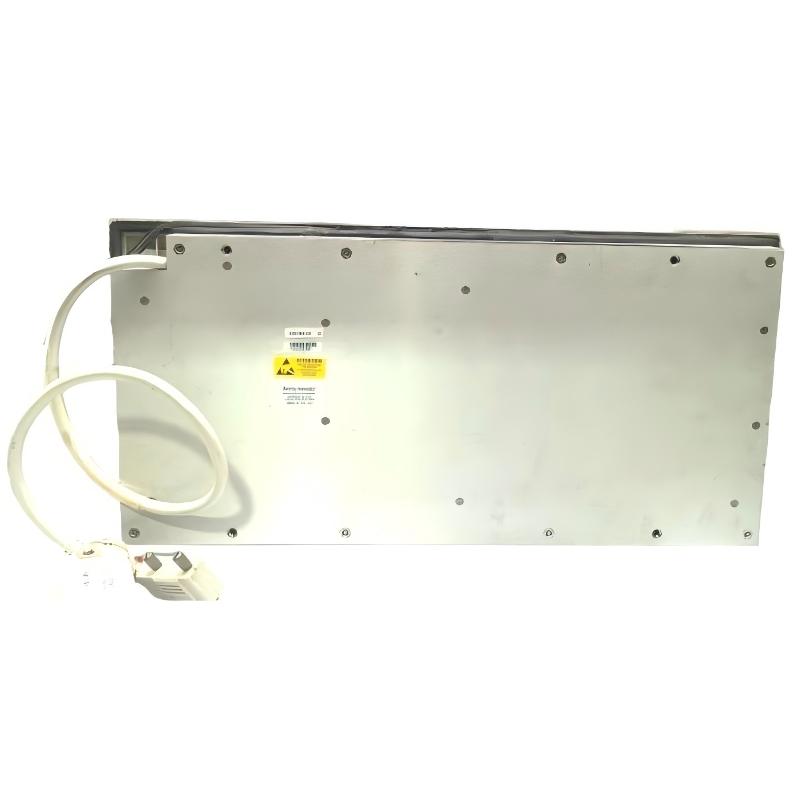

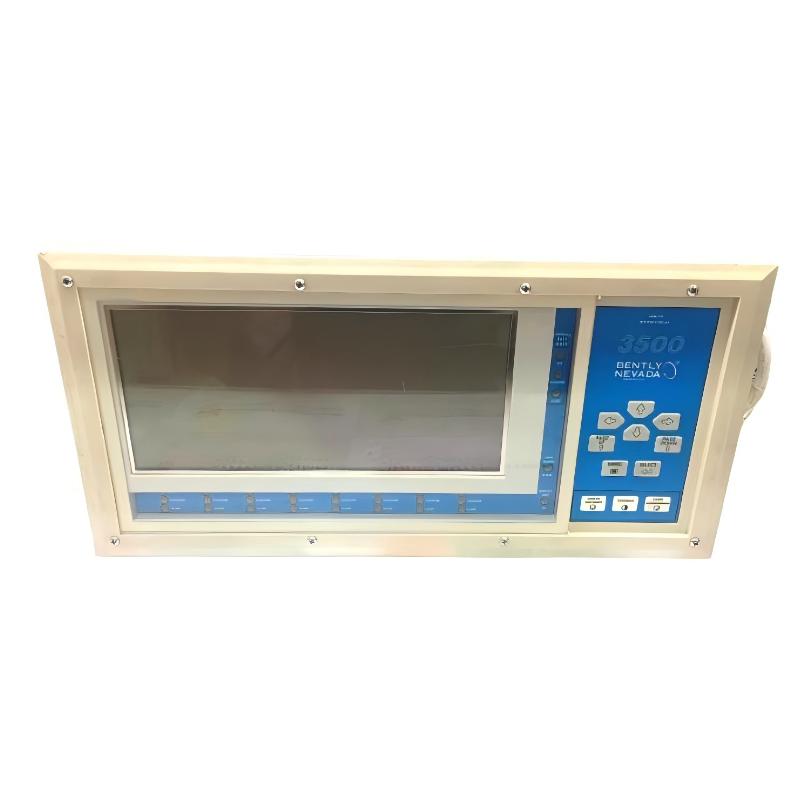

The 3500/93-06-01-02-00 is a system display component for the Bently Nevada 3500 Machinery Protection System. It provides local or remote visual access to information collected by the 3500 rack, including current channel values, alarm conditions, system events, and relevant monitor or module information. It is intended to make machinery protection information easier for operators and maintenance personnel to review without requiring direct access to every individual monitor module. The display can be installed in different mounting arrangements depending on the control cabinet and operating environment.

2. What type of information can the 3500/93 display?

The 3500/93 can display current measurement values and alarm status information from active channels in the 3500 rack. It can also provide access to system event information, alarm event lists, and data associated with monitor, relay, Keyphasor, or tachometer modules. The display is designed to present both graphical and text information, allowing operators to review machinery protection conditions in a centralized location. This makes it useful for identifying changes in monitored parameters and reviewing alarm conditions during operation or maintenance.

3. What communication interface does the 3500/93 use?

The 3500/93 system display uses an RS422 hardware interface between the Display Unit and the Display Interface Module. The communication system supports the Bently Nevada proprietary protocol as well as Modbus protocol based on the specified implementation. During installation, the communication cable should be properly connected and routed to minimize electrical interference. If communication is not established, the interface connections, cable condition, module status, and configuration should be checked before investigating the display itself.

4. How fast does the 3500/93 update channel information?

The typical channel update rate of the 3500/93 is approximately one second. This allows the display to provide regularly updated information from the 3500 machinery protection system for operational monitoring. The display should be regarded as an operator information interface rather than a replacement for the high-speed protection functions performed by the dedicated 3500 monitor modules. When troubleshooting rapidly changing machinery conditions, the actual protection and alarm logic of the corresponding monitor should be considered together with the information shown on the system display.

5. What mounting configurations are available for the 3500/93 System Display?

The 3500/93 system display can be installed using several mounting arrangements, including face mounting, 19-inch EIA rack mounting, panel mounting, and independent mounting. The appropriate configuration depends on the cabinet design, available space, required viewing position, and distance between the display and the 3500 system. For remote installation, the appropriate cable and external power supply options may be required. The face-mount configuration has specific installation requirements concerning the position of the Display Interface Module within the 3500 rack.

6. What should be checked if the 3500/93 does not display data correctly?

Start by checking whether the Display Interface Module and I/O module are operating normally and whether the 3500 rack itself is functioning correctly. Check the RS422 communication connection between the display and interface module, including cable continuity, connectors, and possible electrical interference. The configuration should also be verified using the appropriate 3500 Rack Configuration Software. If the display operates but does not show expected channel information, check whether the corresponding rack modules and channels are active and communicating correctly. Alarm and event information should also be compared with the status of the individual monitor modules.

7. Can the 3500/93 display be used with Modbus communication?

Yes. The 3500/93 communication interface supports Modbus in addition to the Bently Nevada proprietary communication protocol. This provides flexibility when integrating the system display into an industrial monitoring or control environment that uses compatible Modbus-based equipment. Communication parameters and the overall system configuration must be correctly established before operation. When integrating with an external system, the data mapping and communication response should be tested carefully to confirm that the required machinery information is being transferred and interpreted correctly.

8. What environmental conditions are suitable for the 3500/93 Display Interface I/O Module?

The Display Interface I/O Module is designed for industrial environments and has an operating temperature range of -30°C to +65°C. Its storage temperature range is -40°C to +85°C, with humidity specified at up to 95% non-condensing. The installation location should provide adequate environmental protection and prevent condensation or excessive contamination from affecting the module. During installation in cabinets or remote panels, adequate ventilation and appropriate electrical grounding should also be provided. If the equipment is being installed in a hazardous-area application, the applicable approval option and installation requirements should be verified before commissioning.
