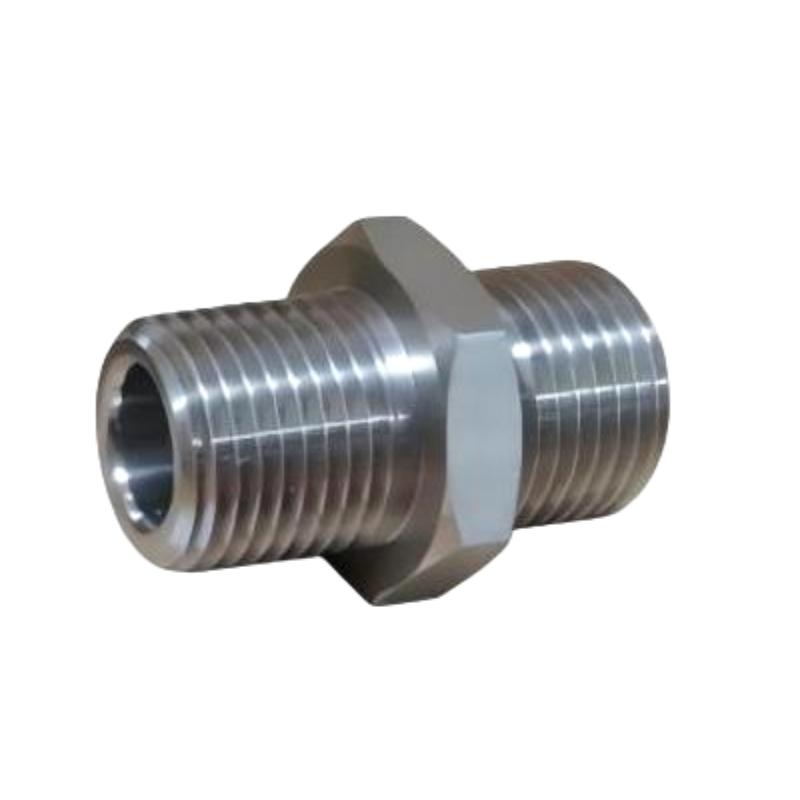

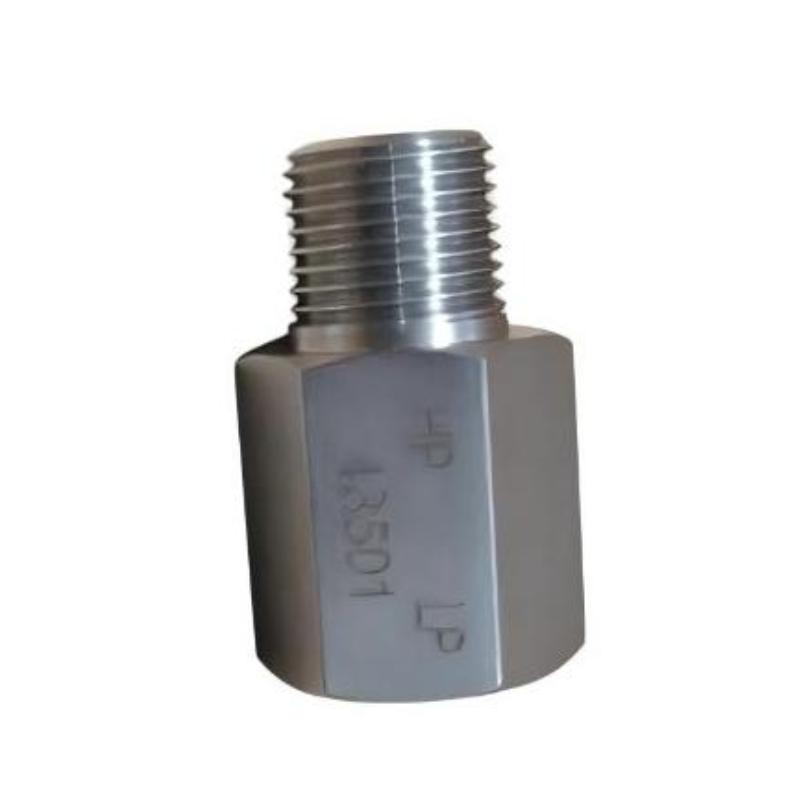

Bently Nevada 43501-01-00-01 Low-Voltage Cable Seals
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 43501-01-00-01 |
| Product Type | Low-Pressure Cable Seal |
| Series | 43501 |
| Main Function | Provides sealed cable entry through a machine case or other barrier |
| High Pressure Side Thread Size | 1/2-14 NPT |
| Low Pressure Side Thread Size | 1/2-14 NPT |

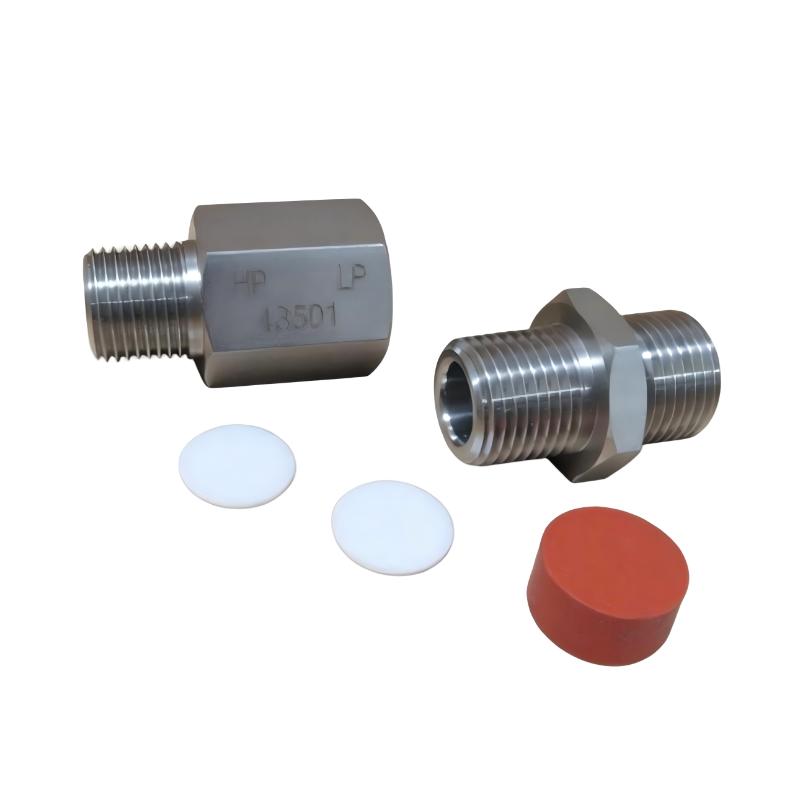

| Cable Grommet and Washer | Solid grommet, no pre-punched holes |
| Grommet Material | Molded silicone rubber |
| Body Material | 303 stainless steel |
| Cable Capacity | Up to 4 × 75 Ω and/or 95 Ω transducer cables |
| DE Transducer Cable Capacity | Up to 2 × 25 mm DE or 50 mm DE transducer cables |
| Cable Type | Non-armored cables |
| Pressure Rating | Up to 345 kPa (50 psi) across the grommet |
| Absolute Pressure Limit | 1.0 psi absolute |
| Assembled Length | Approximately 35 mm when tightened |
| Environmental Resistance | Resistant to lubricating oil and fluids |
| Installation | Through a single tapped hole in a machine case or barrier |
| Conduit Compatibility | External pipe threads for connection to conduit or housings |
| Typical Application | Machinery monitoring, turbine instrumentation and industrial transducer cable routing |
| Dimensions | Not specified |
| Weight | Shipping Weight: 3 kg |
FAQ
1. What is the primary function of the Bently Nevada 43501-01-00-01 cable seal?
The 43501-01-00-01 is a low-pressure cable seal designed to provide a sealed route for transducer cables through a machine case, bearing housing, enclosure, or other physical barrier. Its main purpose is to allow monitoring cables to pass through the machine wall while reducing the possibility of fluid leakage along the outside of the cable jacket. The seal uses a molded silicone rubber grommet together with a stainless-steel body, making it suitable for industrial machinery monitoring installations where cable routing and environmental sealing are important.
2. What thread sizes are used on the 43501-01-00-01?
This configuration uses 1/2-14 NPT threads on both the high-pressure side and low-pressure side. The NPT threaded design allows the cable seal to be installed into a suitably tapped opening in the machine case or other barrier and provides a threaded connection for compatible conduit or housing components. Before installation, the existing machine opening should be checked to confirm that the thread type and size match the cable seal. Using the correct NPT thread is important for achieving proper mechanical engagement and sealing performance.
3. How many transducer cables can the 43501-01-00-01 accommodate?
The 43501 low-pressure cable seal can accommodate up to four 75-ohm and/or 95-ohm transducer cables used with compatible Bently Nevada monitoring products. It can also accommodate up to two 25 mm DE or 50 mm DE transducer cables, depending on the selected cable arrangement. The 43501-01-00-01 configuration uses a solid grommet without pre-punched holes. The required cable openings must therefore be punched during installation according to the actual number and type of cables being routed.
4. Why does the 43501-01-00-01 use a solid cable grommet?
The solid grommet provides flexibility when configuring the cable entry arrangement. Instead of being supplied with fixed holes, the grommet can be prepared according to the number and cable sizes required for the specific installation. This allows the same configuration to accommodate different compatible cable arrangements within its specified capacity. The holes should be created carefully so that the cable jacket is held securely and the grommet can provide an effective seal around the cables after the assembly is tightened.
5. What pressure can the 43501-01-00-01 withstand?
The 43501 low-pressure cable seal is designed to seal pressures up to 345 kPa (50 psi) across the grommet when properly installed. It also has an absolute pressure limit of 1.0 psi absolute for the applicable gas-pressure condition. The pressure rating depends on correct installation and proper cable and grommet configuration. It should therefore be used within its specified pressure conditions and should not be treated as a high-pressure cable sealing solution.
6. Can the 43501-01-00-01 be used with armored cables?
The 43501 low-pressure cable seal is intended for non-armored transducer cables. Its sealing arrangement is designed around the outer jacket of compatible cables, allowing the molded silicone grommet to seal around the cable as the assembly is tightened. Armored cable constructions can have different outer dimensions and mechanical characteristics and may not provide the required sealing interface. The cable type should therefore be verified before installation to ensure that it is compatible with the 43501 sealing arrangement.
7. What should be checked if the 43501-01-00-01 develops a leakage problem?
First, inspect the cable seal assembly to confirm that it has been correctly installed and adequately tightened. Check the NPT threaded connections for damage, contamination, or improper engagement. The silicone grommet should also be inspected for cuts, deformation, excessive wear, or incorrectly punched cable openings. The cable jacket should be checked for damage because the seal relies on proper contact with the outer cable surface. If the grommet has been damaged or incorrectly prepared, replacing or correctly installing the sealing components may be necessary. The assembly should not be operated outside its specified pressure conditions.
8. How should the 43501-01-00-01 be installed for reliable cable sealing?
Installation should begin by confirming that the machine case or barrier has the correct 1/2-14 NPT threaded opening. The solid silicone grommet should then be prepared with appropriately sized openings for the selected compatible cables. The cables should pass cleanly through the grommet without excessive bending, cutting, or damage to their outer jackets. The cable seal should then be threaded into the machine case or barrier and connected to the appropriate conduit or housing using the available external pipe threads. After tightening, verify that the cables are securely held and that the grommet provides uniform sealing around each cable.
Bently Nevada 43501-01-00-01 Low-Voltage Cable Seals is in stock. Please contact us for a quick quote and competitive pricing.
