1. What is the primary function of the Bently Nevada 60M100-00 vbOnline Pro Monitor?

The Bently Nevada 60M100-00 vbOnline Pro Monitor is an online machinery condition-monitoring device designed to continuously acquire and process vibration and related machine-condition signals. It can be integrated into a plant-wide monitoring architecture to evaluate the condition of rotating machinery and identify changes that may indicate developing mechanical problems. The monitor supports multiple dynamic signal inputs and Keyphasor inputs, allowing it to collect vibration and speed-related information from compatible sensors. Processed information can be used with Bently Nevada System 1 software for trending, analysis, alarming, and machinery diagnostics.

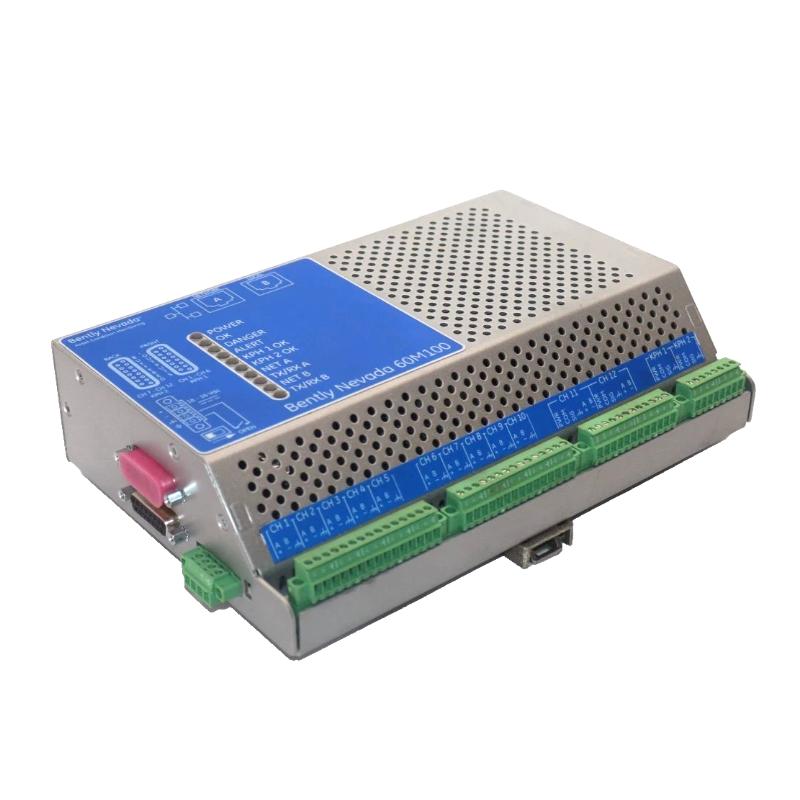

2. How many dynamic signal inputs are supported by the 60M100-00?

The 60M100-00 supports up to 12 dynamic signal inputs, allowing multiple measurement points to be monitored simultaneously. This multi-channel architecture is useful for machinery containing several bearings, gear meshes, or other critical monitoring locations. The monitor can acquire signals from compatible industrial accelerometers and process the collected data for condition-monitoring purposes. Simultaneous channel sampling helps maintain a consistent relationship between measurements from different machine locations, which is particularly useful when analyzing vibration patterns, bearing conditions, gear-related frequencies, and other dynamic machine behavior.

3. What is the purpose of the two Keyphasor inputs on the 60M100-00?

The two Keyphasor inputs provide speed and rotational reference information for machinery monitoring. A Keyphasor or compatible pulse-based speed sensor can provide a reference pulse associated with shaft rotation, allowing the monitoring system to determine rotational speed and synchronize vibration measurements with shaft position. This information is important when performing order-related analysis, phase measurements, rotor-related diagnostics, and other speed-dependent vibration evaluations. Having two speed inputs also provides additional flexibility when monitoring machinery with multiple rotating shafts or when separate speed references are required for different sections of a machine train.

4. What type of communication interfaces does the 60M100-00 provide?

The 60M100-00 provides two Ethernet communication ports. Net A is configured as a 10/100 Base-T network port with DHCP capability, while Net B provides a 10/100 Base-T connection intended for a local static-IP configuration. These interfaces allow the monitor to communicate with monitoring and diagnostic software and can support integration into industrial plant networks. The vbOnline Pro architecture can communicate with Bently Nevada System 1, while processed measurement information can also be made available to third-party systems such as DCS, SCADA, and HMI platforms through supported communication methods including Modbus/TCP.

5. What should be checked if the 60M100-00 stops communicating with the monitoring system?

If communication with the 60M100-00 is lost, troubleshooting should begin with the physical Ethernet connections and network configuration. Verify that the correct network cables are being used and that both connectors are securely connected. The corresponding network status LEDs should also be checked to determine whether the monitor detects a valid network link and whether data traffic is present. Next, verify the configured IP address, subnet configuration, and network settings for the applicable Ethernet port. If the physical connection and network configuration appear correct, check whether the monitoring software can detect the device and whether another network device is causing an address conflict. Communication problems should be isolated systematically before changing the monitor configuration.

6. How does the 60M100-00 process vibration signals?

The 60M100-00 uses high-resolution analog-to-digital conversion and signal-processing functions to acquire and analyze vibration information from compatible sensors. Its 24-bit Sigma-Delta A/D conversion and wide measurement bandwidth allow detailed vibration signals to be captured for machinery condition monitoring. Depending on the system configuration, vibration information can be processed into measurements such as acceleration, velocity, and other condition-related variables. The collected information can then be evaluated through System 1 for waveform, spectrum, trend, alarm, and diagnostic analysis. This approach allows maintenance personnel to identify changes in machine behavior rather than relying only on basic overall vibration values.

7. What are the main applications of the Bently Nevada 60M100-00?

The 60M100-00 is intended for continuous monitoring of industrial machinery where vibration and mechanical condition are important indicators of equipment health. Applications can include rotating machinery such as compressors, turbines, pumps, motors, gearboxes, and machinery containing rolling-element bearings or complex gear trains. Monitoring data can be used to track bearing condition, gear-related vibration, machine operating behavior, and other dynamic characteristics. When integrated with a broader condition-monitoring system, the monitor can support early identification of abnormal trends, allowing maintenance teams to investigate developing problems before they result in significant equipment damage or unplanned downtime.

8. What should be considered when installing and commissioning the 60M100-00?

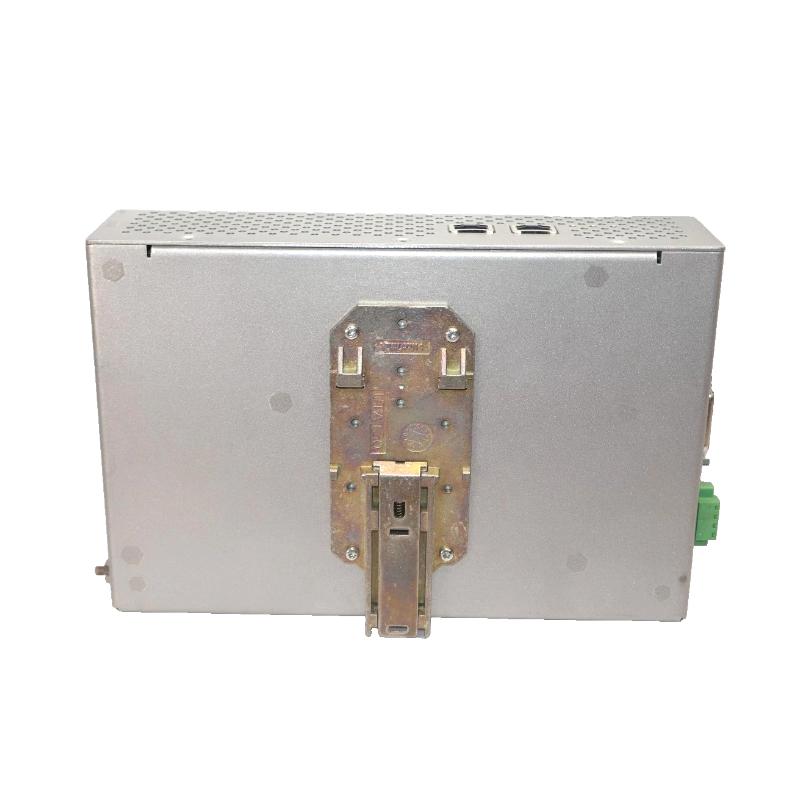

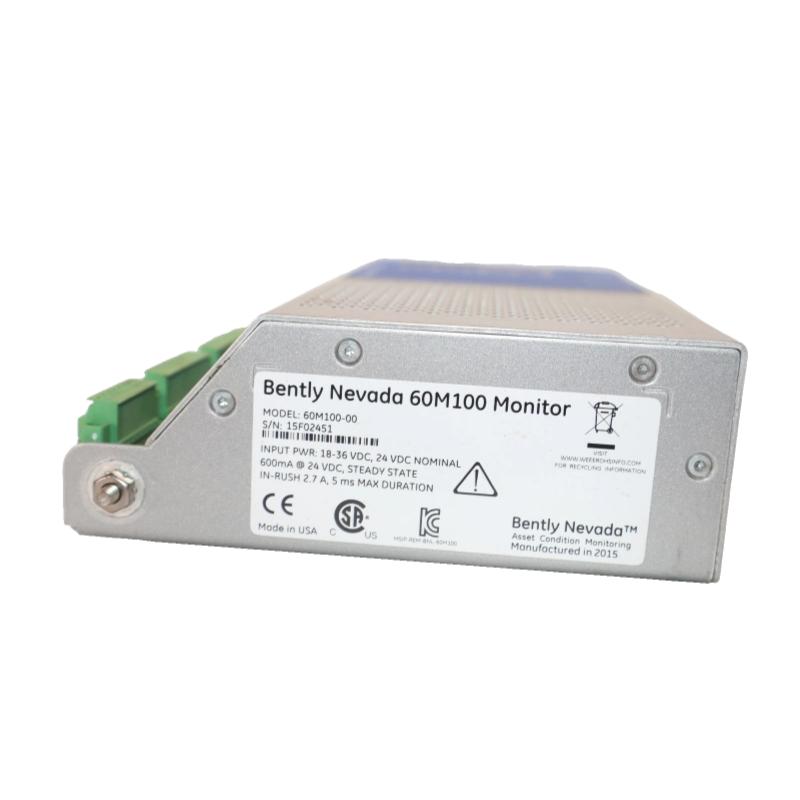

During installation, the 60M100-00 should be mounted securely on an appropriate DIN rail and supplied with a suitable DC power source within the specified input range. Sensor wiring should be connected to the correct channels, and Keyphasor connections should be checked carefully when speed-reference measurements are required. Ethernet connections should be configured according to the plant network architecture, including the appropriate DHCP or static-IP arrangement. Before commissioning, verify sensor connections, power status, network communication, channel configuration, and monitoring parameters. After startup, the system should be checked through the monitoring software to confirm that all expected channels are producing valid signals and that vibration, speed, alarm, and communication data are being received correctly.
