1. What is the primary function of the Bently Nevada 60R/CGW01 Communication Gateway Module?

The Bently Nevada 60R/CGW01 is a Communication Gateway Module for the ORBIT 60 Series. Its primary function is to exchange data between the ORBIT 60 monitoring system and external control and automation systems. It can provide measurement values, alarm information, equipment status, and system configuration information to external host systems while also supporting data communication with control systems, HMIs, and data historians. The module is particularly useful in industrial machinery protection and condition-monitoring installations where monitoring information needs to be integrated into a larger plant automation architecture.

2. Which communication protocols are supported by the 60R/CGW01?

The 60R/CGW01 supports industrial communication protocols including Modbus TCP/IP and EGD through its Ethernet communication interfaces. Modbus TCP/IP can be used to exchange monitoring information with compatible DCS, HMI, PLC, control, and supervisory systems. EGD provides another communication option for applicable industrial control architectures. The selected protocol should match the communication capabilities and configuration of the external control system. During commissioning, the network configuration, communication parameters, and required data mapping should be verified to ensure that measurement values, alarms, and status information are correctly transferred to the host system.

3. How many Ethernet communication interfaces does the 60R/CGW01 provide?

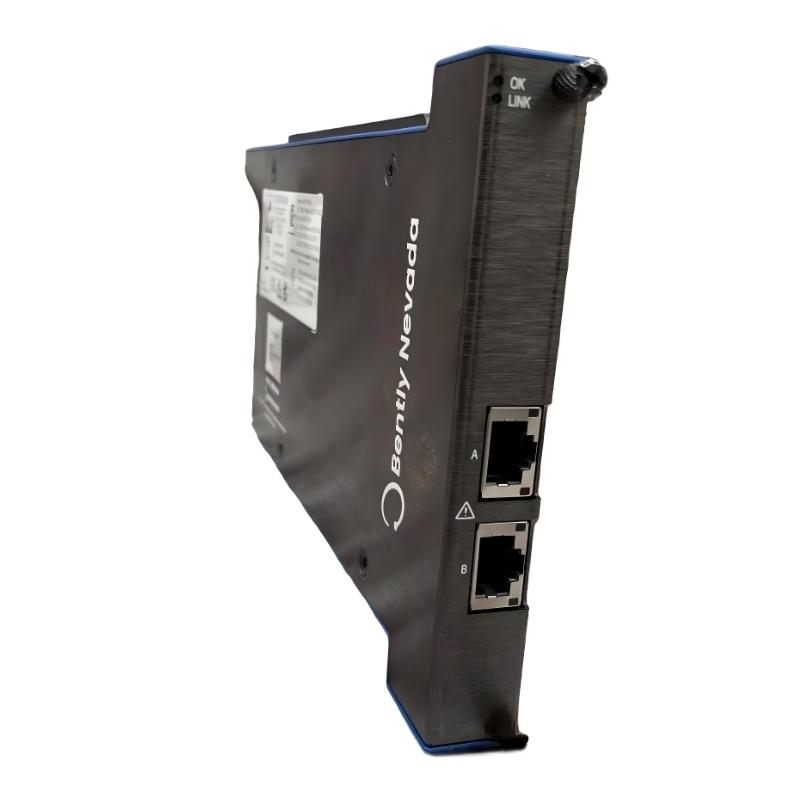

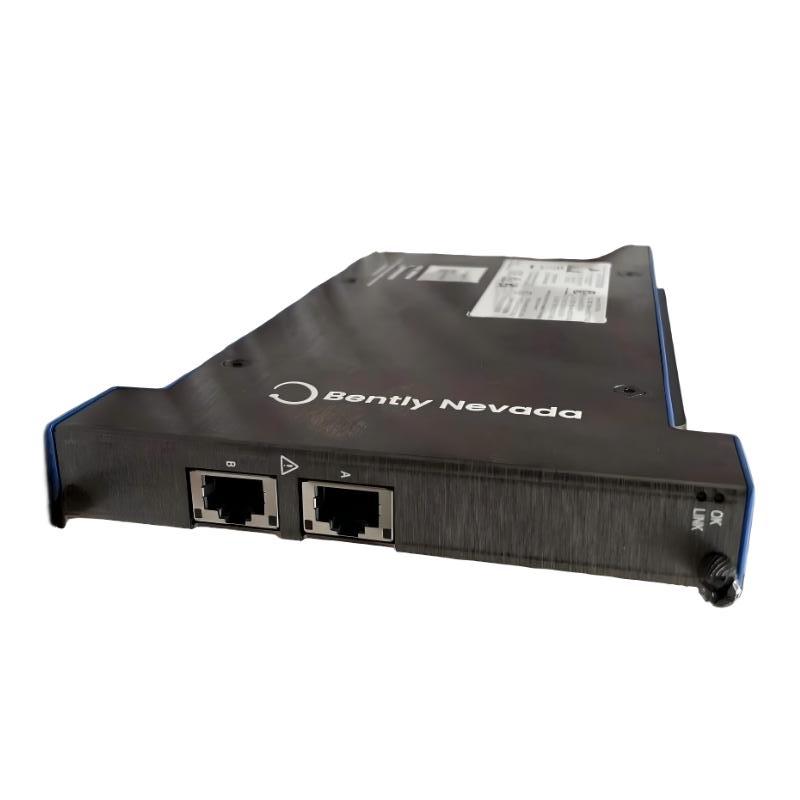

The 60R/CGW01 provides two RJ-45 Ethernet communication interfaces for networking and system integration. The dual-interface arrangement provides additional flexibility when designing the communication architecture for an ORBIT 60 installation. Depending on the plant network configuration, the interfaces can be incorporated into the required industrial Ethernet architecture. During installation, the correct network topology, IP configuration, Ethernet cabling, and communication settings should be established. If communication problems occur, both the physical Ethernet connection and the network configuration should be checked before concluding that the gateway module has failed.

4. Can the 60R/CGW01 communicate with a DCS or HMI system?

Yes. One of the key applications of the 60R/CGW01 is to make ORBIT 60 monitoring information available to external automation and control systems. It can be integrated with compatible DCS, HMI, control, and data-historian systems through supported Ethernet communication protocols. External systems can receive measurement values, alarm information, equipment status, and other available monitoring data. This integration allows machinery condition information to be displayed alongside normal plant operating information and can reduce the separation between machinery monitoring and the main automation system. The exact communication method and data mapping depend on the configuration of the connected DCS or HMI.

5. What should be checked if the 60R/CGW01 cannot communicate with the host system?

Troubleshooting should begin with the physical Ethernet connection. Check the RJ-45 cables and connectors to ensure that they are properly connected and free from physical damage. Next, check the Module OK and LINK/System Communication indicators to determine whether the gateway is operating correctly and whether network communication is established. Network parameters such as IP address, subnet configuration, Ethernet switch ports, and host-system settings should then be verified. For Modbus TCP/IP installations, also check the server address, communication port, and configured data mapping. If the physical network is operating correctly but communication remains unavailable, the ORBIT 60 configuration and the communication settings of the DCS, HMI, or other host system should be investigated.

6. How many module slots does the 60R/CGW01 occupy in an ORBIT 60 system?

The 60R/CGW01 is a single-slot Communication Gateway Module and occupies one module slot in the appropriate ORBIT 60 chassis. This allows the gateway to be installed alongside other ORBIT 60 system modules used for monitoring and machinery protection. Before installation, the selected chassis slot should be checked against the system configuration and module arrangement. The module should be fully inserted and securely mounted. After installation, the Module OK and communication indicators should be checked to confirm that the gateway has been correctly recognized and is communicating with the ORBIT 60 system.

7. What are the status indicators on the 60R/CGW01 used for?

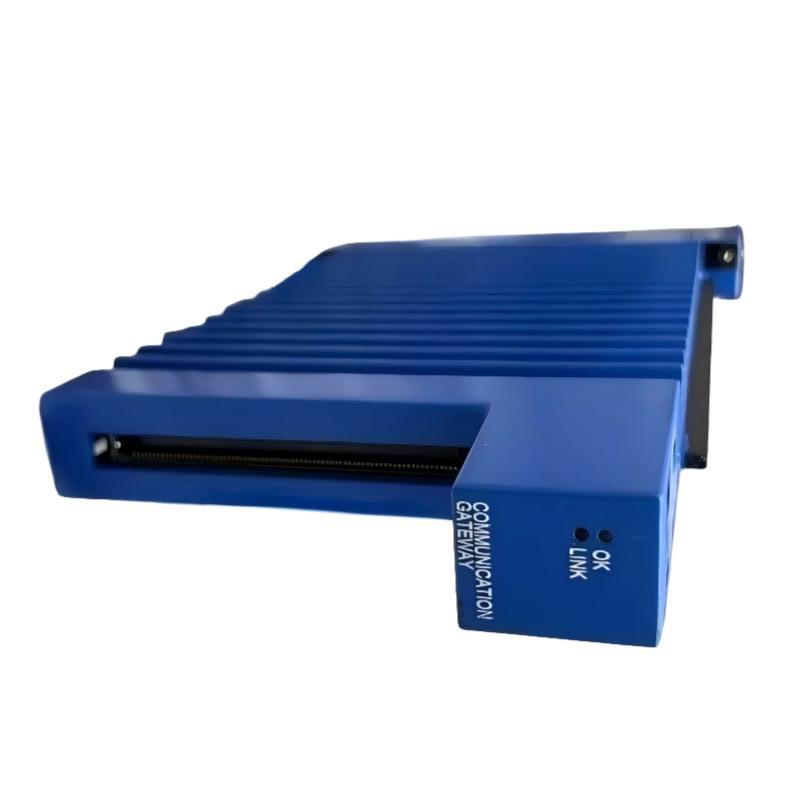

The status indicators provide a quick way to determine the operating condition of the gateway and its communication status. The Module OK LED provides information about the general operating condition of the communication module, while the LINK or System Communication indicator provides information about network or system communication. These indicators are useful during commissioning and troubleshooting because they can help distinguish between a module-level problem and an external network or communication problem. If the module status is normal but the host system cannot receive data, attention should then be directed toward the Ethernet connection, network configuration, communication protocol, and host-system settings.

8. What should be considered when installing and commissioning the 60R/CGW01?

Before installation, verify the module model, ordering configuration, and compatibility with the ORBIT 60 chassis. The gateway should be installed in the appropriate chassis slot and securely seated. Ethernet connections should use reliable RJ-45 connections and should be configured according to the plant’s network architecture. During commissioning, first verify that the module itself is operating correctly, then confirm communication with the ORBIT 60 system before testing communication with external DCS, HMI, control, or historian systems. For Modbus TCP/IP or EGD applications, the communication protocol, network parameters, data addresses, and data mapping should be checked carefully. After commissioning, verify that measurement values, alarms, status information, and other required data are being transferred correctly to the external system.
