1. What is the main function of the 60R/PPM01-00-0 Protection Processing Module?

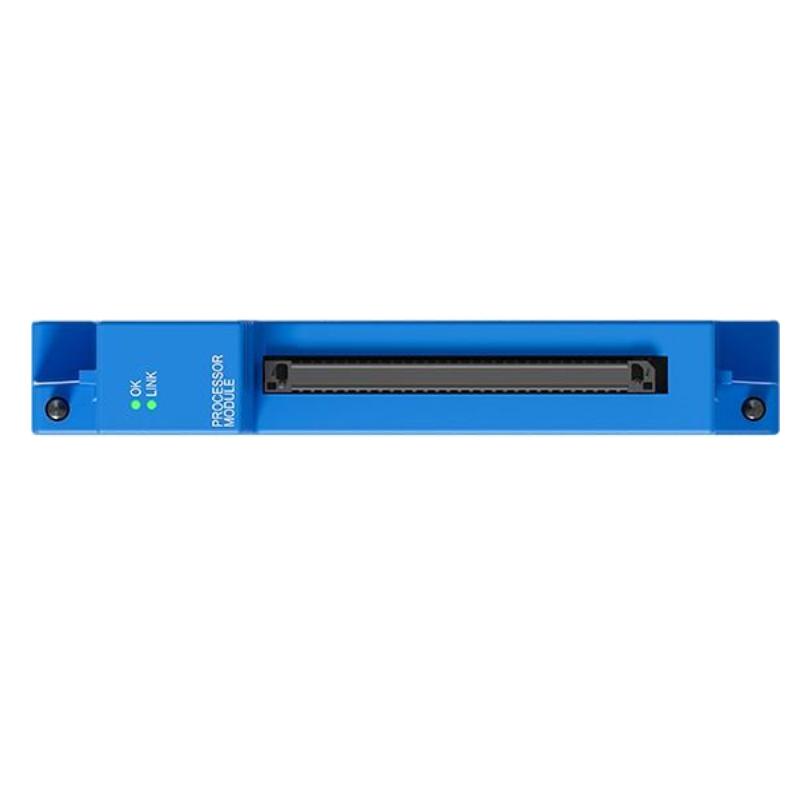

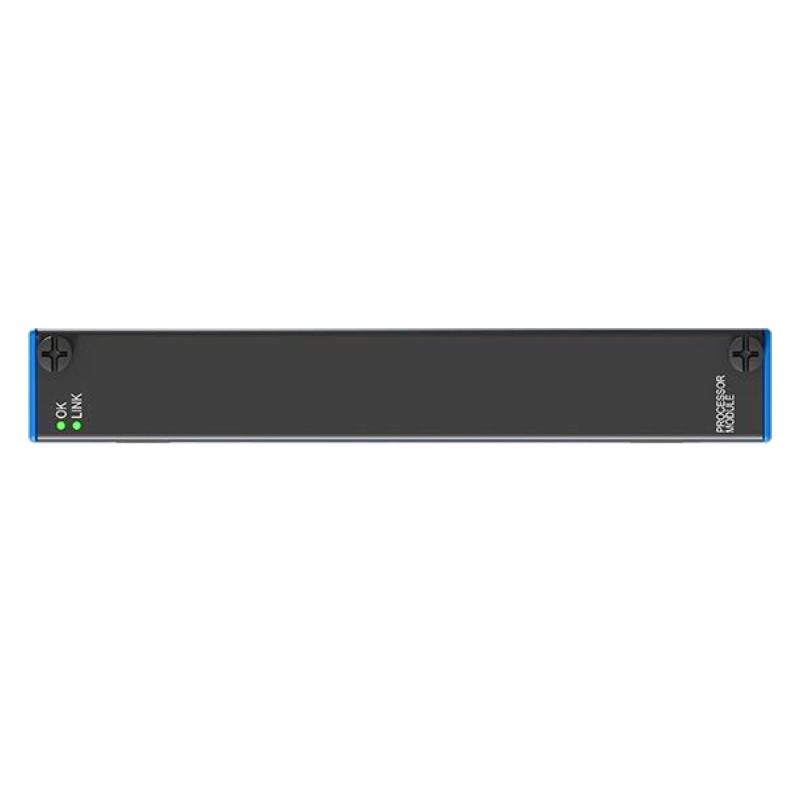

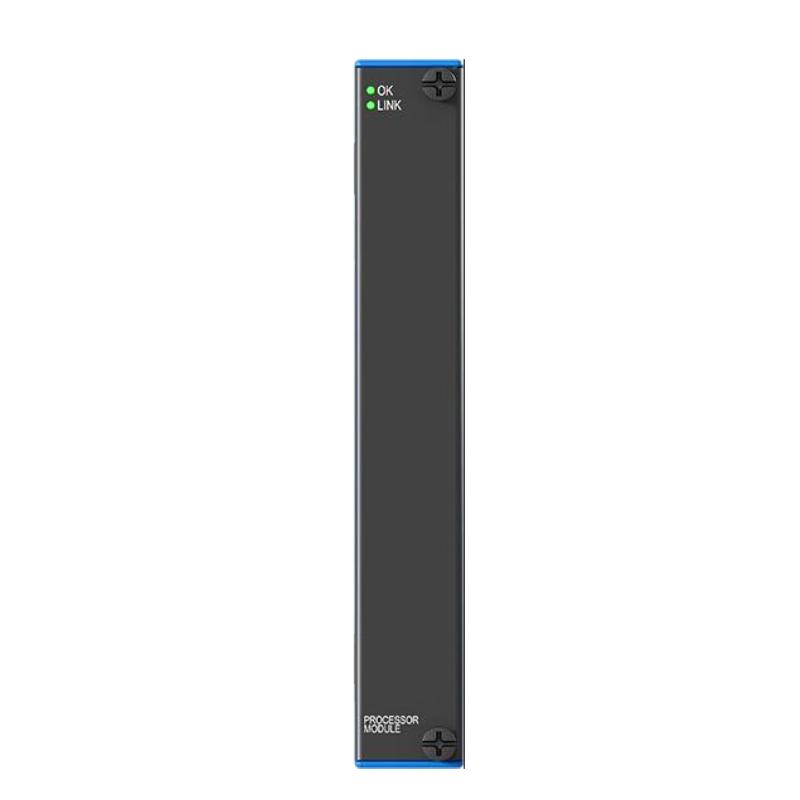

The 60R/PPM01-00-0 is the computational engine of the Orbit 60 protection system. It receives and processes machinery measurements from the system’s input modules and performs protection-related calculations and alarm determinations. The PPM can analyze transducer signals, generate measurements and status information, and publish processed information to other Orbit 60 modules for data collection and external communication. It therefore plays a central role in the real-time processing path of the machinery protection system. The module is designed to work as part of the complete Orbit 60 architecture rather than as a standalone monitoring controller.

2. What types of signals can the 60R/PPM01-00-0 process?

The PPM can process machinery measurements obtained from compatible Orbit 60 input modules and can also analyze relevant process data supplied through the system communication architecture. The actual signal types available to the PPM depend on the input modules installed in the Orbit 60 chassis and the specific machinery monitoring configuration. These can include measurements associated with vibration, position, speed, temperature, process variables, and other machine operating parameters. The PPM processes the available measurements according to the configured protection requirements and makes the resulting measurements and statuses available to other system components.

3. How much processing capacity does one 60R/PPM01-00-0 provide?

The processing capacity of a PPM depends on the type and complexity of processing required for each input rather than simply on the number of physical channels. A single PPM can provide computational capacity for a large number of sensors and can support typical monitored machine trains. For more complex monitoring systems, additional PPM modules can be installed to provide additional processing capacity. Orbit Studio includes a System Utilization Calculator that can be used to evaluate the remaining processing capacity of the installed PPM configuration. When the system requires more processing capability, additional PPMs can be considered as part of the system design.

4. Can multiple 60R/PPM01-00-0 modules be installed in the same Orbit 60 system?

Yes. Multiple PPM modules can be used when the processing requirements of a monitoring system exceed the practical capacity of a single PPM. Additional PPMs allow processing resources to be distributed across a larger or more complex machinery monitoring configuration. For protection applications, redundant PPM arrangements can also be used to improve protection-system availability. The exact number and configuration of PPM modules should be determined from the required signal processing, protection functions, system architecture, and redundancy requirements. Orbit Studio can be used during configuration to evaluate the utilization of the available PPM processing resources.

5. What should be checked if the 60R/PPM01-00-0 shows a module fault?

Begin by checking whether the PPM is correctly installed and fully seated in its designated chassis slot. Inspect the module and associated connectors for contamination, damaged contacts, or mechanical problems. The system power supply and overall chassis status should also be checked to ensure that the module is receiving stable operating power. Next, review the Orbit 60 diagnostic information to determine whether the problem is associated with the PPM itself, system communication, configuration, or another module. If the fault persists after the installation and power conditions have been verified, a controlled replacement test using a compatible known-good PPM can help determine whether the fault is isolated to the module.

6. How should the 60R/PPM01-00-0 be configured in an Orbit 60 system?

Configuration should be performed according to the overall machinery protection design and the signals being acquired by the installed Orbit 60 input modules. The engineer should first verify the required measurement types, protection functions, alarm conditions, processing requirements, and system communication requirements. Orbit Studio is used for system configuration and provides tools for evaluating PPM processing utilization. Protection parameters should be established according to the actual operating characteristics of the monitored machinery, including normal operating ranges and expected transient conditions. After configuration, the system should be tested under controlled conditions to verify that measurements, alarms, statuses, and protection functions respond as intended.

7. Why is redundant PPM configuration recommended for protection applications?

A protection system must remain capable of performing its required protection functions even when an individual component experiences a fault. Using redundant PPM modules can provide additional availability for the protection processing path. If one processing module becomes unavailable, the redundant architecture can help maintain the required protection capability, depending on the complete system configuration and protection design. Redundancy should therefore be considered when the monitored machinery is safety-critical or when an unexpected loss of protection processing could result in unacceptable operational risk. The final redundancy arrangement should be determined according to the required protection architecture and applicable engineering requirements.

8. How can the reliability of the 60R/PPM01-00-0 be maintained?

Reliable PPM operation depends on correct system configuration, stable power, proper module installation, secure connections, and regular system diagnostics. The module should remain firmly seated in its assigned chassis position, while the associated connectors should be protected from contamination, corrosion, and mechanical damage. Processing utilization should also be monitored through Orbit Studio, particularly in systems with a large number of sensors or complex processing requirements. If utilization approaches the available processing limit, additional PPM capacity should be considered rather than allowing the system to operate continuously at excessive utilization. Protection parameters should be controlled through appropriate configuration management, and any recurring module, communication, or processing fault should be investigated across the complete signal and system architecture rather than replacing the PPM without diagnosis.
