1. What is the main function of the Bently Nevada 60R/REC01-00-0?

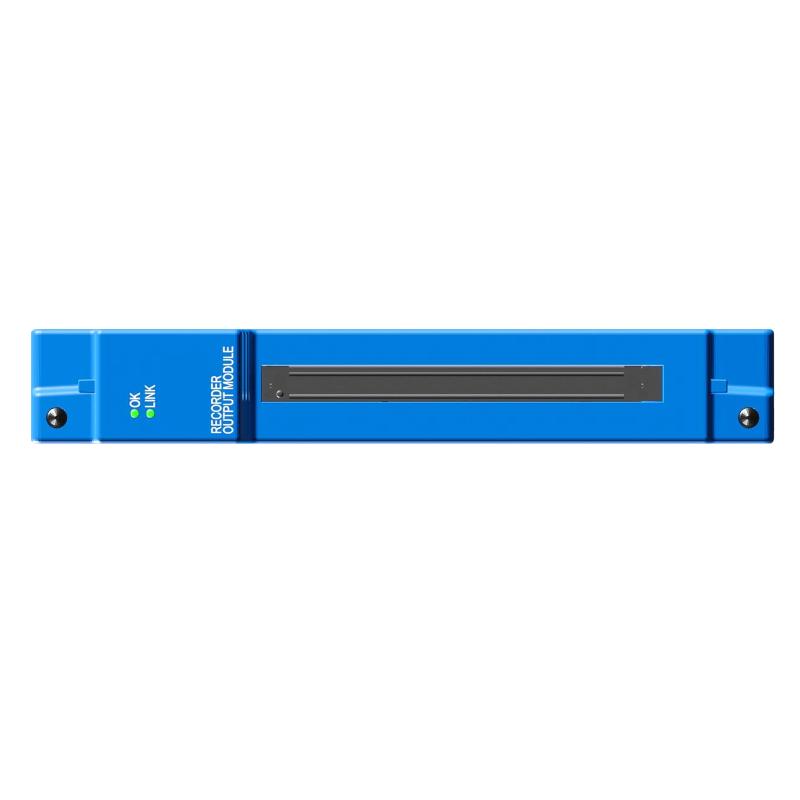

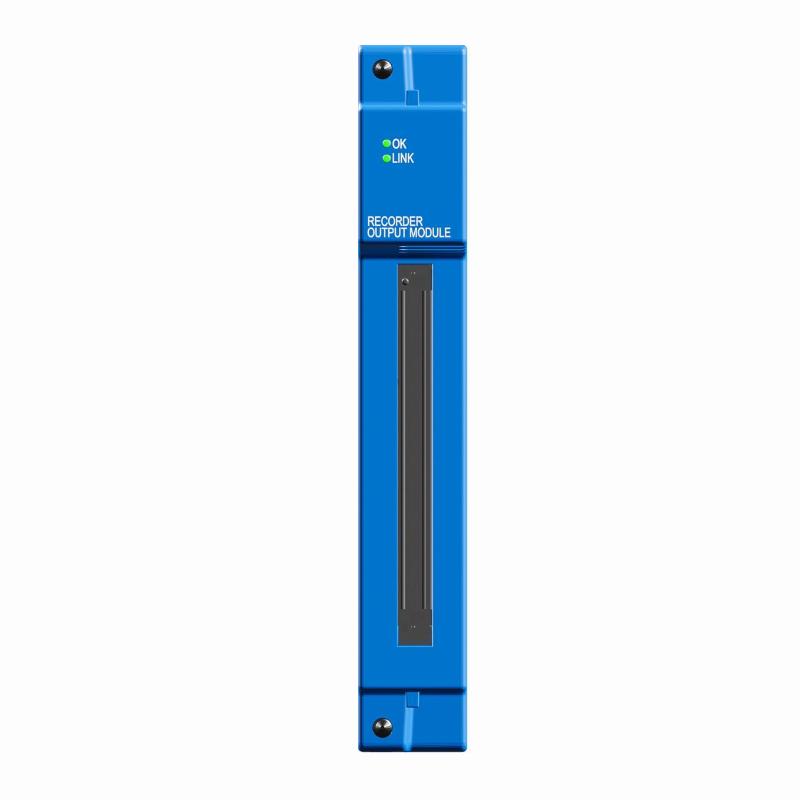

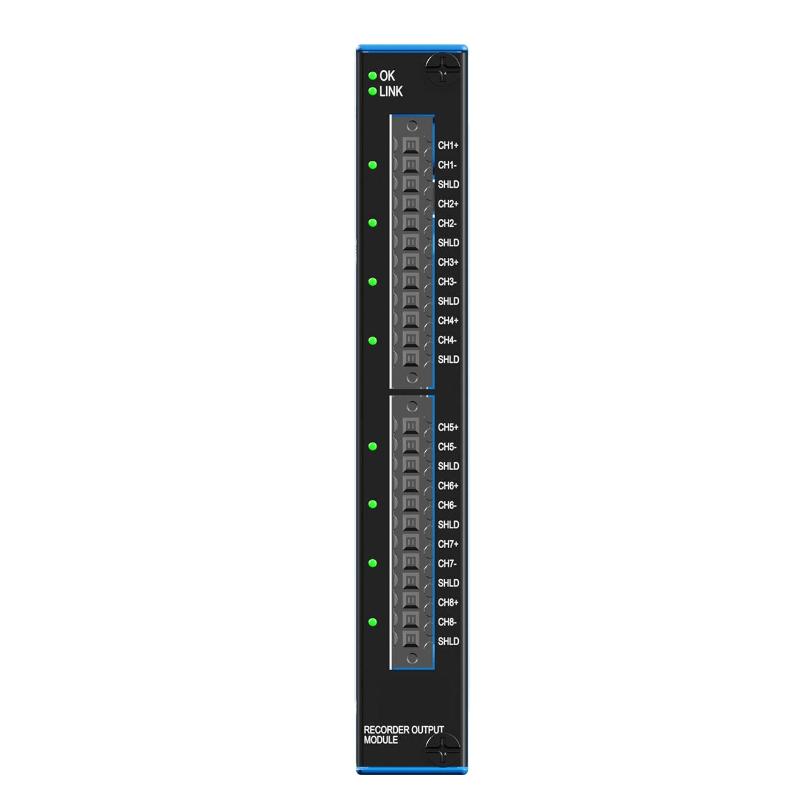

The 60R/REC01-00-0 is an 8-channel Recorder Output Module for the Orbit 60 Series. Its primary function is to take processed measurements available within the Orbit 60 system and convert them into proportional analog output signals for external equipment. Depending on the configuration, the module can provide 4–20 mA, 1–5 VDC, or 0–10 VDC signals. These outputs can be connected to PLCs, DCS systems, control systems, recorders, or other equipment that requires an analog representation of a machine measurement. Each recorder output can be configured independently, allowing different measurements and output types to be used within the same module.

2. What output signal types are supported by the 60R/REC01-00-0?

The module supports three primary analog output ranges: 4–20 mA, 1–5 VDC, and 0–10 VDC. The output mode is selected through the system configuration software according to the requirements of the receiving equipment. For example, a PLC analog input may use a 4–20 mA signal, while another control device may require a 1–5 VDC or 0–10 VDC signal. Different output types can be assigned to different channels on the same Recorder Output Module, which provides considerable flexibility when integrating Orbit 60 measurements with external control and monitoring systems.

3. What types of measurements can be assigned to the recorder outputs?

The 60R/REC01-00-0 can be configured to represent proportional measurements available within the Orbit 60 system. Depending on the installed input modules and system configuration, these measurements can include processed vibration values, vibration amplitude and phase information, temperature measurements, position measurements, and other proportional machine variables. The recorder output is scaled according to the configured full-scale range of the associated measurement. This allows the external PLC, DCS, recorder, or monitoring system to receive a continuous analog representation of the selected machine parameter rather than requiring direct access to the internal Orbit 60 measurement data.

4. How does the 4–20 mA output behave when the associated measurement becomes invalid?

The 4–20 mA recorder output supports an extended range from approximately 3.8 mA to 20.5 mA to accommodate NAMUR NE43-style signal handling. The module also provides configurable clamp output levels that can be used to indicate an invalid measurement or a detected fault in the recorder channel or associated wiring. This provides the receiving control system with additional information beyond the normal measurement range. When configuring a 4–20 mA output, the clamp behavior should be coordinated with the PLC or DCS input logic so that the external system can distinguish a normal measurement from an invalid signal or recorder-channel fault.

5. What should be checked if a 60R/REC01-00-0 analog output is incorrect?

Troubleshooting should begin by verifying that the selected measurement is valid and available within the Orbit 60 system. Check the configured measurement, scaling range, output type, clamp settings, and channel assignment in the configuration software. For a 4–20 mA output, verify that the connected load is within the supported range and that the wiring is correctly terminated. For voltage outputs, check that the receiving equipment provides an appropriate input impedance. The module and individual channel status LEDs should also be checked for abnormal conditions. If the configuration is correct but the output remains incorrect, inspect the field wiring and receiving device before determining whether the Recorder Output Module itself requires replacement.

6. Can different output types be used on the same 60R/REC01-00-0?

Yes. The Recorder Output Module provides considerable channel-level flexibility. For example, one channel can be configured for a 4–20 mA output, another channel for 1–5 VDC, and another for 0–10 VDC, depending on the requirements of the connected external equipment. This eliminates the need to install separate output modules simply because different receiving systems require different analog signal ranges. Each channel should be configured according to the measurement being transmitted and the electrical requirements of the receiving PLC, DCS, recorder, or other control equipment. Correct scaling and signal type selection are important for maintaining accurate measurement representation.

7. What is the maximum load for the 4–20 mA output?

The 4–20 mA recorder output is designed to drive a signal load of up to 600 Ω or lower. The receiving equipment and complete signal loop should therefore be evaluated to ensure that the total loop resistance remains within the supported range. Excessive loop resistance can prevent the output from reaching the required current level and may cause inaccurate readings at the receiving device. Field wiring resistance, terminal resistance, isolators, barriers, and the input impedance of connected equipment should all be considered when calculating the total loop load. For voltage outputs, the specified signal load is 100 kΩ or higher.

8. How can reliable operation of the 60R/REC01-00-0 be maintained?

Reliable operation depends on correct channel configuration, suitable signal loading, proper field wiring, and regular monitoring of module and channel status. The output type and scaling should match the requirements of the connected PLC, DCS, recorder, or control system. Wiring should be checked for loose terminals, damaged insulation, grounding problems, and excessive loop resistance. The module and channel status indicators should also be monitored for abnormal conditions. In applications using 4–20 mA signals, the configured clamp level should be coordinated with the receiving system’s fault-detection logic. If an output suddenly becomes abnormal, first verify the source measurement and configuration before replacing the module. This approach helps distinguish a genuine Recorder Output Module fault from a measurement, wiring, or external control-system problem.
