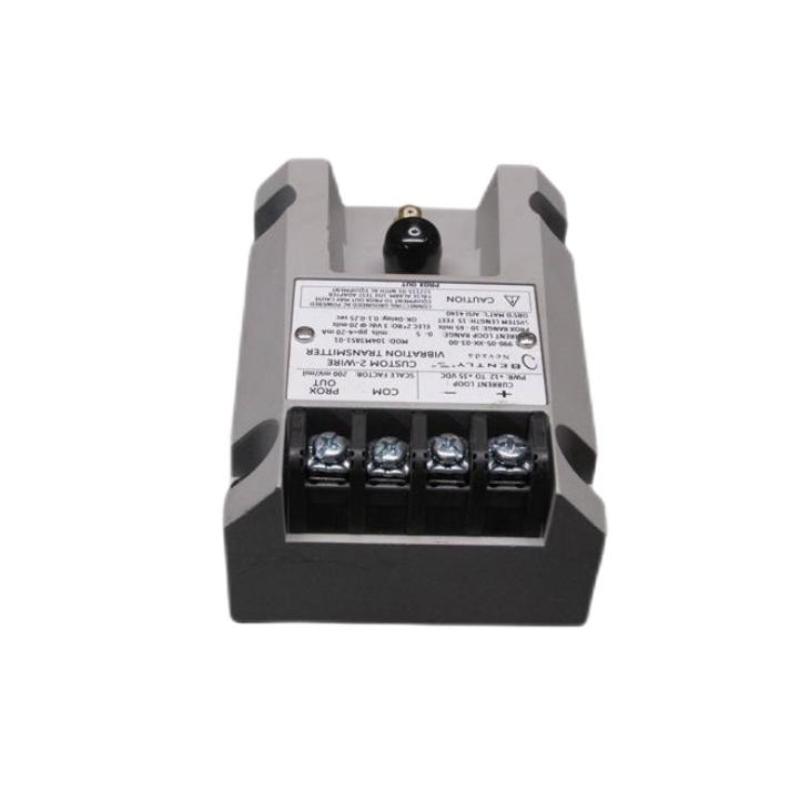

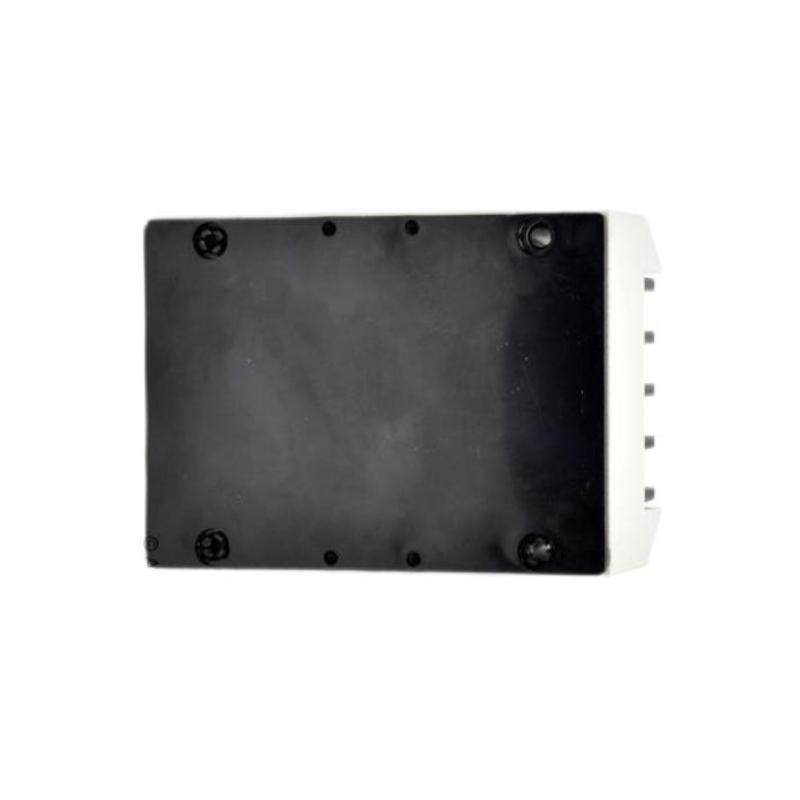

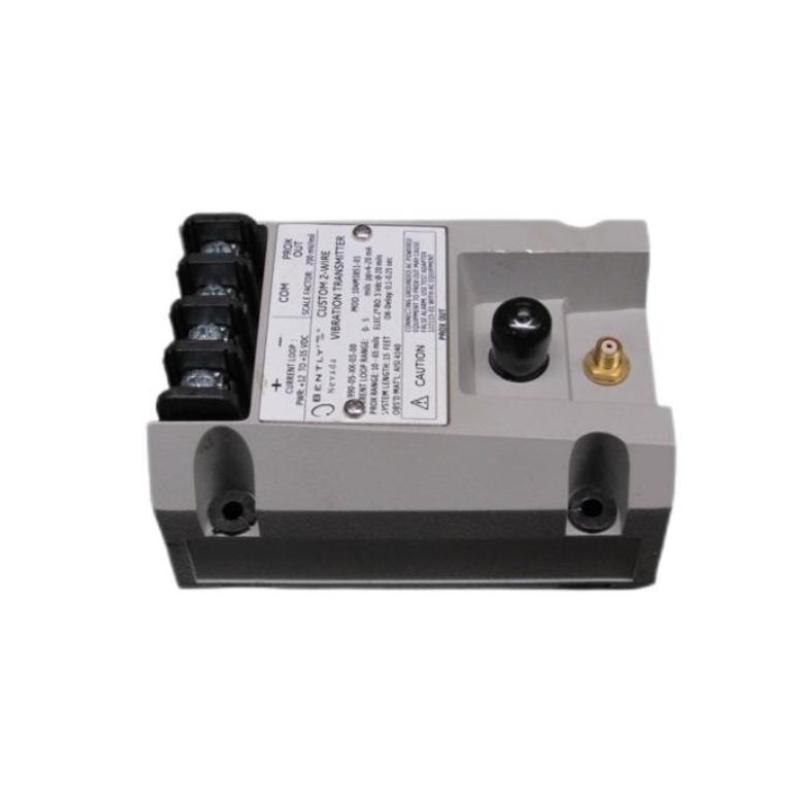

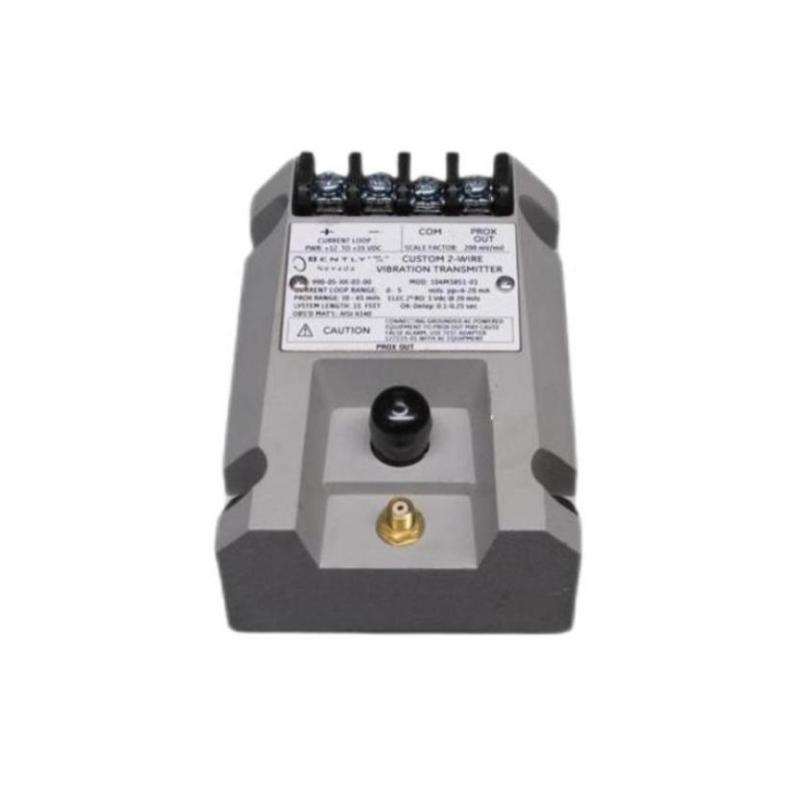

Bently Nevada 990-05-XX-03-CN Vibration Transmitter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Vibration Transmitter |
| Manufacturer | Bently Nevada |
| Product Model | 990-05-XX-03-CN |
| Series | 990 Vibration Transmitter |
| Measurement Range | 0–5 mils pp (0–125 μm pp) |
| System Length | XX = configurable system length; typically 5.0 m or 7.0 m |
| Input | One non-contacting 3300 NSv proximity probe with matching extension cable |
| Output | 4–20 mA DC, 2-wire |
| Power Supply | +12 to +35 VDC |
| Loop Accuracy | ±1.5% of specified full-scale range |
| Maximum Loop Resistance | 1,000 Ω at 35 VDC, including cable |
| Current Limiting | 23 mA typical |
| Frequency Response | 5 Hz to 6,000 Hz |
| Probe Gap | 0.5–1.75 mm (20–55 mils) |
| Mounting | 35 mm DIN-rail clips and mounting screws |
| Approval Configuration | CN country-specific approval configuration for Chinese-market requirements |
| Operating Temperature | -35°C to +85°C |
| Storage Temperature | -51°C to +100°C |
| Environmental Protection | Potted construction; suitable for high-humidity environments |
| Dimensions and Weight | Approx. 100 × 74 × 53 mm; approx. 0.43–0.50 kg |
FAQ
Q: What is the Bently Nevada 990-05-XX-03-CN?
A: It is a 2-wire, loop-powered vibration transmitter designed to convert the signal from a 3300 NSv proximity probe into a standard 4–20 mA vibration output.
Q: What does the 05 code indicate?
A: The 05 code specifies a full-scale vibration range of 0–5 mils peak-to-peak, equivalent to 0–125 μm peak-to-peak.
Q: What does XX mean in the model number?
A: XX represents the system-length field. Depending on the configured system, common lengths include 5.0 m and 7.0 m.
Q: What does the 03 mounting code specify?
A: The 03 configuration uses DIN-rail clips together with mounting screws for installation.
Q: What is the purpose of the CN suffix?
A: CN identifies a country-specific approval/configuration version intended for Chinese-market requirements. The exact certification marking should be checked against the nameplate and supplied certification documents for the individual unit.
Q: What power supply does the transmitter require?
A: The 990 transmitter operates from +12 to +35 VDC and is powered through its 2-wire current loop.
Q: Which probe is compatible with this transmitter?
A: The transmitter is designed for use with a non-contacting Bently Nevada 3300 NSv proximity probe and its matching extension cable.
Q: What are the approximate dimensions and weight?
A: The transmitter body is approximately 100 × 74 × 53 mm, with a typical unit weight of about 0.43–0.50 kg depending on the configured version and hardware.
Bently Nevada 990-05-XX-03-CN Vibration Transmitter is in stock. Please contact us for a quick quote and competitive pricing.
