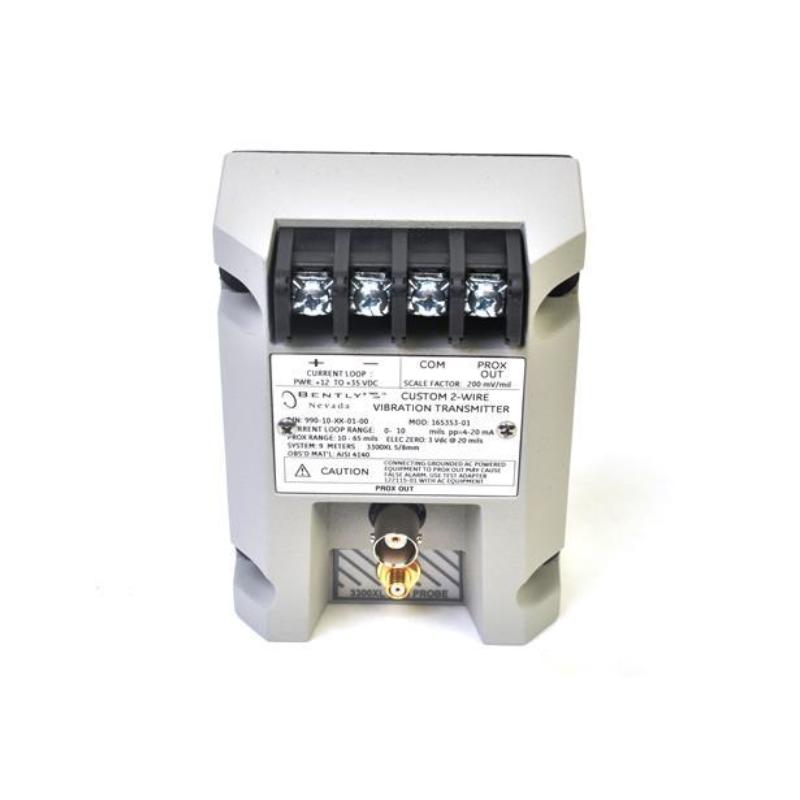

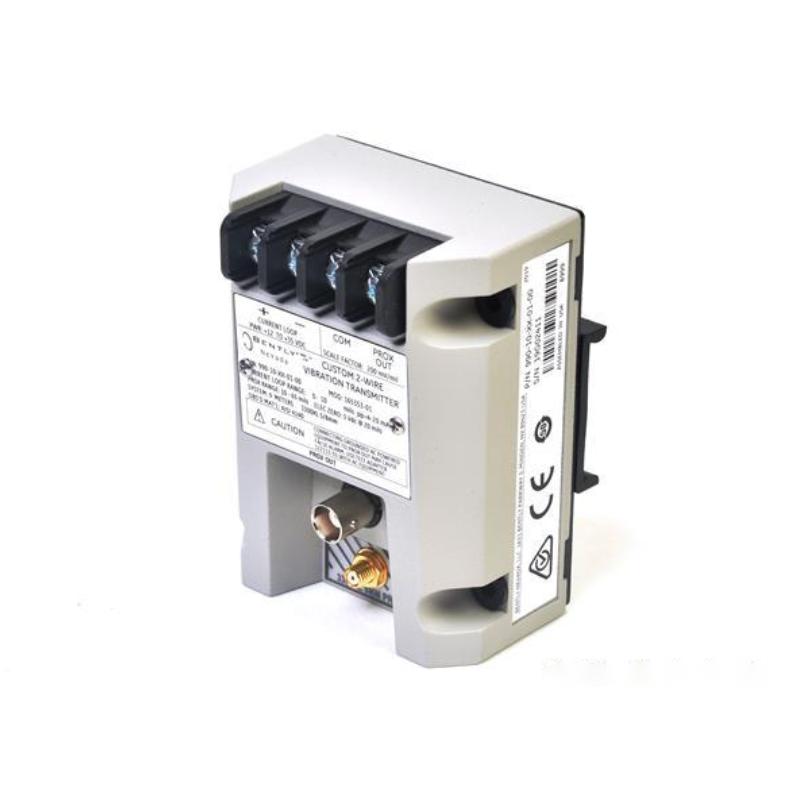

Bently Nevada 990-08-50-01-05 Vibration Transmitter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Vibration Transmitter |
| Manufacturer | Bently Nevada |
| Product Model | 990-08-50-01-05 |
| Series | 990 Vibration Transmitter |
| Measurement Range | 0–8 mils pp (0–200 μm pp) |
| System Length | 5.0 m (16.4 ft) |
| Input | One non-contacting 3300 NSv proximity probe and matching extension cable |
| Output | 4–20 mA DC, 2-wire |
| Power Supply | +12 to +35 VDC |
| Loop Accuracy | ±1.5% of specified full-scale range |
| Maximum Loop Resistance | 1,000 Ω at 35 VDC, including cable |
| Current Limiting | 23 mA typical |
| Frequency Response | 5 Hz to 6,000 Hz |
| Probe Gap | 0.5–1.75 mm (20–55 mils) |
| Mounting | 35 mm DIN-rail clips |
| Agency Approval | CSA Division 2, ATEX Zone 0/Zone 2, and ABS maritime approval |
| Operating Temperature | -35°C to +85°C |
| Storage Temperature | -52°C to +100°C |
| Construction | Potted construction for high-humidity environments |
| Dimensions and Weight | Approx. 100 × 74 × 51 mm; approx. 0.44 kg |
FAQ
Q: What is the Bently Nevada 990-08-50-01-05?
A: It is a 2-wire, loop-powered vibration transmitter for monitoring relative vibration on rotating machinery and providing a proportional 4–20 mA output.
Q: What does the 08 code represent?
A: The 08 code specifies a full-scale vibration range of 0–8 mils peak-to-peak, equivalent to 0–200 μm peak-to-peak.
Q: What system length is specified by 50?
A: The 50 code represents a 5.0 m (16.4 ft) probe and extension-cable system length.

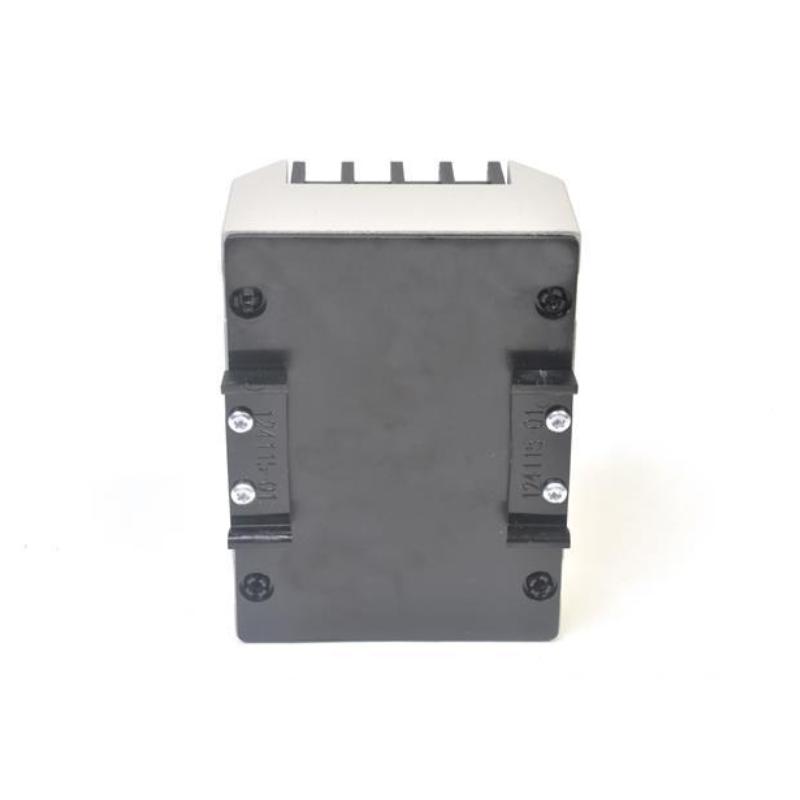

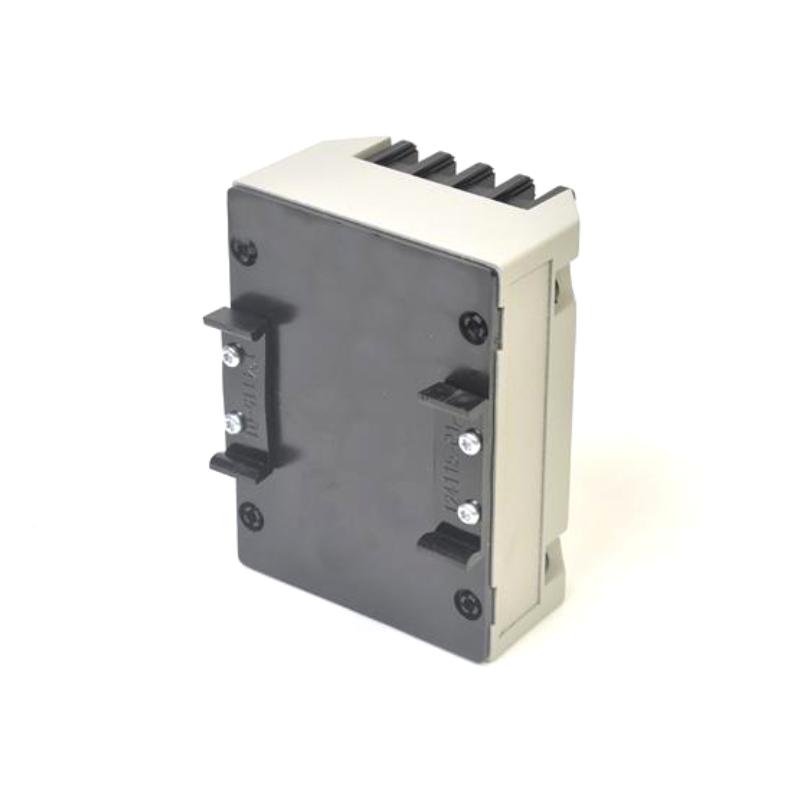

Q: What mounting arrangement does this model use?
A: The 01 mounting code specifies 35 mm DIN-rail clips.
Q: What does the final 05 indicate?
A: The 05 agency-approval configuration is associated with CSA Division 2, ATEX Zone 0/Zone 2, and ABS maritime approval.
Q: What type of signal does the transmitter provide?
A: It provides a 4–20 mA DC proportional vibration signal through a 2-wire loop, allowing direct connection to compatible PLC, DCS, or machinery-control inputs.
Q: What probe is used with the 990-08-50-01-05?
A: The transmitter is designed for a non-contacting Bently Nevada 3300 NSv proximity probe with its matching extension cable.
Q: What are the dimensions and weight of this transmitter?
A: The unit is approximately 100 × 74 × 51 mm and weighs about 0.44 kg. Packaging will increase the overall shipping size and weight.
Bently Nevada 990-08-50-01-05 Vibration Transmitter is in stock. Please contact us for a quick quote and competitive pricing.
