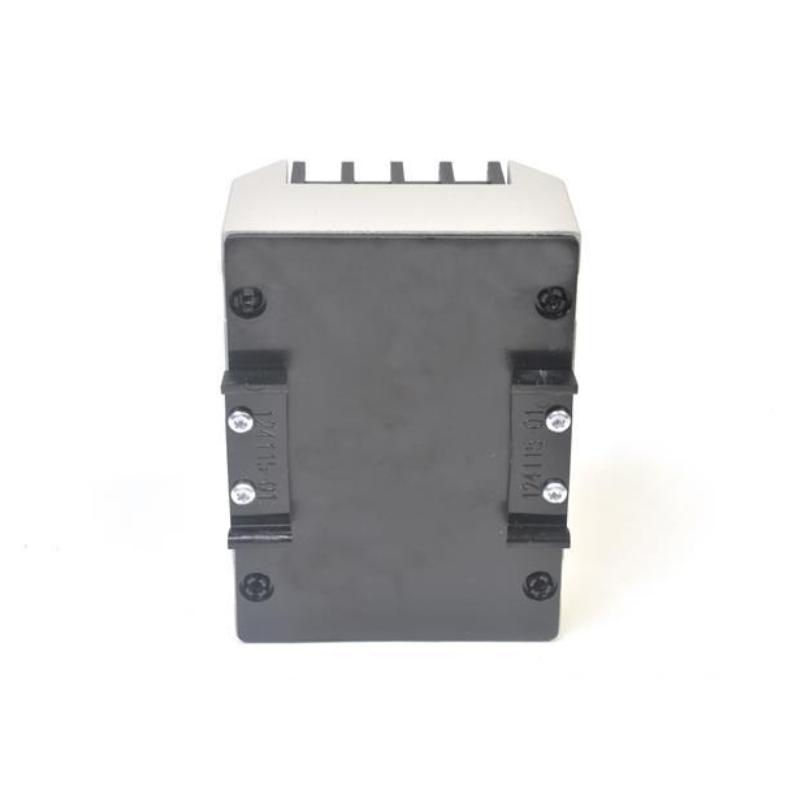

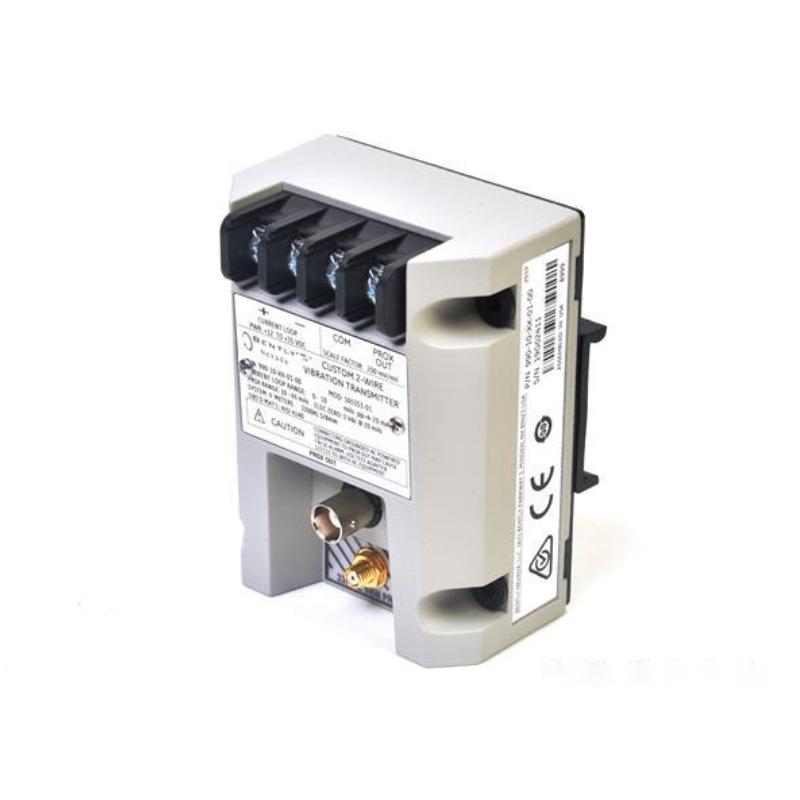

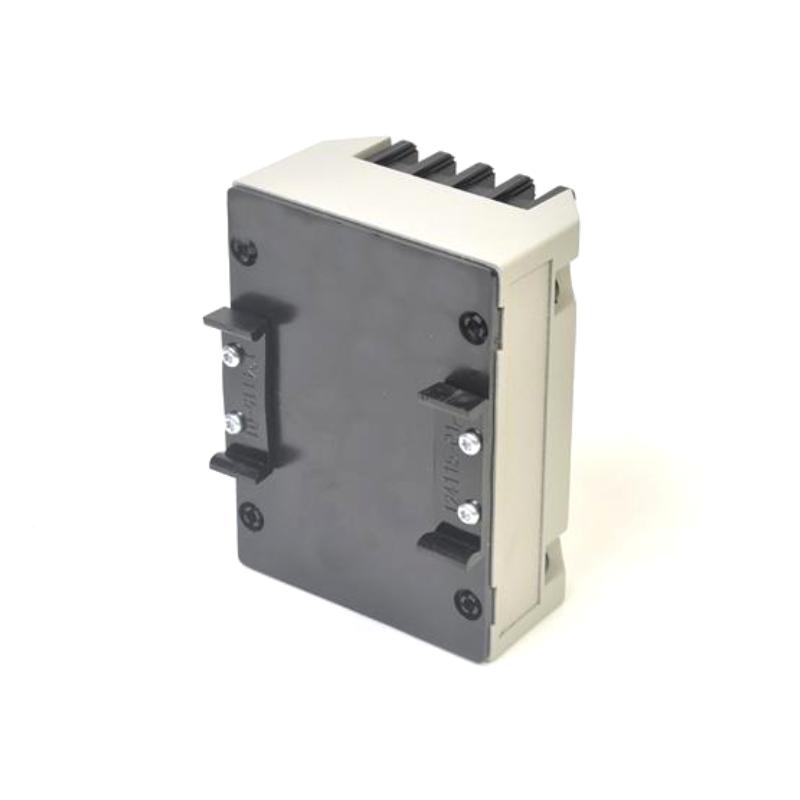

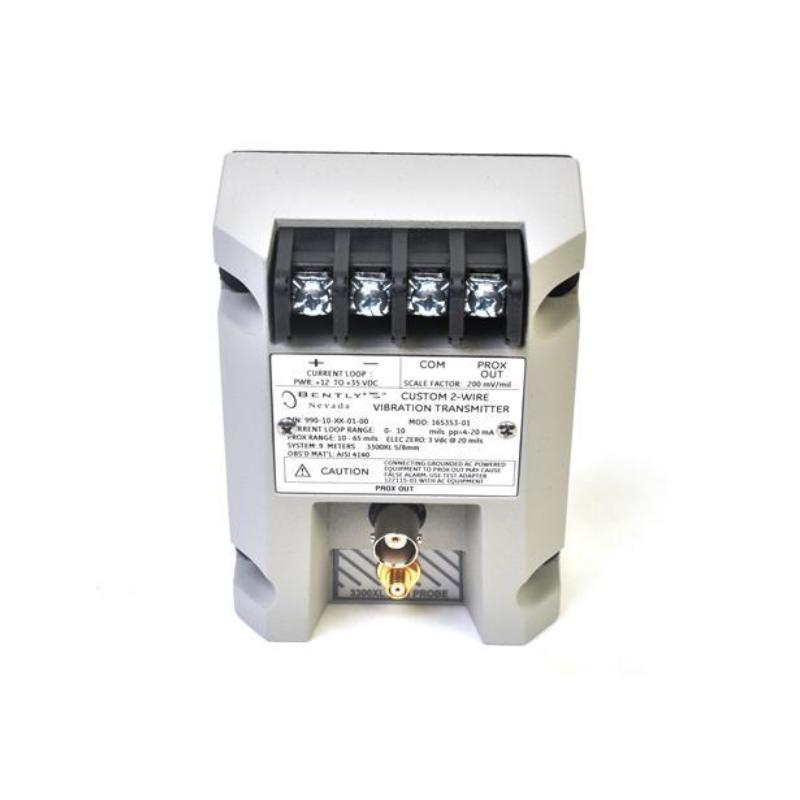

Bently Nevada 990-08-50-01-00 Two-Wire Vibration Transmitter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Two-Wire Vibration Transmitter |
| Product Model | 990-08-50-01-00 |
| Manufacturer | Bently Nevada |
| Series | 990 Vibration Transmitter |
| Measurement Range | 0–8 mils peak-to-peak (0–200 μm peak-to-peak) |
| System Length | 5.0 m (16.4 ft) |
| Mounting | 35 mm DIN rail mounting |
| Output | 4–20 mA DC, two-wire loop-powered |
| Input | One 3300 NSv non-contacting proximity probe with matching extension cable |
| Probe Compatibility | 3300 NSv proximity probes |
| Power Supply | +12 to +35 VDC |
| Maximum Loop Resistance | 1,000 Ω at 35 VDC |
| Current Limiting | Approximately 23 mA |
| Probe Gap | 0.5–1.75 mm (20–55 mils) for full-scale operation |
| Frequency Response | 5 Hz to 6,000 Hz, +0/−3 dB |
| Prox Out Scale Factor | 7.87 mV/μm (200 mV/mil), typical |
| Loop Accuracy | ±1.5% over the specified full-scale range |
| Mounting Clips | 35 mm DIN rail clips |
| Agency Approval | None required |
| Dimensions | Approx. 100.1 × 73.9 × 53.3 mm |
| Weight | Not reliably published by the manufacturer |
| Typical Applications | Centrifugal compressors, pumps, motors and fans |
FAQ
Q: What is the 990-08-50-01-00?
A: It is a Bently Nevada 990 two-wire, loop-powered vibration transmitter that converts a proximity-probe vibration signal into a standard 4–20 mA output.
Q: What vibration range does this model measure?
A: The 08 full-scale option corresponds to 0–8 mils peak-to-peak, equivalent to 0–200 μm peak-to-peak.
Q: What probe does it use?
A: The transmitter is designed to operate with a 3300 NSv non-contacting proximity probe and its matching extension cable.
Q: What is the system cable length for this model?
A: The 50 option specifies a 5.0 m (16.4 ft) system length.
Q: How is the transmitter mounted?
A: The 01 mounting option uses clips for installation on a standard 35 mm DIN rail.
Q: What power supply is required?
A: The transmitter requires +12 to +35 VDC at its terminals and operates as a two-wire loop-powered device.
Q: What signal does the transmitter provide?
A: It provides a proportional 4–20 mA DC signal representing the measured peak-to-peak vibration amplitude.
Q: Does the 990-08-50-01-00 have hazardous-area certification?
A: No. The final “00” configuration indicates that no agency approval is required. Certified versions use different approval suffixes.
Bently Nevada 990-08-50-01-00 Two-Wire Vibration Transmitter is in stock. Please contact us for a quick quote and competitive pricing.
