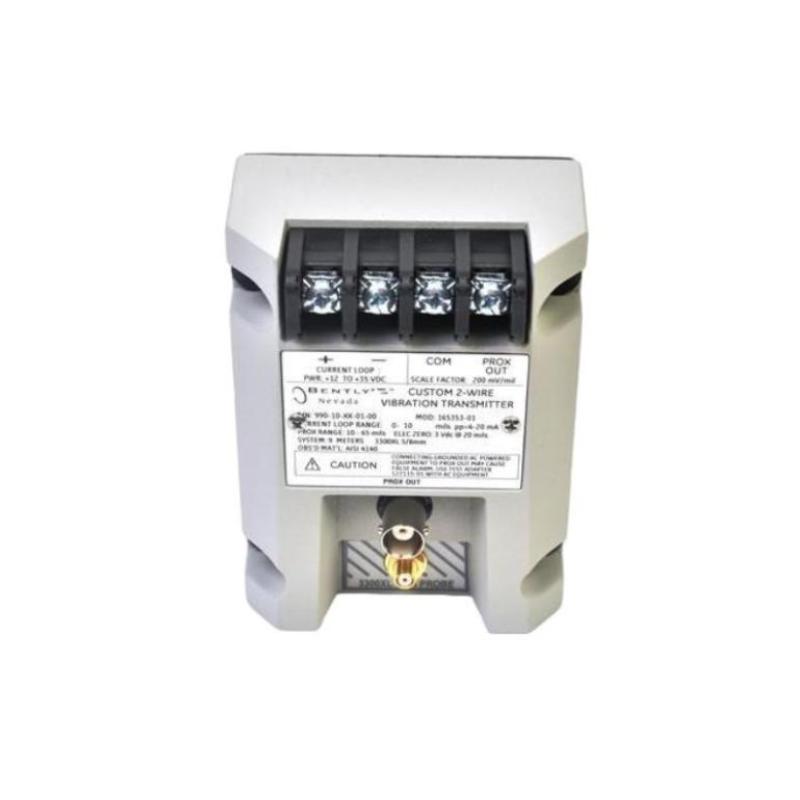

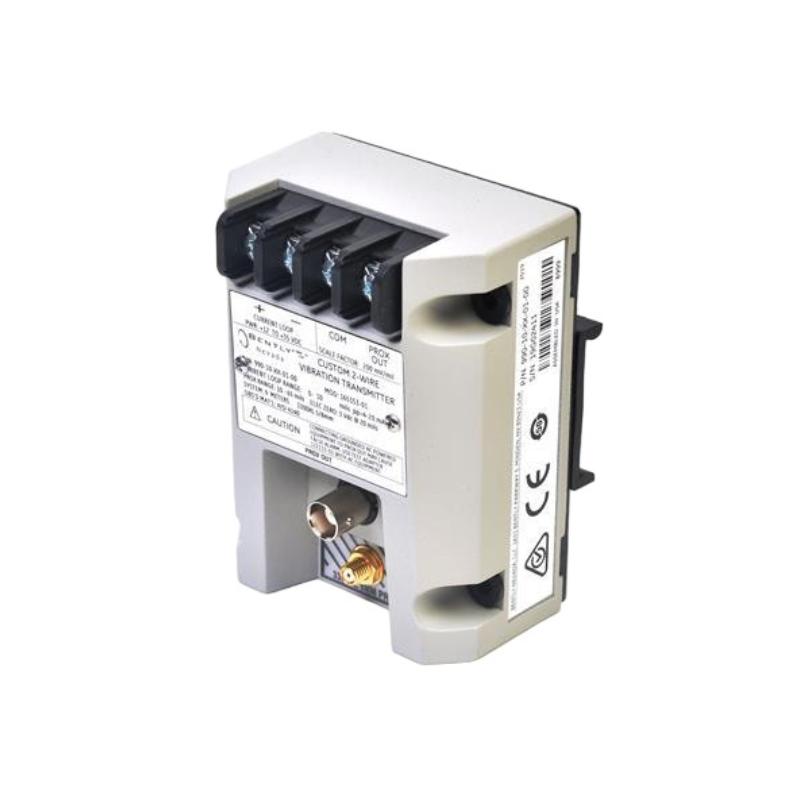

Bently Nevada 990-10-50-03-00 Vibration Transmitter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Vibration Transmitter |
| Product Model | 990-10-50-03-00 |
| Manufacturer | Bently Nevada |
| Series | 990 Vibration Transmitter |
| Measurement Range | 0–10 mils peak-to-peak (0–250 μm peak-to-peak) |
| System Length | 5.0 m (16.4 ft) |
| Input Device | 3300 NSv proximity probe with matching extension cable |
| Output | 4–20 mA DC, two-wire loop-powered |
| Power Supply | +12 to +35 VDC |
| Maximum Loop Resistance | 1,000 Ω at 35 VDC |
| Current Limiting | 23 mA typical |
| Frequency Response | 5 Hz to 6,000 Hz, +0/−3 dB |
| Mounting | DIN clips and screws |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303/304 stainless steel |
| Minimum Target Size | 9.5 mm (0.375 in) diameter |
| Operating Temperature | −35°C to +85°C |
| Storage Temperature | −52°C to +100°C |
| Signal Conditioning | Integrated Proximitor Sensor |
| Diagnostic Output | Non-isolated PROX OUT and COM; coaxial dynamic signal access |
| Agency Approval | None required |
| Dimensions | Approx. 100 × 74 × 58 mm |
| Weight | Approx. 0.5 kg |
FAQ
Q: What is the 990-10-50-03-00?
A: It is a Bently Nevada 990 two-wire, loop-powered vibration transmitter for converting proximity-probe measurements into a standard 4–20 mA signal.
Q: What is the measurement range of this model?
A: The full-scale range is 0–10 mils peak-to-peak, equivalent to 0–250 μm peak-to-peak.
Q: What probe does it work with?
A: It is designed for use with a Bently Nevada 3300 NSv proximity probe and its matching extension cable.
Q: What does the 5.0 m system length mean?
A: The “50” configuration specifies a 5.0 m (16.4 ft) total probe system length.

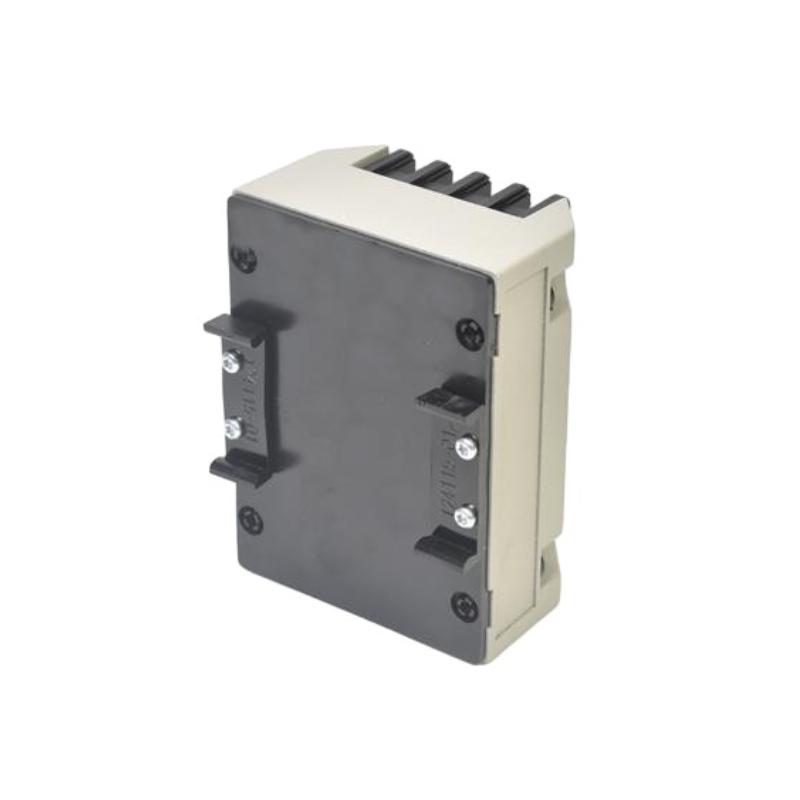

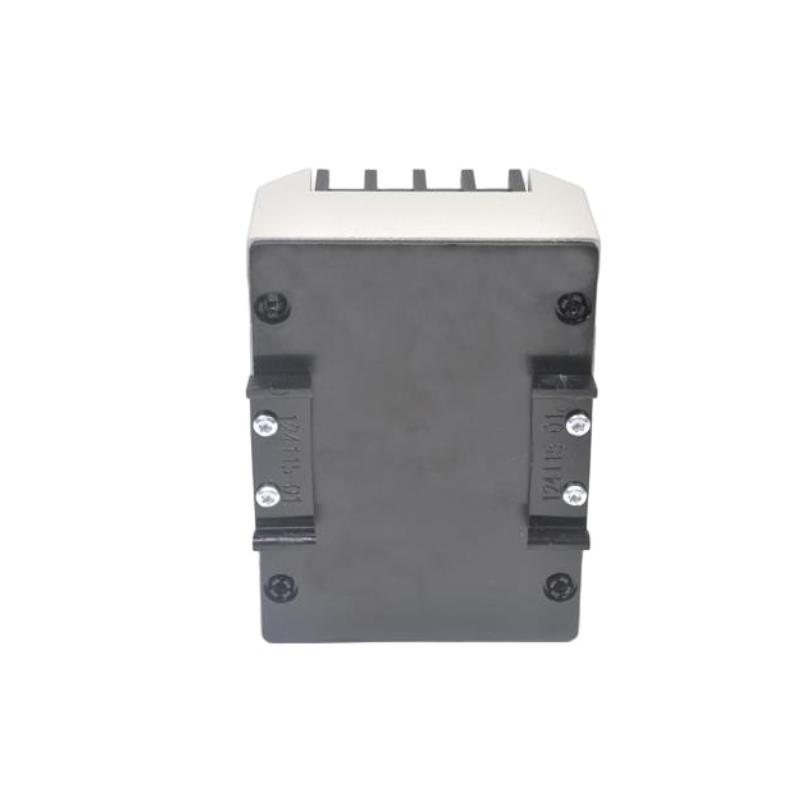

Q: How is the transmitter mounted?
A: The “03” mounting option uses DIN clips and screws, allowing convenient installation on a DIN rail or suitable panel arrangement.
Q: Does the transmitter require an external Proximitor Sensor?
A: No. The 990 transmitter incorporates the Proximitor function internally, so a separate external Proximitor Sensor is not required.
Q: What output does the transmitter provide?
A: It provides a proportional 4–20 mA DC output in a two-wire loop-powered configuration for connection to a PLC, DCS, monitoring system, or machinery control system.
Q: Is the 990-10-50-03-00 approved for a hazardous area?
A: No. The final “00” option indicates that no agency approval is specified for this configuration.
Bently Nevada 990-10-50-03-00 Vibration Transmitter is in stock. Please contact us for a quick quote and competitive pricing.
