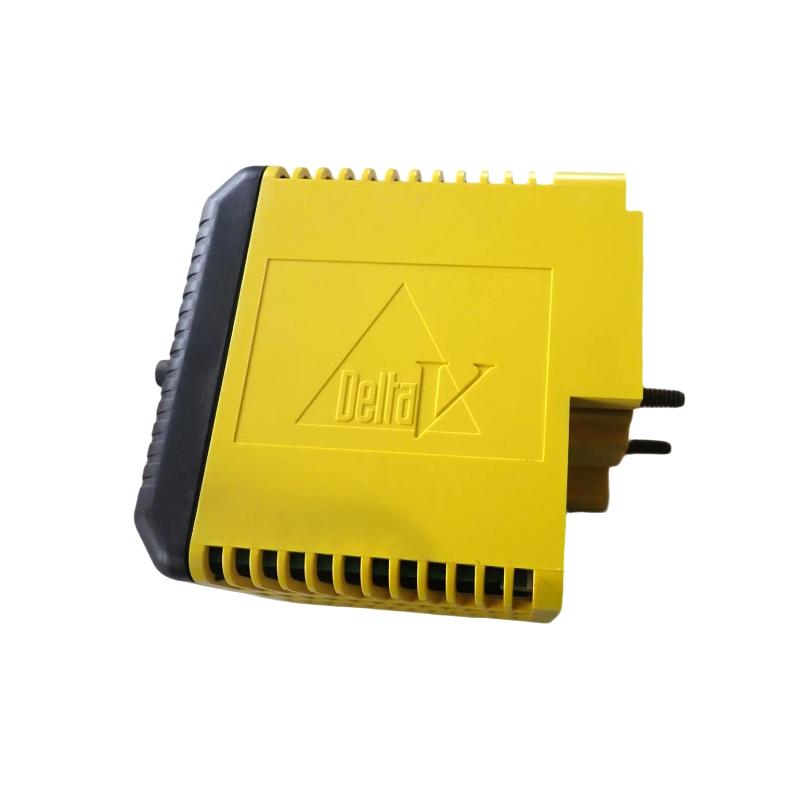

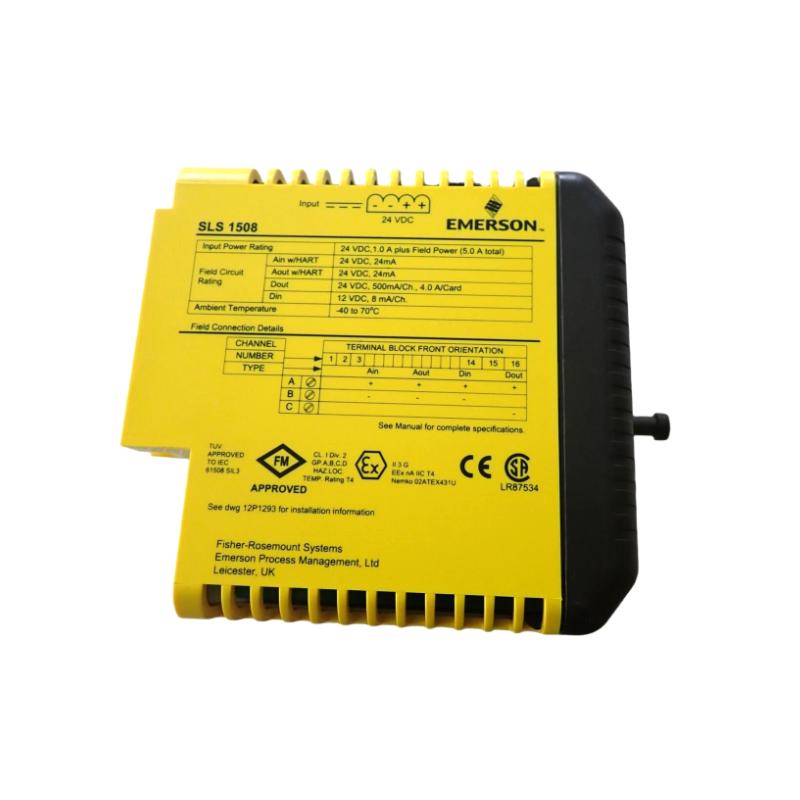

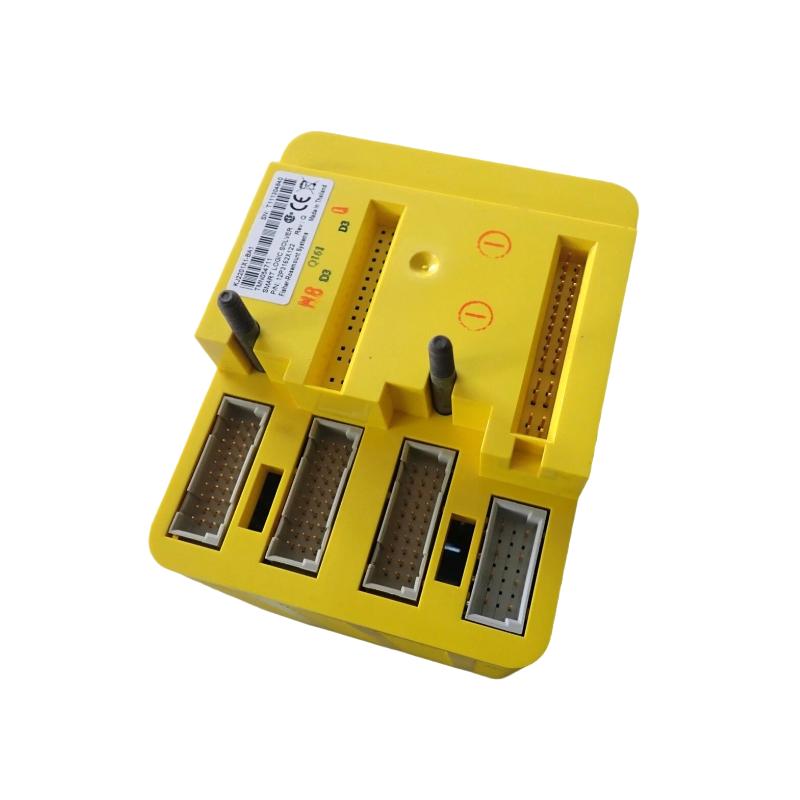

Q1: What is the purpose of the Emerson KJ2201X1-BA1 12P3162X122 Intelligent Logic Solver?

A: The KJ2201X1-BA1 Intelligent Logic Solver is a key component within the Emerson DeltaV SIS platform, responsible for executing safety-critical control logic and ensuring that industrial processes operate within predefined safety limits. It continuously monitors process conditions, evaluates safety-related inputs, and initiates protective actions when hazardous situations are detected. By performing these functions independently from the basic process control system, the module helps prevent accidents, protect personnel, minimize equipment damage, and maintain compliance with functional safety standards.

Q2: How does the Intelligent Logic Solver contribute to plant safety?

A: The module serves as the decision-making engine of a Safety Instrumented System (SIS). It receives signals from safety transmitters, switches, and detectors, compares them against configured safety criteria, and executes predefined responses whenever abnormal conditions occur. These responses may include shutting down equipment, isolating process sections, activating alarms, or triggering emergency shutdown sequences. Its deterministic processing ensures that safety actions are carried out quickly and consistently when required.

Q3: What types of safety applications can this module support?

A: The KJ2201X1-BA1 is suitable for a broad range of industrial safety applications, including Emergency Shutdown Systems (ESD), Fire and Gas Detection Systems (F&G), Burner Management Systems (BMS), High Integrity Pressure Protection Systems (HIPPS), turbine protection systems, compressor shutdown systems, and critical process interlocks. Its flexibility allows it to support both simple and highly complex safety strategies across various industrial sectors.

Q4: How does the module interact with safety I/O devices?

A: The Intelligent Logic Solver communicates with dedicated safety I/O modules that collect signals from field devices such as pressure transmitters, temperature sensors, limit switches, and gas detectors. The module processes these inputs in real time and determines whether safety actions are required. It can also issue commands to safety output devices, including shutdown valves, motor trip relays, and alarm systems, ensuring that protective actions are executed accurately and reliably.

Q5: Does the KJ2201X1-BA1 support redundant system configurations?

A: Yes, the module can be deployed in redundant safety architectures designed to maximize system availability. In a redundant configuration, primary and backup logic solvers continuously synchronize operational data and safety logic execution. If the primary unit experiences a fault or hardware failure, the backup unit can immediately assume control responsibilities. This seamless transition helps maintain continuous protection and reduces the risk of safety function interruption.

Q6: What diagnostic capabilities are available in this Intelligent Logic Solver?

A: The module includes comprehensive diagnostic features that continuously monitor processor performance, memory integrity, communication channels, internal circuitry, and power conditions. These diagnostics operate automatically and can detect a wide range of faults before they impact system operation. Diagnostic information is made available through the DeltaV SIS environment, allowing maintenance teams to quickly identify issues, perform corrective actions, and improve overall system reliability.

Q7: Which industries commonly use the KJ2201X1-BA1 Intelligent Logic Solver?

A: This module is widely used in industries where process safety is essential, including oil and gas production, refining, petrochemical facilities, chemical plants, power generation stations, LNG terminals, offshore platforms, pipeline systems, and other hazardous industrial environments. Its safety-focused design makes it particularly valuable in applications where equipment failures or process deviations could result in significant operational, environmental, or safety consequences.

Q8: What maintenance practices are recommended for the KJ2201X1-BA1?

A: To ensure long-term operational reliability, users should regularly verify safety logic configurations, communication integrity, power supply stability, and overall system diagnostics. Periodic proof testing should be performed according to site safety procedures and applicable functional safety standards. Engineers should also review event logs, alarm histories, and diagnostic reports to identify potential issues before they affect system performance. Maintaining proper environmental conditions and keeping configuration backups up to date further helps maximize system availability and lifecycle performance.
