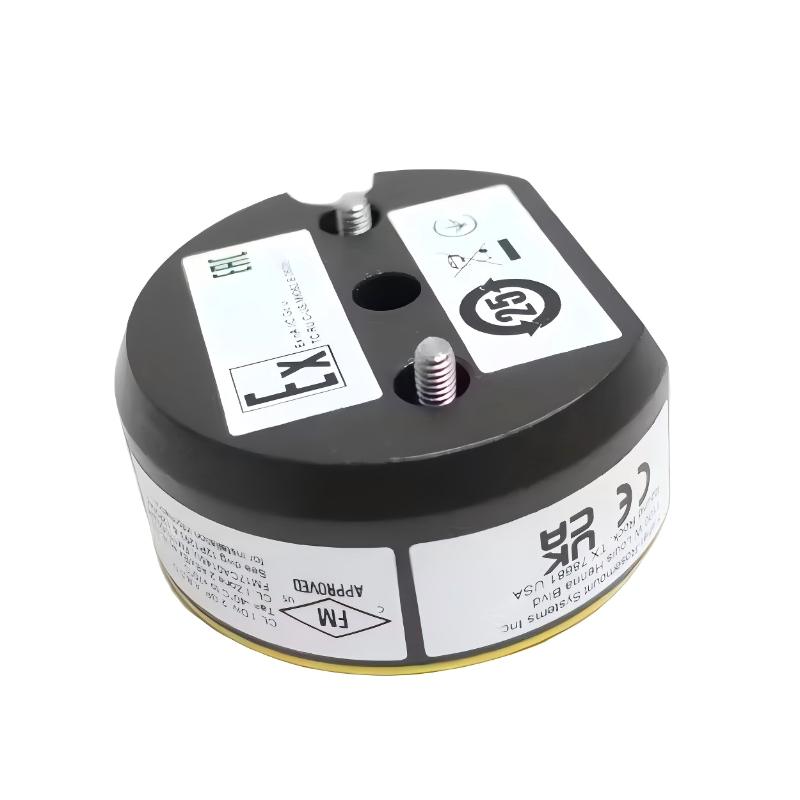

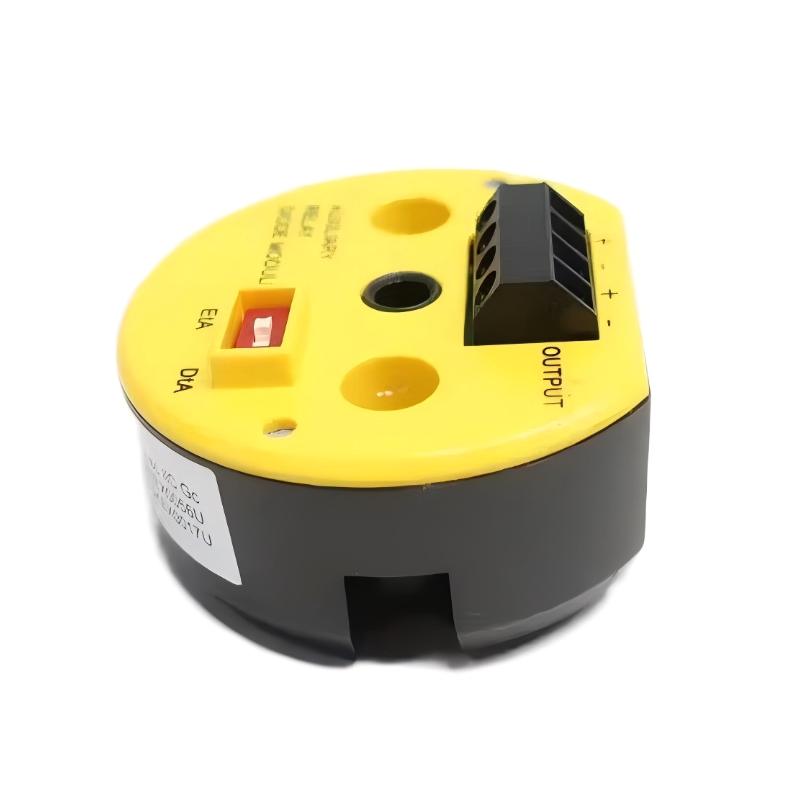

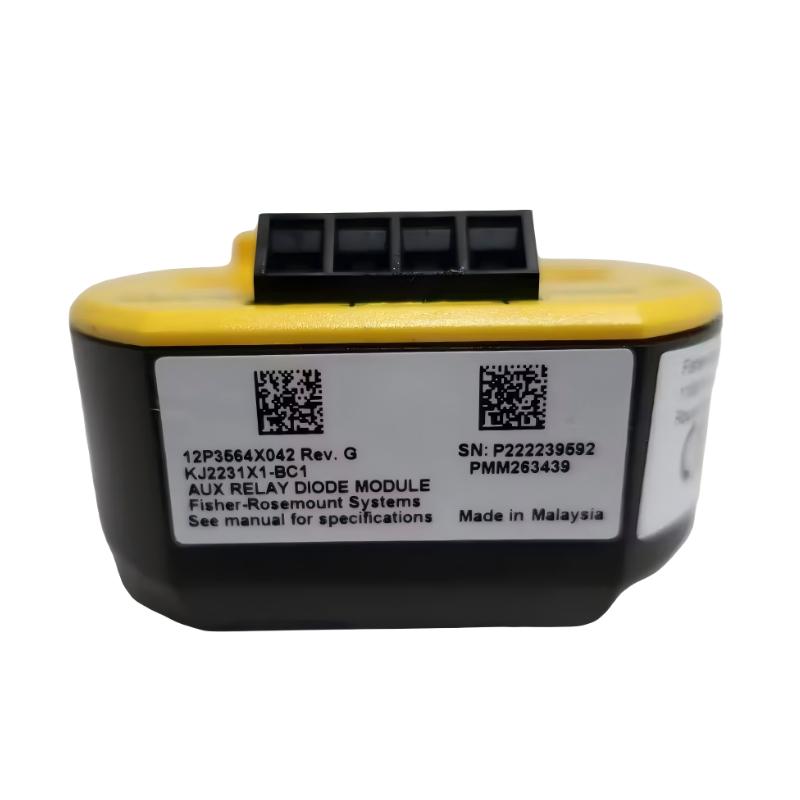

Q1: What is the primary function of the Emerson KJ2231X1-BC1 Auxiliary Relay Diode Module?

A: The KJ2231X1-BC1 is designed specifically to protect relay control circuits from inductive voltage spikes generated when relay coils are switched off. In industrial automation systems, relay coils store energy in a magnetic field while energized. When the control signal is removed, this energy is rapidly released, creating a high-voltage transient known as flyback voltage. The diode module provides a controlled path for this energy to dissipate safely, preventing it from damaging PLC outputs, I/O modules, or control electronics. This makes it an essential protective component in any system that uses DC-driven relays.

Q2: Why is flyback protection necessary in relay control circuits?

A: Without proper suppression, the sudden collapse of a relay coil’s magnetic field can generate voltage spikes that are significantly higher than the system’s rated voltage. These spikes can cause premature failure of semiconductor switching devices such as transistors, PLC output cards, or industrial controllers. Over time, repeated exposure to such transients can degrade insulation, cause intermittent faults, or even lead to complete hardware failure. The diode module ensures that this energy is safely redirected, greatly improving system durability and reducing maintenance costs.

Q3: How does the diode module actually work in operation?

A: The module operates using a simple but highly effective principle. When the relay coil is energized, current flows normally through the circuit and the diode remains reverse-biased, meaning it does not conduct. When the coil is de-energized, the collapsing magnetic field generates a reverse voltage. At that moment, the diode becomes forward-biased and provides a closed-loop path for the current. This allows the stored energy in the coil to circulate harmlessly within the circuit until it dissipates as heat, preventing voltage spikes from propagating into the control system.

Q4: What types of systems typically require this module?

A: This module is commonly used in industrial automation environments where DC relay coils are controlled by PLCs or distributed control systems such as Emerson DeltaV. Typical applications include process plants, oil and gas facilities, chemical processing units, power generation systems, water treatment plants, and manufacturing automation lines. Any system that relies on frequent switching of inductive loads can benefit from this type of protection.

Q5: Does the KJ2231X1-BC1 improve the lifespan of relays and controllers?

A: Yes, significantly. By reducing electrical stress caused by inductive kickback, the module minimizes wear on both relay coils and the electronic switching components that drive them. This reduction in electrical stress helps prevent micro-damage accumulation over time, which is one of the primary causes of premature failure in industrial control systems. As a result, both relays and controller output modules experience longer operational lifespans and improved reliability.

Q6: Is there any impact on relay switching performance?

A: The use of a flyback diode does introduce a slightly longer release time for the relay because the stored energy in the coil is dissipated more gradually. However, in most industrial control applications, this delay is extremely small and does not affect process performance. In fact, this trade-off is widely accepted because the gain in protection and reliability far outweighs the minimal change in switching dynamics.

Q7: Can this module be used with AC relay coils?

A: No, this type of diode-based suppression is specifically designed for DC inductive loads. AC coils require different suppression methods such as RC snubber circuits or metal oxide varistors (MOVs), because the polarity of AC voltage alternates continuously, making a simple diode unsuitable. Using this module on AC circuits would not provide proper protection and is therefore not recommended.

Q8: What are the key practices for ensuring long-term reliability of this module?

A: Long-term reliability is achieved by ensuring correct installation and system matching. The module should always be used with properly rated DC relay coils and installed with secure terminal connections. It is also important to maintain a clean, dry, and thermally stable control cabinet environment to prevent contamination or corrosion. Regular inspection of wiring integrity and verification of correct polarity are also essential. In well-maintained systems, the module operates passively and reliably for extended periods without degradation, providing continuous protection for critical control electronics.
