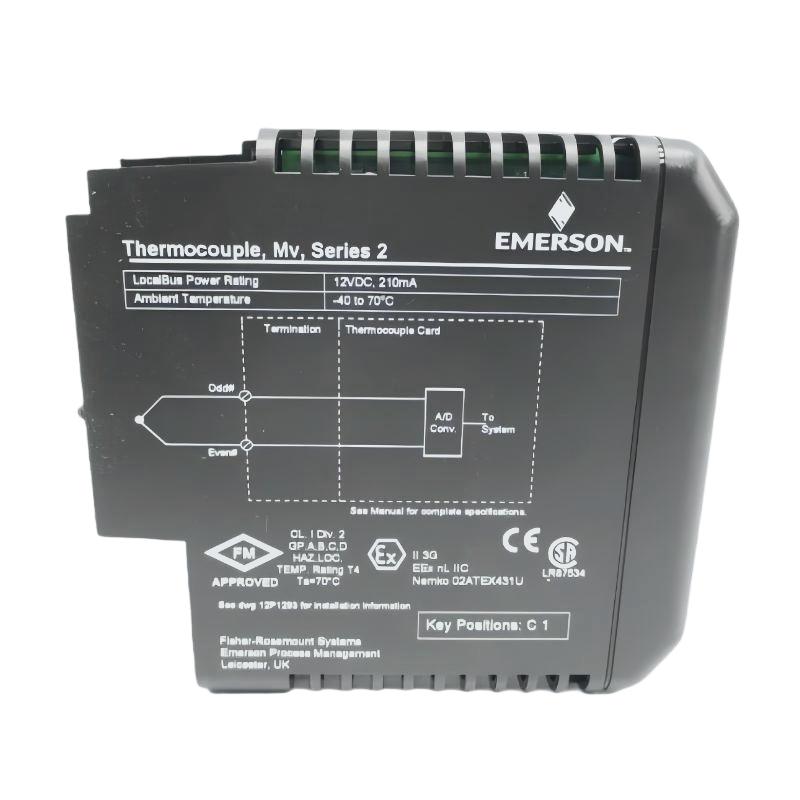

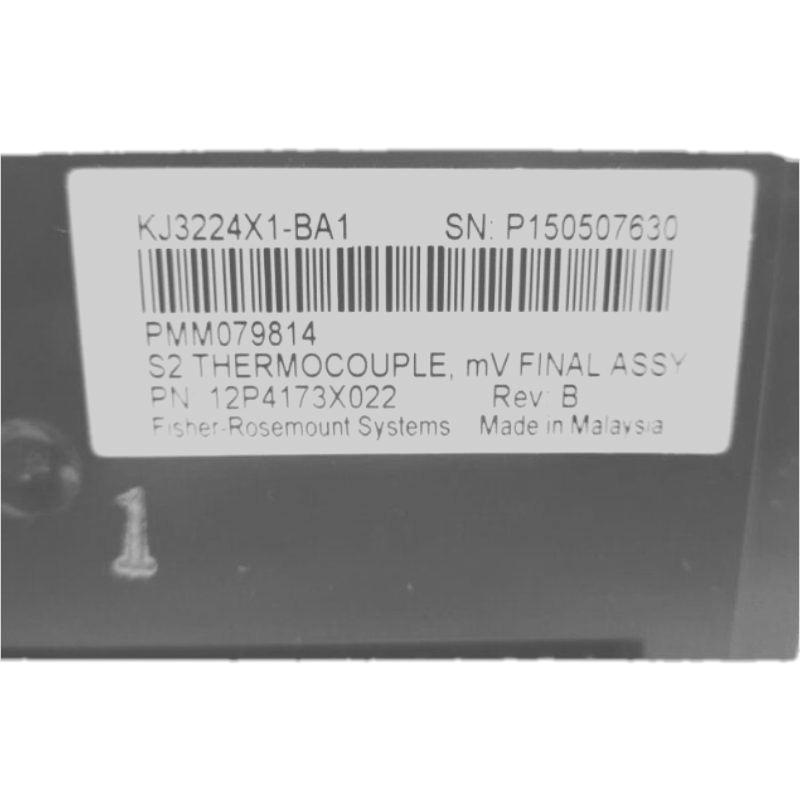

Q1: What is the primary function of the KJ3224X1-BA1 Thermocouple Module?
A: The KJ3224X1-BA1 Thermocouple Module is designed to acquire temperature signals from thermocouple sensors and convert them into digital data that can be processed by the control system. It serves as a critical interface between field temperature measurement devices and the automation platform, enabling accurate monitoring and control of industrial processes. By continuously collecting temperature data from key process points, the module helps operators maintain product quality, process efficiency, and operational safety.

Q2: Which thermocouple types can be connected to the KJ3224X1-BA1?
A: The module is designed to support a variety of industry-standard thermocouple types commonly used in industrial applications, including Type K, J, T, E, N, R, and S thermocouples. This flexibility allows it to be used across a wide range of temperature measurement applications. The specific sensor type is typically selected during system configuration, ensuring accurate signal conversion and temperature calculation according to the characteristics of the connected thermocouple.

Q3: Why is cold junction compensation important in thermocouple measurements?
A: Thermocouples generate a voltage based on the temperature difference between the measurement junction and the reference junction. Without proper compensation, changes in the reference junction temperature can introduce significant measurement errors. The KJ3224X1-BA1 incorporates automatic cold junction compensation, which continuously monitors the reference temperature and applies the necessary corrections. This feature significantly improves measurement accuracy and ensures reliable temperature readings even when ambient conditions fluctuate.

Q4: How does the KJ3224X1-BA1 improve temperature measurement reliability?
A: The module utilizes advanced signal conditioning and high-resolution conversion technology to ensure accurate temperature measurements in demanding industrial environments. Built-in diagnostic capabilities continuously monitor sensor status and signal integrity, helping to identify issues such as sensor failures, wiring problems, or abnormal input conditions. By detecting faults early and maintaining measurement accuracy, the module contributes to improved process reliability and operational efficiency.

Q5: What industrial applications commonly use the KJ3224X1-BA1?
A: The KJ3224X1-BA1 is widely used in industries where precise temperature monitoring is essential. Typical applications include oil and gas processing, petrochemical production, power generation, pharmaceutical manufacturing, food and beverage processing, metal production, pulp and paper manufacturing, and water treatment facilities. It is frequently deployed in boilers, furnaces, reactors, heat exchangers, kilns, and other equipment where accurate temperature control directly impacts product quality and process safety.

Q6: How does the module respond to a thermocouple failure or open circuit condition?
A: The KJ3224X1-BA1 includes built-in diagnostic functions that continuously monitor thermocouple integrity. If a thermocouple becomes disconnected, damaged, or develops an open circuit, the module can detect the abnormal condition and generate diagnostic information or alarm notifications within the control system. This allows maintenance personnel to quickly identify the affected measurement point and take corrective action before process performance is impacted.

Q7: What installation practices should be followed for optimal performance?
A: For reliable operation, thermocouple wiring should be installed using the correct extension or compensation cable matching the thermocouple type. Signal cables should be routed separately from high-voltage or high-current power cables to minimize electromagnetic interference. Proper grounding and shielding practices should be followed, and all terminal connections should be securely tightened. Adhering to these installation guidelines helps ensure measurement accuracy and reduces the likelihood of signal disturbances.

Q8: How can the long-term reliability of the KJ3224X1-BA1 be maximized?
A: Long-term reliability can be achieved through regular preventive maintenance and system inspections. Operators should periodically verify thermocouple condition, wiring integrity, and terminal connections while reviewing diagnostic information for early signs of potential issues. Maintaining a clean control cabinet environment, protecting the module from excessive moisture and contamination, and ensuring stable operating conditions can significantly extend service life. In critical applications, routine calibration checks and scheduled testing of temperature measurement loops can further improve system performance and reliability.
