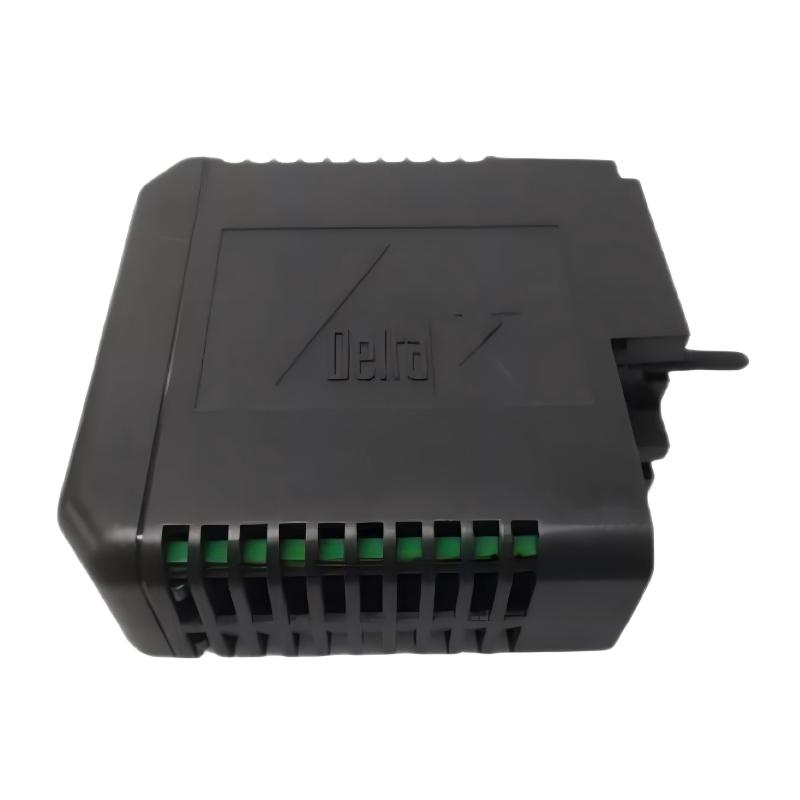

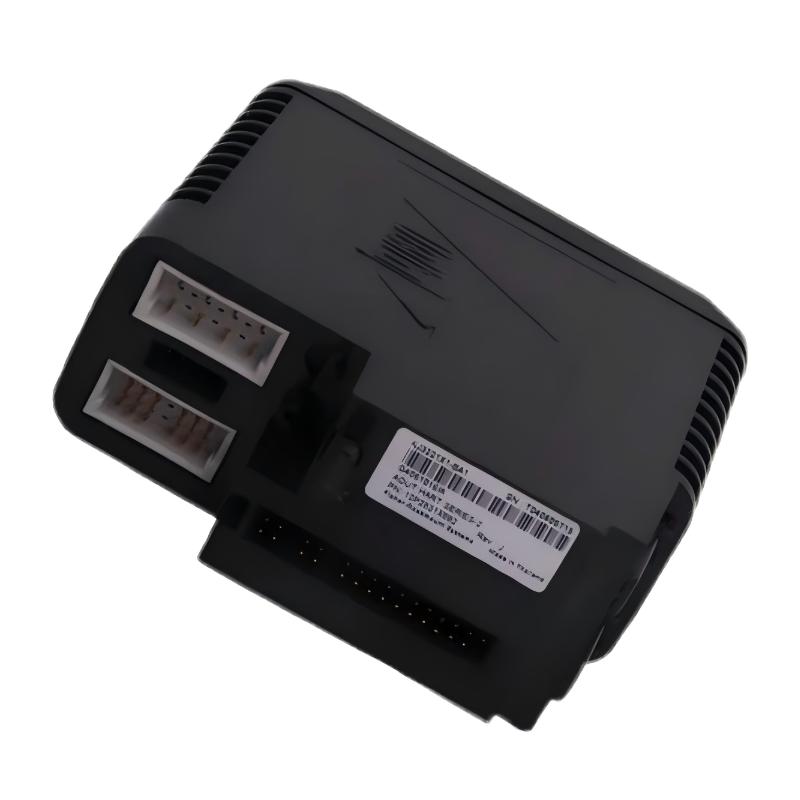

Q1: What is the primary function of the KJ3231X1-BA1 Isolation Input Module?
A: The KJ3231X1-BA1 Isolation Input Module is designed to receive digital signals from field devices and safely transmit them to the control system for monitoring and processing. It acts as an interface between industrial equipment and the automation platform, ensuring reliable signal acquisition while protecting the control system from electrical disturbances. By isolating field-side circuits from system-side electronics, the module helps improve operational safety, signal integrity, and overall system reliability.

Q2: Why is electrical isolation important in industrial input modules?
A: Electrical isolation is critical because industrial facilities often contain equipment operating at different voltage levels and grounding potentials. Without isolation, voltage transients, ground loops, and electrical noise could propagate into the control system and cause signal errors, equipment damage, or unexpected shutdowns. The KJ3231X1-BA1 uses isolation technology to transfer signal information while preventing direct electrical interaction between the field devices and the control system, significantly enhancing protection and reliability.

Q3: What types of applications typically use the KJ3231X1-BA1?
A: The module is commonly used in industries such as oil and gas, petrochemical processing, power generation, water and wastewater treatment, pharmaceuticals, mining, and manufacturing. Typical applications include monitoring limit switches, pushbuttons, relay contacts, safety devices, alarm systems, and other discrete field signals. It is especially valuable in applications where reliable signal acquisition and electrical protection are essential for safe and efficient operation.

Q4: How does the KJ3231X1-BA1 improve immunity to electrical interference?
A: The module incorporates industrial-grade isolation and electromagnetic compatibility (EMC) design features that help minimize the effects of electrical noise, voltage spikes, and common-mode interference. In environments containing large motors, variable frequency drives, switchgear, and other sources of electromagnetic disturbances, the module maintains stable signal acquisition and transmission. This capability reduces the risk of false input readings, nuisance alarms, and control system disruptions.

Q5: What diagnostic capabilities are included in the module?
A: The KJ3231X1-BA1 provides comprehensive diagnostic functions that continuously monitor channel status, module health, and communication performance. If abnormal conditions such as input faults, wiring problems, or module failures occur, diagnostic information can be reported to the control system. This enables maintenance personnel to quickly identify and troubleshoot issues, reducing downtime and improving maintenance efficiency.

Q6: What troubleshooting steps should be taken if an input signal is not being detected correctly?
A: When an input signal is not responding as expected, technicians should first verify that the field device is functioning properly and supplying the correct signal. Wiring connections, terminal integrity, and power sources should then be inspected for loose connections or damage. The module’s status indicators and diagnostic information should also be reviewed to identify possible channel faults or communication issues. A systematic inspection of both the field device and the control system configuration can usually help determine the root cause of the problem.

Q7: How is the KJ3231X1-BA1 integrated into a DeltaV system?
A: The module is installed within a DeltaV I/O carrier or rack and communicates with the controller through the system backplane. Field devices are wired directly to the module, allowing the controller to monitor their status in real time. The acquired signals can then be used for process control, alarm management, interlocking functions, equipment monitoring, and safety-related applications. Its modular architecture simplifies installation, system expansion, and maintenance activities.

Q8: What maintenance practices help maximize the reliability of the KJ3231X1-BA1?
A: Long-term reliability can be improved through routine inspections of wiring connections, grounding systems, and terminal conditions. The module should be operated in a clean control cabinet environment with adequate protection from dust, moisture, vibration, and excessive heat. Periodic reviews of diagnostic data and input channel performance can help identify potential issues before they impact operations. For critical applications, implementing a preventive maintenance program and regularly verifying signal integrity can significantly extend the service life of the module and enhance overall system availability.
