Technical Specifications

FAQ

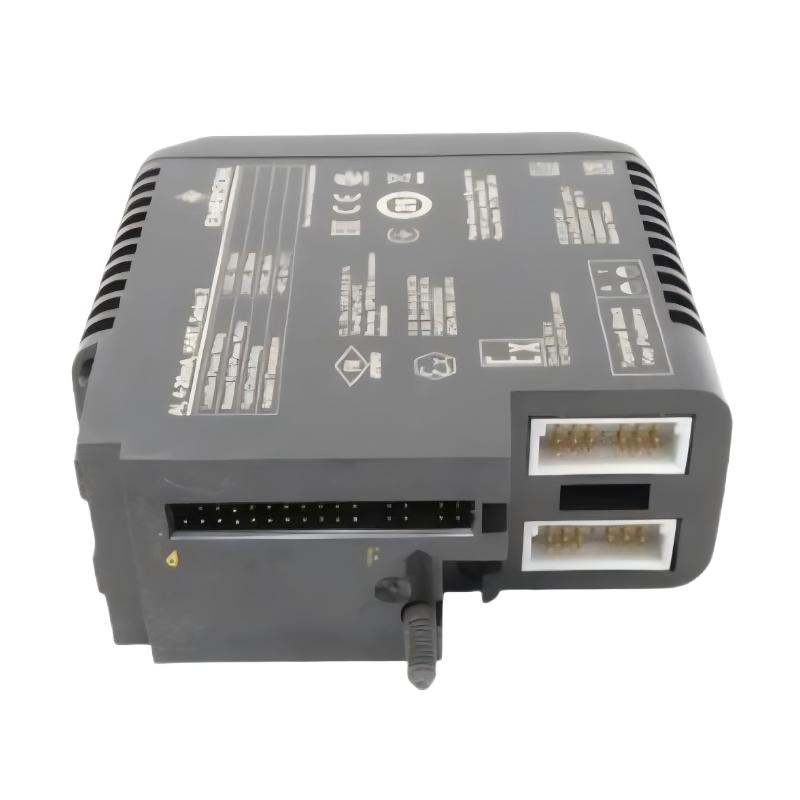

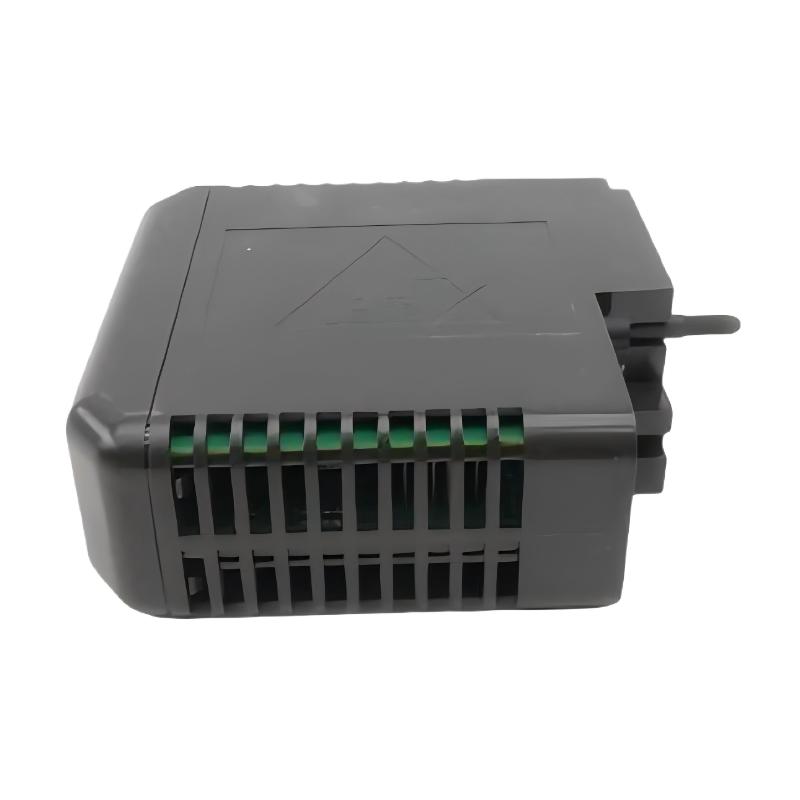

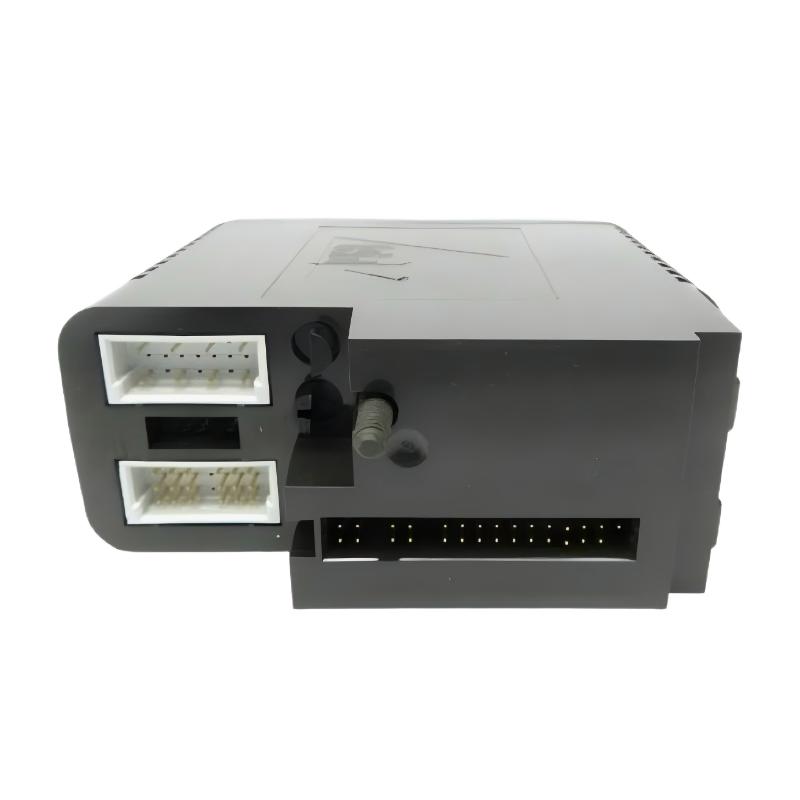

Q1: What is the primary function of the KJ3231X1-BK1 S-Series Isolated Input Card?
A: The KJ3231X1-BK1 is designed to receive digital signals from field devices and safely transfer them to the DeltaV control system while maintaining electrical isolation between the field side and the control side. It serves as a critical interface for monitoring equipment status, process conditions, alarms, and operational signals. By isolating incoming signals, the module protects sensitive control equipment from electrical disturbances and improves overall system reliability.

Q2: Why is signal isolation important in industrial automation systems?
A: Industrial facilities often contain equipment operating at different voltage levels and grounding points, which can create ground loops, electrical noise, and transient voltage spikes. Without proper isolation, these disturbances may affect control system performance or damage electronic components. The KJ3231X1-BK1 prevents unwanted electrical energy from passing into the control system while still allowing signal information to be transmitted accurately, ensuring safer and more reliable operation.

Q3: What types of field devices can be connected to the KJ3231X1-BK1?
A: The module is commonly used with digital field devices such as limit switches, pushbuttons, relay contacts, proximity sensors, safety interlocks, emergency shutdown devices, and status indication circuits. It is suitable for applications where the control system needs to monitor the ON/OFF status of field equipment and respond accordingly in real time.

Q4: How does the KJ3231X1-BK1 improve system reliability?
A: The module improves reliability through electrical isolation, robust signal conditioning, and advanced diagnostic capabilities. Isolation helps prevent external electrical disturbances from affecting control operations, while signal conditioning ensures accurate interpretation of field inputs. In addition, built-in diagnostics continuously monitor module and channel performance, allowing potential issues to be detected before they lead to process interruptions or equipment failures.

Q5: What diagnostic functions are available in the KJ3231X1-BK1?
A: The KJ3231X1-BK1 provides comprehensive diagnostics for monitoring channel status, communication integrity, and module health. It can detect abnormal input conditions, wiring issues, and hardware faults, and then report this information to the DeltaV system. These diagnostic features help maintenance personnel quickly identify problems, reduce troubleshooting time, and improve overall system availability.

Q6: What are the common signs of an input card problem?
A: Symptoms may include missing input signals, incorrect device status indications, intermittent alarms, communication warnings, or abnormal LED status indicators on the module. Operators may also notice that field devices appear inactive even though they are functioning correctly. In such cases, wiring integrity, field device operation, module diagnostics, and system configuration should all be checked to determine the source of the issue.

Q7: How is the KJ3231X1-BK1 integrated into a DeltaV S-Series system?
A: The module is installed in a DeltaV S-Series I/O carrier and communicates with the controller through the system backplane. Field wiring is connected directly to the module, allowing real-time monitoring of input signals. The collected data can then be used for process control, alarm management, equipment monitoring, sequence control, and safety-related applications. Its modular architecture also simplifies system expansion and maintenance.

Q8: What maintenance practices help ensure long-term performance of the KJ3231X1-BK1?
A: To maximize reliability, technicians should periodically inspect field wiring, terminal connections, grounding systems, and cabinet conditions. The module should be operated in a clean environment with adequate ventilation and protection from excessive moisture, dust, and vibration. Regular reviews of diagnostic data and system health reports can help identify developing issues before they affect production. Implementing a preventive maintenance program and verifying input signal integrity on a routine basis can significantly extend the module’s operational life and improve system uptime.
